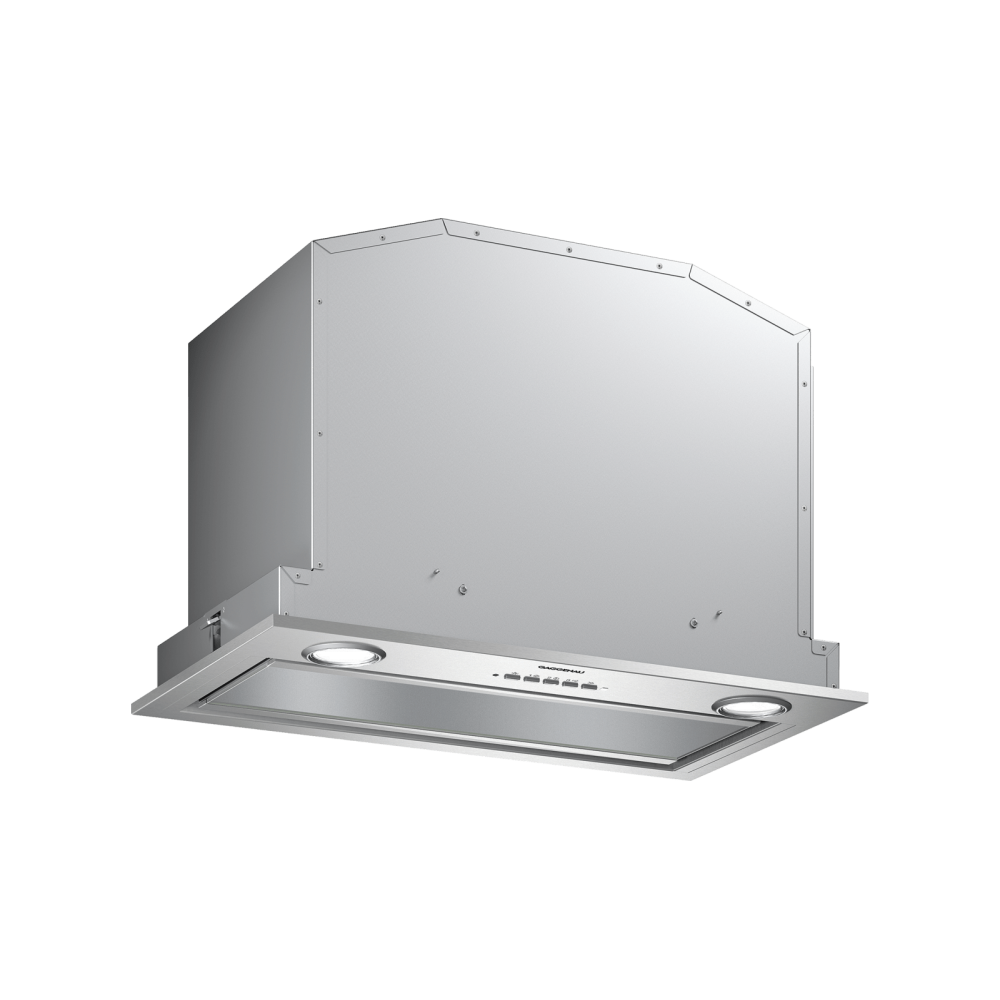

Suction center from 52 cm
Suction center for hanging
Series 200
AC 200
Integrable to disappear in the wall.
Low noise and high motor
energy saving.
Perimetric suction with
glass cover with flat design
and easy to clean.
Adjustable LED white light for
optimal lighting of the floor
work.
Extraction or recirculation system
air.
Benefits
Performance and noise: 3 levels of
power + intensive: max power. of
suction according to DIN EN 61591.
Sound power according to EN 60704-3.
Sound pressure second
EN 60704-2-13. Reduction of odours
recirculation mode according to EN 61591.
Apparatus width 86 cm
Air extraction:
610 / 800 m3/h.
64 / 70 dB (A) re 1 pW.
Air recirculation:
540 / 790 m3/h.
73 / 78 dB (A) re 1 pW.
Reduction of 94% odours in
recirculation operation.
Apparatus width 70 cm
Air extraction:
575 / 775 m3/h.
64 / 70 dB (A) re 1 pW.
Air recirculation:
540 / 740 m3/h.
73 / 78 dB (A) re 1 pW.
93% reduction in odours
recirculation operation.
Tool width 52 cm
Air extraction:
540 / 730 m3/h.
64 / 70 dB (A) re 1 pW.
Air recirculation:
530 / 690 m3/h.
70 / 77 dB (A) re 1 pW.
92% reduction in odours
recirculation operation.
Description
3 levels of control power
electronic and operating mode
intensive.
Remote control as an accessory
special.
Spaced suction, 6 min.
After cooking, 6 min.
Filter saturation indication
grease.
Metal filter, washable in
dishwasher.
Glass filter cover.
LED white light (4000 K), adjustable.
Light power 2 x 1 W.
Lighting 266 lx.
Engine operating technology
electromagnetic without brushes
BLDC for optimal efficiency.
Consumption values
Energy efficiency class A++/
A++/A++ in a class scale
energy efficiency from A++ to E.
Energy consumption 31,4/30,3/29,6
kWh/year
Suction efficiency class:
A/A/A.
Lighting efficiency class:
A/A/A.
Filter efficiency class: D/D/D.
Sound level min. 41/42/44 dB / max.
64/65/67 dB with suction level
normal.

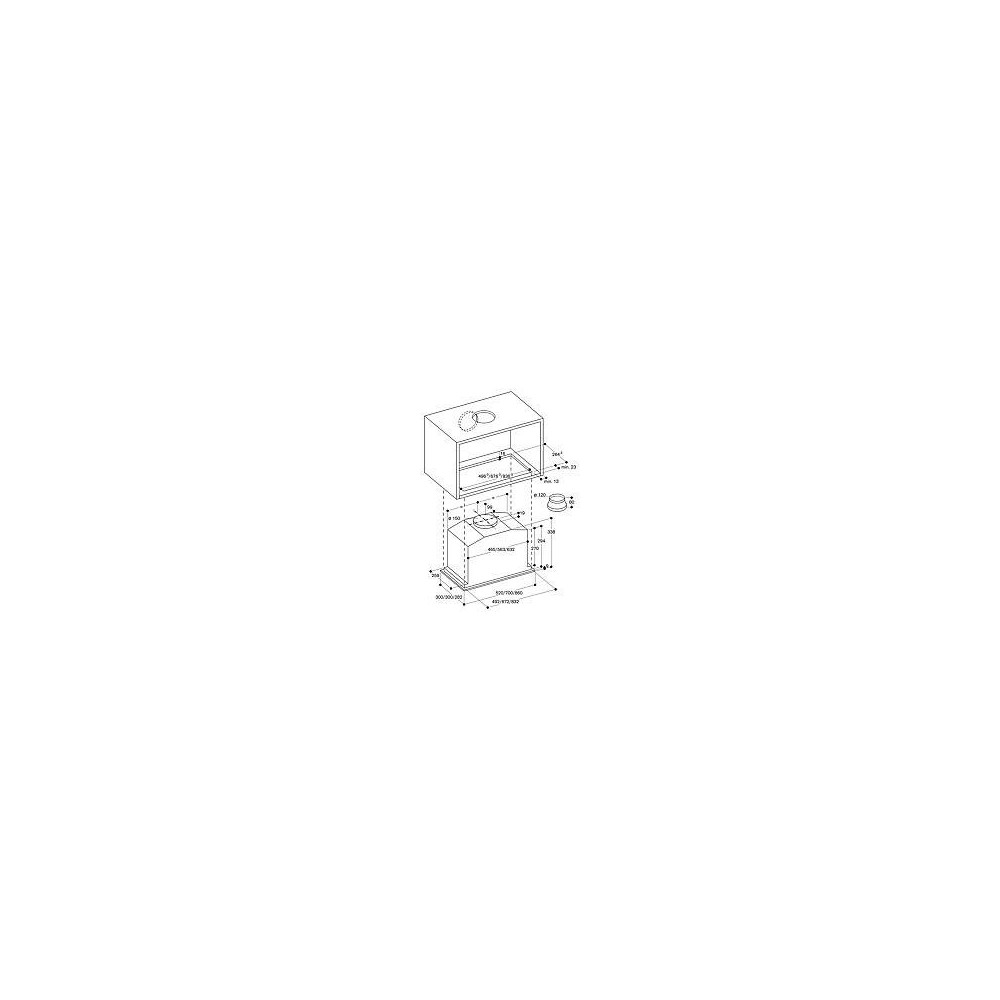

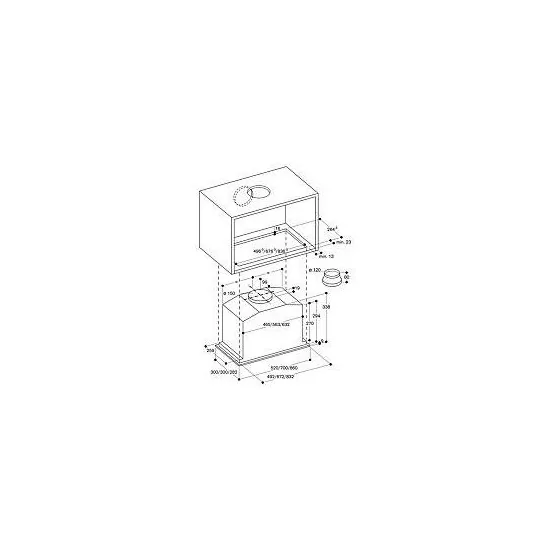

Mounting precautions
Patented air recirculation module
with active carbon filter. Can be
installed at the top of the
think about it. Active carbon filter can be
changed frontally by extracting
filter drawer.
The hanging door is open
completely when changing the filter.
Various plans with intense production
steam like VR/VP must be
centred on the hood.
Distance min. from gas plans
below: 65 cm; if absorption
of the plan is greater than 12 kW min.
70 cm.
Distance min. from electric cooking floors
below: 50 cm.
If installed in extraction mode
predict a safety switch
in case a device is present
free flame with ventilated fireplace (e.g.
fireplace).
Connection values
Total absorption 172/172/172 W.
Connecting cable 1.0 m with plug.
