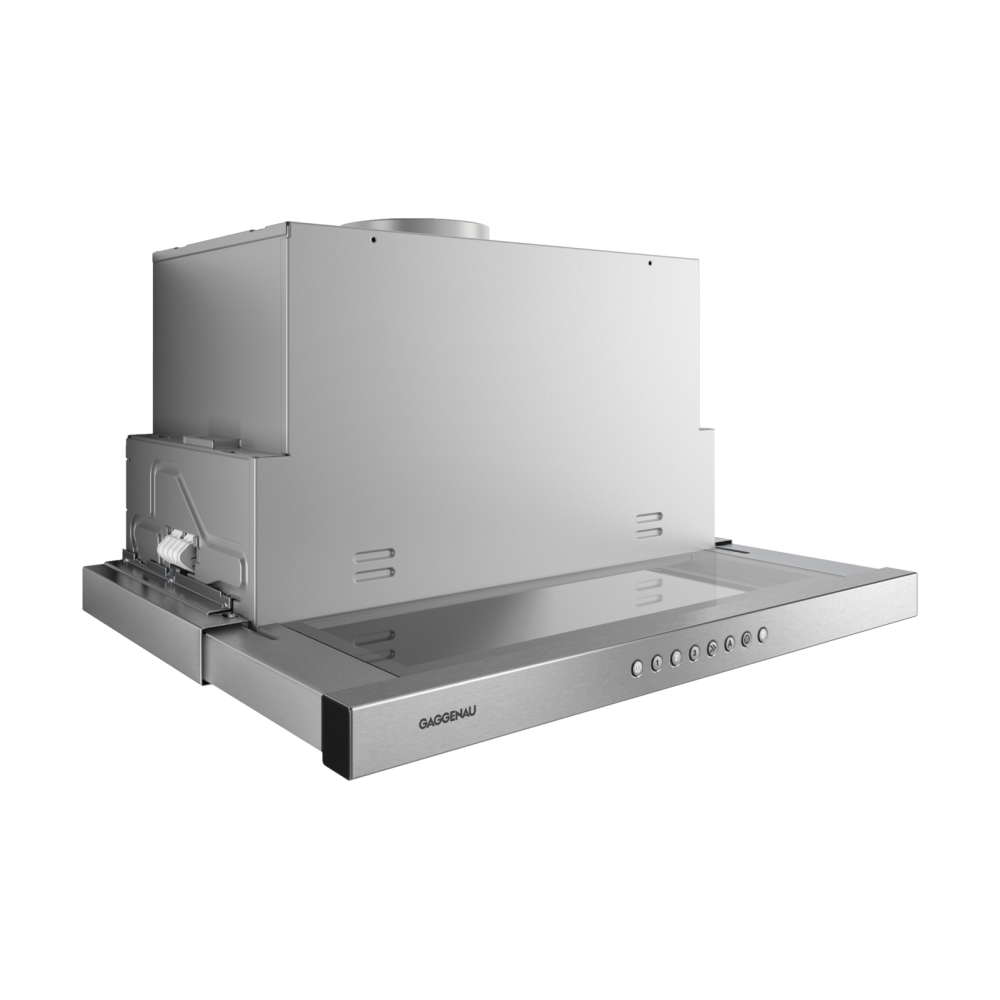

Suction center from the roof with removable deflector Series 200
AF 210
Integrated glass panel.
Estramamente silent thanks to
integrated insulation.
Extensible glass screen
through a touch on the bar
front.
Stainless steel working body
brushed.
High degree of air extraction.
Low noise and high motor
energy saving.
Adjusted suction power
automatically via sensor
air quality control.
The lower frame allows for
hood to disappear completely
in the wall.
Extraction or recirculation system
air.
Suitable for operating kits
recirculation with active carbon filter:
for high air recirculation
efficient and quiet.
Benefits
Performance and noise: 3 levels
power + intensive: max power.
intake according to EN 61591.
Sound power according to EN 60704-3.
Sound pressure second
EN 60704-2-13. Reduction of odours
recirculation mode according to EN 61591.
Device width 90 cm
Air extraction:
517 / 965 m3/h.
57 / 71 dB (A) re 1 pW.
Air recirculation:
506 / 876 m3/h.
62 / 69 dB (A) re 1 pW.
Fixture width 60 cm
Air extraction:
515 / 953 m3/h.
57 / 71 dB (A) re 1 pW.
Air recirculation:
497 / 885 m3/h.
62 / 69 dB (A) re 1 pW.
91% reduction in odours
recirculation operation.
Description
Front controls.
Three levels of control power
electronic and operating mode
intensive.
Automatic operation option
and post-coating function with sensor
control of air quality.
Filter saturation indication.
Steel grease filter, washable
dishwasher.
Adjustable LED white light for
optimal lighting of the plan
work.
Light color 3500 k.
Light power 3 x 3 W/2 x 3 W.
Lighting 708 lx.
Lighting can be activated separately.
Engine operating technology
electromagnetic without brushes
BLDC for optimal efficiency.
Integrated insulation for a
slightly noisy operation.
The fan is activated when the screen
is extracted.
Extend suction screen
up to 198 mm.
Internal air flow optimized for a
air circulation and optimal cleaning.
Easy installation.
The packaging includes a non-valve valve
come back.
Consumption values
Energy efficiency class: A
in a scale of efficiency classes
energy from A+++ to D.
Suction efficiency class: A.
Lighting efficiency class: A.
Filter efficiency class: B.
Sound level min. 41 db / max. 57 db
with normal suction level.
Mounting precautions
Air recirculation module with filter
activated carbons. Can be installed
at the top of the wall.
Active carbon filter can be
changed frontally by extracting
filter drawer.
The hanging door is open
completely when you change the
filter.

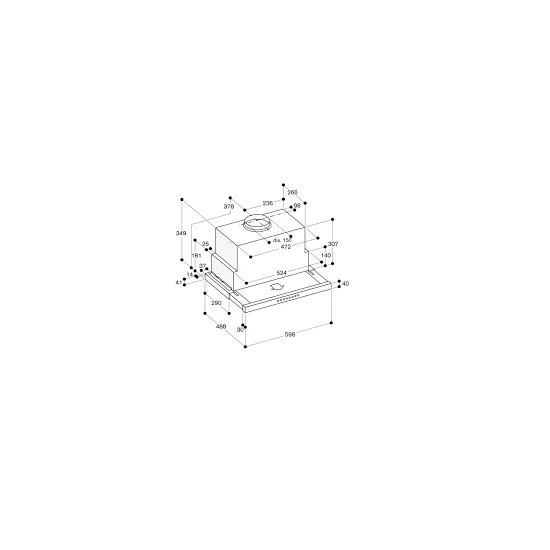

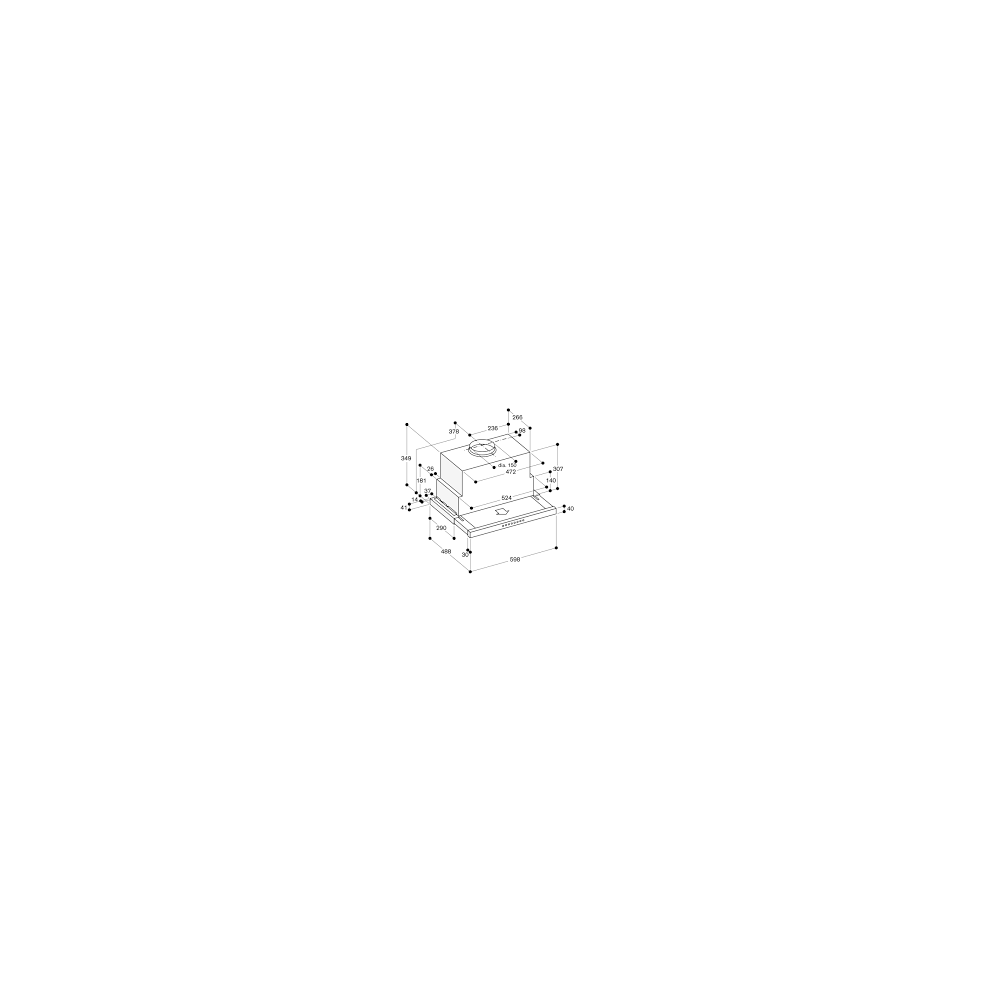

The depth of the cavity of the wall
added to the frame
reduced is 355 mm.
The cavity height of the part
top of the hanging niche
added to the measured low frame
600 mm.
Distance min. from gas plans
below: 65 cm; if absorption
of the plan is greater than 12 kW min.
70 cm.
Distance min. from electric cooking floors
below: 43 cm.
If installed in extraction mode
predict a safety switch
in case a device is present
free flame with ventilated fireplace (e.g.
fireplace).
Connection values
Total absorption 266 / 264 W.
Connection cable 1,8 m with plug
