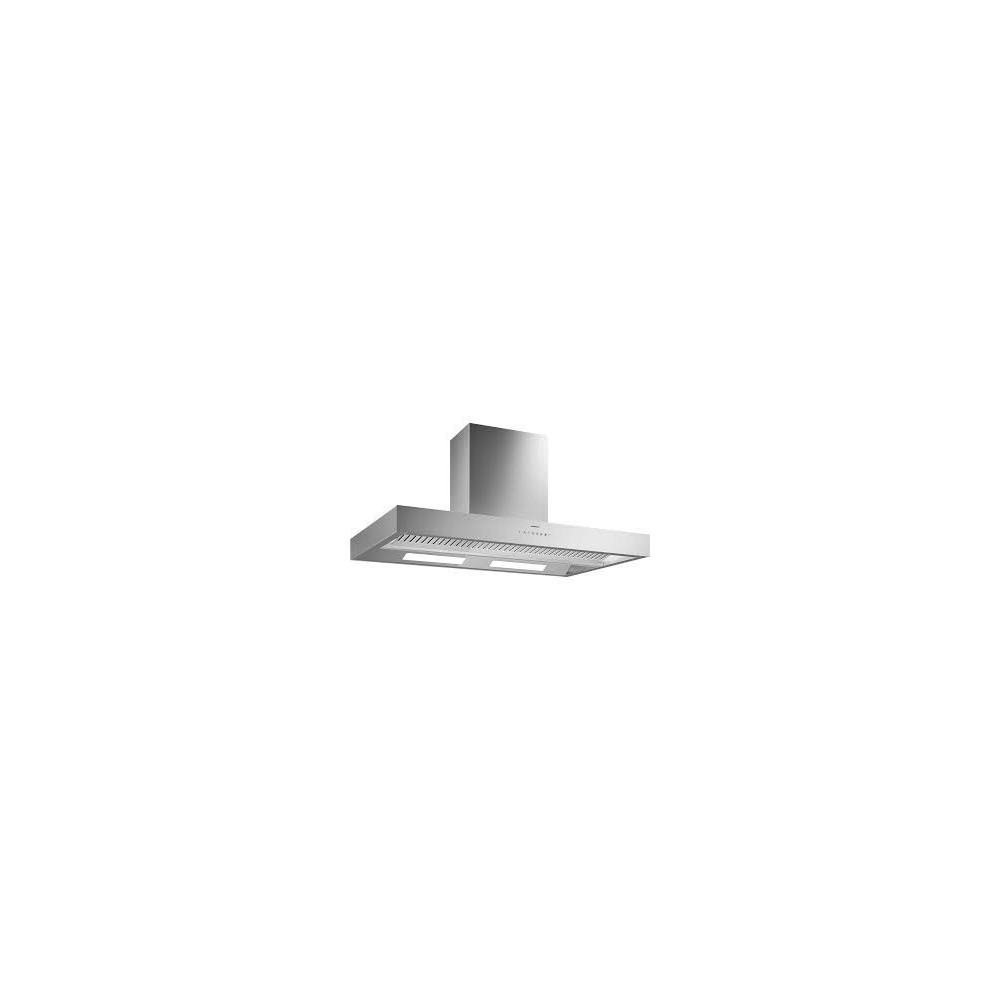

Island suction centre
400 Series
A I 442
-- Professional filter technology
combined with classic Gaggenau design.
Gaggenau design.
-- Highly efficient vapour extraction
efficient thanks to a large
suction surface.
-- Without motor, can be combined with
Gaggenau BLDC motors.
-- Slanted filter hood with high
degree of grease absorption.
-- Suction power regulated
automatically via air quality control sensor.
air quality control sensor.
-- Warm, adjustable LED light, ideal
ideal for illuminating the entire hob.
hob.
-- Extraction or recirculating
air recirculation system.
-- Can be combined with
recirculation with active carbon filter:
for highly efficient and silent air recirculation
efficient and silent air recirculation.
Performance
Power and noise levels
dependent on the Gaggenau motor
chosen and the piping scheme
designed.
Features
3 electronically controlled power levels
electronic control and
intensive operation.
Automatic operation option
thanks to air quality control sensor.
air quality.
Filter saturation indication.
Inclined, dishwasher-safe filter.
Warm white LED light
(3500 k), adjustable.
Lighting power: 4 x 10 W.
Illumination 1390 lx.
Consumption values
Consumption data referring to a
configuration with motor AR 400 143.
Energy efficiency class: A/A/A
on a scale of energy efficiency classes
energy efficiency classes from A++ to D.
Energy consumption 53.5/53.3/52.4 kWh/
year.
Suction efficiency class:
A/A/A.
Lighting efficiency class:
B/B/B.
Filter efficiency class: B/B/B.
Sound level min. 45/44/44 db / max.
62/62/61 db at normal intensity.

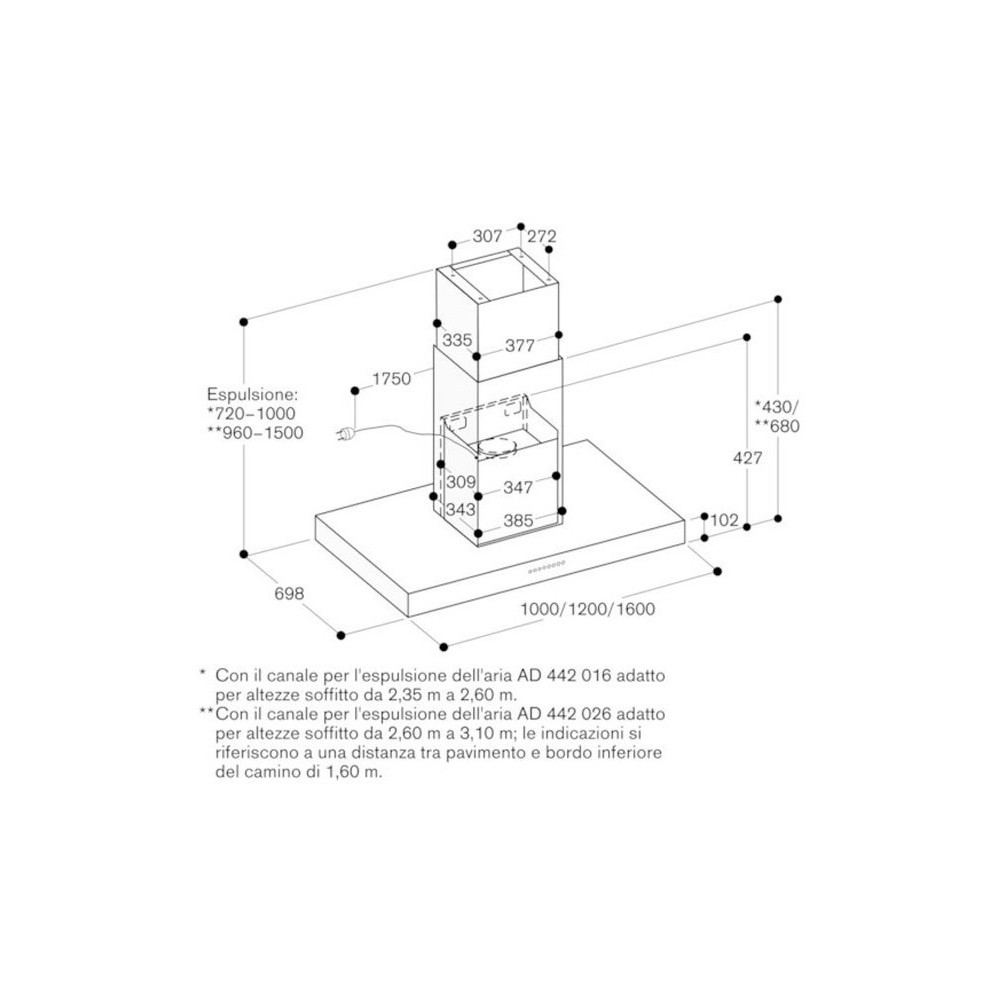

Mounting Precautions
Motor can be combined according to
suction mode: extraction or
recirculation. The channel must be ordered as an
accessory.
Connection to the respective motor via
data cable.
Minimum distance from gas hobs: 70 cm.
Minimum distance from electric hobs
electric hobs below: 60 cm.
Recirculation operating module
with 2 active carbon filters installed
inside the channel. There are
specific channels for this configuration
If installed in extraction mode
provide a safety switch
in case there is an
open flame with a ventilated chimney (e.g.
chimney).
Connection values
Total consumption 50/50/50 W.
Connection cable 1.8 m, with plug.
