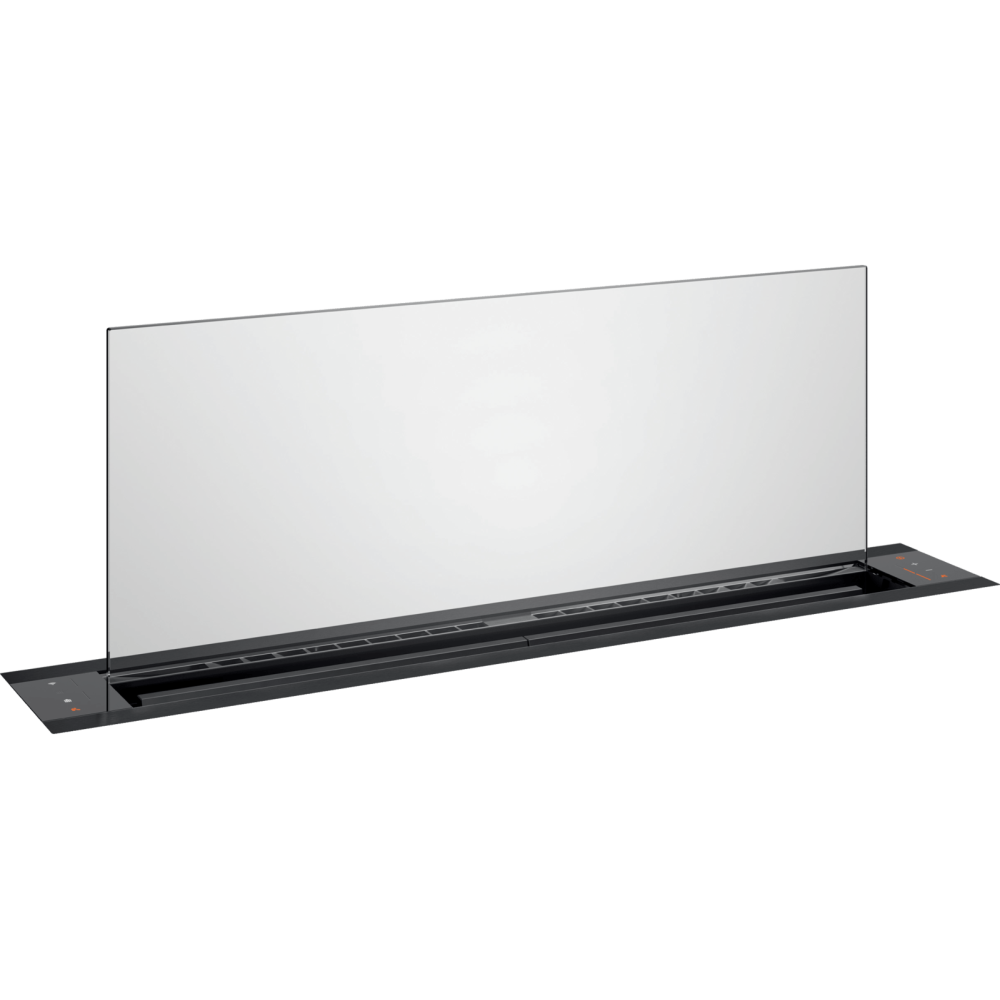

Gaggenau AL200180 telescopic floor 80 cm

Telescopic suction centre

glassDraft 200 Series

AL 200

Telescopic suction centre

floor, completely missing

when it's not working.

Perfectly combinable with floors

induction cooking without frame

80 cm wide for

wire installation.

Transparent glass panel for

a discreet integration

in the kitchen environment.

Elegant illuminated panel profiles.

The revolutionary technology Guided

Air ensures high capture of smokes

and vapors on the whole surface of the

stove top.

Operation

Performance and noise: 3 levels

power + intensive, power

max. intake according to EN 61591.

Sound power according to EN 60704-3.

Sound pressure according to EN

60704-2-13.

Odours reduction in recirculation mode

according to EN 61591.

Air extraction:

501 / 775 m3/h.

62 / 70 dB (A) re 1 pW.

Air recirculation:

447 / 562 m3/h.

65 / 70 dB(A) re 1 pW.

Description

Profiles of illuminated glass panel

with elegant white light (you can

set additional light colors

via the Home Connect app).

Suction with integrated control

plan (with compatible model).

Automatic operation option

and post-coating function with sensor

control of air quality.

3 levels of electronic control power

and intensive operation modes.

Anti-fat filter saturation indicator.

Carbon filter saturation indicator

active.

2 wide anti-fat metallic filters, easy

to be removed, dishwasher safe.

Anti-fat filter collection capacity

170 ml.

Guided Air technology: thanks to a

innovative air flow coming

from the back of the glass panel, fumes

and vapours generated at any point

on the cooking surface are

effectively conveyed in cavity

aspiring, for a total capture.

Further collection capacity of 600 ml

in the engine unit.

Active carbon filters easily

removable from above.

Aluminum Panel Frame

anodized finish Gaggenau Black.

Engine operating technology

electromagnetic without BLDC brushes

for optimal efficiency.

Flexible installation of motors in

front (for compact solutions

wall), rear (for solutions

without loss of depth of drawers)

or from the appliance (max 3 m).

Home Connect

Integrated digital services (Home Connect)

with wireless home network via WiFi.

The operation of the Home mode

Connect depends on the availability of

home Connect service in each nation.

For further information visit

www.home-connect.com.

Consumption values

Energy efficiency class A

(in a scale of efficiency classes

energy from A+++ to D)

Energy consumption 36.9 kWh/year

Ventilation efficiency class: A.

Lighting efficiency class: -Yeah.

Filter efficiency class: B.

Sound level min. 39 db / max. 62 db

with normal suction level.

Mounting precautions

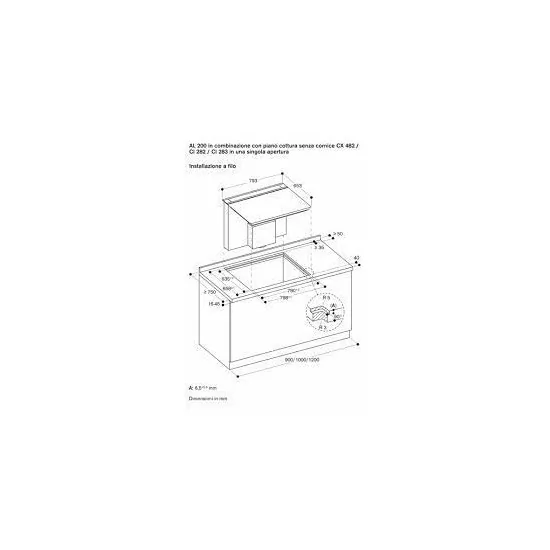

Combined with stove tops

frameless induction 400 Series

(CX 482) or Series 200 (CI 282 / CI

283), in a single recessed hole

(necessary kit VA 200 080).

Combined with stove tops

frame induction:

Series 400 (CX 482, VI 482) or

Series 200 (CI 282 / CI 283),

in 2 separate holes with installation in

support (A 200 900 kit required).

Not combinable with gas or floors

various Grill and Teppan Yaki.

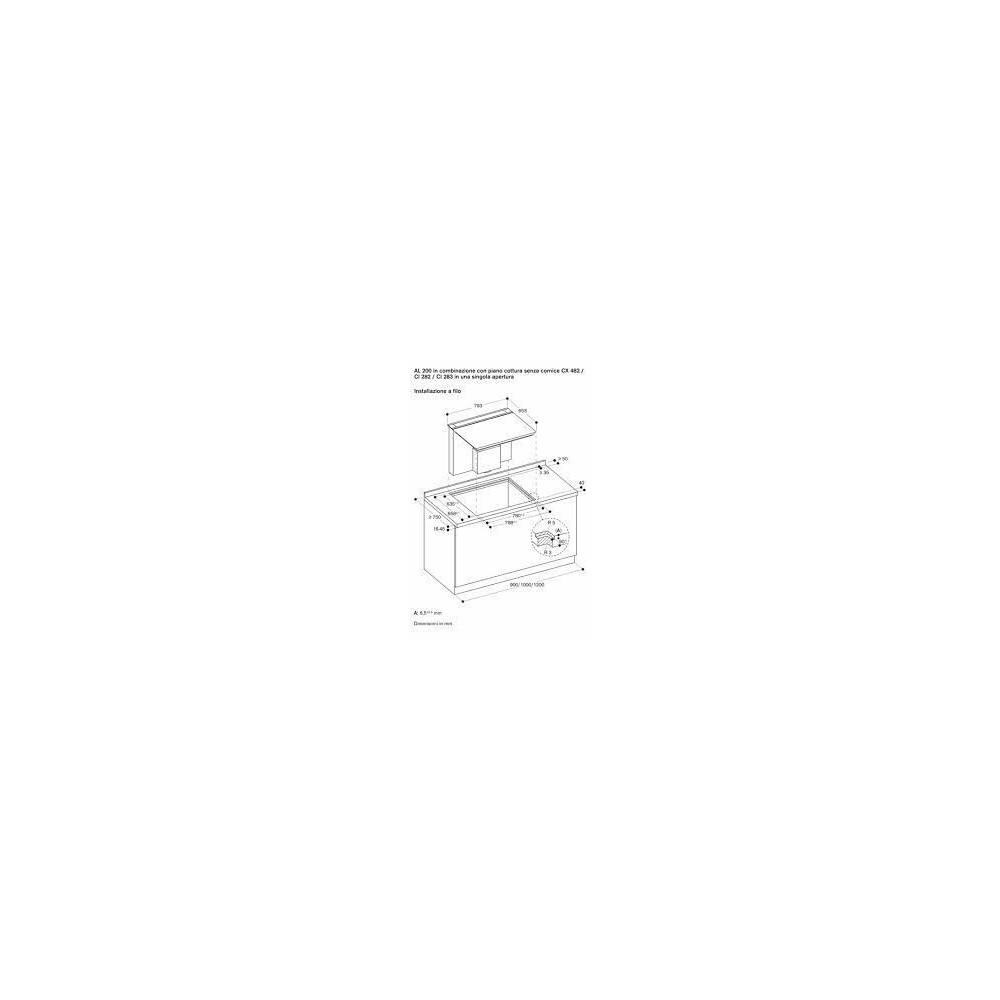

For installation in a single hole

recessed installation accessory

must be placed between

equipment. This includes an element

of conjunction and support for

work plan able to guarantee the

stability of the furniture.

The hood can be installed in

a furniture or between two furniture (e.g

island installation on deep floors

more than 100 cm).

Depth of furniture 90 cm, 100 cm or

120 cm.

Do not install hanging over the hood from

plan to ensure a performance

optimal.

The following distances must be

respected:

- 65 cm from the shelf hood /

open shelving.

- 50 cm from walls or high furniture to the left and

right of the hood.

- 5 cm from the wall compared to the frame

of the hood.

- 2 cm from the air capture area

Air guide to the inner wall

mobile.

Installation is possible in floors in

stone, synthetic or solid wood.

Resistance must be respected

thermal and tinned edges

of the carving. With regard to others

materials please consult the

producer of the work plan.

Worktop Thickness for

wire installation in one hole

recessed: min. 16 mm - max 45 mm.

Flow and stability, in particular

in the case of thin work plans, must

be supported by appropriate means

substructures. Take in

consider the weight of the appliance

and additional loads.

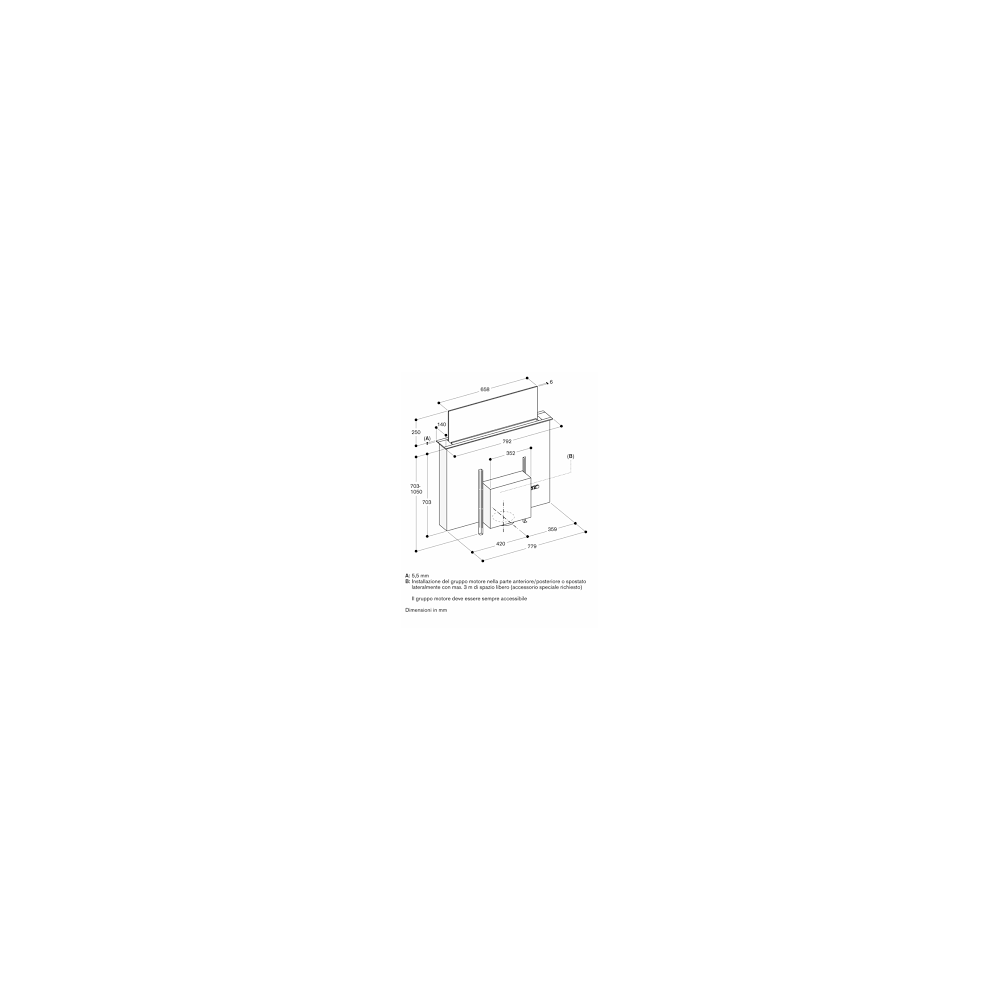

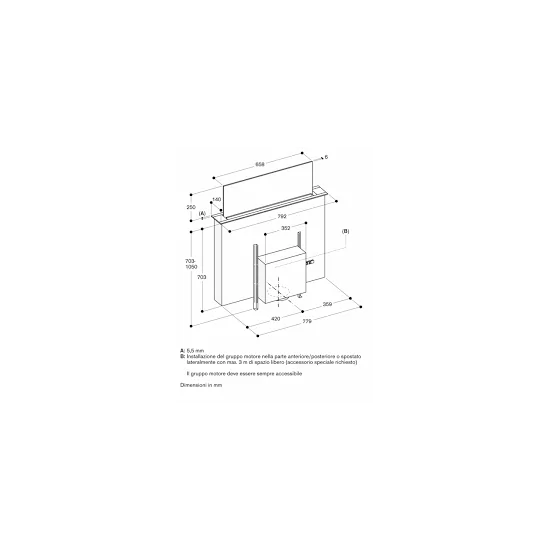

In case of positioning the unit

remote motor, you need a kit of

installation (with components useful to

closing of air exits). IMPORTANT: ensure that the compartment

the engine is always accessible.

Maximum motor distance from the body

3 m hood (read more kit

aA 200 910 installation).

The powerful motor is able to

ensure optimal performance with a

channeling up to 8 meters and 3 curves

90°.

In air extraction mode must

a valve not to be installed

return with opening pressure

maximum of 65 Pa.

In air extraction mode,

always ensure an adequate contribution

of air in the room if

the device is activated

at the same time the presence of

an active ventilated fireplace.

For optimal recirculation performance

air, we recommend a surface of

outflow of at least 440 cm2.

For air recirculation mode is

need to use the dedicated module.

Connection values

Total absorption 300 W.

Connection cable length 1.3 m,

with plug.

Consumption in standby/display OFF 0.4
