Intake unit from 400 Series
VL 414
–– Perfectly combined with
cooking floors Vario Serie 400.
–– Precise steel processing with
thickness 3 mm.
–– Solid knob steel controls
stainless steel supplied.
–– High suction system
efficiency and low noise, in
especially if combined with unity
aR 410 110 engine.
–– Adjusted suction power
automatically via sensor
air quality control.

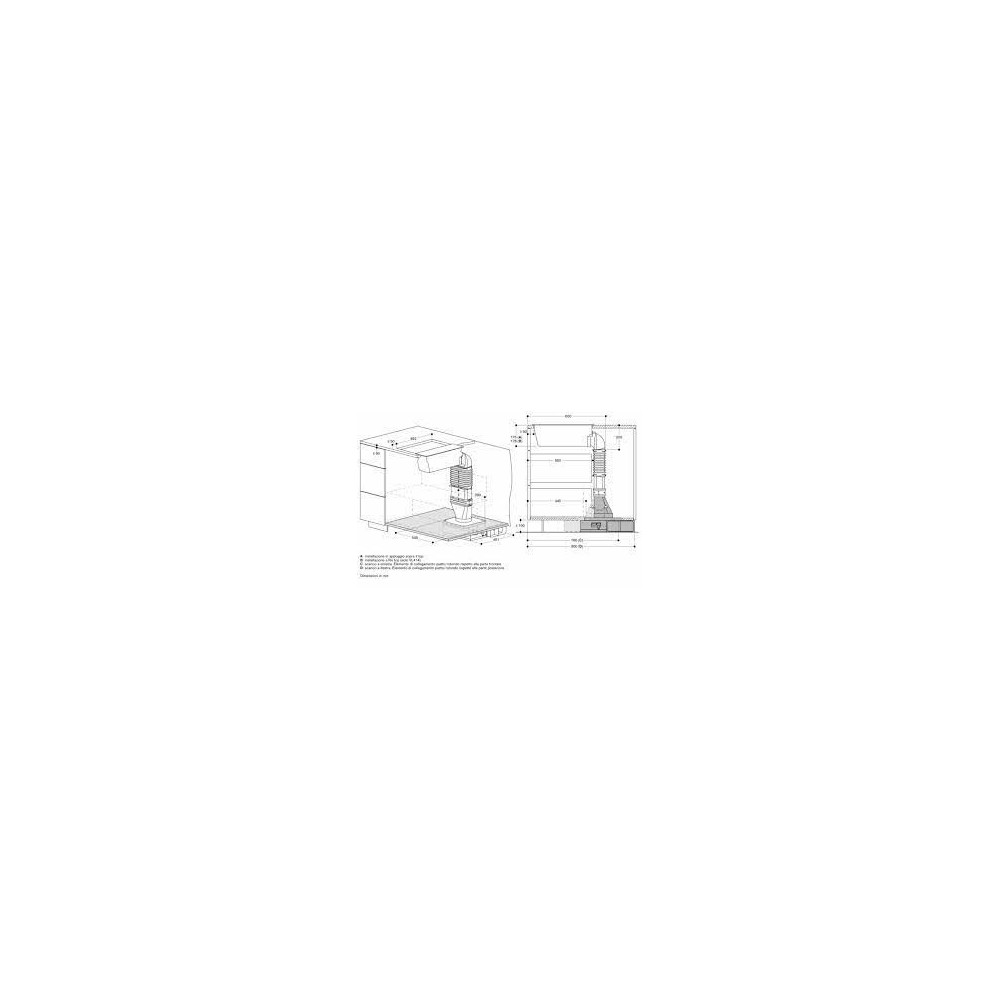

–– Design and installation
simplified.
Benefits
Power and noise levels
dependent on the motor Gaggenau chosen
and the planned piping scheme.
Description
Steel control knobs with
light ring supplied.
3 levels of control power
electronic and operating mode
intensive.
Automatic operation option
thanks to the control sensor
air quality.
Controlled post-coating function
via sensors or manually.
Metal filter for collecting
fat with high capacity
absorption.
Removable and washable anti-fat filter
dishwasher.
Filter saturation indicator
anti-fats and active carbon filter.
Interns optimized for circulation
extremely efficient air.
Spaced suction, 6 minutes.
Glazed suction grill, washable
in the dishwasher.
Exhaust connection included with
the device.
Storage tank with capacity
of 250 ml.
Equipped with control module
pianocappa (with compatible model).
Home Connect
Integrated digital services (Home)
Connect) with cable home network
LAN (recommended) or via WiFi.
The operation of the Home mode
Connect depends on the availability of
home Connect service in every
nation. For further information
visit www.home-connect.com.
Consumption values
Consumer data relating to a
configuration with AR 403 engine
122.
Energy efficiency class A+
(In a scale of efficiency classes
energy from A+++ to D)
Energy consumption 40.4 kWh/year
Ventilation efficiency class: A.
Lighting efficiency class: -Yeah.
Filter efficiency class: B.
Sound level min. 57 db / max. 71 db
with normal suction level Installation precautions
For extraction/add operation
ejection refer to the different
available engines.
Please see the dedicated section
to know tubes and connectors
use.
Each VL must be connected to
a dedicated engine unit.
Between two VL elements it is possible
install width cooking plans until
to 60 cm and 80 induction model
cm Series 400 VI 482.
It is recommended to place Grill
electric and gas plans Wok Always vary
between 2 VL.
Important: never install one
VL in combination with a Grill
electric VR in recirculation mode.
In case of installation near a floor
gas to predict the deflector accessory
AA 414 010.
The device is equipped with springs
fixing that block the floor after
the insertion from above.
Depending on the type of installation (add
support or wire), configuration
of the carving and the position of the
knob may vary.
If multiple devices are combined
vario 400 series without cover
the use of the element of
conjunction VA 420 between the various
equipment. Depending on the type
installation must be expected
corresponding element of
conjunction.
Important: any cooking plans
(VG, VP and VR), if you have a lid
stainless steel, can be installed
only in single recessed rooms. Therefore,
you can not combine them more
equipment in a single hole. If you do
install multiple devices in singles
carvings, the minimum distance between them must
to be 50 mm.
Flow and stability, in particular
in the case of thin work plans, must
be supported by appropriate means
substructures. Consider
the weight of the appliance and loads
additional.
Additional instructions for installation
wire:
Installation is possible in plans
stone, synthetic or solid wood.
Resistance must be respected
thermal and tinned edges
of the carving. With regard to others
materials please consult the
producer of the work plan.
The groove must be continuous and
uniform, so as to ensure the correct
positioning of the device on
gasket. Do not use a
discontinuous coating.
The joint width may vary
due to dimensional tolerances of
combinations and carving on the plan of
work.
In case of installation in a mode
extraction in a place where it is present
a working fireplace, predict a
safety window switch
connected to the hood.
Connection values
Connection cable length 1.75 m.
Predict LAN cable.
