S1000 cooking stove
Induction
Induction cooking plants
Code: 7374 300
FEATURES
COMANDS _ The setting of the chosen temperature is very fast with the Slider command: enough
touch the TOUCH display on the desired power level with a finger.
PAUSA Useful function that allows you to divert attention from your cooking, interrupting and
restoring the set modes instantly.
POWERBOOST Ensures an increase in power to the selected plate. In particular, when activated
the Booster, the plate works for ten minutes to a very high power that allows
quickly heat large amounts of water.
POT DETECTOR The floors Foster not only do they recognize the presence of pots, but they calculate the surface
support. This system allows an even more efficient use of energy. Remove
the pot, moreover, the plates turn off automatically.
FINE PROGRAMME
COT
All operations are set via touch-control controls on the floor crystal.
Each plate is equipped with independent programming that allows you to set different
cooking times.
SYSTEM Proper ventilation is essential for optimum operation of induction plans. The
system Foster SECURITY All electrical floors Foster are equipped with the most modern and sophisticated safety guards:
Centralized shutdown; Safety lock; Residual heat indicators. The models
induction are also characterized by the following functions: Safety System that turns off the floor
in the lack of pots; Overflow detector, which automatically turns off the plate in case of
liquid transcimation; Automatic deactivation, to prevent accidents caused by
forgetfulness.
POWER CONTROL FUNCTION The PowerControl function allows you to use induction technology freely even in
3 kW standard utilities. In fact, the user can easily change the maximum level
plan absorption, from a minimum of 2.8 kW to the “non-limited” solution. Once defined
the maximum power, we can forget about the absorption, as the induction plan
Foster will think to warn us of any limits, leaving us the choice to restart the power
as we wish. At any time the plan can be easily reprogrammed
to change or remove the power limit.
DETAILS
Type Piano Induction Cooking
Vetroceramic material
Coloring Black
Edge Installation Straight Edge – for flat wire installation or for overtop recess
Heating element 3 zones
Basic dimensions 90cm
Width 84 cm

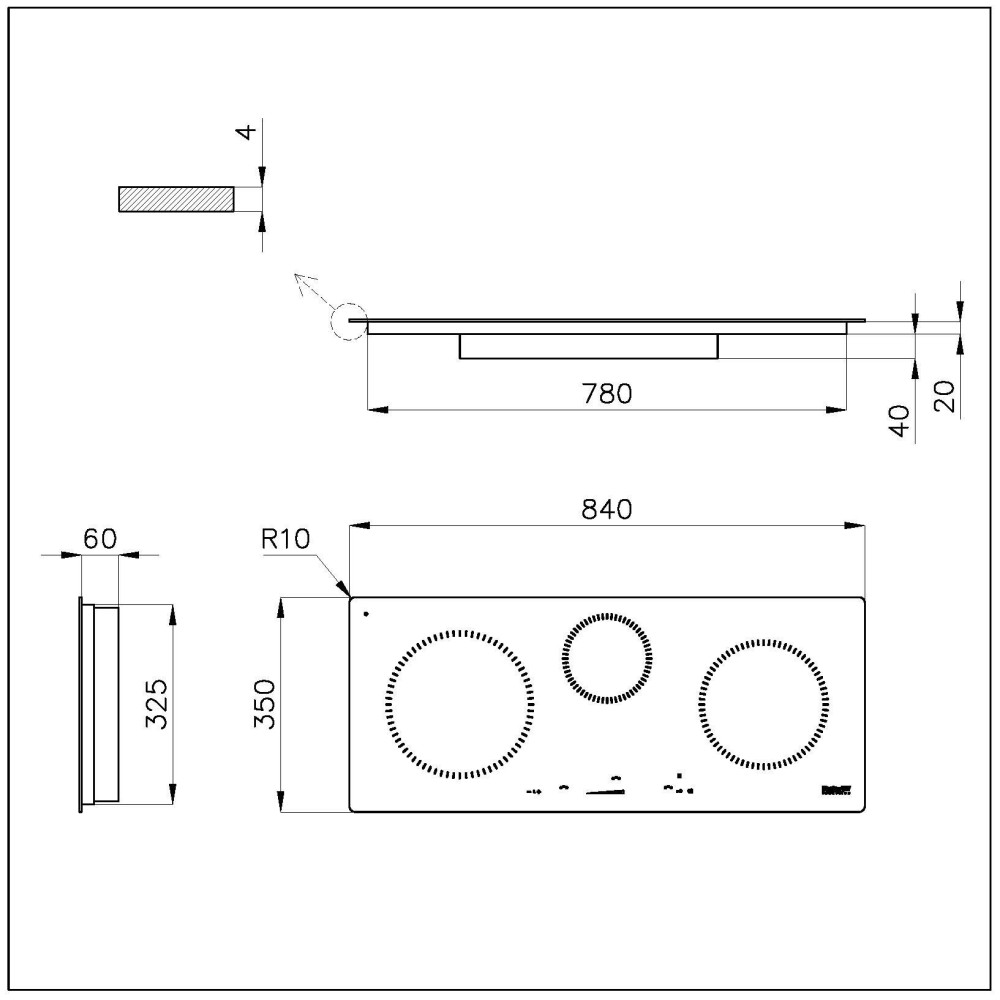

Dimensions 840 x 350 mm
Recessed hole See specification Power supply 230 - 380 V (50/60 Hz)
Total power 2.800, 3.500, 6,000, 6.600*** W
Ø 240 mm - 2.200 (3,000)* W
Center Ø 145 mm - 1,200 (1,600)* W
Ø 210 mm - 1,500 (2,000)* W
Power settings 9 power settings per zone + Powerboost
Security Equipment
Command Type Touch Control
Note: **With the PowerControl function, the maximum power can be set to the values
results
*PowerBoost
