Cooking floor Modular
Square
Induction cooking plants
Code: 7365 040
Modular free positioning system on the floor
work
FEATURES
POWERBOOST Ensures an increase in power to the selected plate. In particular, when activated
the Booster, the plate works for ten minutes to a very high power that allows
quickly heat large amounts of water.
POT DETECTOR The floors Foster not only do they recognize the presence of pots, but they calculate the surface
support. This system allows an even more efficient use of energy. Remove
the pot, moreover, the plates turn off automatically.
SYSTEM Proper ventilation is essential for optimum operation of induction plans. The
system Foster automatically adjusts the ventilation degree according to the temperature
come on.
FINE PROGRAMME
COT
All operations are set via touch-control controls on the floor crystal.
Each plate is equipped with independent programming that allows you to set different
cooking times.
COMANDS _ The setting of the chosen temperature is very fast with the Slider command: enough
touch the TOUCH display on the desired power level with a finger.
CONTAMINUTES A convenient timer cutbacks released from end cooking.
MANTENIMENT CALORE Allows you to keep your dishes in temperature (70° C) gently, without
achieve boiling temperatures or burning the AUTOMATISMO GO&STOP cooking bottom Activate the plates initially at maximum power, until the level set is reached.
RECALLY The function allows you to immediately recall the last settings selected in the
previous cooking.
PAUSA Useful function that allows you to divert attention from your cooking, interrupting and
restoring the set modes instantly.
SECURITY All electrical floors Foster are equipped with the most modern and sophisticated safety guards:
Centralized shutdown; Safety lock; Residual heat indicators. The models
induction are also characterized by the following functions: Safety System that turns off the floor
in the lack of pots; Overflow detector, which automatically turns off the plate in case of
liquid transcimation; Automatic deactivation, to prevent accidents caused by
forgetfulness.
DETAILS
Biellate Edge Installation - for flat wire installation or for overtop recess
Coloring Black
Vetroceramic material
Monophase power supply: 230 V; Biphase: 400 V; 50.60 Hz

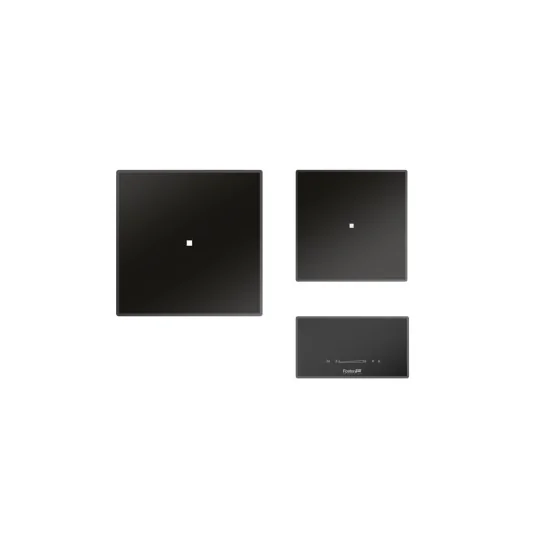

Full description Composition Modular Quadra - 4 fields - black
Heating element 4 zones

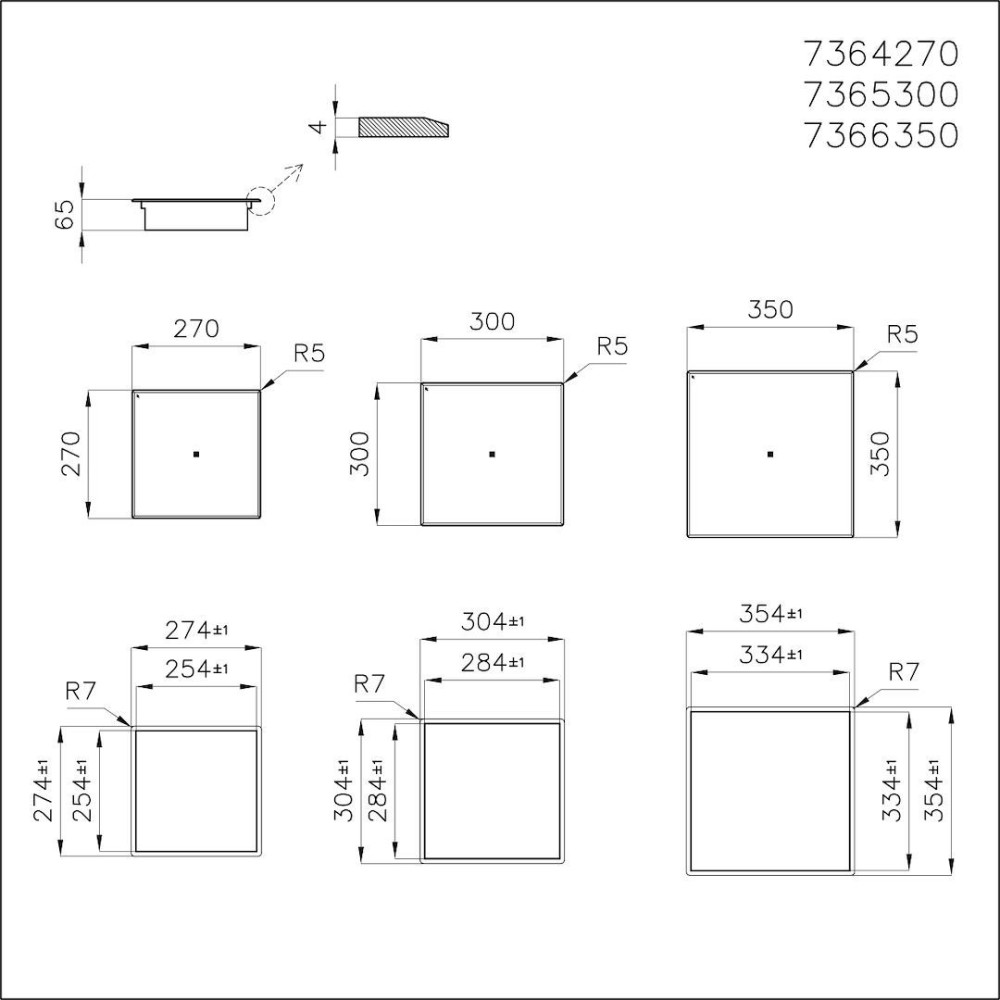

Recessed hole See technical sheet
Note The system presented here is one of the possible compositions of the Modular System. Other
compositions, as from the specification of the Touch element Control.Potenza total 7,400 W
Left 2.300 (3,000)* W
Centre SX 1.100 (1.400)* W
Centre DX 1.100 (1.400)* W
Destro 2.300 (3,000)* W
Power settings 9 power settings per zone + Powerboost
Security Equipment
Type Piano Induction Cooking
Command Type Touch Control
Wine The layout of the elements is subject to constraints dictated by the lengths of the cables
connection. Refer to the specifications of individual components.
Note: * Powerboos
