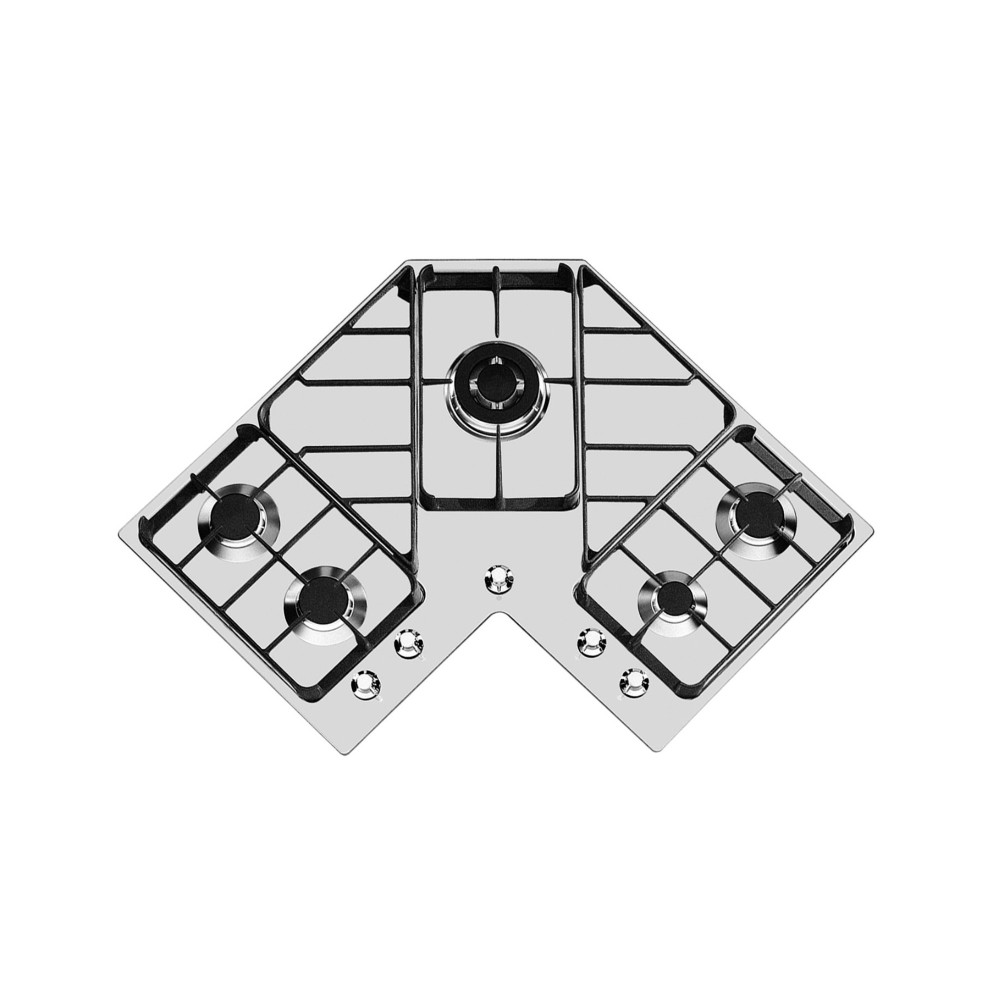

Cooking plan Angola
Gas cooking plants
Code: 7038 052
FEATURES
ACCENSION
SOTTOMANOPLE
Maximum freedom of movement with the electric ignition underhand, common feature
to all models, which allows the activation of the flame with one hand.
SPECIAL MARKET Many floors Foster are equipped with special burners, with two or three fire crowns that increase
of much the power supplied and the heated surface directly. In the models DUAL also the
two fire crowns are independent, making these burners perfect both for cooking
intensive and delicate.
SECURITY All floors Foster are equipped with safety valves that, in case of accidental shutdown
of the flame, interrupt the gas supply in very fast times.
GRIGLI IN GHISA The cast iron is the perfect material for the grill of a stove for the many properties that it
distinguish: high thermal capacity that improves cooking yields; weight and
stability that improve safety; robustness that keeps the appearance unchanged over time
original; ease of cleaning.
DETAILS
Standard Installation Board (Bordo 8 mm)
Brushed finish Foster
Material AISI 304 stainless steel
Texture Brushing online
Power supply 220 - 240 V; 50/60 Hz
Dimensions 830x830 mm
Basic dimensions 83cm
Full description Angular gas hob 83x83 cm - 5 Fuochi - Edge STD - for recessed sopratop
Heating element 5 fires

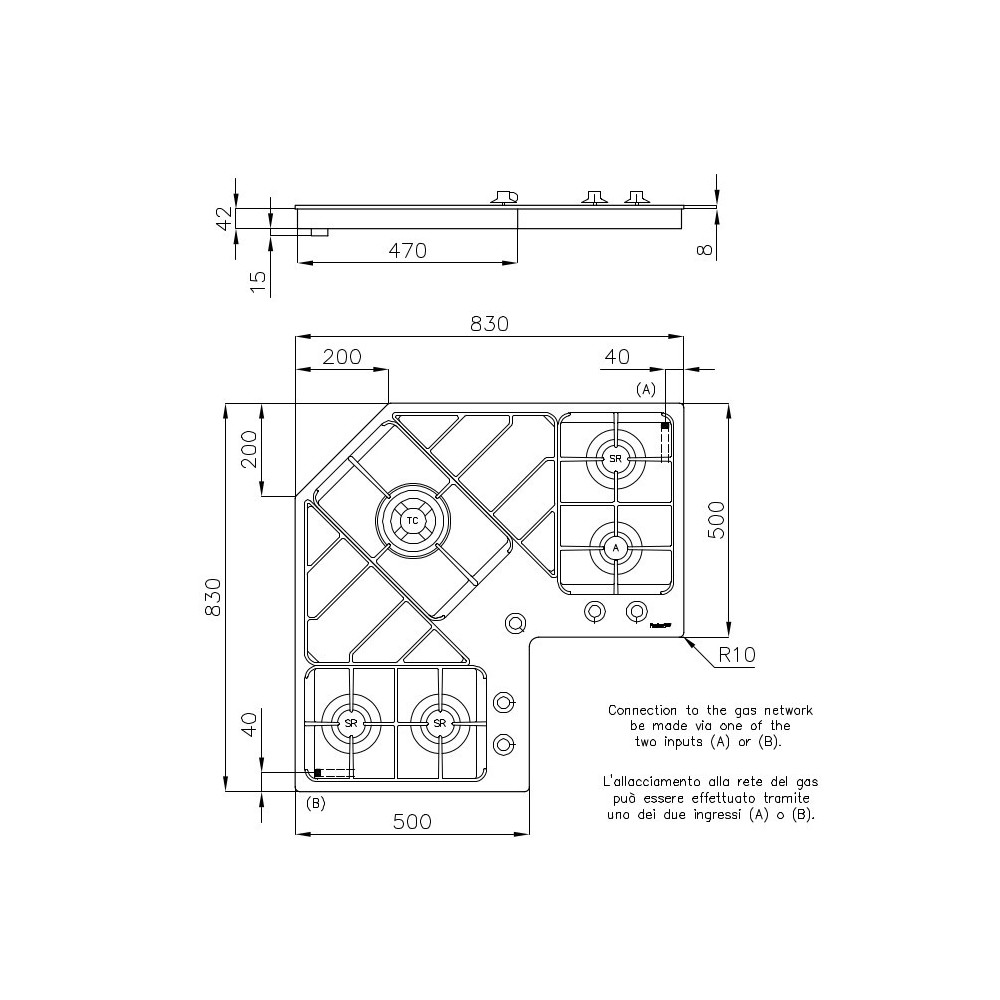

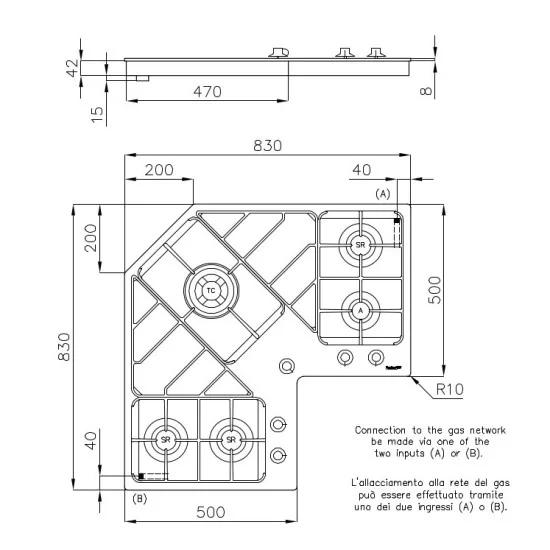

Recessed hole See technical sheet
Grills Grills in cast iron and enamelled warp
Total power 9.750 W
Auxiliary 1,000 W
Semirapid 3x1.750 W
Triple crown 3.500 W
Safety Safety Valve with rapid intervention thermocouple
Type of ignition Electrical ignition
Tested gas type for installation with methane gas, GPL nozzle set included.
Type Gas Cooking Plan
