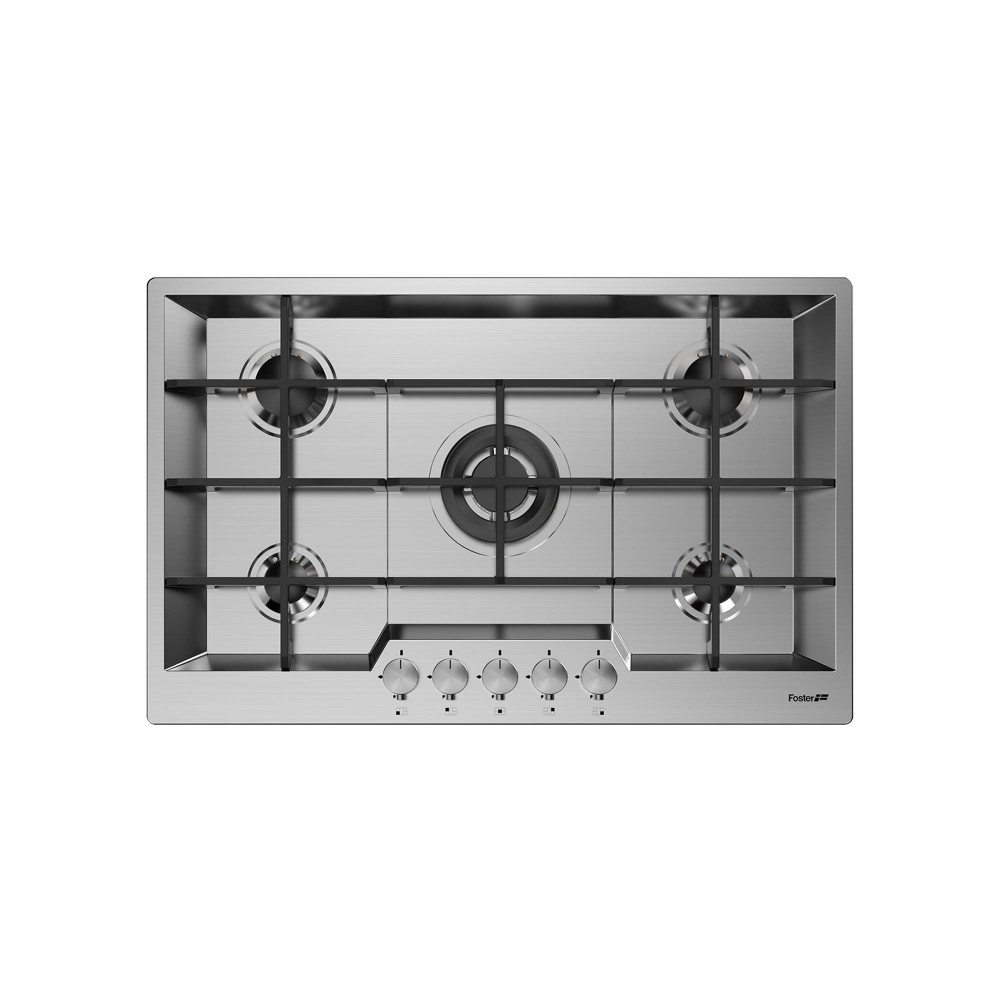

Cooking floor KE
Gas cooking plants
Code: 7602 032
FEATURES
ACCENSION
SOTTOMANOPLE
Maximum freedom of movement with the electric ignition underhand, common feature
to all models, which allows the activation of the flame with one hand.
BRUCIATORI III^ SERIES burners III^ series: saving 20% gas. Ensure efficiency well above standards
europeans. Moreover, the best combustion of the gas allows to develop greater powers. From
safety point of view, the locking system between the lid and the spartifimma guarantees the
perfect positioning and greater practicality in cleaning.
SPECIAL MARKET Many floors Foster are equipped with special burners, with two or three fire crowns that increase
of much the power supplied and the heated surface directly. In the models DUAL also the
two fire crowns are independent, making these burners perfect both for cooking
intensive and delicate.
SECURITY All floors Foster are equipped with safety valves that, in case of accidental shutdown
of the flame, interrupt the gas supply in very fast times.
GRIGLI IN GHISA The cast iron is the perfect material for the grill of a stove for the many properties that it
distinguish: high thermal capacity that improves cooking yields; weight and
stability that improve safety; robustness that keeps the appearance unchanged over time
original; ease of cleaning.
INVASO INCLINED INVASO INCLINED common washbasin and cooking floor
great class combination, functional in the use and cleaning of surfaces.
ULTRAPY Ultra-flat models are the classic example of an encounter between aesthetics and functionality. Elegant
grills, which form a single wide surface, on which to move the pots in full
security.
DETAILS
Type Gas Cooking Plan
Heating element 5 fires
Material AISI 304 stainless steel
Texture Brushing online
Brushed finish Foster
Standard Installation Board (Bordo 8 mm)
Base dimensions 75 cm*
Width 79 cm

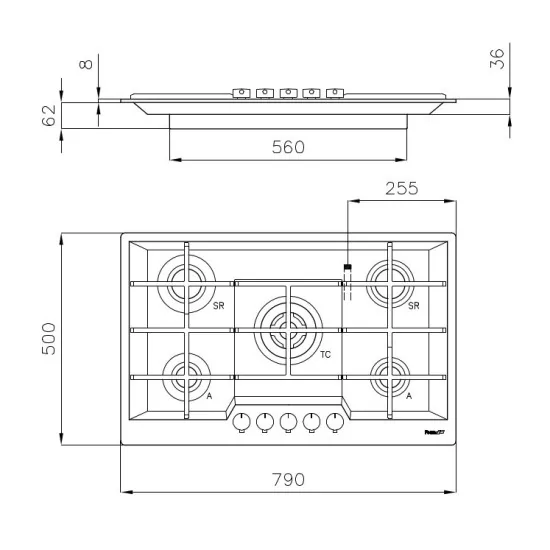

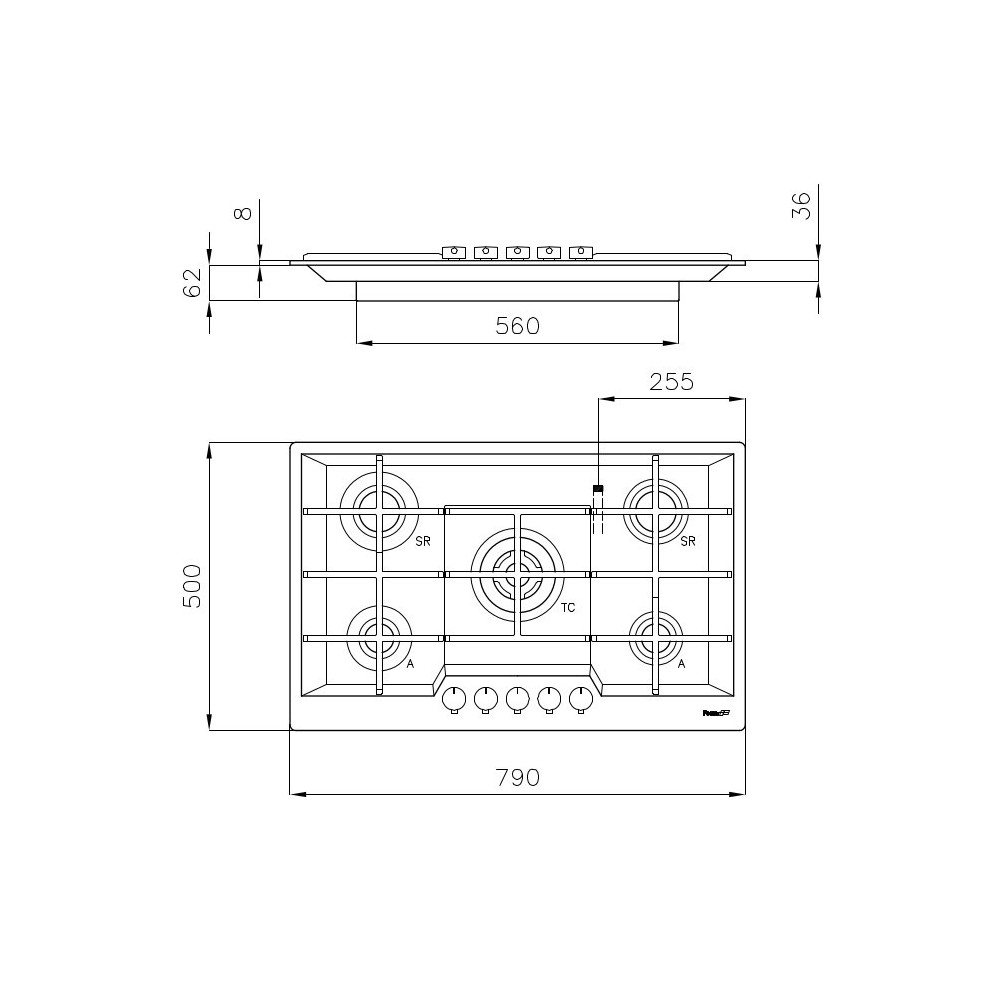

Dimensions 790 x 500 mm
Recessed hole 750 x 480 mm
Power supply 220 - 240 V; 50/60 Hz
Total power 9.500 W
Auxiliary 2 x 1.100 W
Semirapid 2 x 1.750 W
Triple crown 3.800 W
Tested gas type for installation with methane gas, GPL nozzle set included.
Type of ignition Electrical ignition
Safety Safety Valve with rapid intervention thermocouple
Grills Grills in cast iron and enamelled warp
Notes: *Possibility of installation on bases of 75 and top with maximum thickness 12 mm
