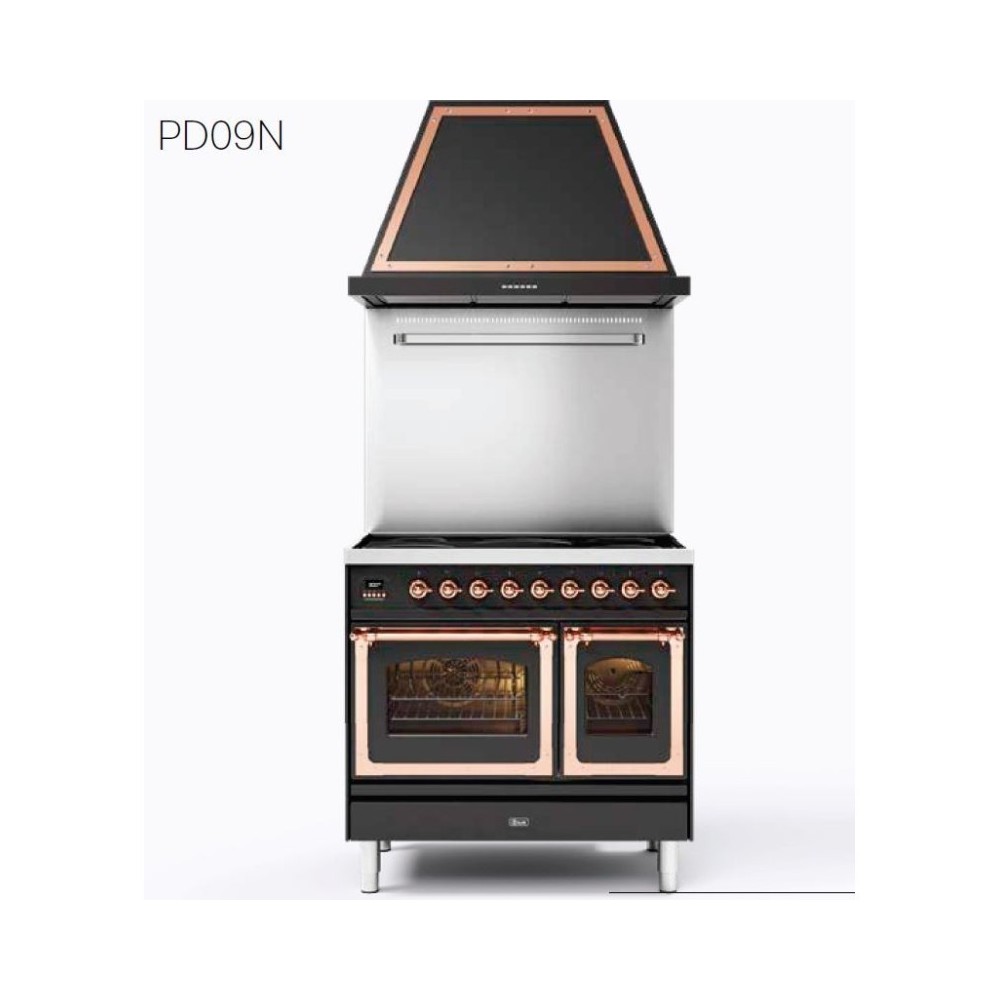

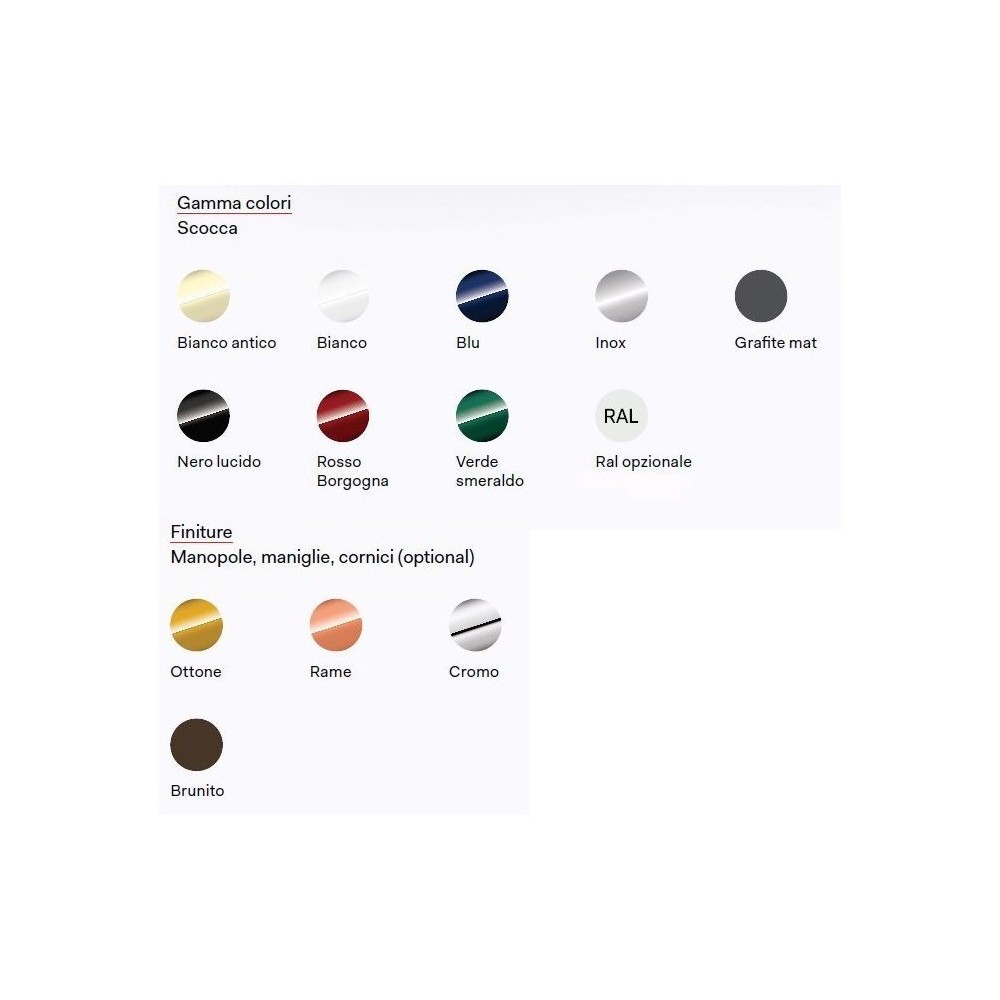

The Ilve PD09N kitchen is a free-standing model, with electric oven and configurable hob. It is available in 8 colors, including white, black, red and blue.
Code PD096NE3
Hob:
1x Double crown burner - min 1.8 kW max 4.3 kW
3x Large burner - min 0.6 kW max 3.0 kW
2x Small burner - min 0.4 kW max 1.8 kW
Code PD09FNE3
Hob:
1x Double crown burner - min 1.8 kW max 4.3 kW
4x Large burner - min 0.6 kW max 3.0 kW
1x Small burner - min 0.4 kW max 1.8 kW
1x Fry Top Plate - min 0.4 kW max 4.8 kW
Code PD09PNE3
Hob:
1x Double crown burner - min 1.8 kW max 4.3 kW
2x Large burner - min 0.6 kW max 3.0 kW
1x Small burner - min 0.4 kW max 1.8 kW
1x Pescera - min 1.1 kW max 3.1 kW
Code PD09INE3
Hob:
1x Double crown burner - min 1.8 kW max 4.3 kW
2x Large burner - min 0.6 kW max 3.0 kW
1x Small burner - min 0.4 kW max 1.8 kW
Two zone induction - 2x1.85 kW max 3.7 kW

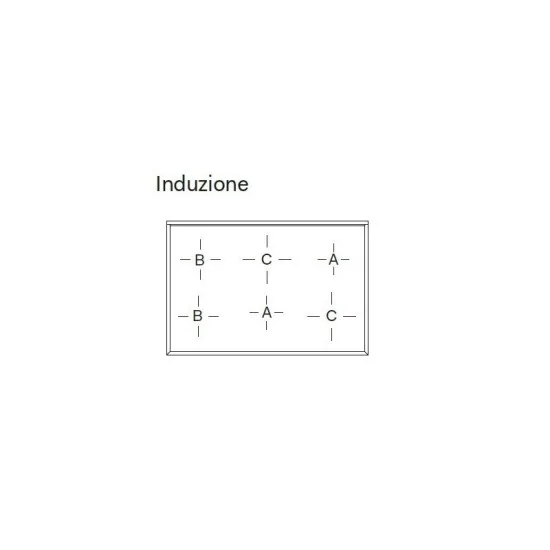

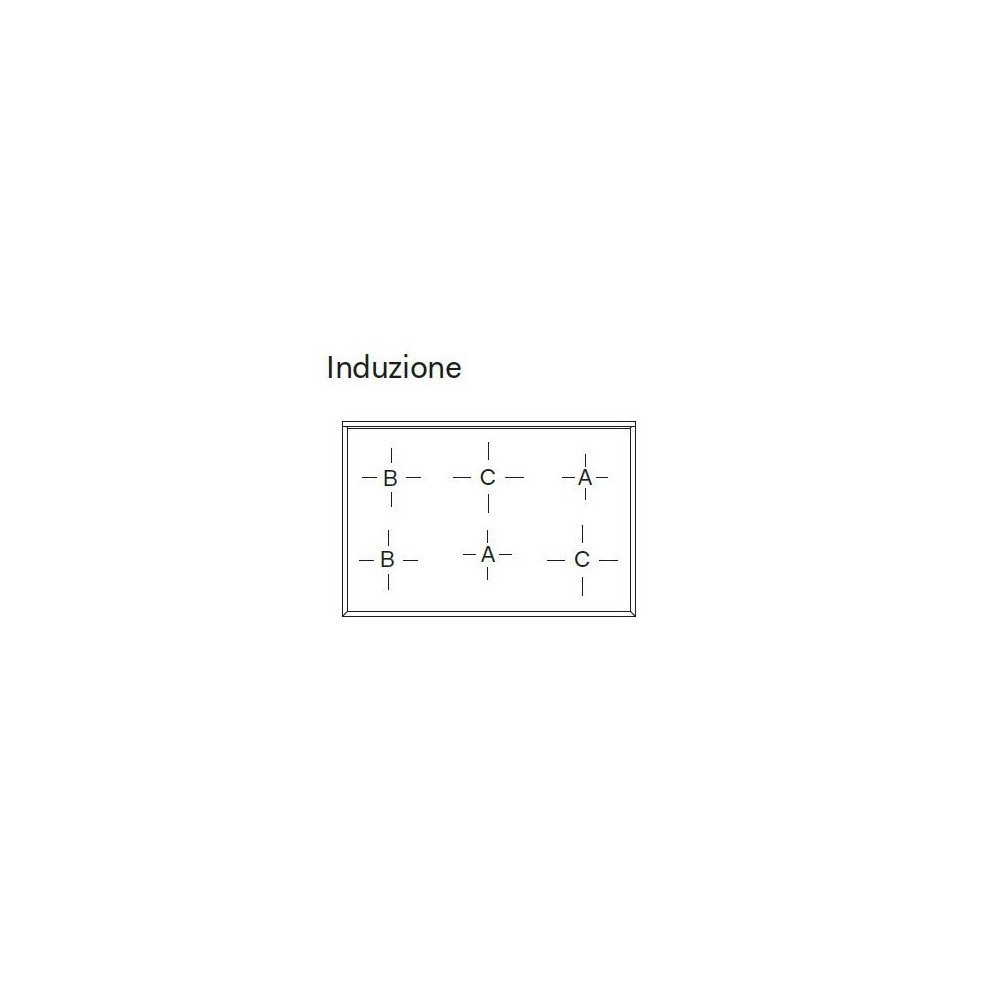

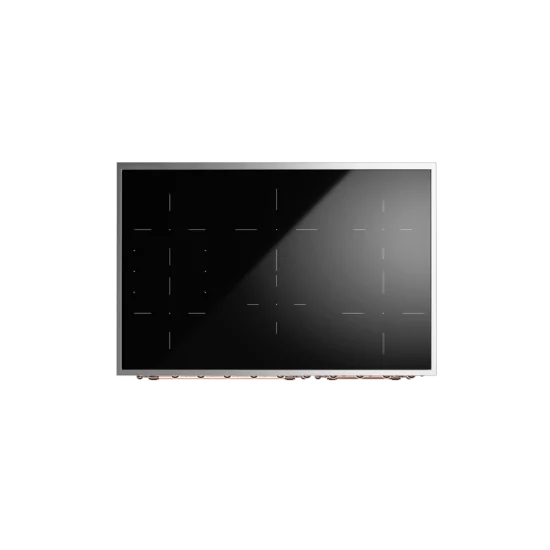

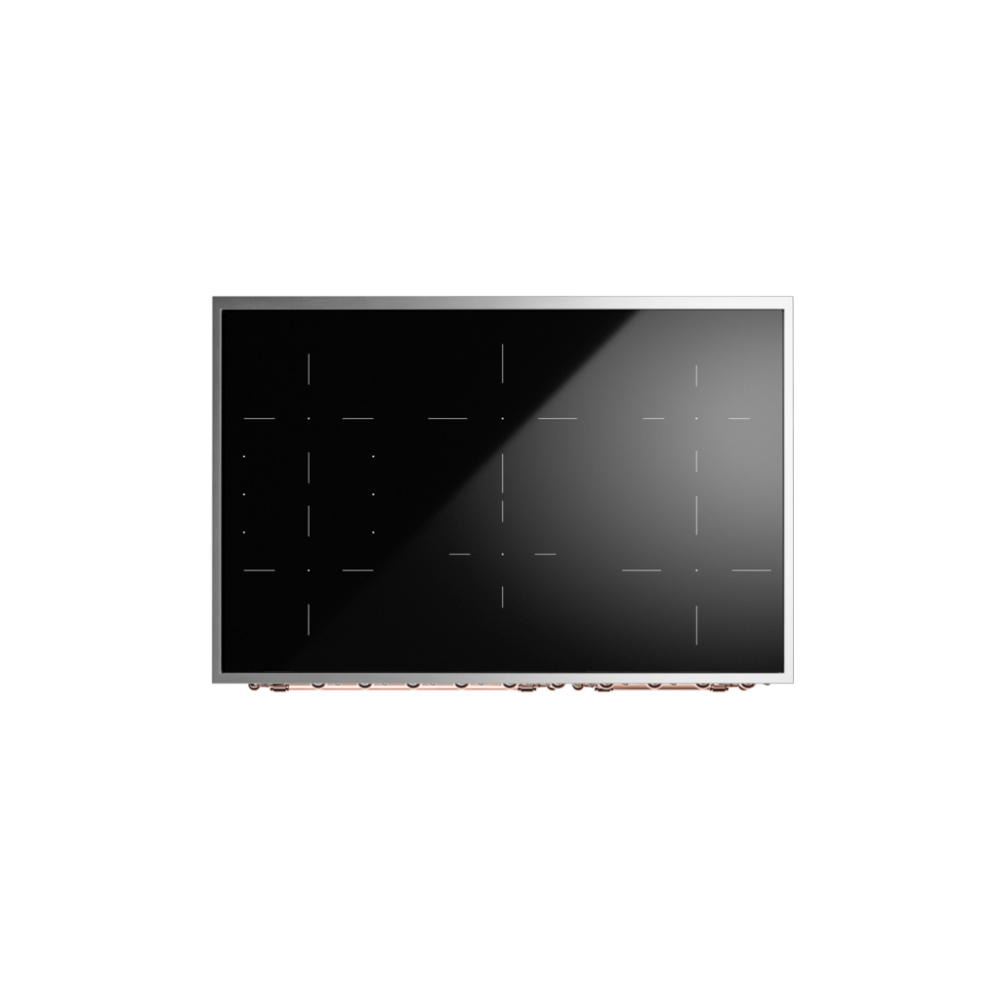

Code PDI096NE3
Hob:
2x Induction zone Ø 145 mm - 2.2 kW / 1.4 kW
2x Induction zone Ø 180 mm - 3 kW / 1.85 kW (Bridge zone Ø180+180 mm - 3 kW / 1.85 kW+3 kW / 1.85 kW)
2x Induction zone Ø 210 mm - 3.7 kW / 2.3 kW

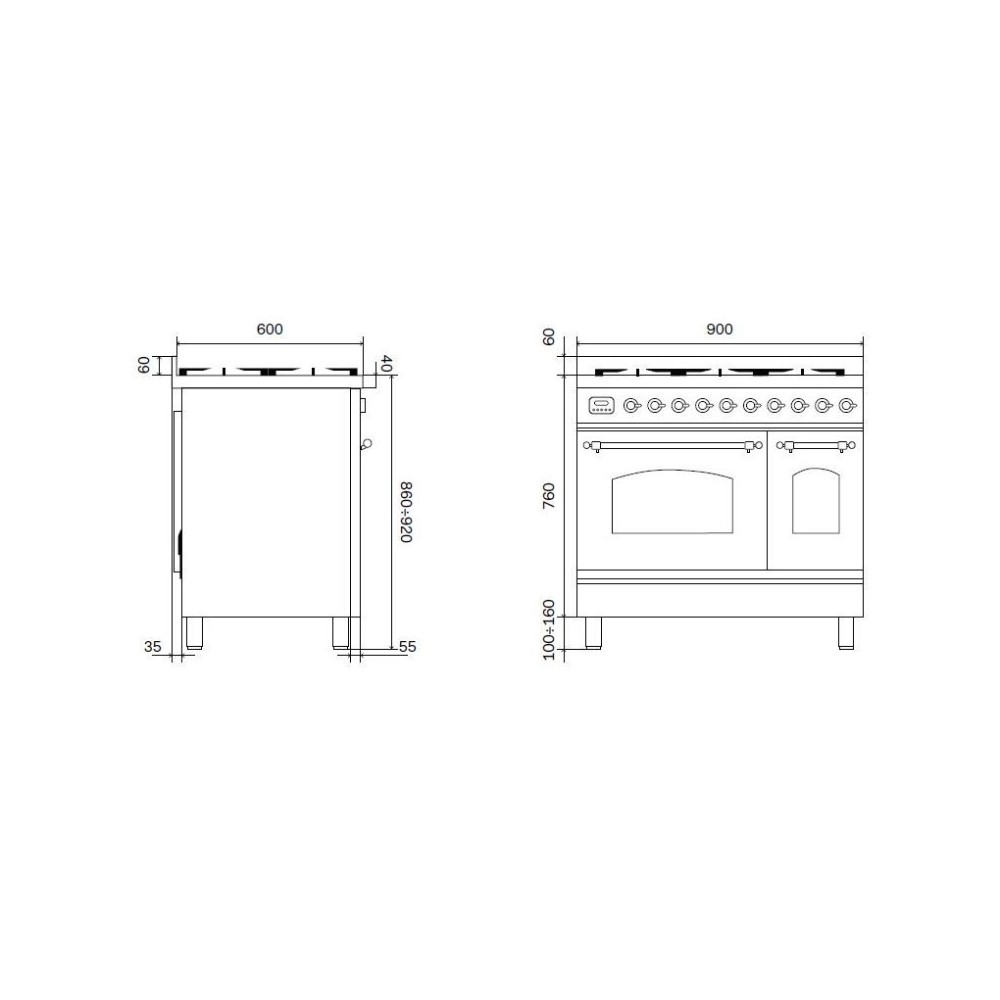

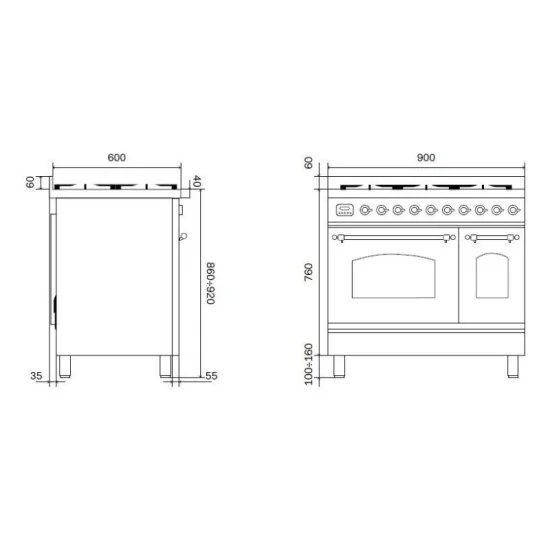

Dimensions and technical characteristics
Main oven: 60cm electronic oven:
The electric oven has 15 functions, including static, ventilated cooking, grill, pizza, leavening and defrost. The operating temperature ranges from 30 to 300 degrees.
Aesthetic characteristics
The PD09N kitchen has a classic and refined design, with clean and simple lines. The body is made of stainless steel, while the oven door is made of tempered glass.
General characteristics:
Energy class A+
15 functions
Operating temperature from 30 to 300 degrees
Electronic programmer
Electronic temperature control
Double internal light
Soft-closing door closure
Triple glass cold door (EN60335-2-6-11.101)
Tangential cooling ventilation
Child safety
Cavity features:
Muffle with easy clean enamel
Internal dimensions: 43.7 x 36 x 41 cm
Capacity 65 litres
Controlled steam exhaust with dry or wet cooking option
Foldable grill element
Thermostat with electronic probe
Consumption:
Maximum absorption: 2.45 kW
Superior electrical resistance: 1000W
Bottom electrical resistance: 1100W
Electric grill: 2100W
Circular resistance: 2100W
Lower gas burner: 2.70 kW
Secondary oven: 30cm mini static electronic oven:
General characteristics:
Energy class A+
5 functions
Operating temperature from 30 to 250 degrees
Electronic programmer
Electronic temperature control
Interior light
Soft-closing door closure
Triple glass cold door (EN60335-2-6-11.101)
Tangential cooling ventilation
Child safety
Cavity features:
Muffle with easy clean enamel
Internal dimensions: 27.5 x 35.5 x 44 cm
Capacity 43 litres
Steam exhaust
Rotisserie
Thermostat with electronic probe
Consumption:
Maximum absorption: 2.4 kW
Superior electrical resistance: 800W
Bottom electrical resistance: 800W
Electric grill: 1500W
Complements and accessories (optional):
AG90 hood
ANB90 hood
AP4-90 ladle holder panel
Optional: DUAL burner 5.0 kW / 0.3 kW (request a quote) The Ilve PD09N kitchen is a versatile and high quality solution, suitable for those looking for a classic and refined model. It is available in different configurations to meet the needs of every kitchen.
Advantages
Classic and refined design
Configurable hob with different options
Electric oven with 15 functions
Possibility of accessorizing with hood and ladle holder panel
