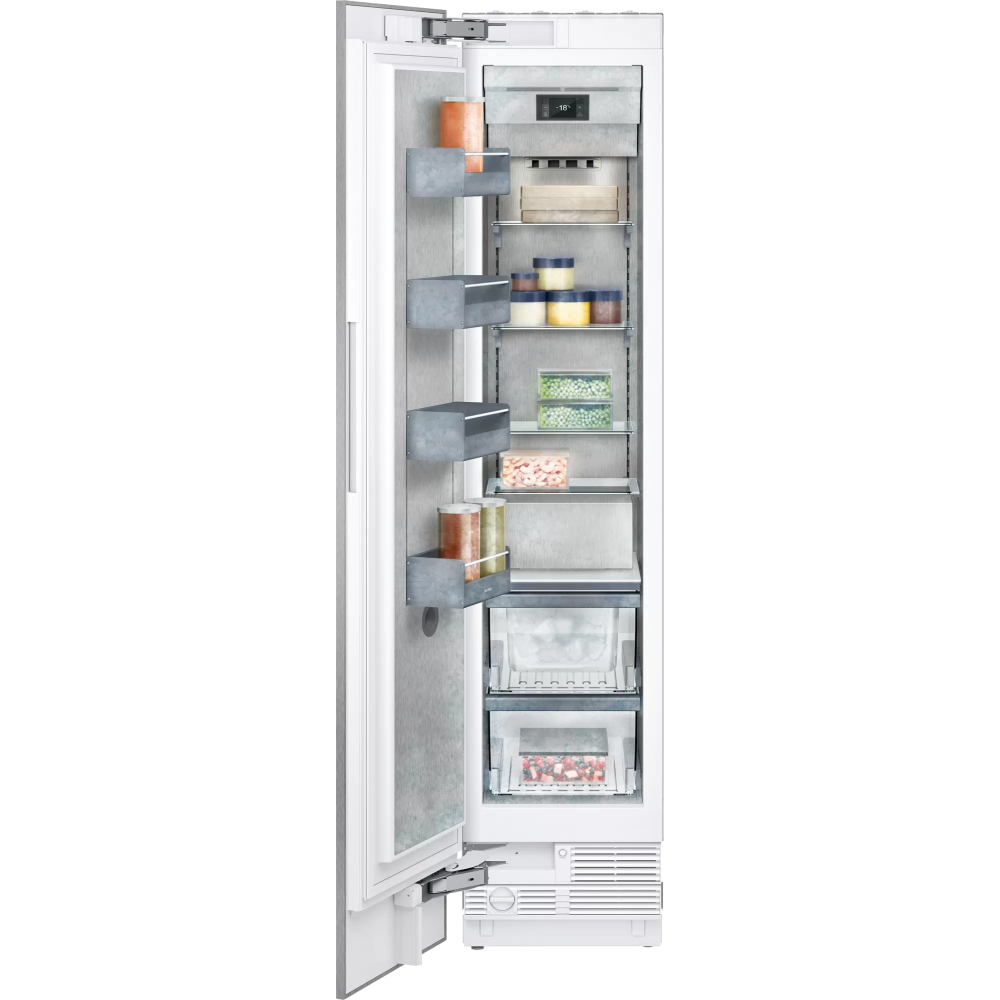

The Gaggenau RF411306 Vario freezer, equipped with a flat hinge and soft closing, offers a versatile capacity of 212.5 x 45.1 cm for perfect preservation of your food.

Vario freezer 400 Series Stainless steel and solid interiors

R F 471/R F 461/R F 411

- Stainless steel and solid interiors

anthracite-coloured aluminium elements.

- Lighting points with warm

warm, anti-glare LED light.

- Doors equipped with Open Assist in two

modes:

1. Push-to-Open function for

integrate the fridge into compositions

without a handle

2. Pull-to-Open function for easy

opening with a handle.

- Cushioned door closing thanks

the SoftClosing system.

- The drawers in the RC and RF are

positioned at the same height. In

case of side-by-side installation

the glass shelves and supports in the

counter doors can be

aligned on the same level.

- Interior material and aesthetics as

RC models:

- glass shelves

- solid anthracite-coloured aluminium supports

anthracite in the counter door.

- Interior flat door in stainless steel.

- Rail system for shelves and grilles

flexible and unobtrusive.

- Integrated ice maker with

direct connection to the water supply.

- TFT touch display.

- Total capacity 445/344/240 litres.

Operation

TFT display.

Display with plain text.

Technical features

Dynamic cooling.

Automatic defrosting.

Star-K certified sleep mode.

When rest mode is active

the appliance can only be opened

by the handle.

Acoustic and visual signalling in case of

of faults.

Home Connect

Integrated digital services (Home Connect)

with the wireless home network via WiFi.

The operation of Home

Connect Wireless via WiFi depends

on the availability of the Home Connect service

Connect service in each country.

For more information visit

www.home-connect.com.

Freezer compartment

NoFrost technology with intensive

intensive freezing at -30 °C.

Adjustable temperature from -14 °C to

-24 °C.

Freezer compartment ****

Freezing capacity 23/19/16

kg/24 h.

Freezing time 10/7/6 h.

4 unbreakable glass shelves, glass

white, 3 of which are adjustable in

height adjustable.

2 drawers with transparent front

fully removable.

LED light points with white, warm

and anti-glare.

Balcony positioning in the

counter door extremely flexible.

4 supports in the counter door adjustable

in height.

Ice maker

Ice maker integrated in the freezer compartment

freezer compartment, with direct connection

to the water mains.

Particle filter for water inlet,

integrated in the area of the

ventilation grille.

Can be deactivated separately.

Ice production approx. 1.7/1.5/1.4

kg/24 h.

Removable ice cube container

with 4/4/4 kg capacity.

Consumption values

Energy efficiency class F

(On a scale of energy efficiency classes

energy efficiency classes from A to G).

Energy consumption

401/355/308 kWh/year.

Noise level 42 dB (A) re 1 pW.

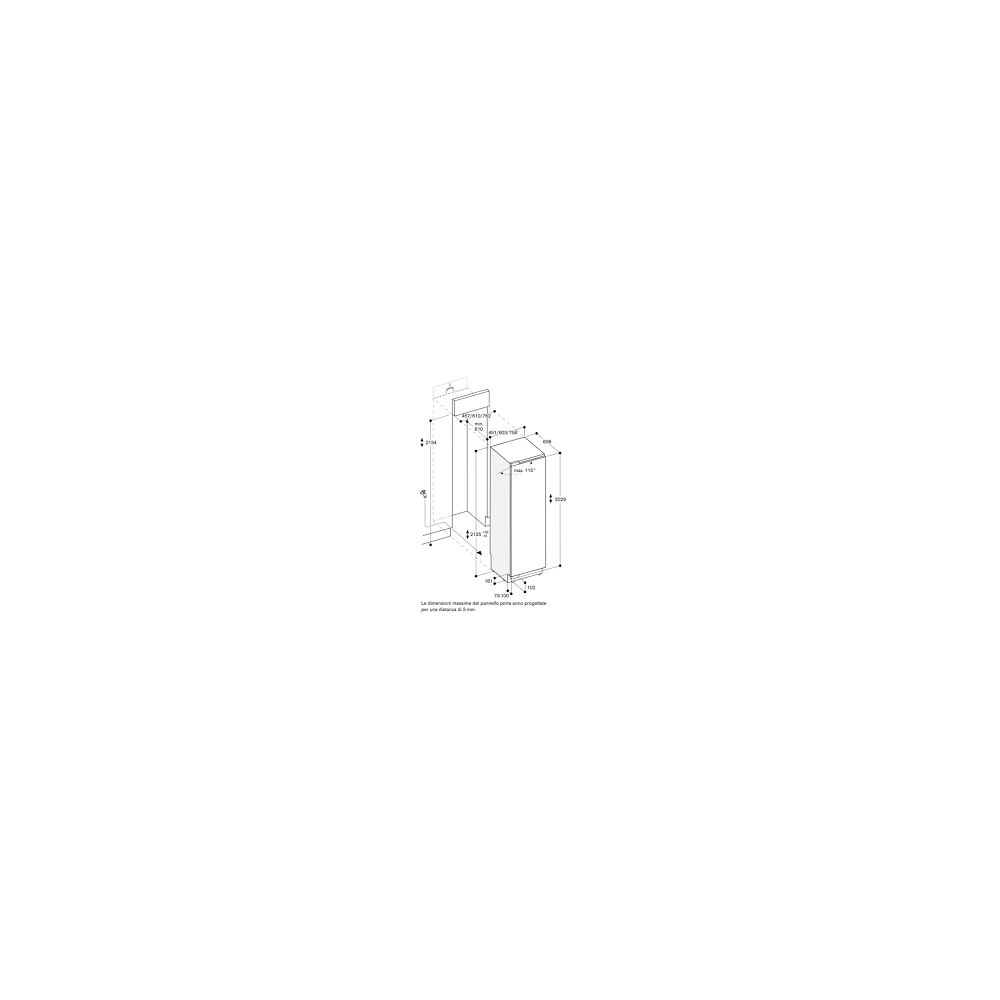

Mounting precautions

Flat hinges.

Hinges on left, reversible.

Door opening angle of 115°,

90° locking possibility

(dedicated accessory supplied).

In case of installation with door opening

90° door opening, access to drawers is limited.

is restricted. If this restriction is accepted

and you still wish to proceed

with the installation, you must replace the

ice box supplied with the smaller model

with the smaller model (RA 448 220).

This operation must be carried out

before fixing the door.

Max. door panel weight 25/41/59 kg.

The valve for the water connection

water connection valve must be positioned

close to the appliance and be

always accessible.

If the water pressure exceeds

0.8 MPa (8 bar), connect a

vent valve between the tap and the connection pipe.

connection pipe.

Connection values

Total consumption 0.300 kW.

Connection cable length 3.0 m,

with Schuko plug.

Water charging connection.

Connection cable length

2.0 m with 3/4" ferrule.

Water pressure 2 to 8 bar.
