Maximum capacity and performance: Gaggenau freezer 212.5x45.1 cm RF410304.

Vario Freezer 400 Series Stainless steel interior and solid

RF 410

- Stainless steel interior and solid

anthracite-coloured aluminium elements.

- Lighting points with warm

warm, anti-glare LED light.

- Doors equipped with Open Assist in two

modes:

1. Push-to-Open function for

integrate the fridge into compositions

without a handle

2. Pull-to-Open function for easy

opening with a handle.

- Cushioned door closing thanks

the SoftClosing system.

- The drawers in the RC and RF are

positioned at the same height. In

case of side-by-side installation

the glass shelves and supports in the

counter doors can be

aligned on the same level.

- Interior material and aesthetics as

RC models:

- glass shelves

- solid anthracite-coloured aluminium supports

anthracite in the counter door.

- Interior flat door in stainless steel.

- Rail system for shelves and grilles

flexible and unobtrusive.

- TFT touch display.

- Total capacity 240 litres.

Operation

TFT display.

Display with plain text.

Technical features

Dynamic cooling.

Automatic defrosting.

Cushioned door closing system.

Star-K certified rest mode.

When rest mode is active

the appliance can only be opened

by the handle.

Acoustic and visual signalling in case

of faults.

Home Connect

Integrated digital services (Home Connect)

with the wireless home network via WiFi.

The operation of Home

Connect Wireless via WiFi depends

on the availability of the Home Connect service

Connect service in each country.

For more information visit

www.home-connect.com.

Freezer compartment

NoFrost technology with intensive

intensive freezing at -30 °C.

Adjustable temperature from -14 °C to

-24 °C.

Freezer compartment ****

Freezing capacity 16 kg/24 h.

Freezing time 6 h.

4 unbreakable glass shelves, glass

white, 4 of which are adjustable in

height adjustable.

2 drawers with transparent front

fully removable.

LED light points with white, warm

and anti-glare.

Balcony positioning in the

counter door extremely flexible.

4 supports in the counter door adjustable

in height.

Consumption values

Energy efficiency class E

(On a scale of energy efficiency classes

energy efficiency classes A to G).

Energy consumption 246 kWh/year.

Noise level 42 dB (A) re 1 pW.

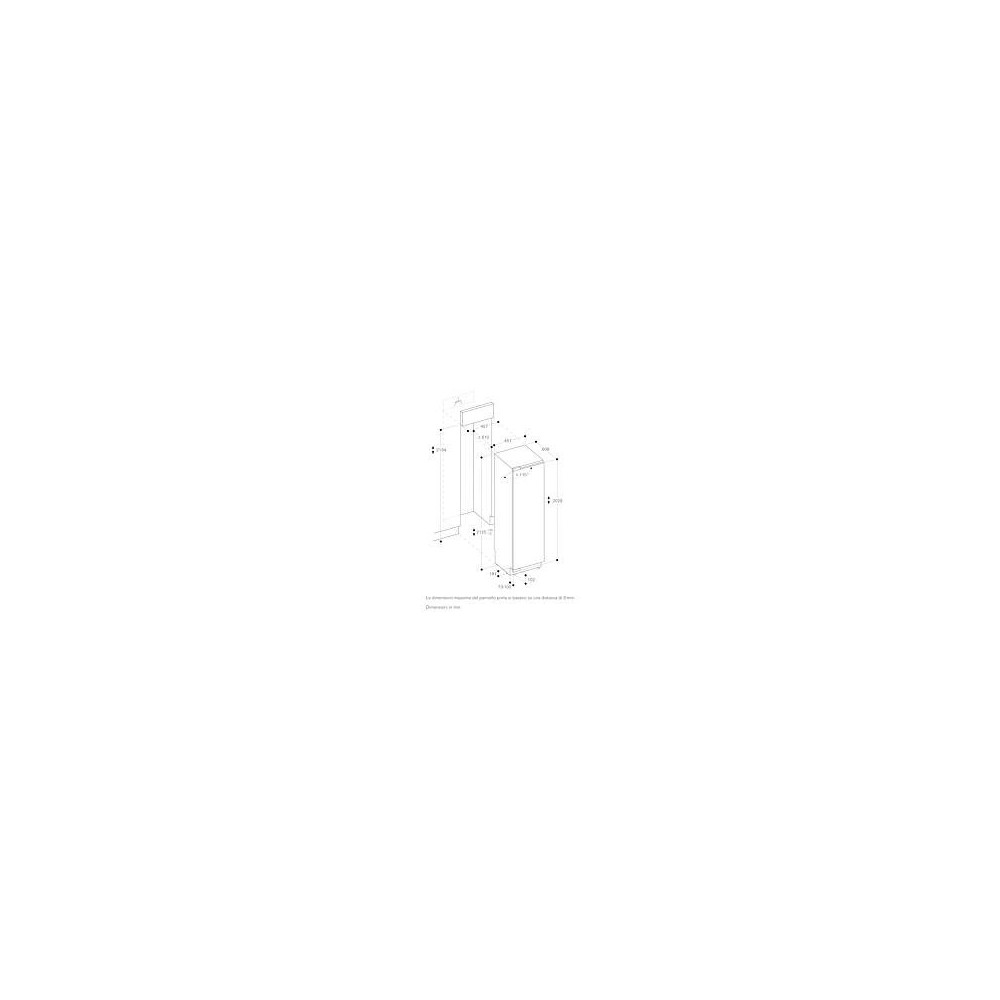

Mounting precautions

Flat hinges.

Left-hand hinge, reversible.

Door opening angle 115°,

90° locking possibility

(dedicated accessory supplied).

In case of installation with a door opening angle

90° door opening angle, access to drawers is limited.

to the drawers is restricted.

Max. door panel weight: 59 kg.

Connection values

Total power consumption 0.300 kW.

Connection cable length 3.0 m,

with Schuko plug.
