Smeg KS59POE2

Typology
Family: Hood
Typology: Decorative mural
Hood width: 60 cm
Filtering: Ejection
Aesthetics
Color: Cream
Aesthetics: Colonial
Design: Trapeze
Component finishing: Antique brass
Material: Thermoformed
Type Inox: Satin
Commands
Controls adjustment: Knobs
Knobs color: Antique Brass
Knobs: Colonial
No. of knobs: 2
Programs / Functions
Speed: 3
Intensive speed: Yes
Technical Characteristics
No. of lights: 2
Type of Light: LED
Light power: 1 W
Light Color Temperature (°K): 3000 °K
Maximum suction capacity in free mode (P0): 820 m³/h
Engine power: 275 W
No. of filters: 2
Grease filters: Inox
Minimum installation distance from gas hob: 750 mm
Motor inlet diameter: 150 mm
Minimum installation distance from electric hob: 650 mm
Check valve: Yes
Performance / Energy Label
Energy efficiency class (EEC): A
Dynamic fluid efficiency class (FDEC): A
Grease filtration efficiency class (GFEC): D
Lighting efficiency class (LEC): A
Annual consumption efficiency (AEC): 58.1 kWh/a
Dynamic fuido efficiency (FDE): 29.9
Lighting efficiency (LE): 134.5 lux/W
Fat filtering efficiency (GFE): 70,8 %.
Air flow rate at minimum speed (Qmin): 311 m³/h
Air flow rate at maximum speed (Qmax): 522 m³/h
Air flow rate at intensive speed (Qboost): 754 m³/h
Weighted sound power emission at minimum speed (SPEmin): 49 dB(A)
Weighted sound power emission at maximum speed (SPEmax): 62 dB(A)
Weighted sound power emission at intensive speed (SPEboost): 70 dB(A)
Time increase factor (F): 0,9
Energy efficiency index: 52.3
Air flow measured at maximum efficiency condition (Qbep): 418 m³/h
Air pressure measured at maximum efficiency condition (Pbep): 443 Pa
Electrical power consumption at maximum efficiency (Wbep): 172 W
Rated power of lighting system (WL): 2 W
Average illumination of the hob lighting system (Emiddle): 296 lux
Sound level in the highest configuration (Lwa): 62 dB(A)
Electrical Connection
Rated electrical connection data: 277 W
Voltage: 220-240 V
Frequency: 50-60 Hz
Logistic Information

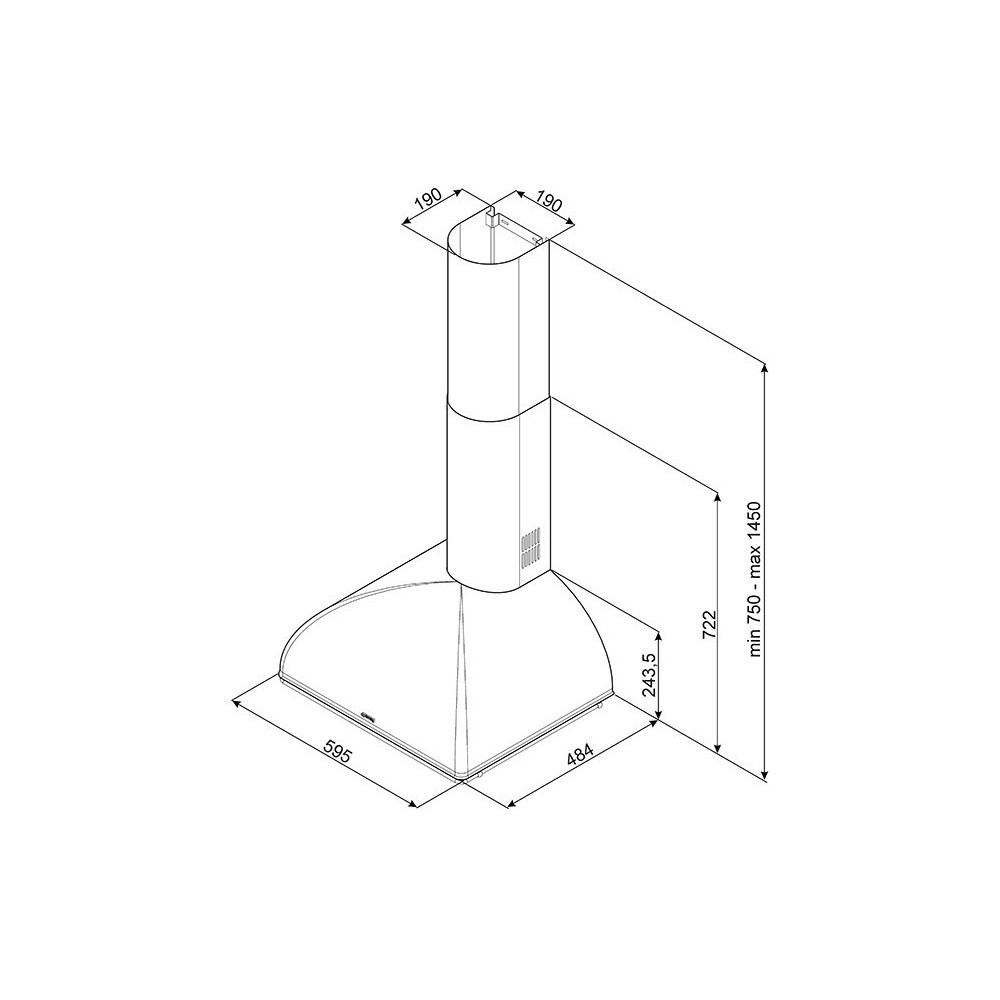

Product dimensions (mm): 722x595x484
Width: 595 mm
Product depth (mm): 484 mm
Product height (mm): 722 mm
Speed 1
Suction capacity (IEC 61591): 311 m³/h
Noise level (IEC 60704-2-13): 49 dB(A)
Power: 199 W
Speed 2
Suction capacity (IEC 61591): 439 m³/h
Noise level (IEC 60704-2-13): 57 dB(A)
Power: 231 W
Speed 3
Suction capacity (IEC 61591): 522 m³/h
Noise level (IEC 60704-2-13): 62 dB(A)
Power: 260 W
Intensive Speed
Suction capacity (IEC 61591): 754 m³/h
Noise level (IEC 60704-2-13): 70 dB(A)
Power: 280 W
