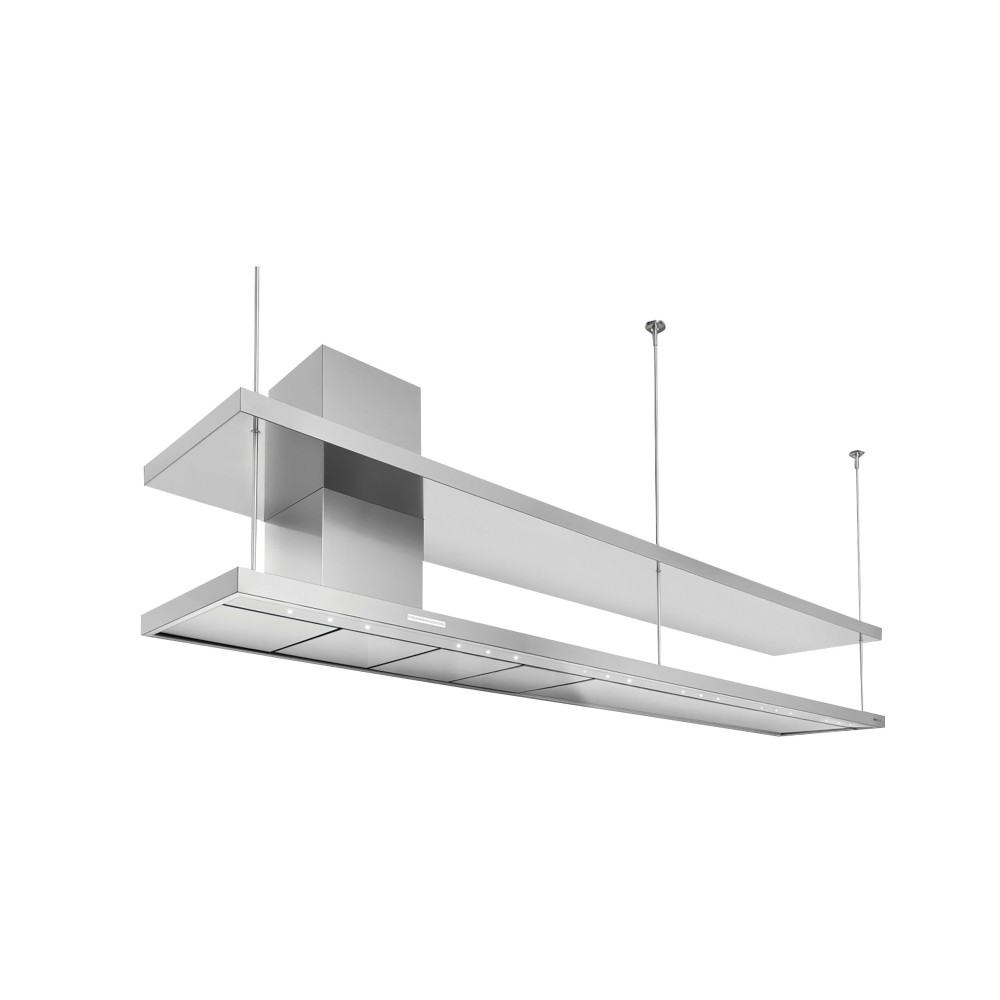

Suction hood S4001
Special - Walls
Suction hood
FEATURES
PERMETRAL ASPIR Perimetric aspiration is a common feature of many proposals Foster. Fat filters are
hidden by steel or crystal inserts, and the aspiration takes place from the perimeter cracks.
The aesthetic is cleaner, but the solution also has functional advantages: cleaning is
simplified, suction and silence are improved. The depression created in the area
perimetral facilitates the capture of particles.
BRUSHLESS MOTOR Last generation, they allow important air flow rates with consumption
reduced energy. They are the quietest engines and have an almost endless duration.
ILLUMINATION LED Particular attention to energy saving with LED lighting systems, with consumption
10 times more content and a duration 10 times higher, aimed at creating adequate comfort and
safety in the cooking area.
EXPENDITURE
TEMPORIZATION
You can set the delayed shutdown of the hood, prolonging the ventilation
of the environment at the end of use.
DETAILS
Texture Brushing online
Material AISI 304 stainless steel

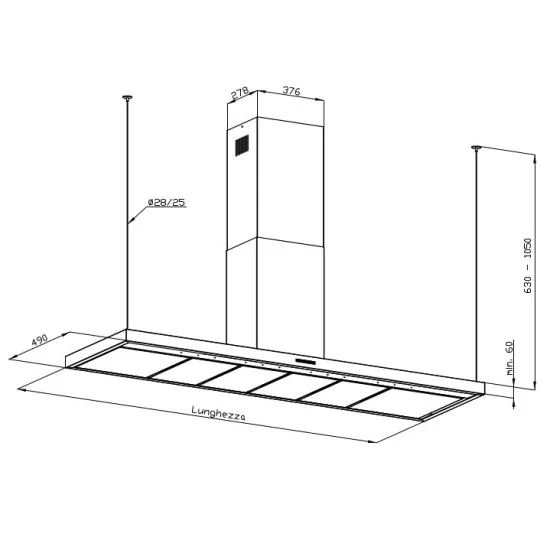

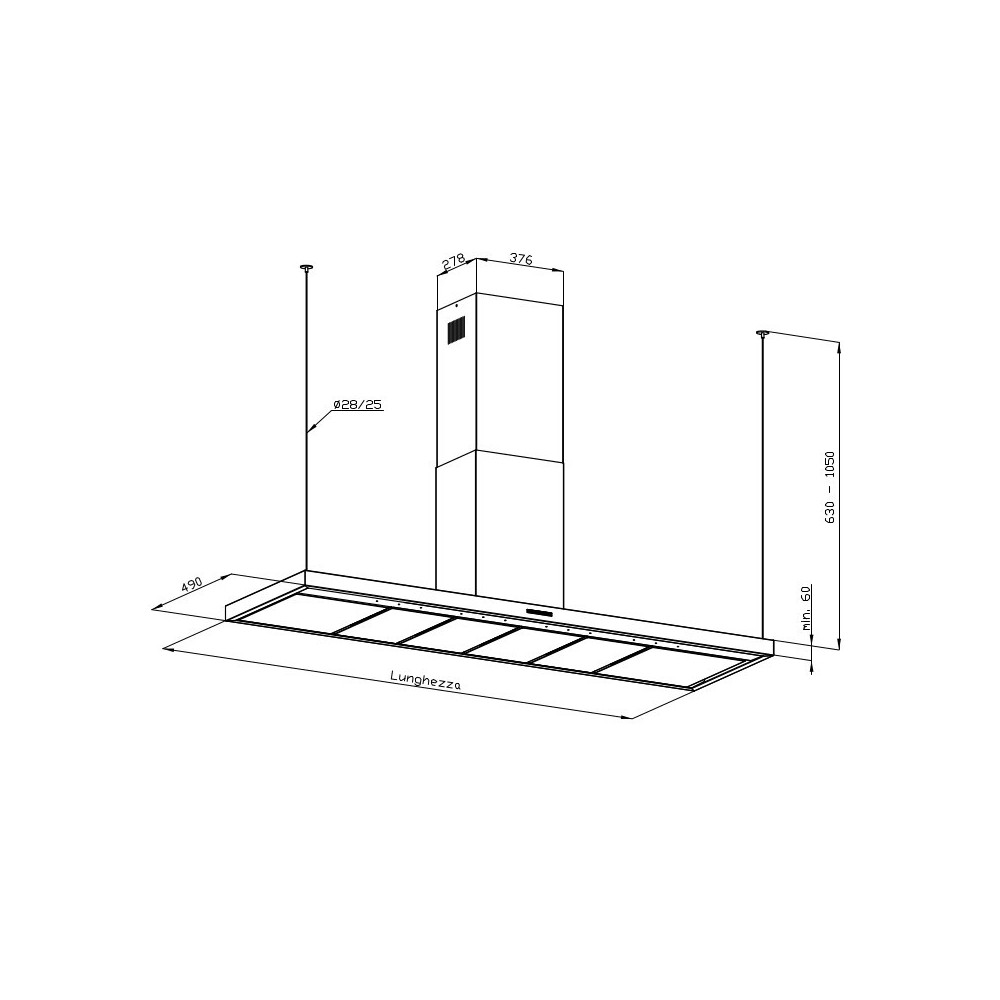

Height fireplace 630 - 1050 mm
Energy class 2440 150: A+
2440 210: A+
2440 300: A
Product type details Telescopic fireplace
Filters degreasing 2 Filters degrease
Vacuum operation (filter with optional filters)
Air extraction hole ø 120/150 mm
Lighting 2440 150: LED Lighting 9 x 1W (5,600 kelvin)
2440 210: LED Lighting 12 x 1W (5,600 kelvin)
2440 300: LED Lighting 15 x 1W (5,600 kelvin)
Air flow 700mc/h
Engine power 160W
Type of hood
Type of controls Electronic controls Minimal
Intake speed 4 operating speed
Notes: The fumes exhaust ducts must have an inner diameter not less than 120 mm
