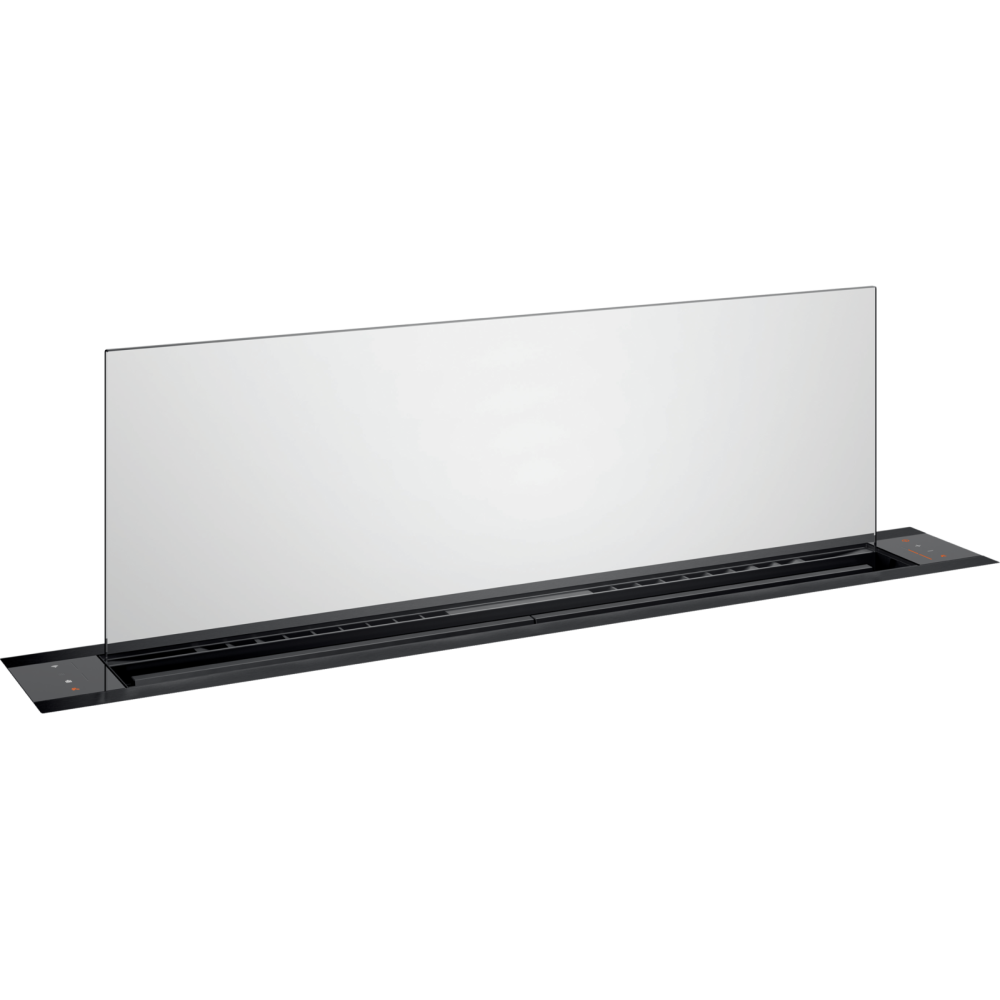

Gaggenau AL200190 Telescopic floor hood

Telescopic suction center from Glassdraft 200 series

At 200

- Telescopic suction center from

floor, completely retractable

When it is not in operation.

- perfectly combined with plans

induction cooking without frame from

90 cm width cm for

Wire installation.

- Transparent glass panel for

Discrete integration

In the kitchen environment.

- Elegant lighted panel profiles.

- The revolutionary guided technology

Air ensures a high capture of fumes

and vapors over the entire surface

Stovetop.

Operation

Performance and noise: 3 levels

power + intensive, power

Max. suction according to EN 61591.

Sound power according to EN 60704-3.

Sonor pressure according to en

60704-2-13.

Smell reduction in recirculation mode

According to EN 61591.

Air extraction:

519/833 m3 / h

62/71 dB (a) KING 1 PW.

Air recirculation

472/620 m3 / h

65/71 dB (a) Re 1 PW.

Features

Illuminated glass panel profiles

with elegant white light (it is possible

Set additional colors of light

Through the Home Connect app).

Suction with integrated control by

Plan (with compatible model).

Automatic operating option

and post-cooking function with sensor of

Air quality control.

3 levels of electronic control power

and intensive operating mode.

Anti-fat filter saturation indicator.

Coal filter saturation indicator

active.

2 large anti-fat metal filters, easy

To remove, washable in the dishwasher.

Anti-fat filter collection capacity

170 ml.

Guided Air technology: thanks to a

Innovative airflow from

from the back of the glass panel, fumes

and vapors generated at any point

On the cooking surface come

effectively conveyed in the cavity

Aspirant, for a total capture.

Further collection capacity of 600 ml

In the engine unit.

Active carbon filters easily

Removable from above.

Aluminum panel frame

Anodized in finish Gaggenau Black.

Motor operating technology

Electromagnetic without BLDC brushes

For optimal efficiency.

Flexible engine installation in the

Front (for compact solutions

on the wall), rear (for solutions

Without loss of drawers depth)

or remote from the appliance (max 3 m)

Home Connect

Integrated digital services (Home Connect)

With the wireless home network via wifi.

The operation of the Home mode

Connect depends on the availability of

Home Connect service in each nation.

For more information visit

www.home-connect.com.

Consumption values

Energy efficiency class A

(in a scale of efficiency classes

Energy from A +++ A D)

Energy consumption 37.8 kWh / year

Ventilation efficiency class: A.

Lighting efficiency class: -.

Efficiency class Filter: C.

Min. 41 db / max. 62 dB

With normal intake level.

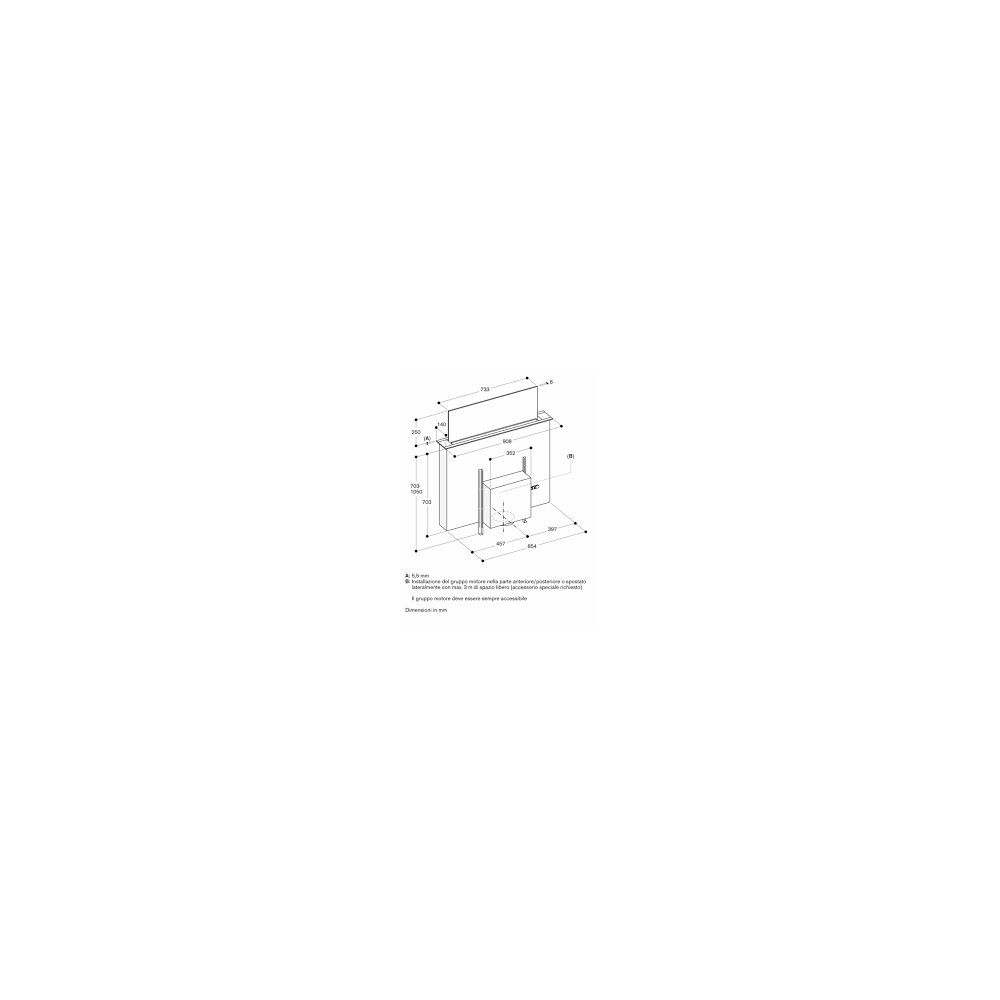

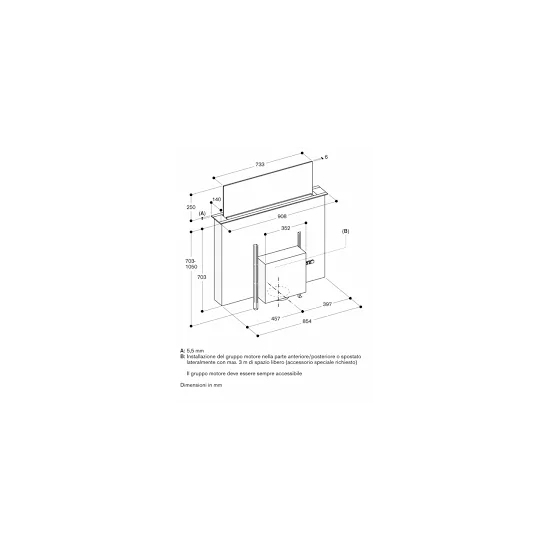

Assembly precautions

Combinable with hobs a

400 Series Frame Induction

(CX 492, VI 492) or 200 Series (there

292), in a single recessed hole

(Need kit goes 200 090).

Series 400 (CX 492, VI 492) or series

200 (CI 292), in 2 separate holes with

Support installation (kit required

AA 200 900).

Not combined with gas or plans

Special Vario Grill and Teppan Yaki.

For installation in a single hole of

Built-in the installation accessory

must be positioned among the

equipment. This includes an element

junction and support for

worktop able to guarantee the

Stability of the furniture.

The hood can be installed in

A piece of furniture or between two furniture (eg for

Island installation on deep floors

More than 100 cm).

Mobile depth 90 cm, 100 cm or

120 cm.

Do not install wall hanging on the hood from

plan to guarantee a performance

optimal.

The following distances must be

observed:

- 65 cm from the shelves hood /

Open shelves.

- 50 cm from high walls or furniture on the left and

To the right of the hood.

- 5 cm from the wall with respect to the frame

of the hood.

- 2 cm from the capture area of the air

Guided Air at the inner wall of the

mobile.

Installation is possible in plans in

Stone, synthetic or solid wood.

Resistance must be respected

Thermal and watertight holding of the edges

dell'intaglio. As for the others

Materials Please consult the

Worktop manufacturer.

Worktop thickness for

Online installation in a single hole

Recessed: min. 16 mm (with CX 492), 30

mm (with VI 492) - max 45 mm.

The flow and stability, in particular

In the case of subtle worktops, it must

be supported by appropriate

sottostrutture. Take

Considerance The weight of the appliance

and additional loads.

In case of positioning of the unit

remote engine, a kit is required

Installation (with useful components to the

Closing air outputs). Important: ensure the compartment

The engine is always accessible.

Maximum motor distance from the body

of the hood 3 m (always predict kit

of installation AA 200 910).

The powerful engine is able to

guarantee optimal performance with one

Channeling up to 8 meters and 3 curves

from 90 °.

In air extraction mode must

Be installed a valve of not

Return with an opening pressure

Maximum of 65 Pa.

In air extraction mode,

Always guarantee adequate intake

of incoming air in the room if

The appliance is operated

simultaneously with the presence of

A active ventilated fireplace.

For optimal performance in recirculation

Air, we recommend a surface

Outflow of at least 440 cm².

For air recirculation mode it is

You need to use the dedicated form.

Connection values

Total absorption 300 W.

Connection cable length 1.3 m,

With plug.

Consumption in standby / display off 0.4 W.
