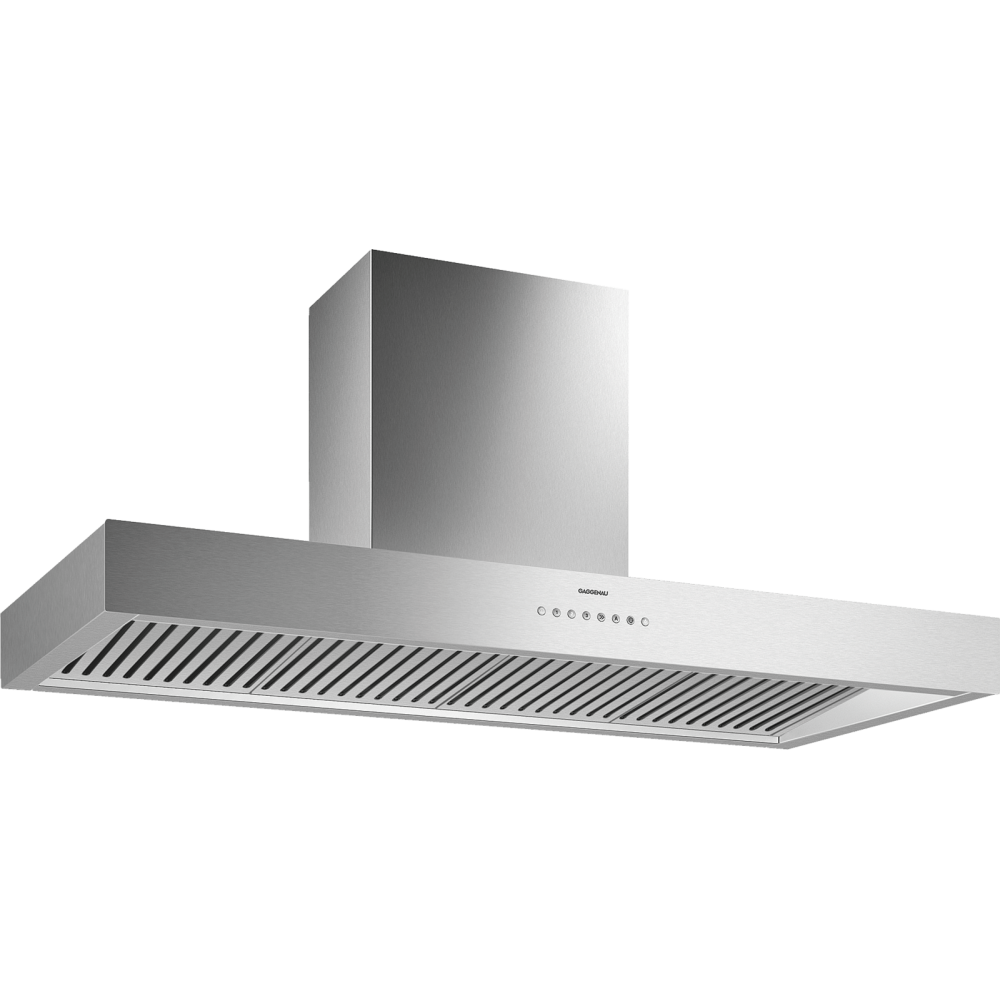

Intake centre in island
Series 400
I 442
–– Professional technology with filter
combined with the classic
design design design Gaggenau.
–– Highly vapour extraction
efficient thanks to a wide range
suction surface.
–– Without engine, combined with
bLDC engines Gaggenau.
–– Inclined filter hood with high
degree of fat absorption.
–– Adjusted suction power
automatically via sensor
air quality control.
–– Hot and adjustable LED light, ideal
for the lighting of the whole floor
cooking.
–– Extraction or recirculation system
air.
–– Abbinable to operating kits
recirculation with active carbon filter:
for high air recirculation
efficient and quiet.
Benefits
Power and noise levels
dependent on the motor Gaggenau
chosen and the piping scheme
designed.
Description
3 levels of control power
electronics and modes
intensive operation.
Automatic operation option
thanks to the control sensor
air quality.
Filter saturation indication.
Inclined filter, dishwasher safe.
White LED light of warm shades
(3500 k), adjustable.
Lighting power: 4 x 10 W.
Lighting 1390 lx.
Consumption values
Consumer data relating to a
configuration with AR 400 143 engine.
Energy efficiency class: A/A
in a scale of efficiency classes
energy from A+++ to D.
Energy consumption 53,5/53,3/52,4 kWh/
year.
Suction efficiency class:
A/A/A.
Lighting efficiency class:
B/B/B.
Filter efficiency class: B/B/B.
Sound level min. 45/44/44 db / max.
62/62/61 db with normal intensity.

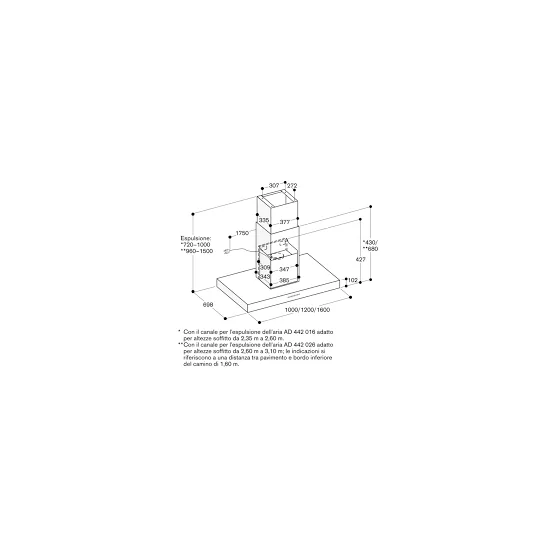

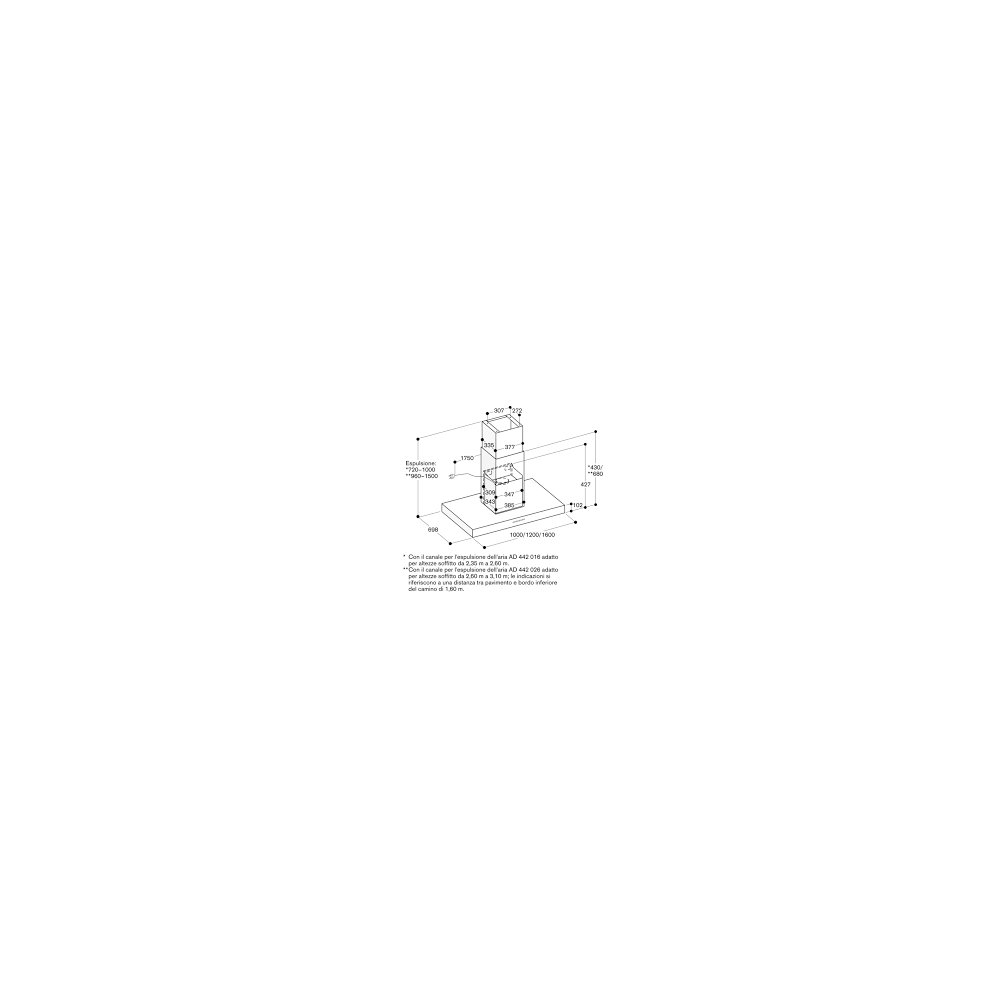

Mounting precautions
Combineable motor depending on
suction mode: extraction or
recirculation. The channel must be ordered as
accessory.
Connection to the relative motor via
data cable.
Minimum distance from gas planes: 70 cm.
Minimum distance from cooking floors
electrics below: 60 cm.
Recirculation operation module
with 2 activated carbon filters installed
inside the channel. Available
specific channels for this configuration
If installed in extraction mode
predict a safety switch
in case a device is present
free flame with ventilated fireplace (e.g.
fireplace).
Connection values
Total absorption 50/50/50 W.
Cable connection 1.8 m, with plug.
