The first completely concealed hood that blends in naturally with the room ceiling
Technical features
Flush with the ceiling, Illusion blends in totally naturally with the architecture of the living room, thanks to a white panel or a customisable cover to match the ceiling that cleverly conceals the powerful and silent extraction system, designed to guarantee maximum performance, even at a significant distance from the hob.
The two LED strips, discreetly recessed in the ceiling hood, illuminate the kitchen and adjust brightness and temperature for the perfect atmosphere at all times.
Thanks to the smart remote control, Illusion can function as a lighting hub in the kitchen, allowing you to control additional lighting systems as well.
For installation, minimal space is required thanks to the installation options (5 directions) for the ventilation unit or a wide range of external motors (4 versions). The super slim version fits even the most complex installations, thanks to its typical compact size of up to 16 cm, without having to sacrifice high suction power. The product can be converted to filter mode, with an elegant accessory that guarantees excellent performance in terms of suction and odour removal.
WIDTH
50, 100cm
ENERGY CLASS
A
H16 - NO MOTOR

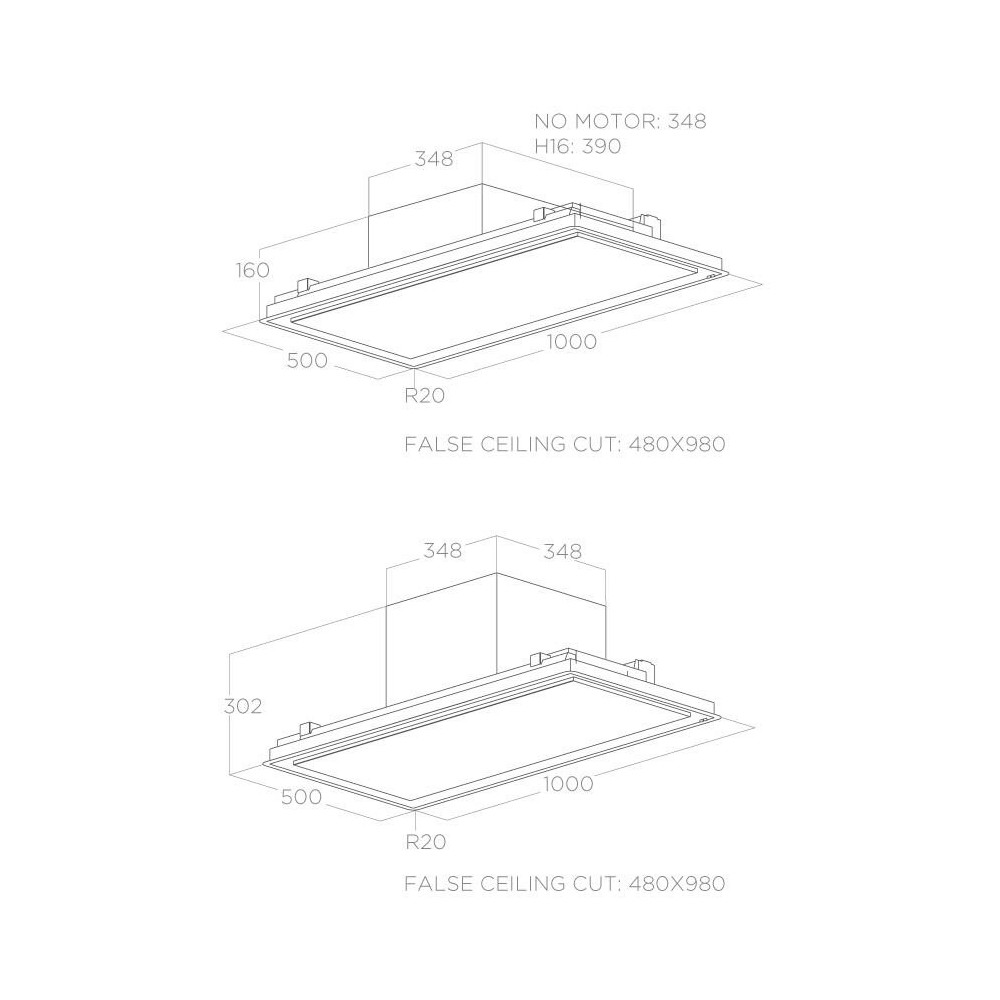

MEASUREMENTS
100 x 50 cm
VERSION
Aspirant
FINISHES
White + white frame, coverable with plasterboard (not included) + stainless steel frame, black soft touch effect + black soft touch frame
ILLUMINATION
Strip Led 2x14 W - 2700 - 5000 K
CONTROLS
Radio control 3V+2I
INTENSIVE FLOW RATE
720 m³/h
SOUND LEVEL MIN MAX
51-68 db(A)
TOTAL ABSORPTION
303 W
H30
MEASUREMENTS
100 x 50 cm
VERSION
Aspirant
FINISHES
White + white frame, coverable with plasterboard (not included) + stainless steel frame, black soft touch effect + black soft touch frame
ILLUMINATION
Strip Led 2x14 W 2700 K - 5000 K
CONTROLS
Radio control 3V+2I
INTENSIVE FLOW RATE
770 m³/h
SOUND LEVEL MIN MAX
40 - 53 db(A)
TOTAL ABSORPTION
298 W
Notes/Other
Aluminium grease filter included
Radio remote control included
