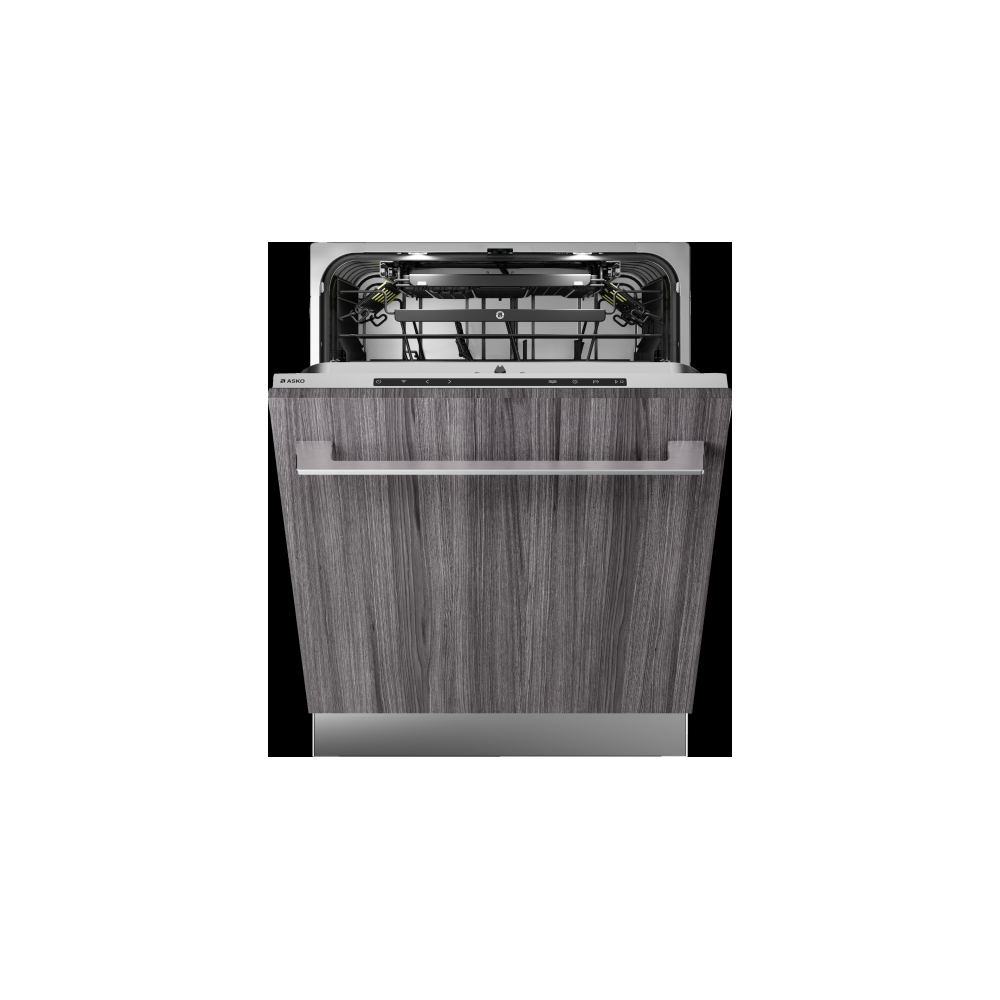

Description
Structure 8 SteelTM: steel tank, steel inner door, steel spraying arms, stainless steel filters,
stainless steel spray pipes, nylon coated steel grids, steel feet and external steel base
High hygiene standards with UV mode
Circular pump and exhaust pump equipped with extra durable and silent induction engines
TFT extra large and high definition touch display
Performance
Super Cleaning SystemTM: Intensive prewashing, no hand prewashing
9 SprayTM system, designed to reach every corner of the dishwasher
Power Zone, set for cleaning pots and pans or bottles and pots; it is also possible to turn off
Auto Door Open DryingTM: the door opens automatically after a short cooling phase
Quality test: 12,500 hours, 280 cycles per year (20 years of domestic use)
Programs, Modes and Options
15 programmes: Eco, Intensive, Automatic, Universal, Rapido Pro (59 min), Time, Lower Basket, Basket
superior, Igienizing, Crystals, Rinse, Pre-heated, Plastic, Auto-cleaning, Anti-odor
Washing temperatures: from 45 to 70 °C
5 modes: Green, Fast, Night, UV Cleaning, Intensive
2 options: Automatic opening at the end of the cycle, Departure delayed (1-24 h)
Comfort / Safety
Status LightTM: indicates the progress status of the program
2 LED lights illuminate the inside of the dishwasher
Push-to-open opening: allows installation with door without handle or throat
Auto Dose: always the right amount of your favorite gel cleaner
Aqua SafeTM system: guarantees water leak protection
Easy installation: frontally adjustable door springs and feet
Cetelli
Upper basket for cutlery: removable and adjustable in height, telescopic guides with total extraction
Upper basket: removable and adjustable in height, 2 shelves for glasses with TPE supports, sliding fittings
for easy adaptation to dishes, clip for small containers
Lower basket: adjustable plates in width and sliding for easy adaptation to dishes,
rack and bottle holder with flexible position, removable seat basket
Simultaneous access to multiple baskets for optimum loading and unloading flexibility
Dimensions
Equipment size (A/L/P): 819-872 / 596 / 554 mm
Dimensions necessary for the collection (A / L / P): min. 820 / 600 / min. 555 mm
Electric cable length / Location: 1825 mm / Rear, right
Inlet tube length / Counterdado size* / Position: from 1625 mm / 3⁄4” / Rear left
Exhaust Pipe Length / Exhaust Diameter / Position: 1515 mm / 19.5 mm / Rear left
Door length / Rotating point: 680-760 (sliding door: 720-800) / 670 mm
Energy label EU
Energy efficiency class: A
Energy consumption for 100 cycles (kWh): 54
Covers: 14
Water consumption (liter/cycle): 9.2
Rumourity (dB(A) re 1 pW): 38
Technical data
Electrical connection: 1.9kW / 220–240V / 50Hz / 10A
Water pressure: 0.03–1.0Mpa
