Oven with AddedSteam to make your dishes more juicy thanks
to an addition of steam and Hide® folding door for a touch
exclusive design
√ Graphite Grey: life changes, as well as design trends.
The most intimate corner of your house must not only make you feel good,
but also be beautiful.
√ Hide®: the oven door that is completely retracted.
√ CircoTherm®: smart hot air solution for cooking
using up to three levels simultaneously.
√ Added Steam - a simple touch for the right amount of steam
that will make every juicy dish inside and crispy outside
√ The perfect cleaning duo: EasyClean® for fast cleaning
and everyday or Pirolytic Autopulizia to eliminate
completely every trace of dirt
Description
Technical data Gross weight: 42.0 kg
Color/material of the front : Graphite
Product type : Built-in
Cleaning system : Pirolysis+Hydrolysis

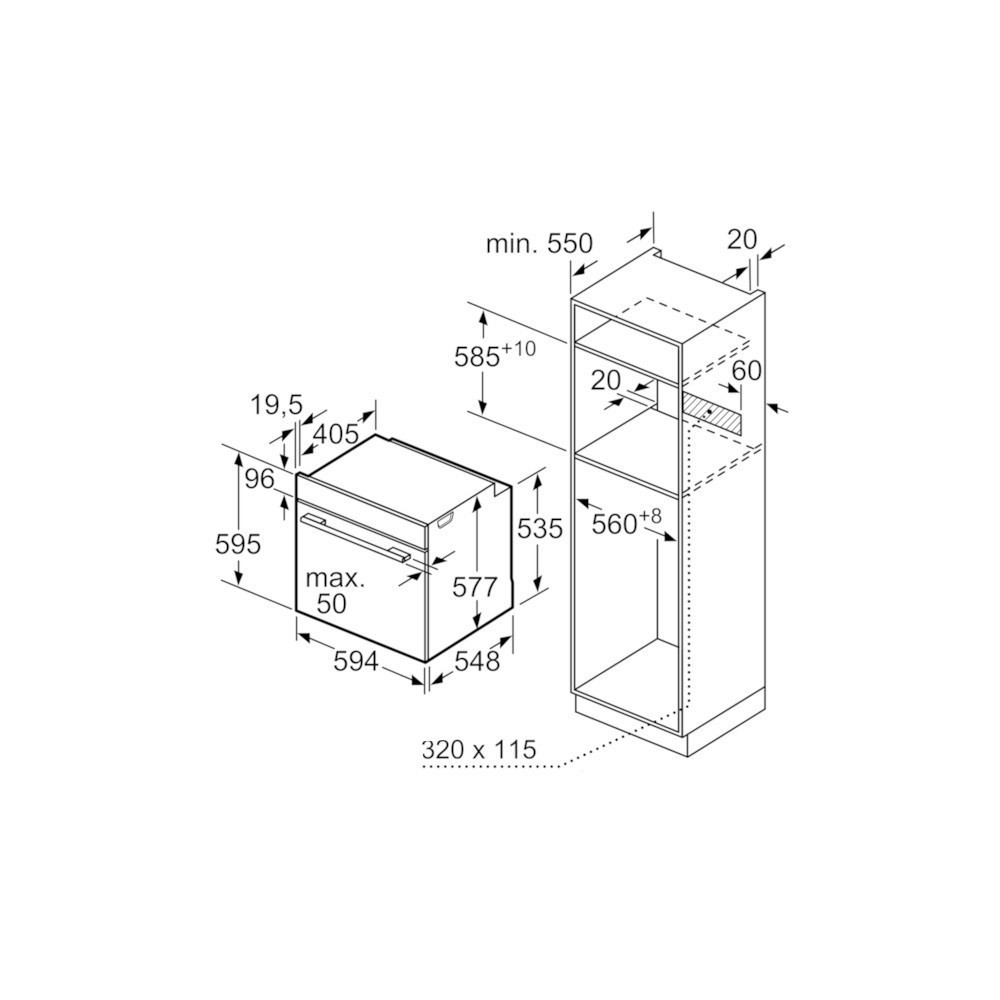

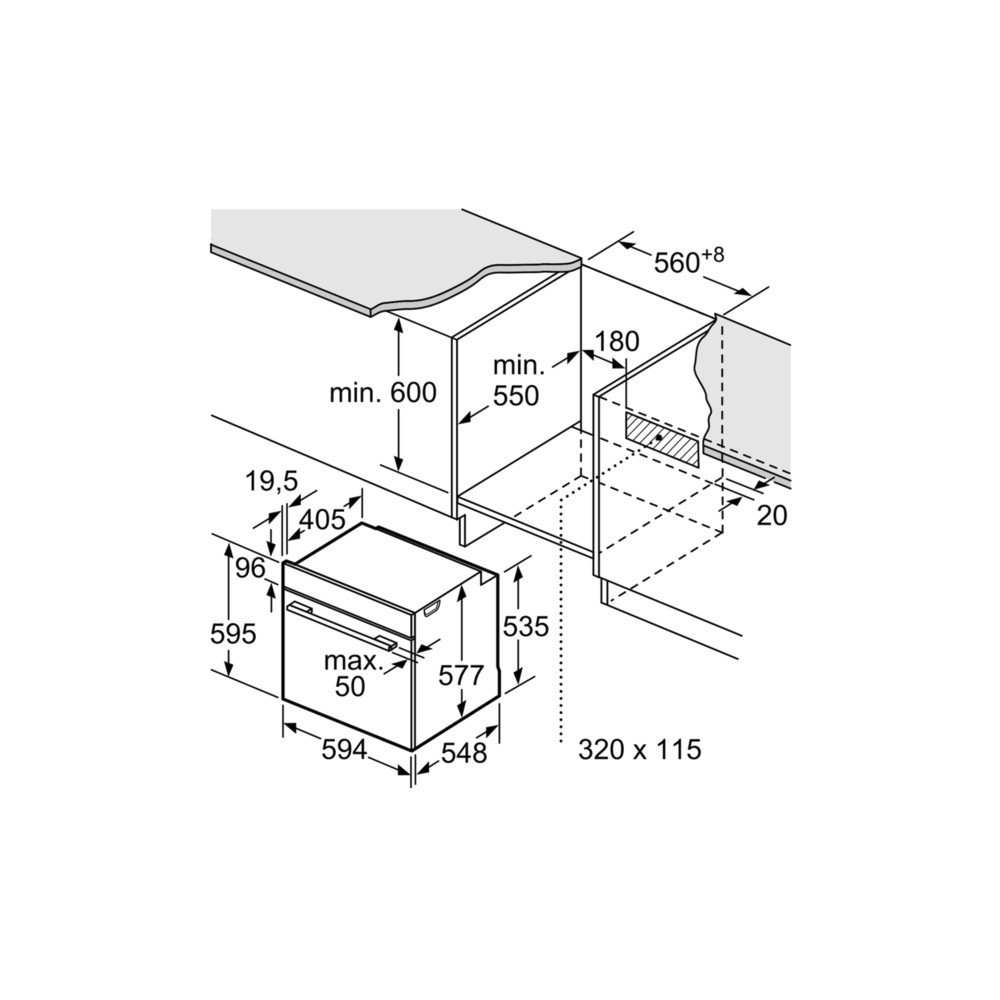

Dimensions of installation compartment (AxLxP) : 585-595 x 560-568 x 550 mm
Dimensions (AxLxP) : 595 x 594 x 548 mm
Size of the packaged product (AxLxP) : 660 x 690 x 660 mm
Dashboard material: glass Door material: glass
Net weight : 37.9 kg Useful volume : 71 l
Cooking method: hot air, delicate hot air, pizza function,
Large surface grill, ventilated grill, Bread Cooking Set,
lower heating, upper and lower heating
Cavity material : Other
Number of internal lights : 1
Electric power cord length: 120 cm
Indoor lighting - kitchen compartment 1 : 1
System of removable guides : Additional accessory
Clock functions : activated, excluding ringtone
Accessories included: 1 x Combined Grill, 1 x Universal enameled Leccarda
Broil Element Wattages cavity 1 : 2800 W
Convection Element Wattages cavity 1 : 2300 W
Energy efficiency class (2010/30/EC) : A
Energy consumption for conventional cycle (2010/30/EC) : 1,04 kWh/cycle
Energy consumption for cycle forced air convection (2010/30/EC) : 0,81 kWh/cycle
Energy efficiency index (2010/30/EC) : 95.3 %
Electric connection nominal data : 3600 W
Current : 16 A Voltage : 220-240 V Frequency : 50; 60 Hz
Type of plug: Schuko
Color/material of the front : Graphite
Operation : electrical
Required cutout/niche size for installation (in) : x : 25.98 x 25.98 x 27.16 : 84,000 lbs : 93,000 lbs
Electric power cord length: 120 cm
Net weight: 37.9 kg
Accessories included: 1 x Combined Grill, 1 x Universal enameled Leccarda
Optional accessories
Z11AB15A0 : Easy to clean tray, Z11AU15A0 : Multipurpose tray,
:,
Z11CR10X0 : ACCESSORIES x FORNI , Z11CU10E0 : Oven accessory
z11GT10X3 : , Z11GU20X0 : Glass pipe for furnaces ,
Z11TE25X0 : recessed oven accessory , Z11TF25X0 : accessory
Built-in oven, Z11TF36X0: ACCESSORIES x FORNI , Z11TI15X0 :
Guide clip rail , Z11TJ25X0 : ACCESSORIES FORNO , Z11TJ35X0 :
Accessories Built-in oven , Z12CL10A0 : Canvas cover
professional : Z12CN10A0 : Professional : Z12CQ10A0 :,
:
Accessories for ovens, Z1913X0 : Cooking plate for bread and pizza,
Z19DD10X0: ACCESSORIES x FORNI
Main features
● Oven with 9 cooking functions: CircoTherm, heating
top and bottom, ventilated grill, large surface grill,
Pizza function, bread function, lower heating,
CircoTherm Eco, food regeneration
● Combined functions with steam pulses: 3D hot air, grill
ventilated, static heating (lower and upper resistance)
● 30 °C to 275 °C temperature adjustment
● Volume cavity: 71 l
Grills / Guides
● Number of levels: 4 piece
● Oven with wide cavity and support
Other characteristics
● Graphite-Grey
● Temperature range by handpiece, push-pull knobs
● Internal cavity: Grey enamel
Cleaning
● Pyrolytic self-cleaning
● EasyClean cleaning system
● Interior flat door: possibility of use as a stand
and easy cleaning
Control system
● LCD display
● EasyClock: electronic clock with timer and programmer
● Suggested temperature
Real Temperature Reach Temperature Mode Sabbath
● Number of automatic programs:15
● Additional actions:
Descalation program
● HIDE® folding oven door
● Ergonomic handle
● Preset programmes
● Quick heating
● Indoor halogen lighting, removable lighting
● Tank capacity: 220ml
● External steam generator to the cooking compartment
● Cooling tangential fan
● Stainless steel fan
● Tasto info
Accessories
● Accessories: Combined grill, Universal enameled Leccarda
● Maximum door temperature 30 °C
