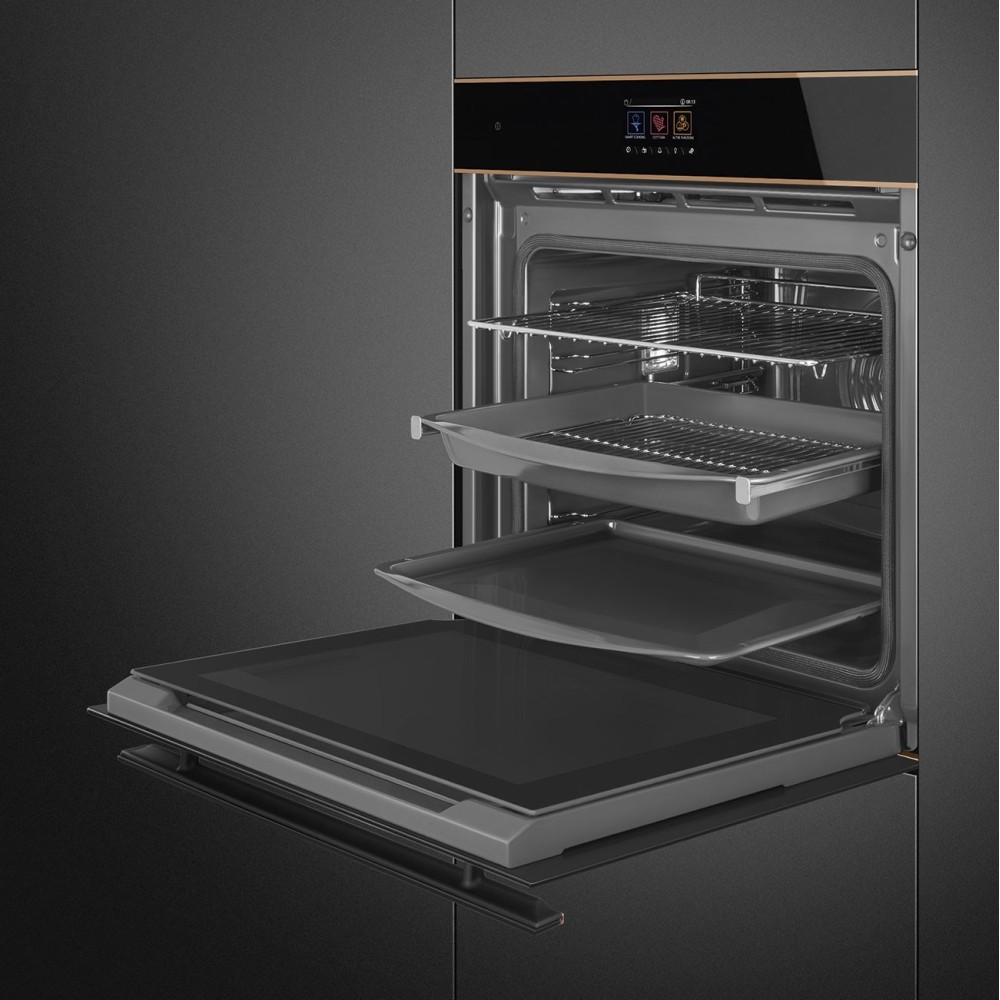

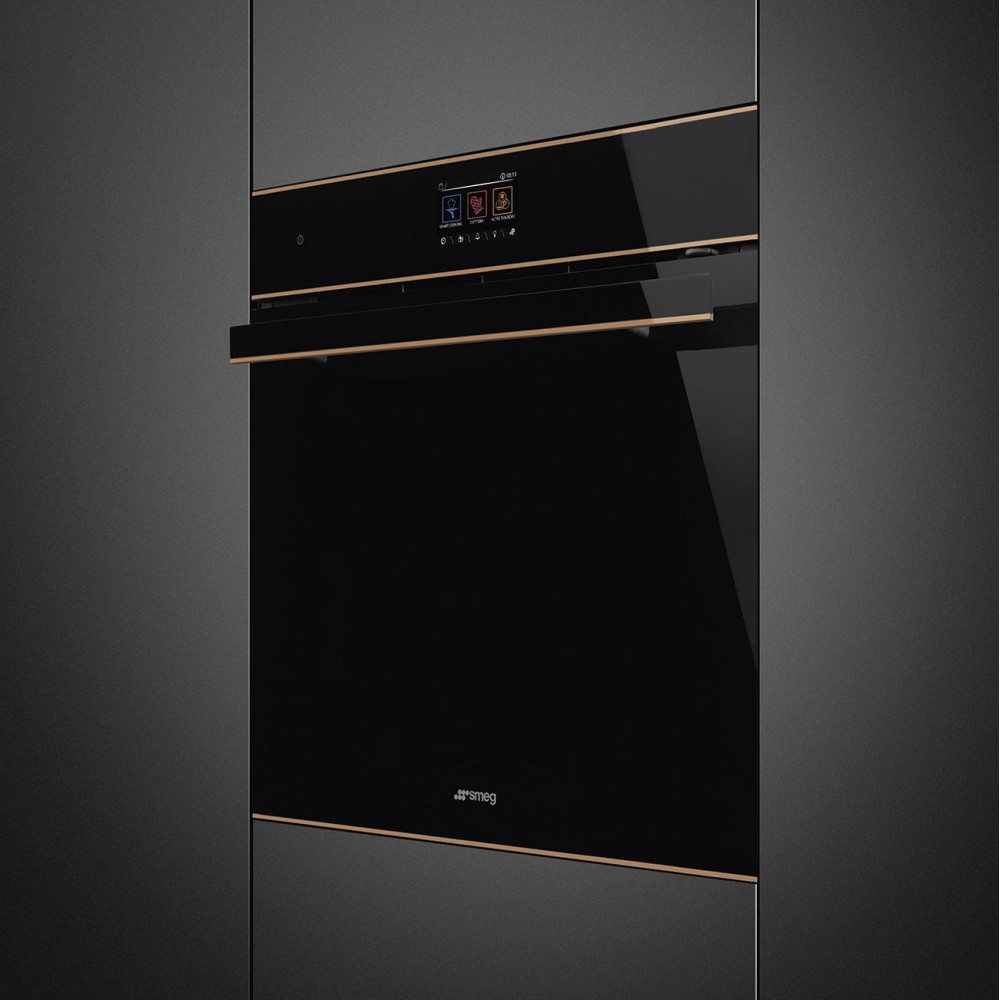

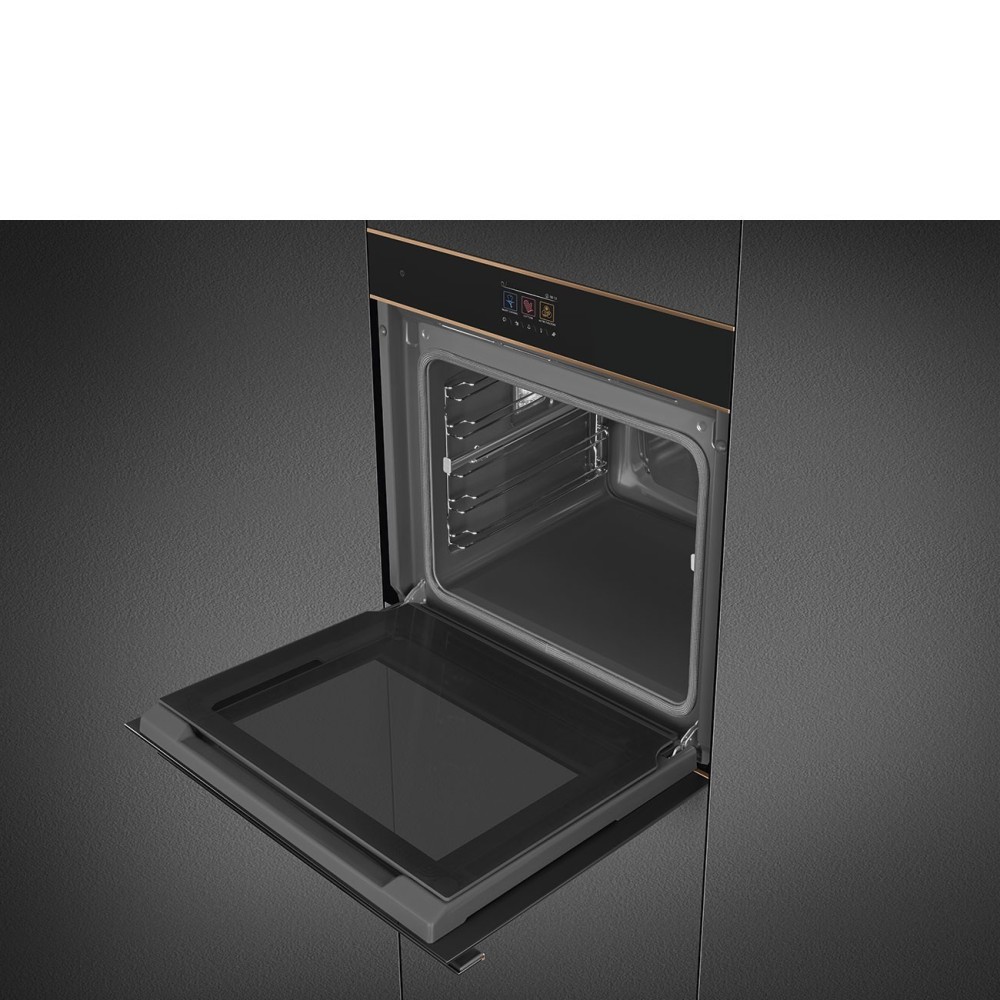

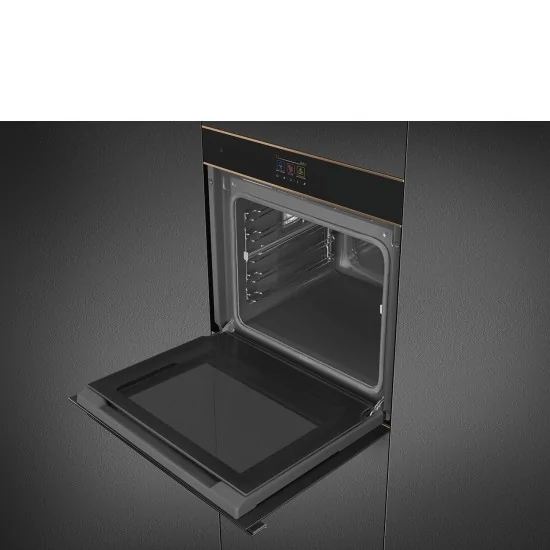

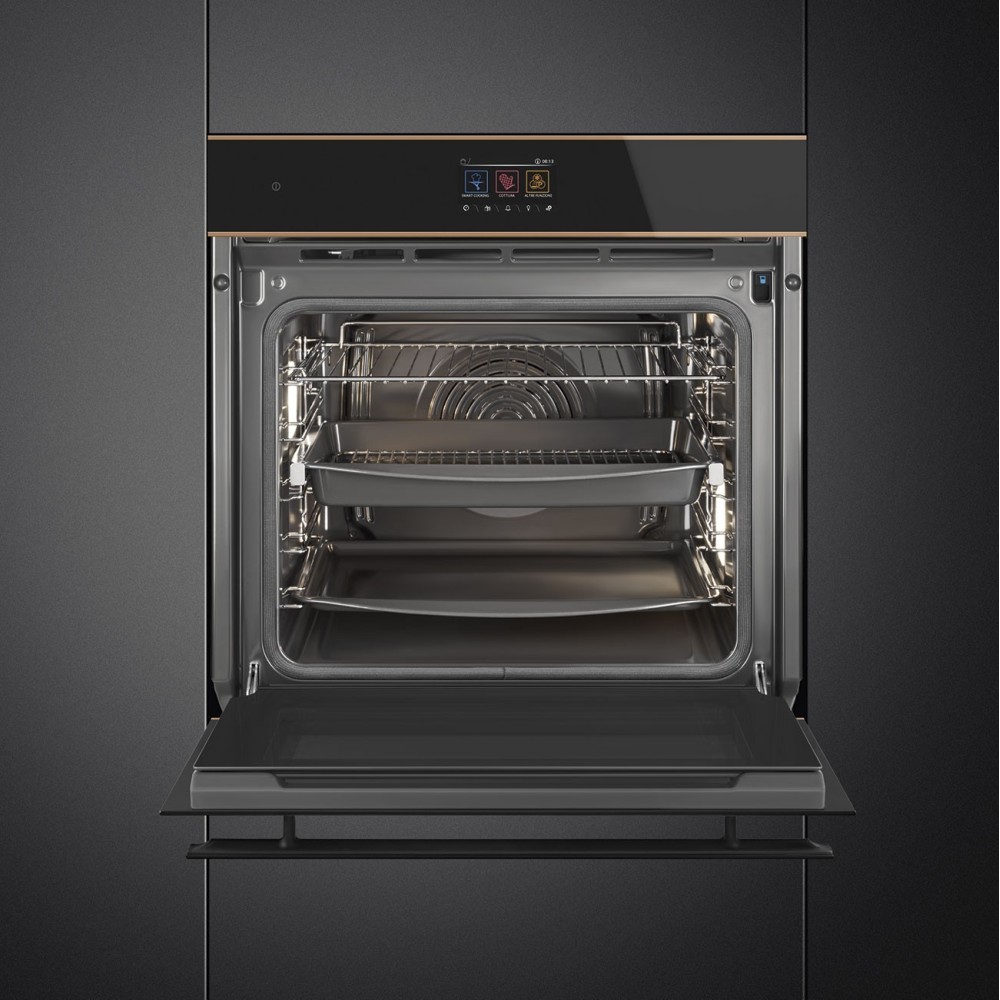

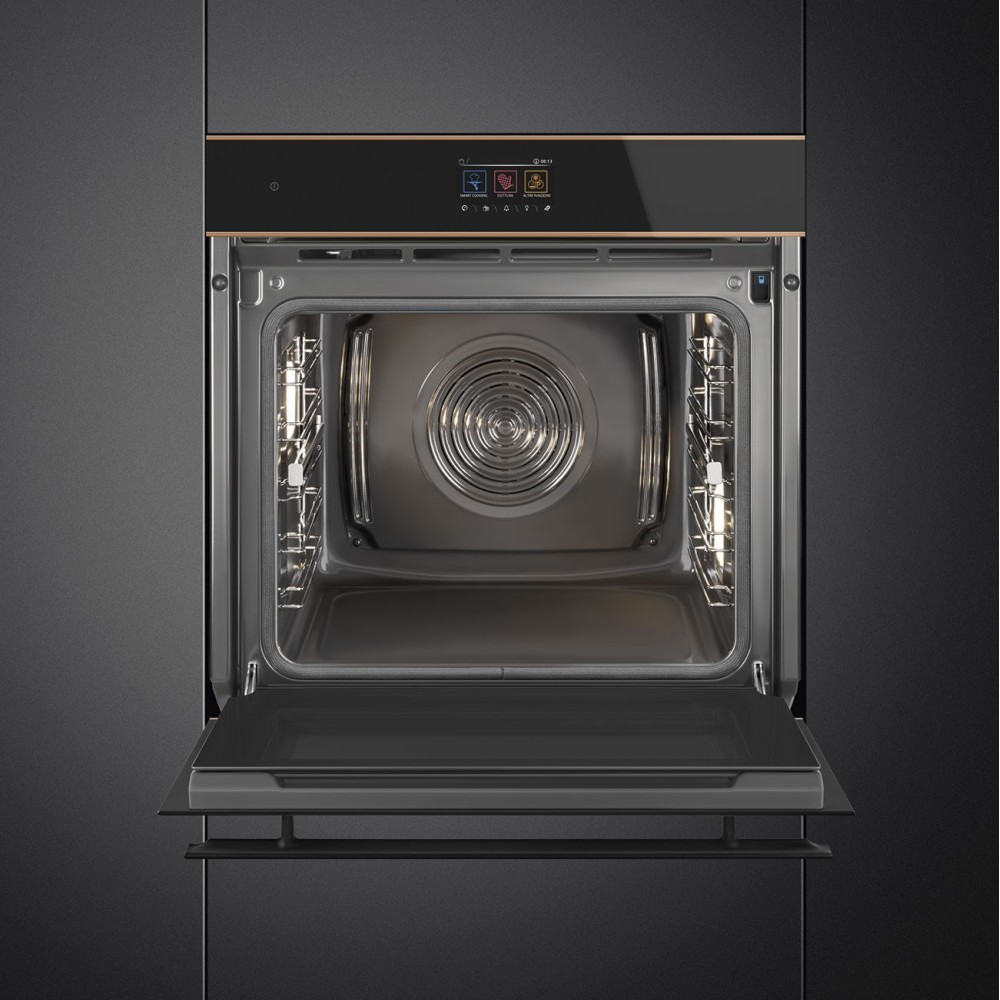

SOP6604S
Oven, Dolce Stil Novo, 60 cm, Pyro steam , Combined vapor, Steam range: 20 - 40%, Black,
Component finishing: Copper, A+, Pirolitico
TIPOLOGY
Family: Oven • Category: 60 cm • Steam range: 20 - 40% • Cooking Method: Combined steam • Galileo platform:
Pyro steam • Power supply: Electric • EAN Code: 8017709313937 • Cleaning system: Pyrolytic
ESTET
Color: Black • Finish: Polish • Aesthetic: Dolce Stil Novo • Component finishing: Copper • Material: Glass • Glass Type: Eclipse •
Door: • Handle: Sweet Stil Novo • Handle color: Black
PROGRAMME / FUNCTIONS
Number of cooking functions: 19 • Automatic programs: 150 • Traditional cooking functions: Static, Ventilate, Thermal-ventilated, Turbo,
Eco, Wide Grill, Ventilated Wide Grill, Base, Thermo-ventilated Base, Pizza • Levels of humidification: 3 • Customizable recipes: 10
Cooking functions with steam pulses: Ventilated, Thermo-ventilated, Thermo-ventilated Base, Turbo, Ventilated Grill • Functions
cooking with steam: Ventilated, Thermo-ventilated, Turbo, Ventilated Grill • Other steam functions: Tank cleaning, Water drain,
Water load, Decalcification • Other functions: Time Freezing, Weight Freezing, Liege, Stone Cooking,
BBQ, Air-Fry, Hot maintenance, Alarm clocks, Sabbath • Cleaning functions: Pyrolysis
COMANDS
Display: Yes • Command control: Full touch evolved
OPTIONS
Time programming options: Scheduled start and end cooking with automatic shutdown • Contaminuti: Yes
Taxable time: 3 • Show / showroom mode: Yes • Touch guide: Yes, with prolonged pressure on display • Pre-
quick heating: Yes • Demo-tutorial video mode: Yes • Instant GO: Yes • Smart cooking: Yes • Cotture in DeltaT: Yes • Block
Keys/ Children's Safety: Yes • Multi-step cooking: Yes, up to a sequence of 2 pieces • SameTime: Yes • Drawing with probe: Yes
Settings: Keep warm, ECO-light, Language setting, Digital watch display, Toni ON/OFF, Volume toni,
Brightness • History: Yes, the last 10 recent functions used
TECHNICAL FEATURES
Display Name: VivoScreen • Technology display: TFT • Temperature adjustment: Electronics • Minimum temperature: 30 °C •
Maximum temperature: 280 °C • Cavity material: Ever Clean enamel • Number of shelves: 5 • Type of shelves: Metal frames •
Fan: Single • No. of lights: 2 • User replaceable light: Yes • Light type: Alogenic • Light power: 40 W • Light ignition

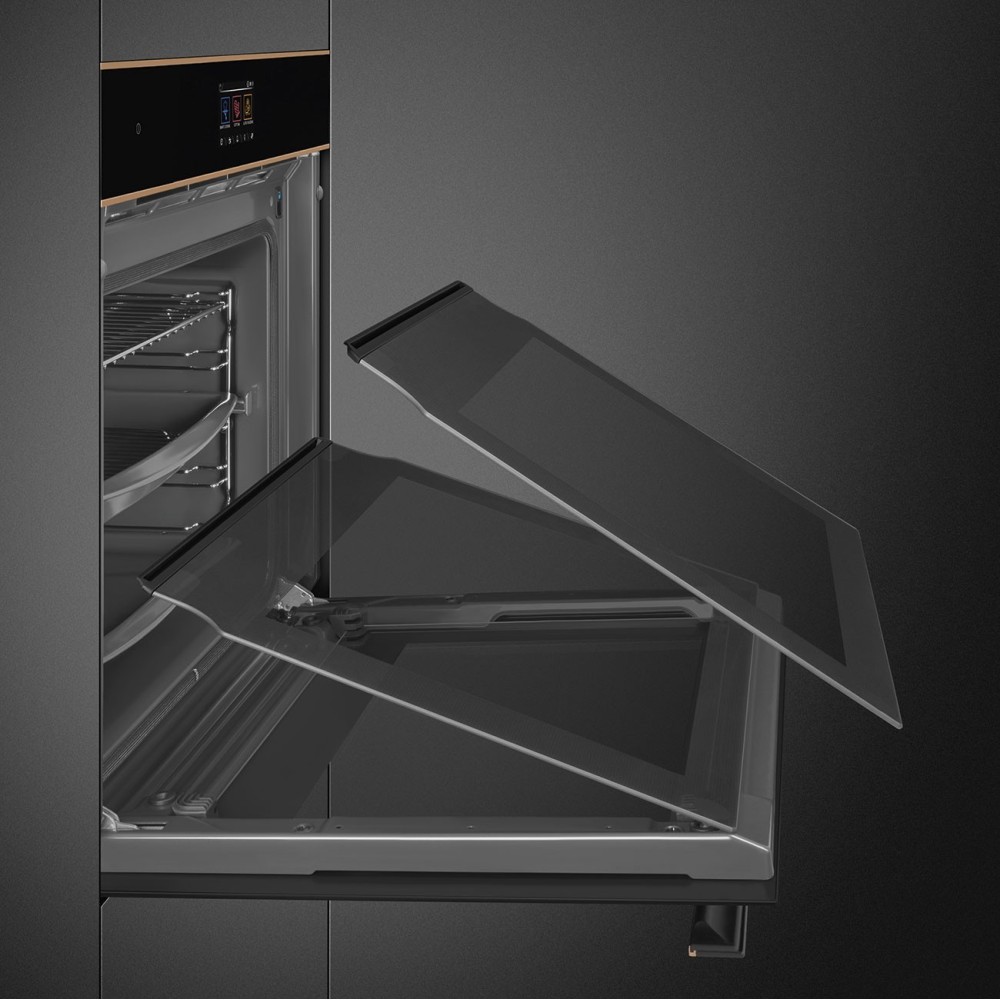

at the door opening: Yes • Door opening: • Door: Cold • Removable door: Yes • Indoor door: Yes • Glass

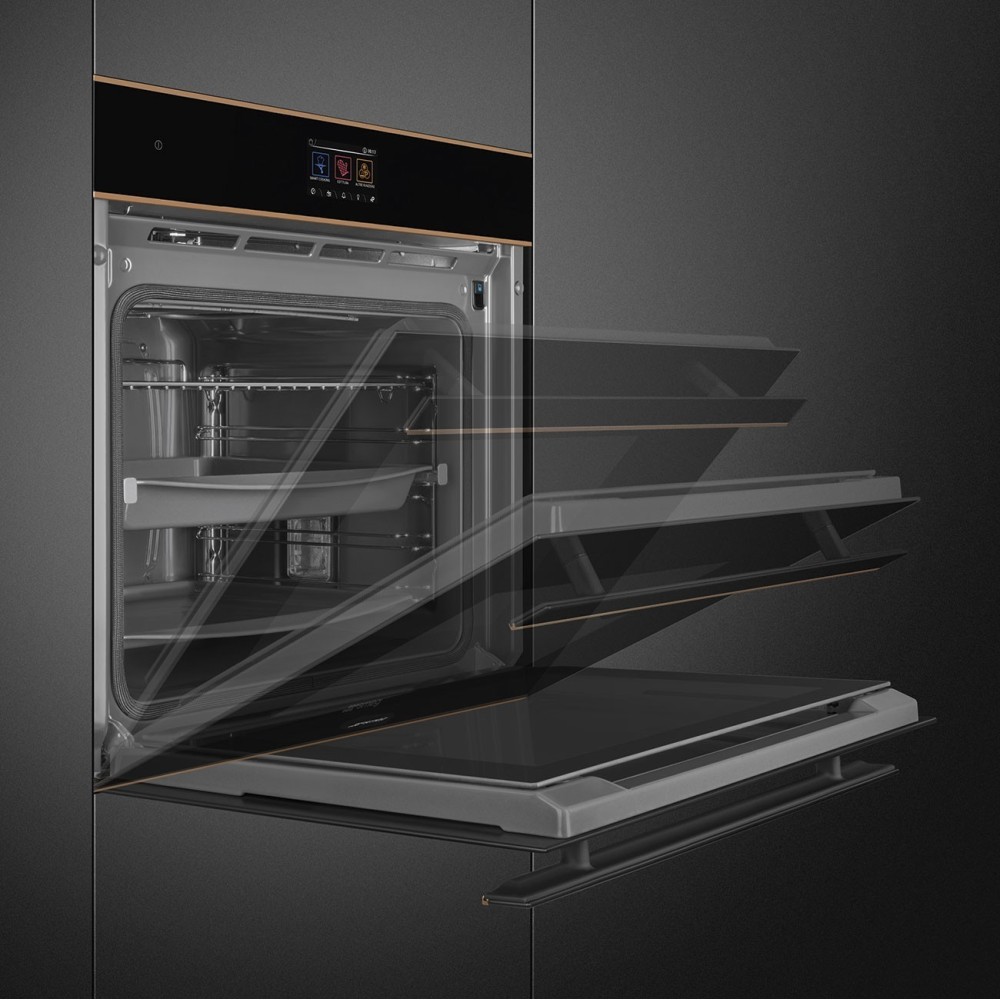

removable interior: Yes • Total door glass: 4 • Soft Open: Yes • Soft Close: Yes • Fireplace: Fixed • Safety thermostat: Yes

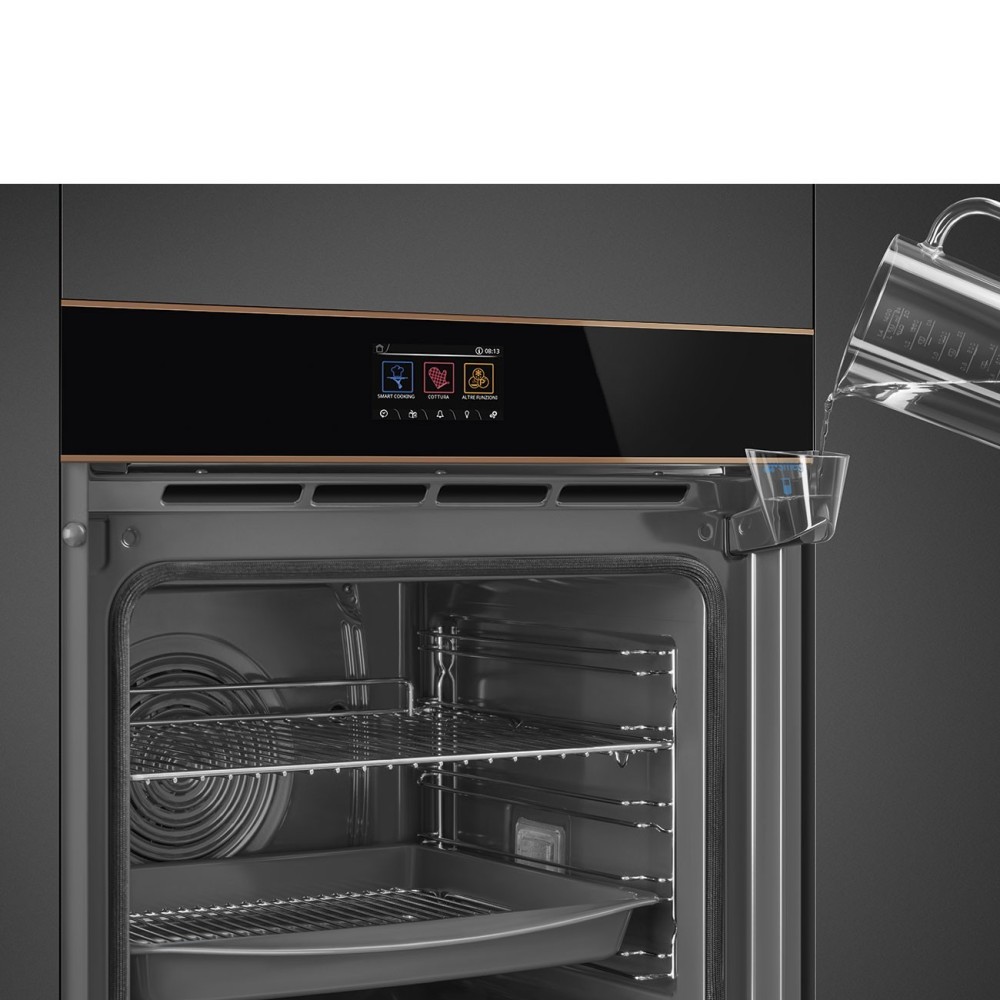

Cooling system: Tangential • Door Lock in Pirolysis: Yes • Water load: drawer, manual • Tank capacity: 0,8
l • Interruption resistors at the door opening: Yes • Sole resistance - Power: 1200 W • Sky resistance - Power: 1000
W • Grid resistance - Power: 1700 W • Wide grill resistance - Power: 2700 W • Circular resistance - Power: 2000 W
PREVENTIONS / ENERGY ETICHET
Energy efficiency class: A+ • Net cavity volume: 68 l • Energy consumption per cycle in natural convection: 3.92
MJ • Energy consumption per cycle in natural convection: 1.09 KWh • Energy consumption per cycle in forced convection: 2.45
MJ • Energy consumption per cycle in forced convection: 0.68 KWh
ELECTRICAL COLLECTION
Voltage: 220-240 V • Electrical connection data: 3000 W • Frequency: 50/60 Hz • Cable length
power supply: 115 cm Smeg S.p.A - Via Leonardo da Vinci, 4 42016 Guastalla (RE) Italy
GAS COLLECTION
LOGISTICS INFORMATION
Product size (mm): 592x597x548 • Net weight: 43,300 kg • Gross weight (kg): 47,000 kg
INCLUDED ACCESSORIES
Glazed stick (20 mm): 1Griglia luxury (inox): 1Griglia insert bacinella: 1Bacinella enamelta (50mm): 1 Temperature range:
Yes, multipoint Other: Water Load Kit Telescopic Guides to Total Extraction: 1
OPTIONAL
PALPZ: Accessories, Type: Pizza Paletta, Ovens, KitchensPR3845X: Accessories, Type: Ant footprint, ForniPR3845N: Accessories,
Type: Profile Kit, ForniPIR2: Accessories, Type: Pirofila, Furni, CucineGTT2: Accessories, Type: Telescopic guides,
SuppliesAIRFRY: Accessories, Type: Grills, Ovens, KitchensET50: Accessories, Type: Bacinella, SuppliesGTP2: Accessories, Type:
Telescopic Guides, Supplies: Accessories, Type: Bacinella, Supplies: Accessories, Type: Grills, Furnaces, CucineSTONE:
Accessories, Type: Stone Pizza, Ovens, Kitchens
