Ceiling Suction Center
Series 200
A C 250
–– Perfect integration into the environment
kitchen.
–– High noise motor
energy saving.
–– Perimetric extraction.
–– Adjusted suction power
automatically via sensor
control of air quality.
– For installation in the ceiling.
–– Easy filter maintenance.
–– Air extraction / recirculation
air.
Benefits
Performance and noise, level
power 3 / intensive:
Max suction power according to
EN 61591.
Sound power level according to EN
60704-3.
Sound pressure level second
EN 60704-2-13.
Reduction of odours for recirculation
according to EN 61591.
Air extraction:
458/933 m3 / h.
56/70 dB (A) re 1 pW.
Air recirculation:
419/637 m3 / h.
63/72 dB (A) re 1 pW.
Description
3 levels of electronic control power
and intensive operation modes.
Remote control included.
Automatic and operation option
post-coating function with sensor
control of air quality.
Spaced suction, 6 min.
Filter saturation indicator
fat.
Filter saturation indicator
activated carbons.
Anti-fat metal filter, washable in
dishwasher.
Anodized aluminium body.
Filter Cover Panel Color:
Gaggenau Light Bronze.
Engine operating technology
electromagnetic without brushes
(BLDC) for optimum efficiency.
Motor positionable on all 4 sides.
Cylindrical pipeline DN 150 round.
Integrated cooking control
(with compatible model).
Home Connect
Integrated digital services (Home Connect)
with wireless home network via WiFi.
The operation of the Home mode
Connect depends on the availability of
home Connect service in each nation.
For further information visit
www.home-connect.com.
Consumption values
Energy efficiency class A+ in a
energy efficiency range from A++ to E.
Energy consumption 30 kWh/year.
Suction efficiency class A.
Lighting efficiency class -.
Fat filter efficiency class E.
Sound level min. 41 dB / max. 56 dB
normal mode.

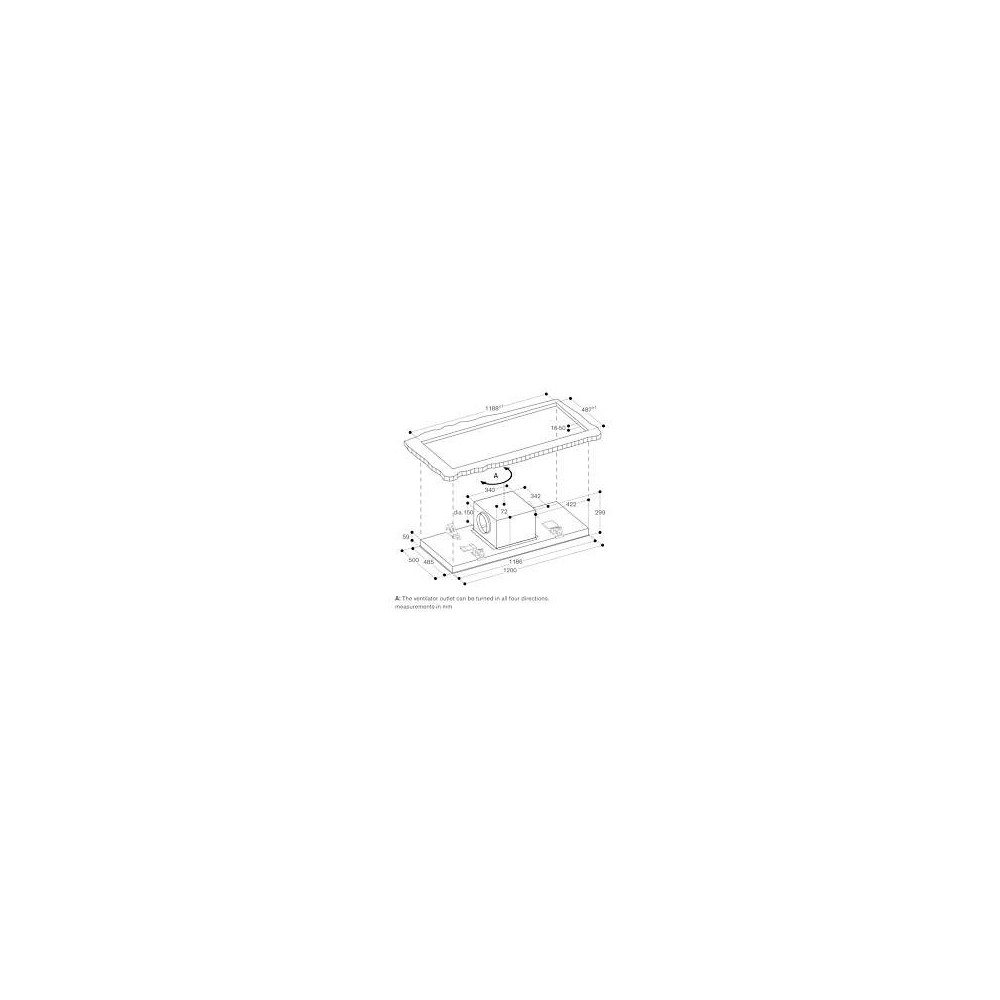

Mounting precautions
For installation in the ceiling.
The ceiling suction must be
configured as suction of
room when the distance from the floor
cooking is greater than 120 cm, as
direct capture of vapours is limited. The
necessary air flow is given by a
air exchange rate from 10 to 12
times the room volume.
A suitable structure is required
hold the weight of the hood. Not yet
install this appliance
fixing it on plasterboard materials
or similar.
Minimum recommended distance between
external filter unit and module:
100 cm.
For recirculation operation do
reference to the dedicated modules.
Distance min. from the gas plans below:
65 cm; if the absorption of the plane is
greater than 12 kW min., 70 cm.
Distance min. from electric cooking floors
below: 65 cm.
Do not install the hood in combination
with electric grills Various in mode
recirculation.
To ensure optimum operation
use tubes with nominal diameter
indicated.
Make sure during installation that i
connection pipes do not present
folds and that cross sections do not
are in no way obstructed.
If installed in extraction mode
predict a safety switch in
if a device is present
free flame with ventilated fireplace (e.g.
fireplace).
Ensure greater aeration of
local if the hood is installed in a
local where there is a fireplace
working.
Weight of the appliance c.a. 37 kg.
Connection values
Total load connected 250 W.
Connector cable 1.3 m with plug
