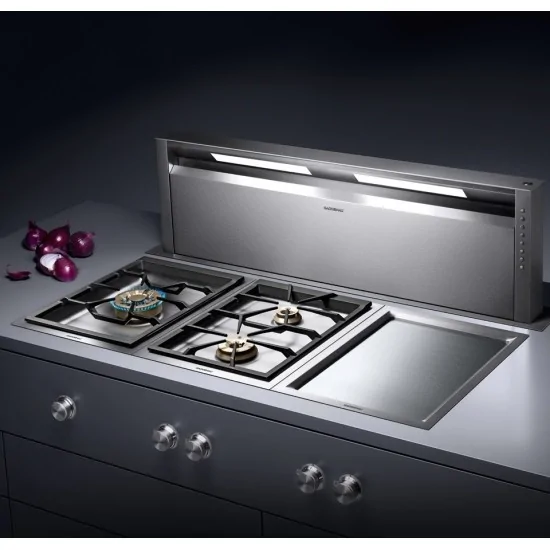

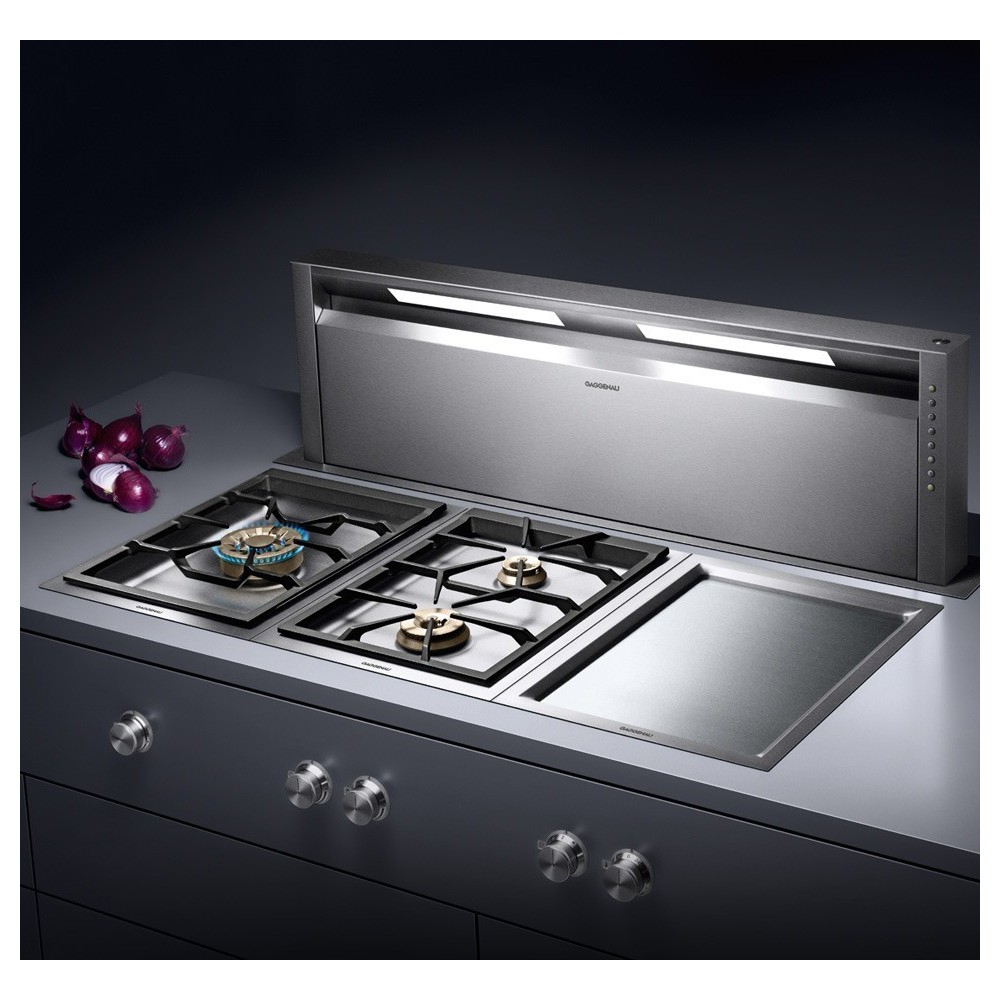

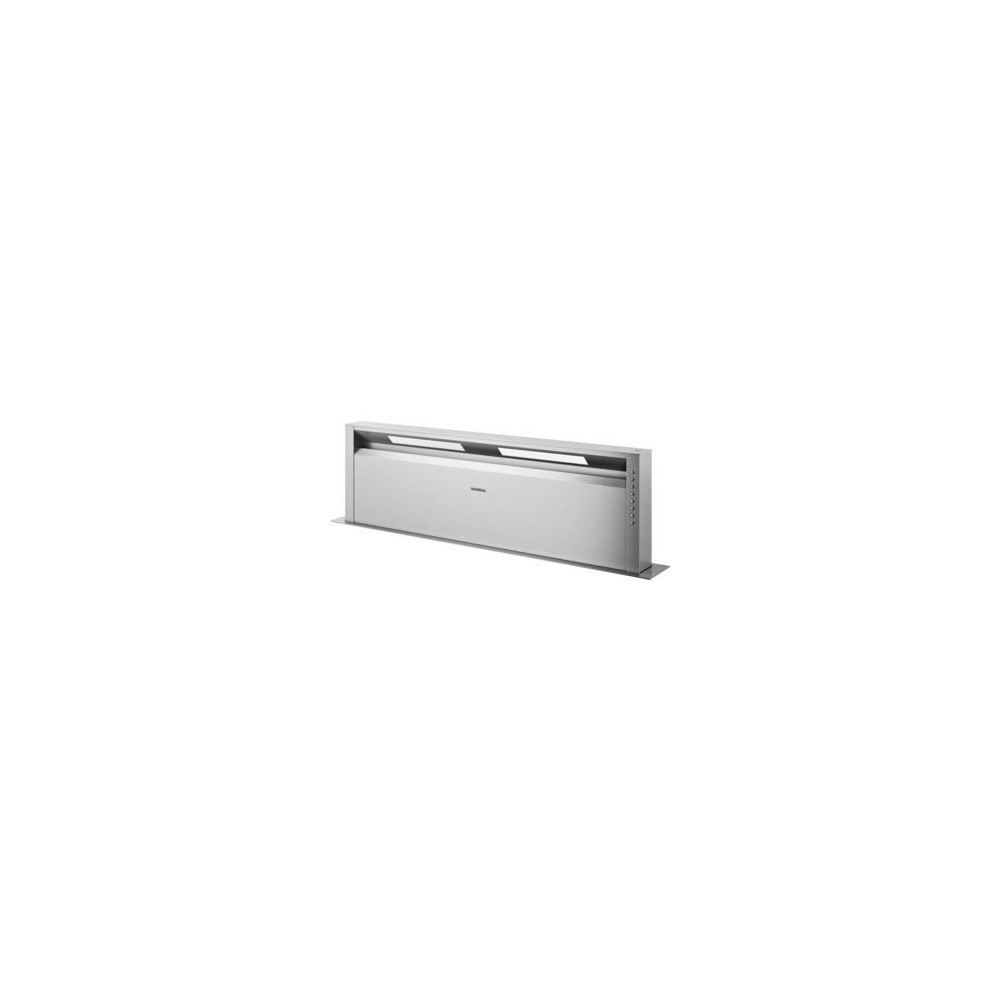

Series 400 telescopic suction centre
AL 400
–– Telescopic suction centre
on the floor, totally missing
when it's not working.
–– Perfect combination with all
luminaires of the Vario 400 series.
–– Hot and adjustable LED light, ideal
for the lighting of the whole floor
cooking.
–– Precise steel processing with
thickness 3 mm.
–– Possible support installation
or flush top.
–– Without engine, combined with
bLDC engines Gaggenau.
Benefits
Power and noise levels
dependent on the motor Gaggenau chosen
and the planned piping scheme.
Description
Three levels of electronic control power
and intensive operation modes.
Spaced suction, 6 min.
Post-coating operation, 6 min.
Filter saturation indication
anti-fat.
2 large anti-fat metallic filters, easy to
remove and washable in the dishwasher.
Fat collection trays, simple from
remove and washable in the dishwasher.
White LED light of warm shades
(3600 k), adjustable.
Lighting power: 2 x 10 W.
Lighting: 400 lx.
Flexible installation of the engine unit
remote: on the front, back or
lower.
In all installation options is
secured the necessary space
any front drawers inside
mobile.
Consumption values
AL 400 192: Consumer data are
related to a configuration with the unit
remote engine AR 400 142.
Energy efficiency class A in one
energy efficiency class scale
from A+++ to D.
Energy consumption 45.5 kWh/year.
Ventilation efficiency class A.
Lighting efficiency class C.
Efficiency class of the B grease filter.
Sound level min. 45 dB / max. 61 dB
with normal suction level.
In Europe, the model AL 400 122 can
be configured for operation
only in recirculation mode. In this
the communication of values
consumption is not mandatory.
Mounting precautions
For recirculation/a operation
extraction refer to the different
available engines.
AL 400 192: combined with all
variety 400 Series, 400 Series and
Series 200. Maximum width
plans: 90 cm.
AL 400 122: combined with all
vario Serie 400 and Serie 400.
Maximum width of floors: 120 cm
To ensure efficient capture of
fumes and odors, it is recommended to install
an AL 400 122 with 2 engines.
Due to restrictions due to
european regulation EU 66/2014
on the environment aspiration
the installation of the
AL 400 122 only in recirculation mode.
Do not predict an Electric Grill in
case of operation of the hood
recirculation mode.
Depending on the installation type,
the corresponding accessories must
be ordered separately. Fitted with maximum power
18 kW.
The telescopic suction centre must
have a dedicated recess hole and
separated from the stove.
Flow and stability, in particular
in the case of thin work plans, must
be supported by appropriate means
substructures.
Consider weight
of the device and additional loads.
Between suction center and stove
a distance must be guaranteed
top floor of at least 50 mm. Such a space
must be supported by a structure
reinforcement (see dedicated accessories
code AA 409 401/431).
Additional instructions for installation
wire:
Installation is possible in plans
stone, synthetic or solid wood.
Resistance must be respected
thermal and tinned edges
of the carving. With regard to others
materials please consult the
producer of the work plan.
You can place ovens inside
of the same mobile where it was inserted
also the suction center
depending on the type of installation
choice.
If installed in extraction mode
predict a safety switch
in case a device is present
free flame with ventilated fireplace (e.g.
fireplace).
Ensure accessibility of the module
control and secure it
anchoring it to a furniture panel.
Connection values
Total absorption 65 W / 65 W.
Connection cable 1.7 m with plug.
Data cable length 1.2 m.
