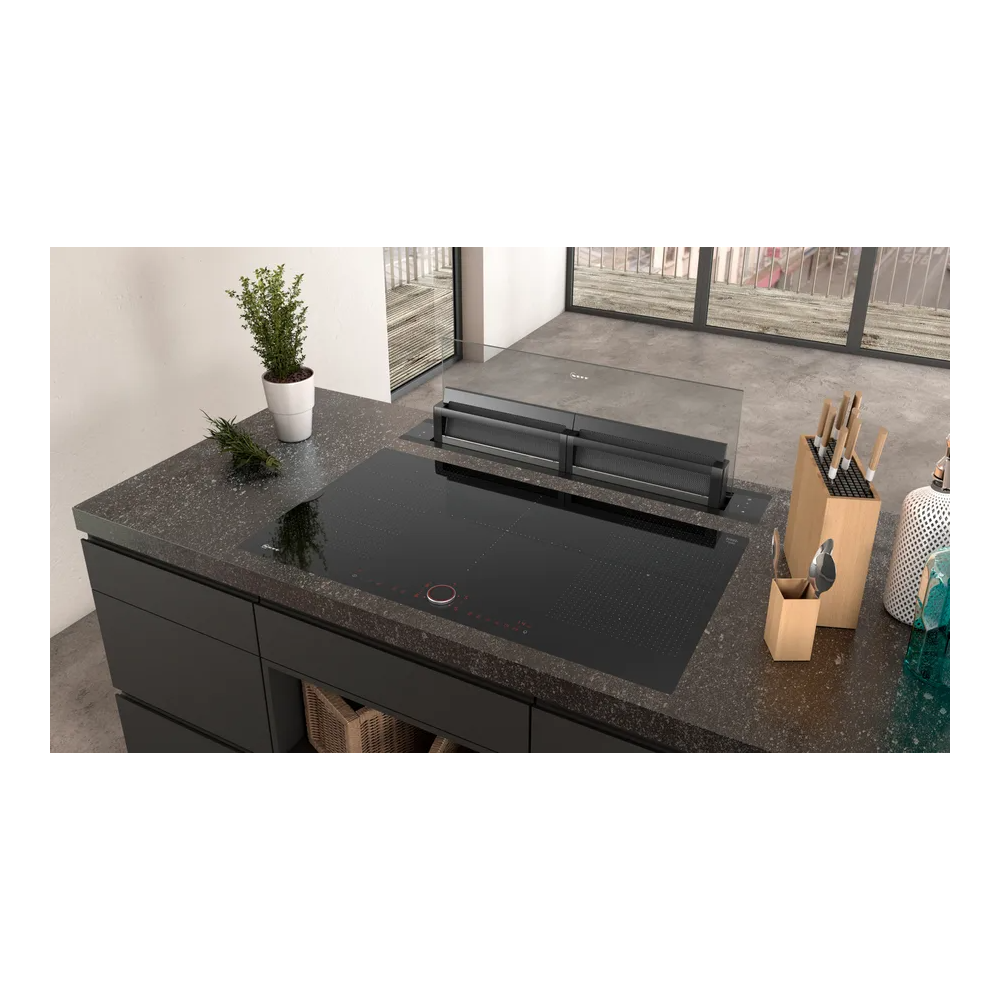

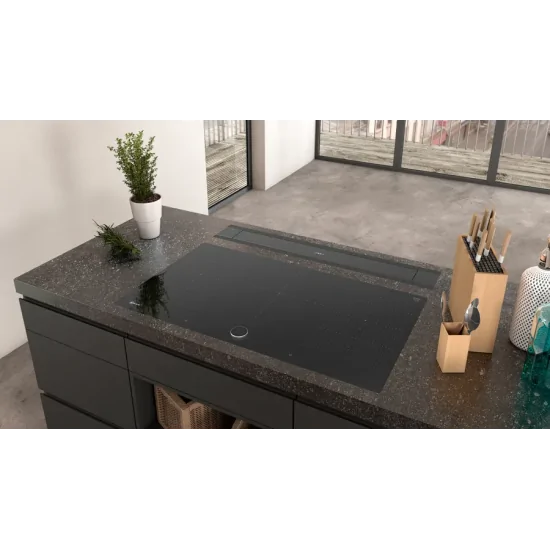

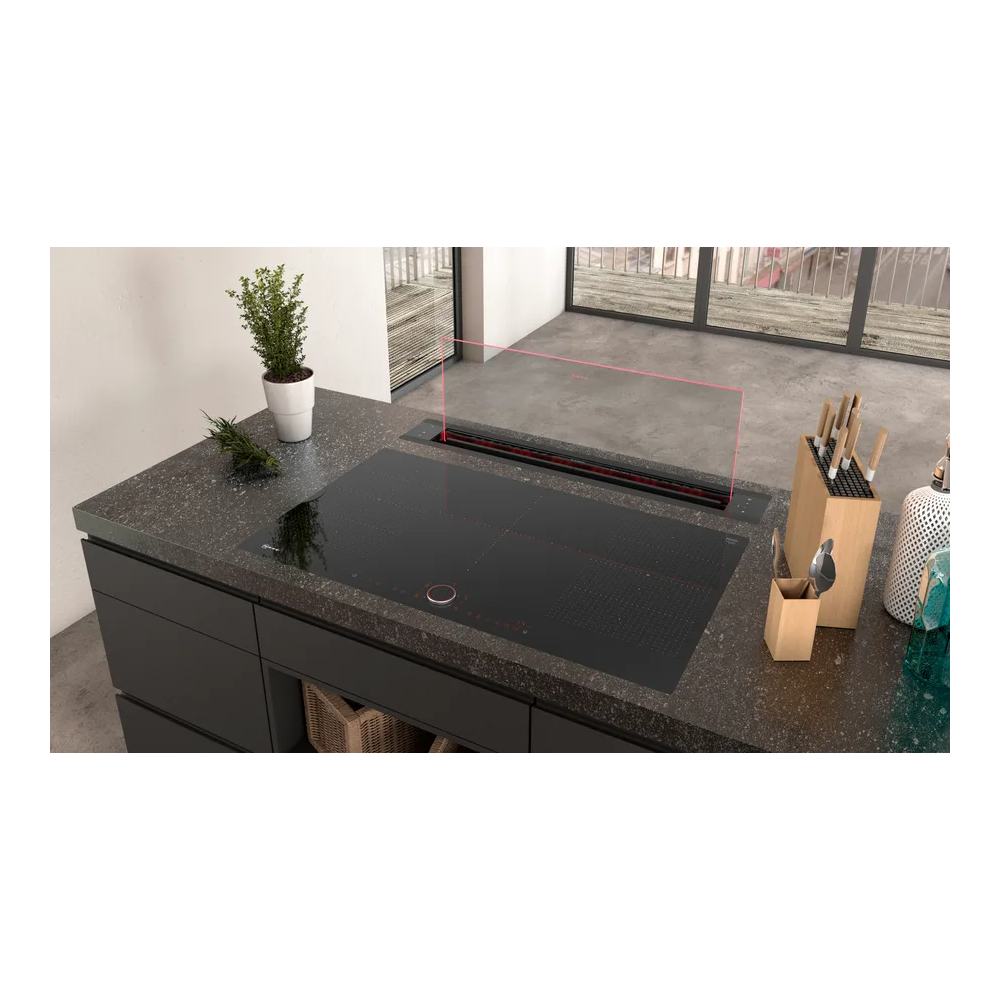

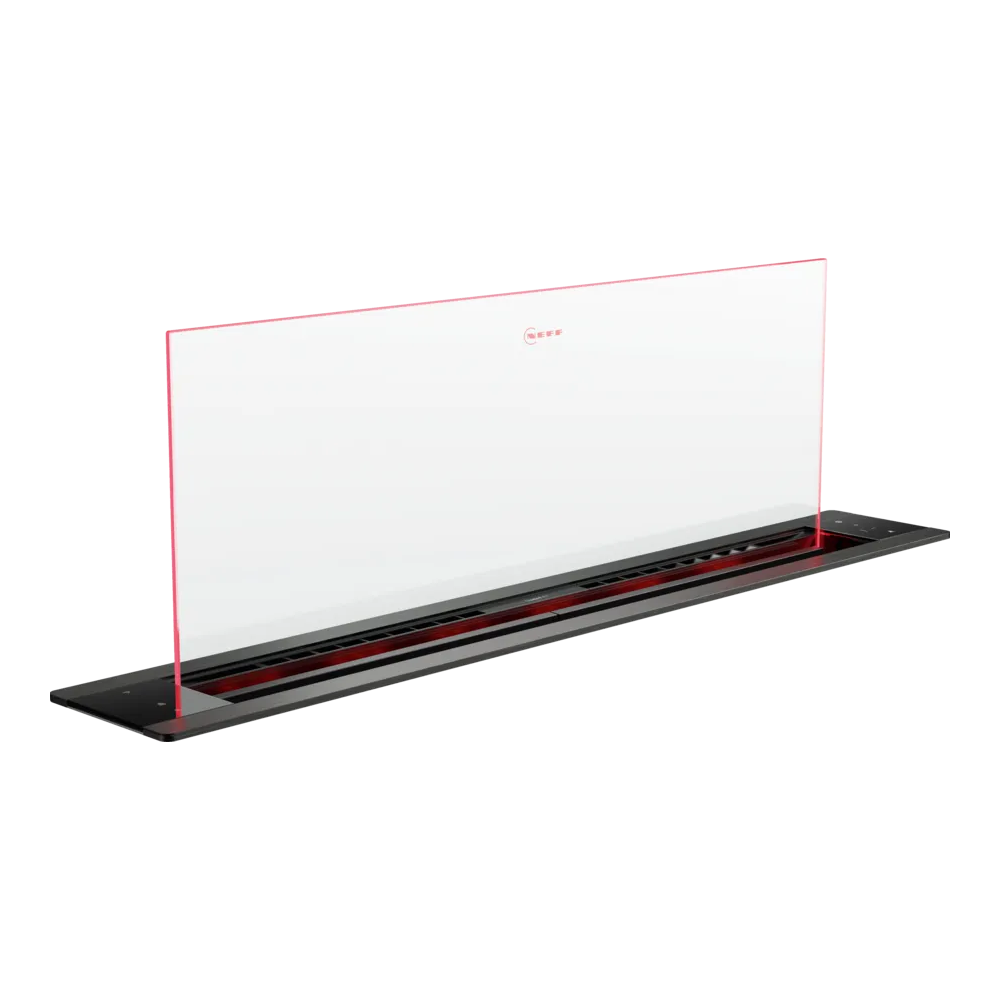

Neff: Telescopic hoods for glass tops with top mounting.

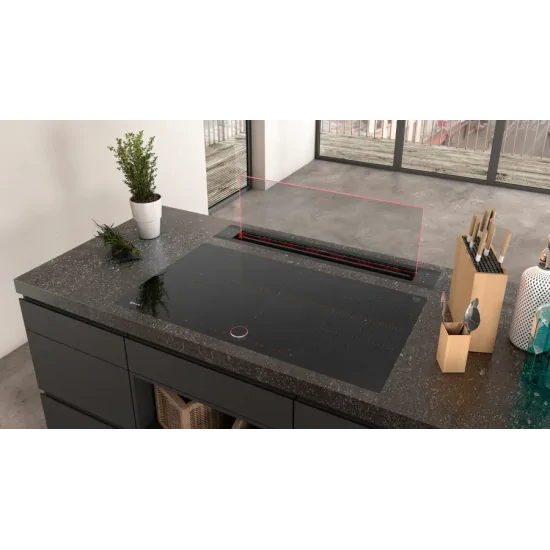

The new Glass Draft hood guarantees a perfect atmosphere in the
kitchen and, thanks to its almost invisible glass, creates no barriers to
conviviality.
√ Guided Air technology: powerful steam extraction over the entire
hob, regardless of the position of the pots or
of the pans
√ Illuminated glass panel - 25 million colours for
ever-changing illumination of your kitchen
√ Integrated hood control: adjust the suction level and
the lighting of your hood.

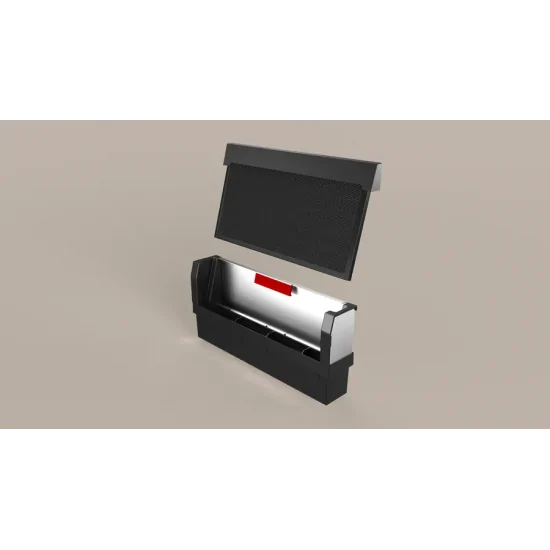

√ Easy-access grease filters: Simply press a button to remove the filters and wash them in the kitchen.
remove the filters and wash them in the dishwasher
Technical data
Type : Downdraft
Approval certificates : CE, VDE
Length of power supply cable : 130 cm
Installation compartment dimensions (HxWxD) : 703mm x 854.0mm x
123mm mm
Net weight : 37.0 kg
Control type : electronic
Operating speed : 3 speeds + 2 intensive stage
Maximum air expulsion power : 519 m³/h
Max. air recirculation power with intensive stage : 596 m³/h
Max. air recirculation power : 456 m³/h
Max. air expulsion power with intensive stage : 833 m³/h
Noise level : 62 dB(A) re 1 pW
Air outlet diameter : 150 mm
EAN code : 4242004249726
Electrical connection rating : 300 W
Current : 10 A
Voltage : 220-240 V
Frequency : 60; 50 Hz
Plug type : Schuko
Type of installation : Recessed
Optional Accessories
Z861SB1 : HOB ACCESSORY , Z861SB2 : HOB ACCESSORY
COOKTOP , Z861SI0 : HOB ACCESSORY ,
Z861SI1 : HOB ACCESSORY , Z861SM1 : HOB ACCESSORY
BUILT-IN HOB , Z861SM2 : BUILT-IN HOB ACCESSORY ,
Z861SS1 : HOB ACCESSORY , Z92WWB1X6 :
BUILT-IN HOOD ACCESSORY , Z92WWI1X7 : HOB ACCESSORY ,
Z92WWJ12 : long life recirculation kit , Z92WWM11 : ACCESSORY
BUILT-IN HOOD , Z92WWY9X2 : HOB ACCESSORY
Key features
● 90 cm width
● The perfect solution for installation in a kitchen solution
island or semi-island kitchen solution
● Highly efficient BLDC motor
● Exhaust or recirculation operation

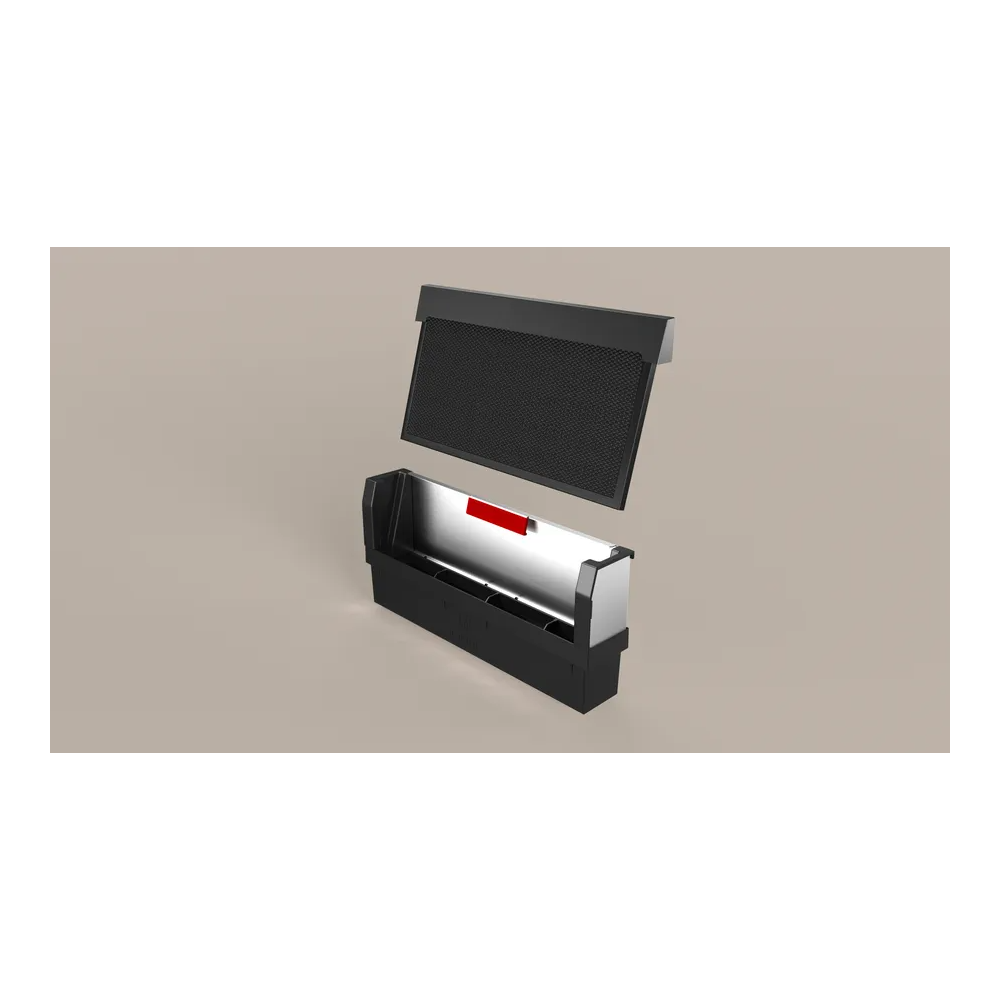

● For recirculation operation, the Clean
Air Plus recirculation kit
● Dishwasher-safe metal grease filters
● Saturation indicator for metal and activated carbon filters
Control system
● Mechanical slider for power control and lighting
● 3 selectable speeds plus 2 intensive speeds
● Intensive level with automatic reset, 6 min
● Automatic post-firing operation for 10 min
● Glass panel can be easily removed and cleaned
Connectivity
● HomeConnect
● Control via hob
● Interval function: available via Home Connect
● Silent operation: available via Home Connect
Performance
● Air exhaust capacity: in normal operation 519 m³/
h, intensive 833 m³/h in accordance with EN 61591
Noise level according to EN 60704-3 and EN 60704-2-13
air exhaust:
Max. position normal:62dB(A) re 1 pW.
Intensive:71 dB(A) re 1 pW.
● Min./max. sound power level at normal power level: 41/62 dB
(A) re 1 pW*.

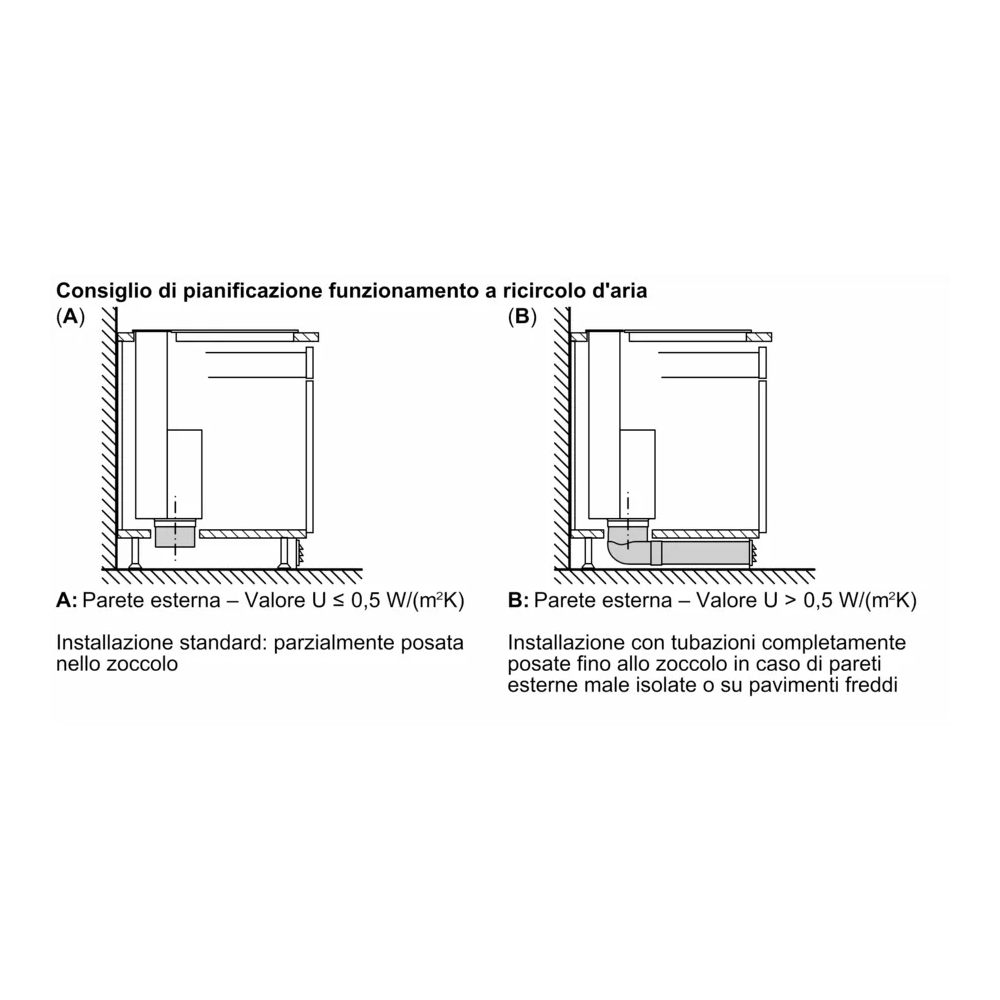

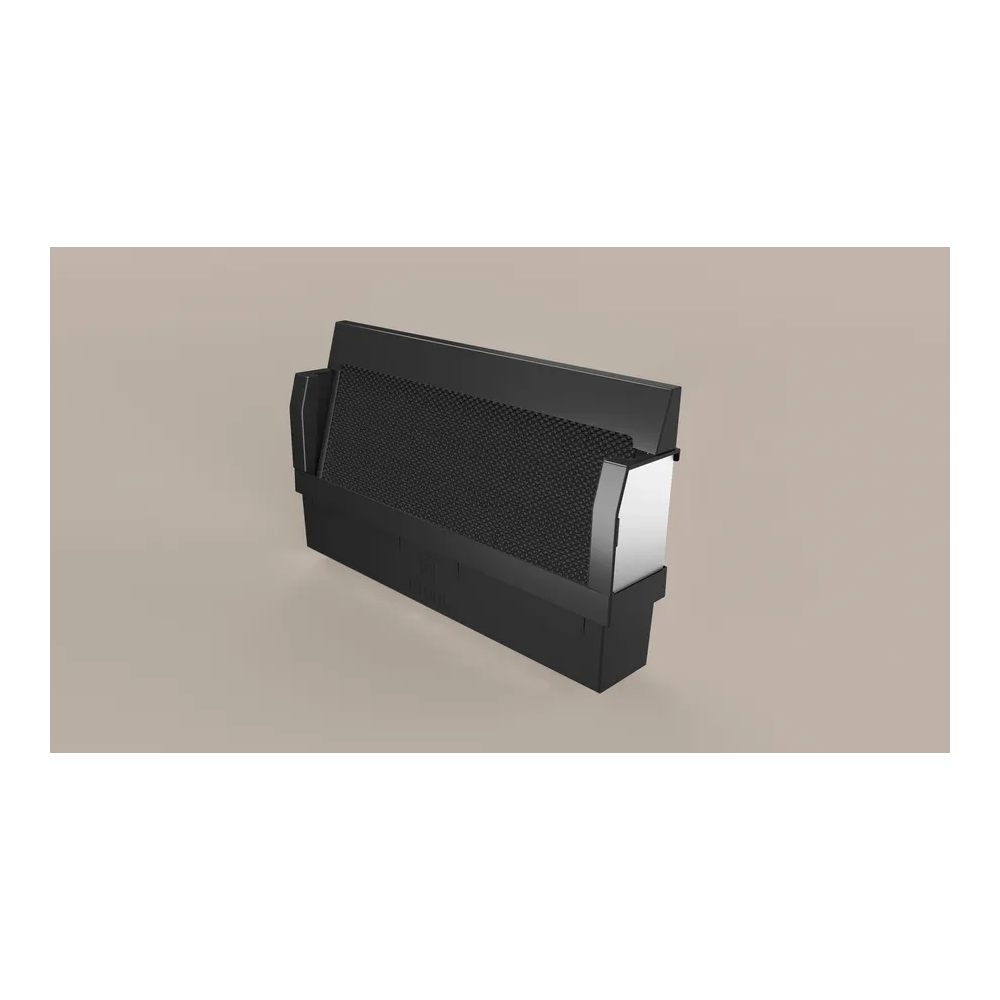

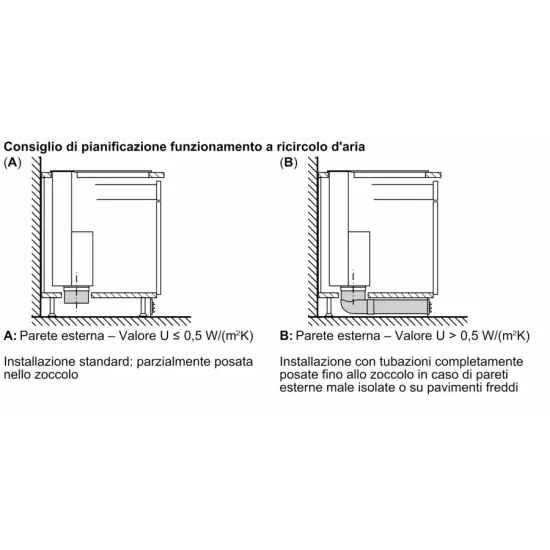

● With the Clean Air Plus recirculation kit (available as an accessory) your
your appliances achieve:
Extraction speed in recirculation mode: Max. use
Normal:456m³ / h
Intensive:596m³ / h
Noise level in recirculation mode: Max. normal use:66dB (A)
re 1 pW
Intensive:71dB (A) re 1 pW
Energy Label Data
● Energy efficiency class: A (on a scale of
energy efficiency classes from A++ to D)
● Annual energy consumption (kWh): 37.8 kWh* ● Energy efficiency class of motor: A
● Motor energy efficiency class: A*
● Energy efficiency class of grease filter: C*

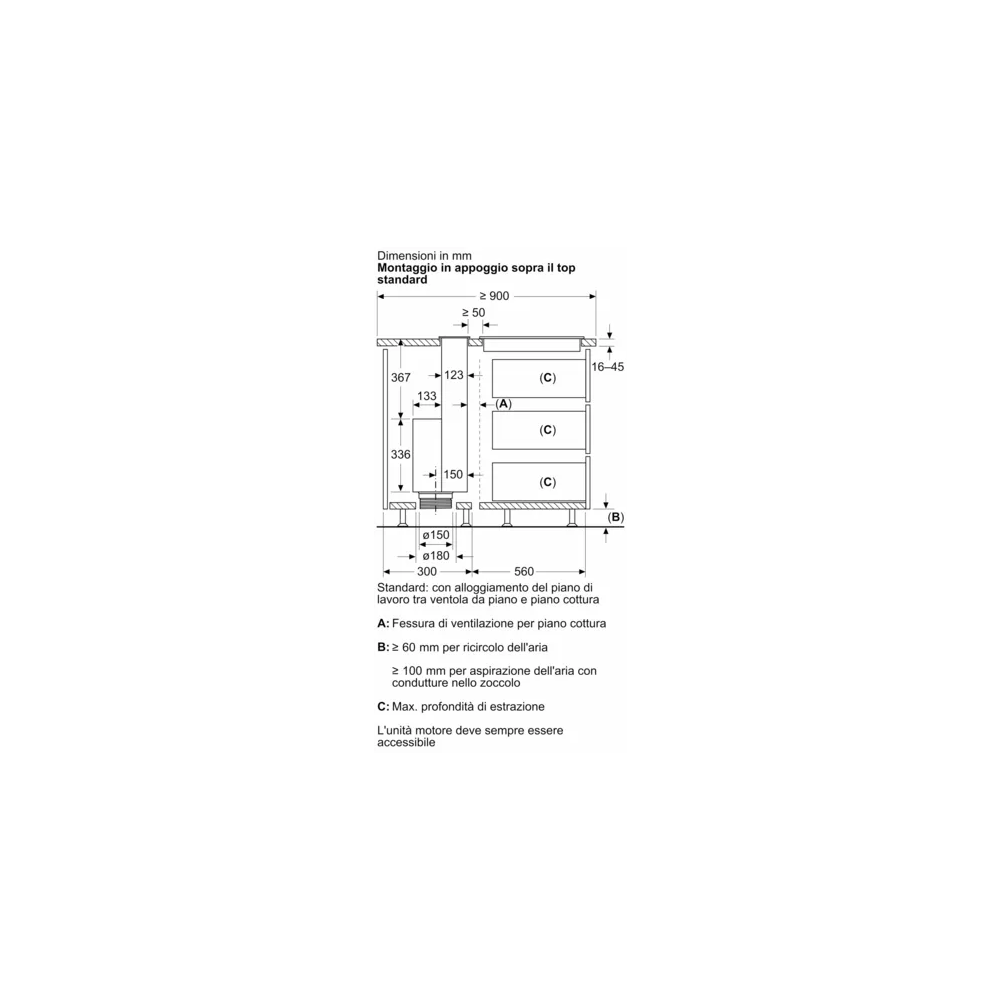

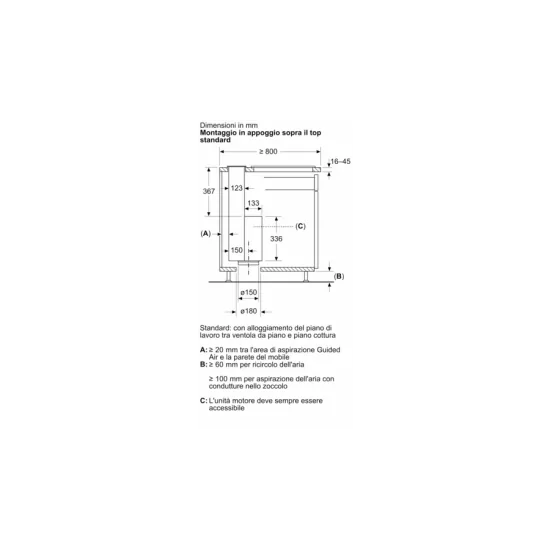

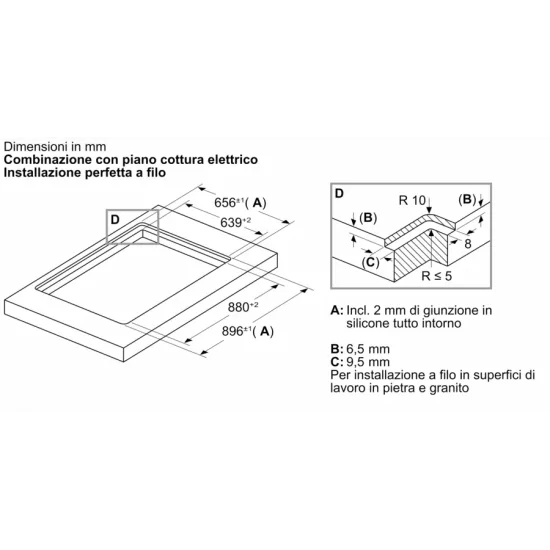

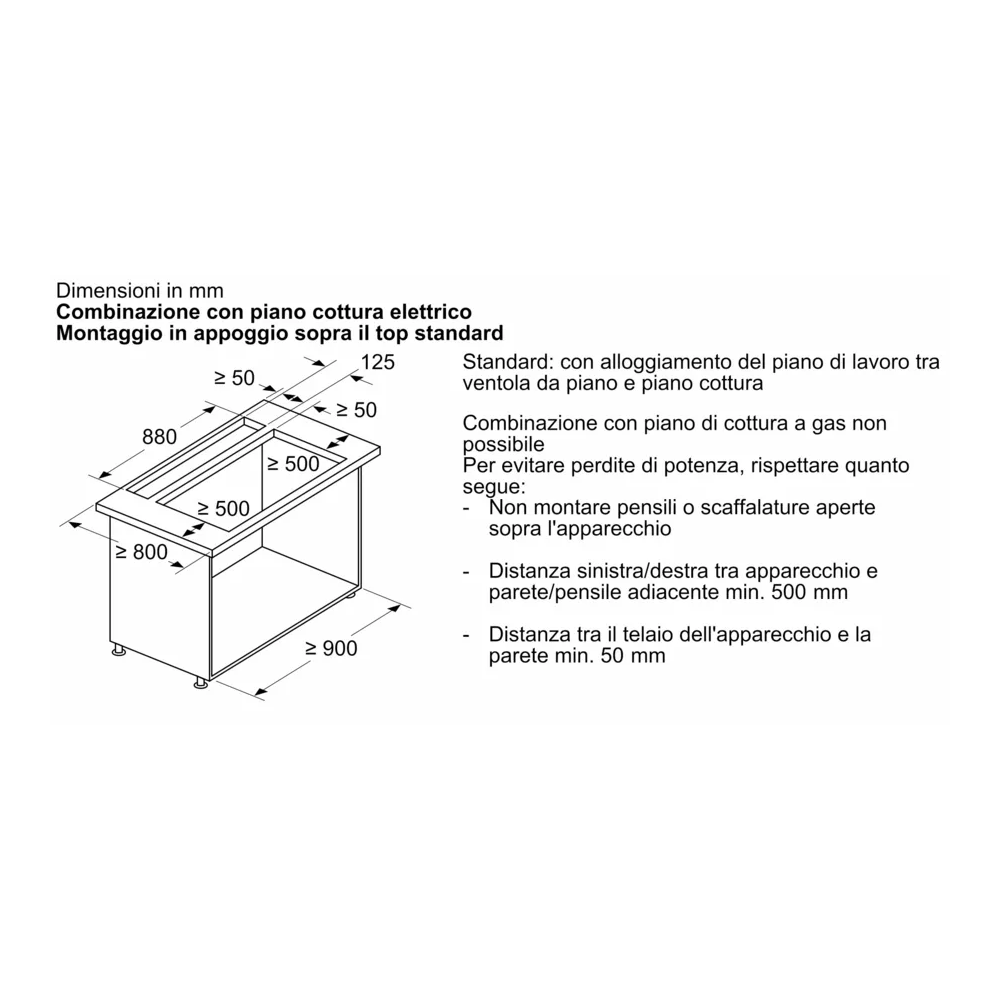

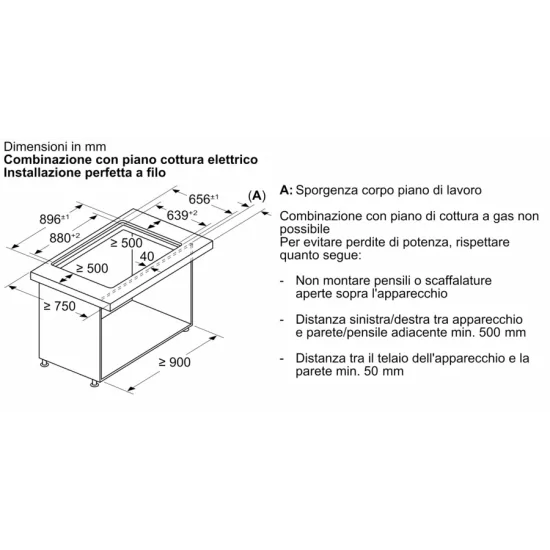

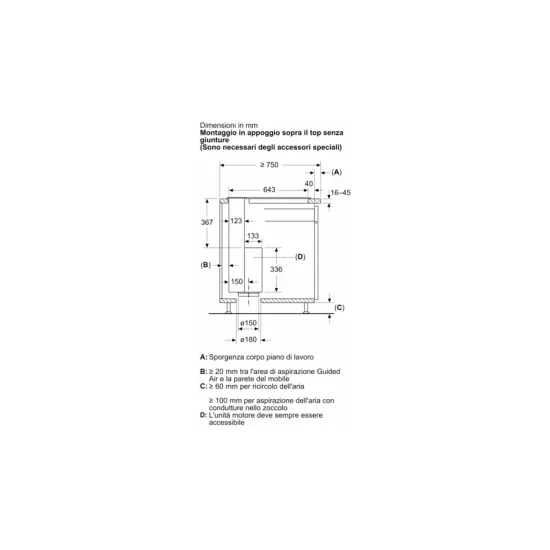

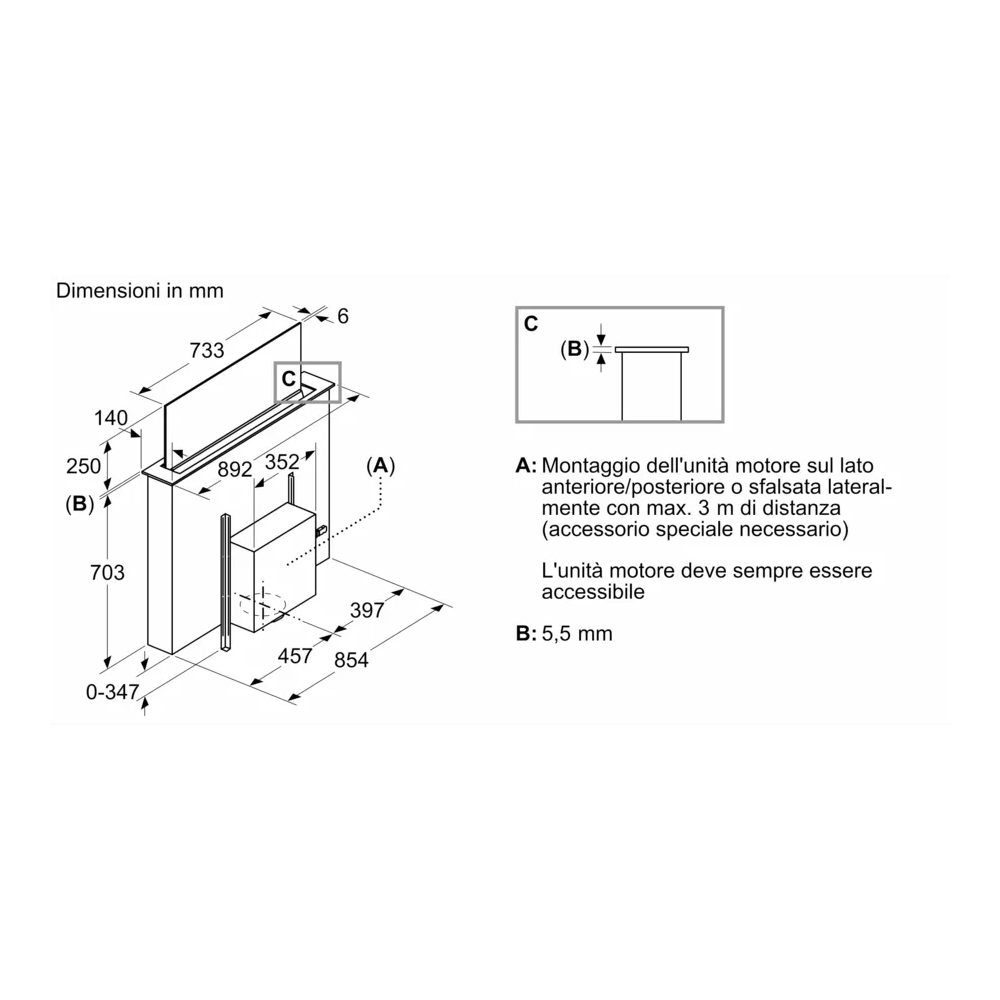

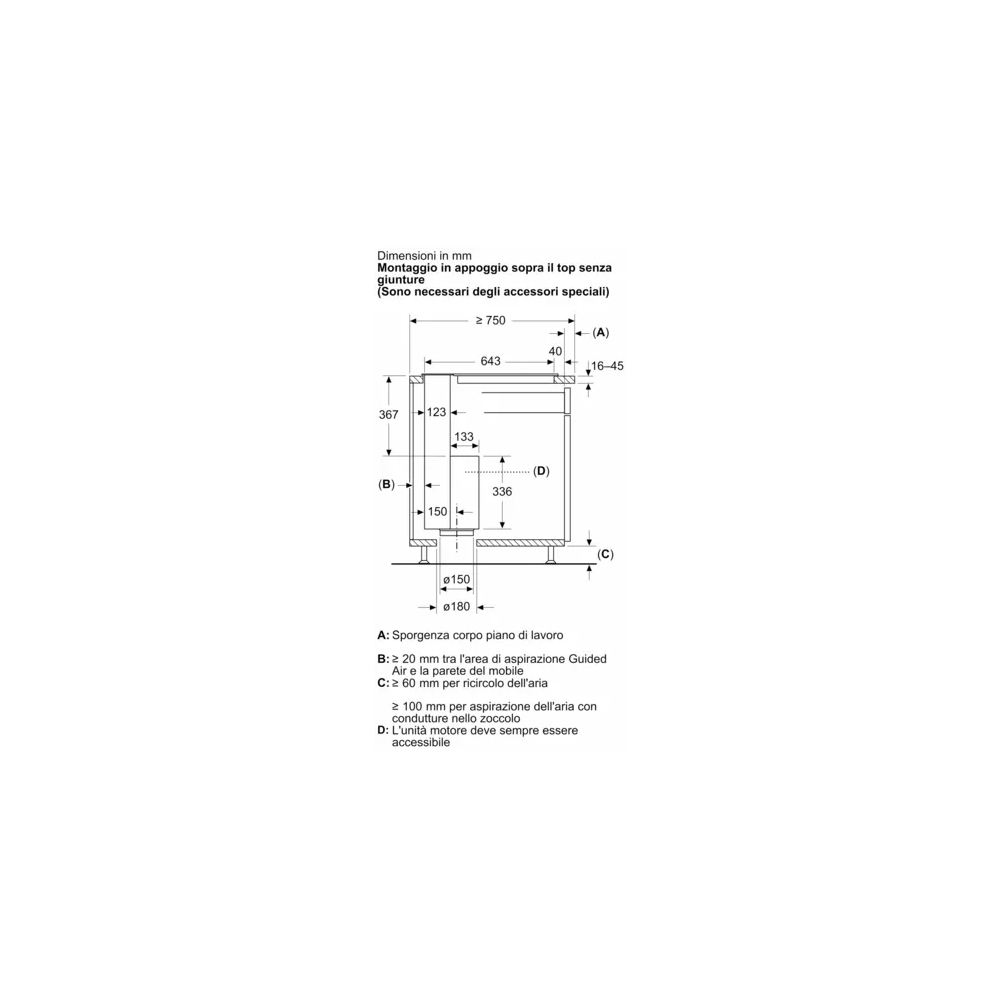

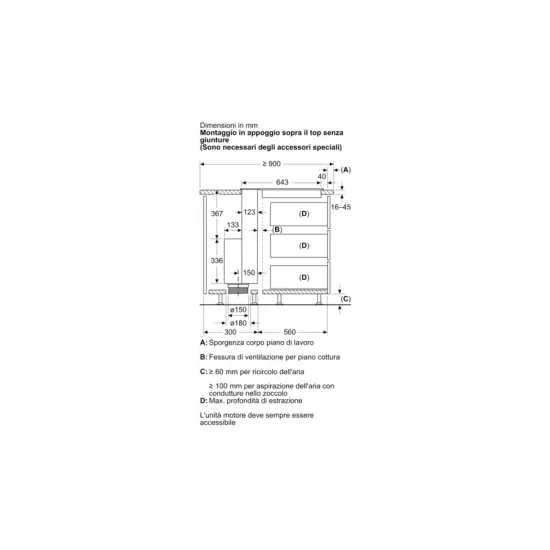

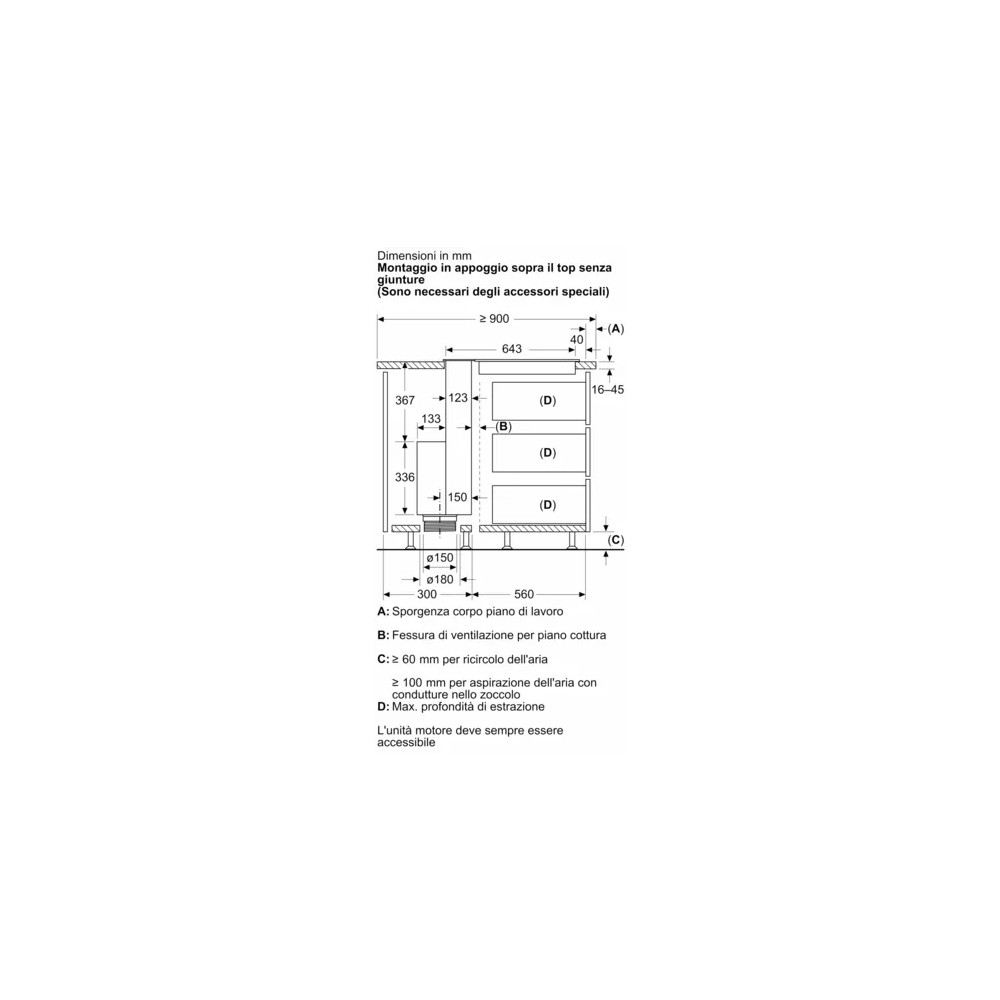

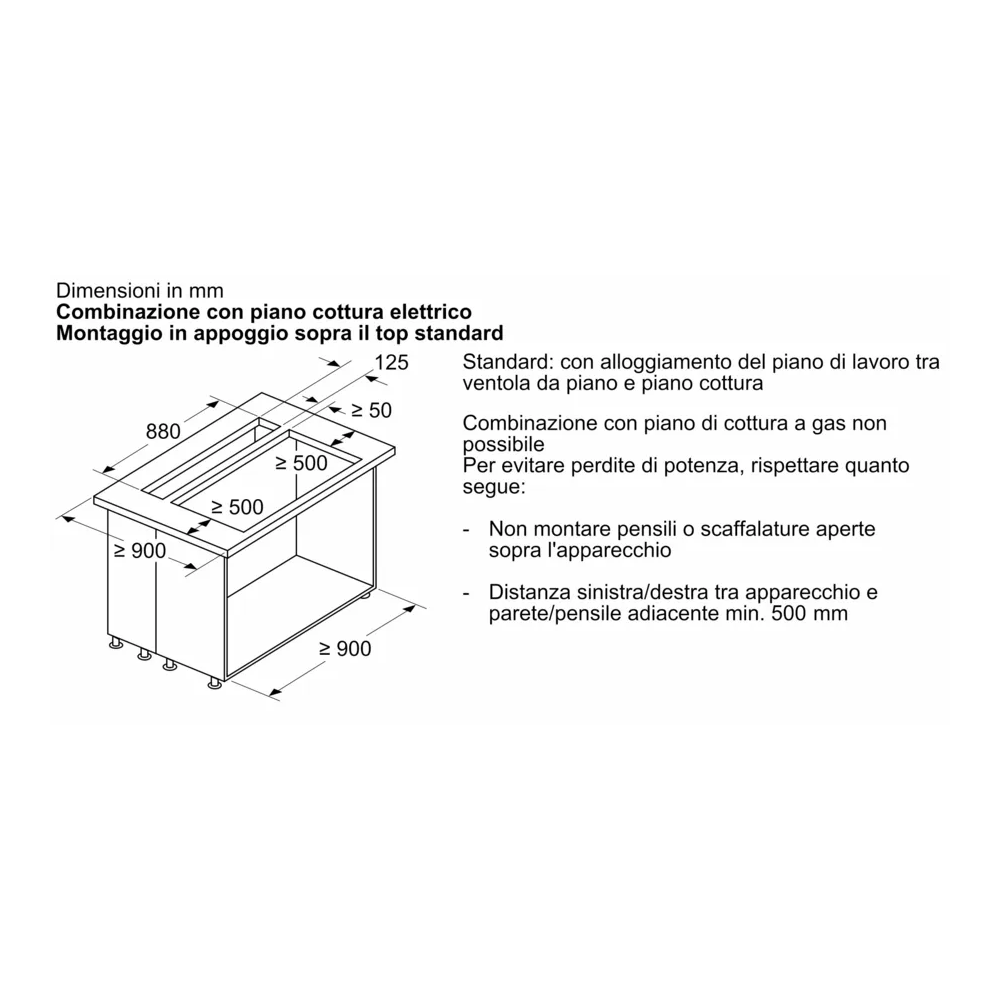

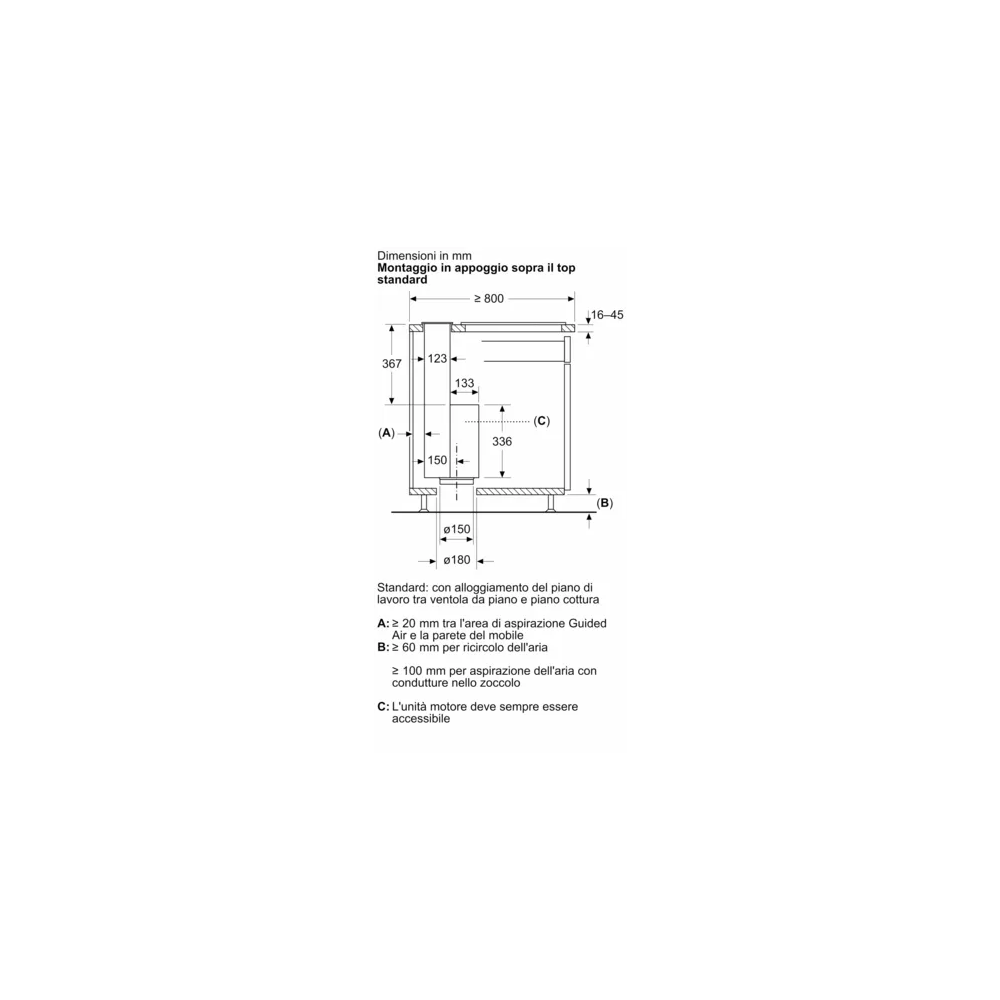

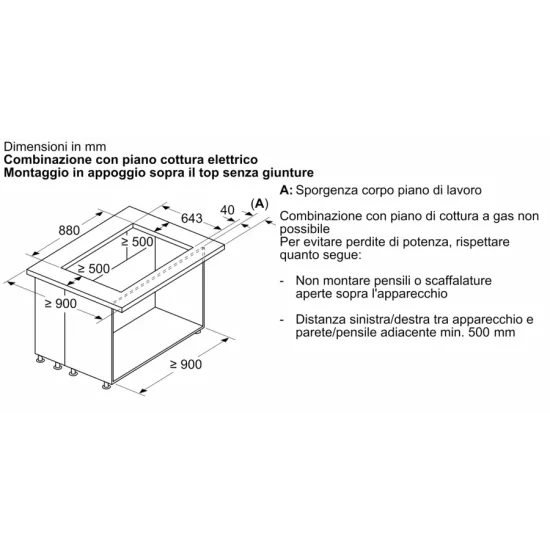

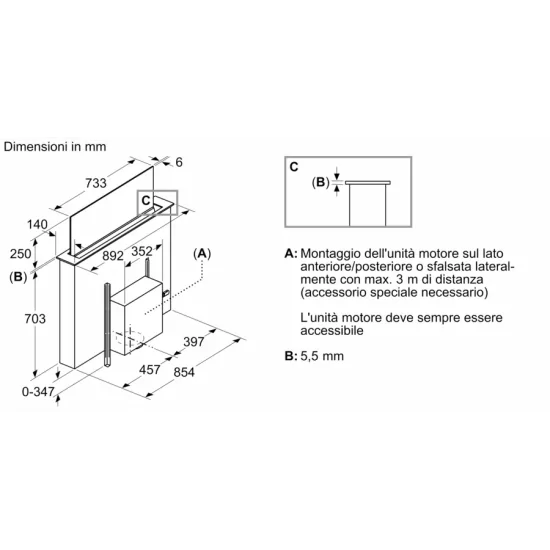

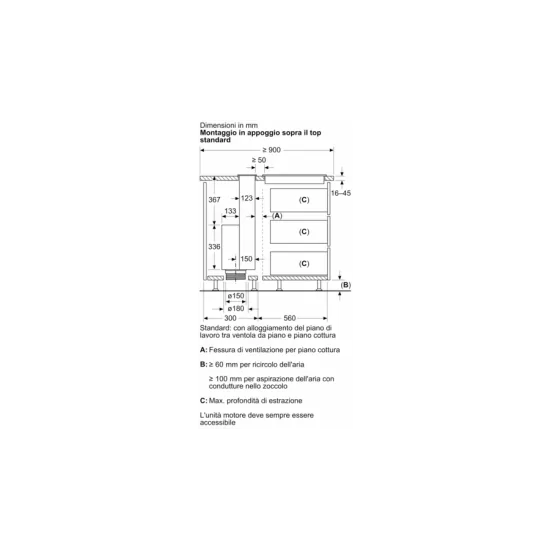

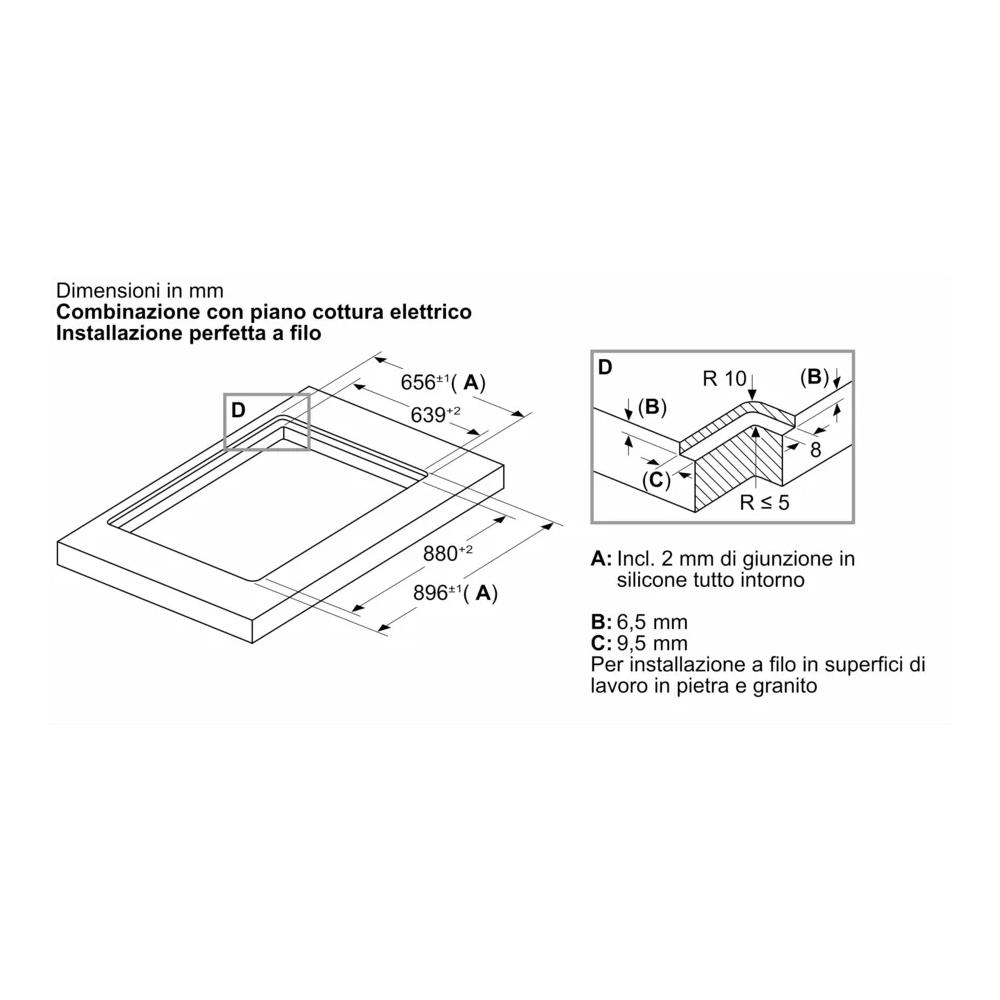

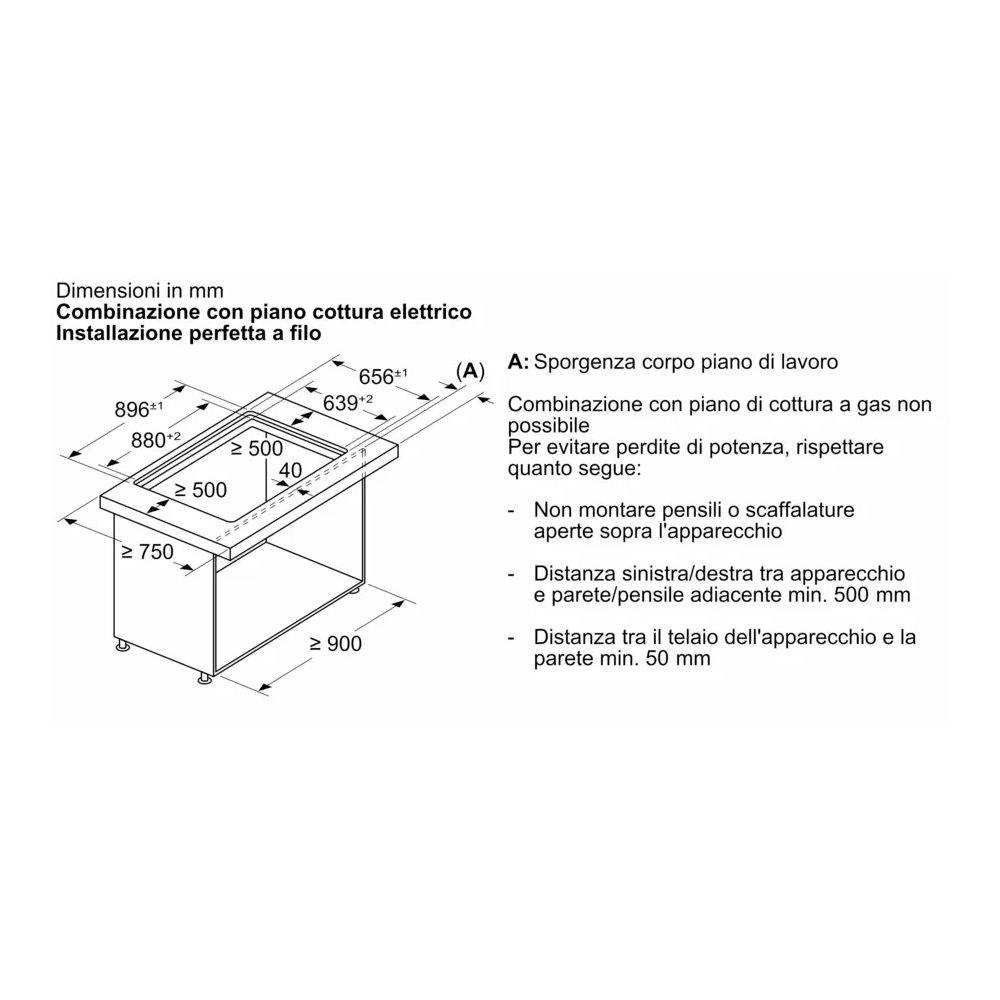

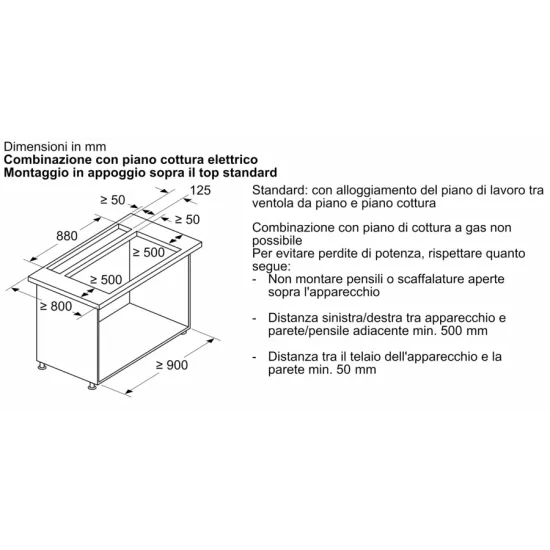

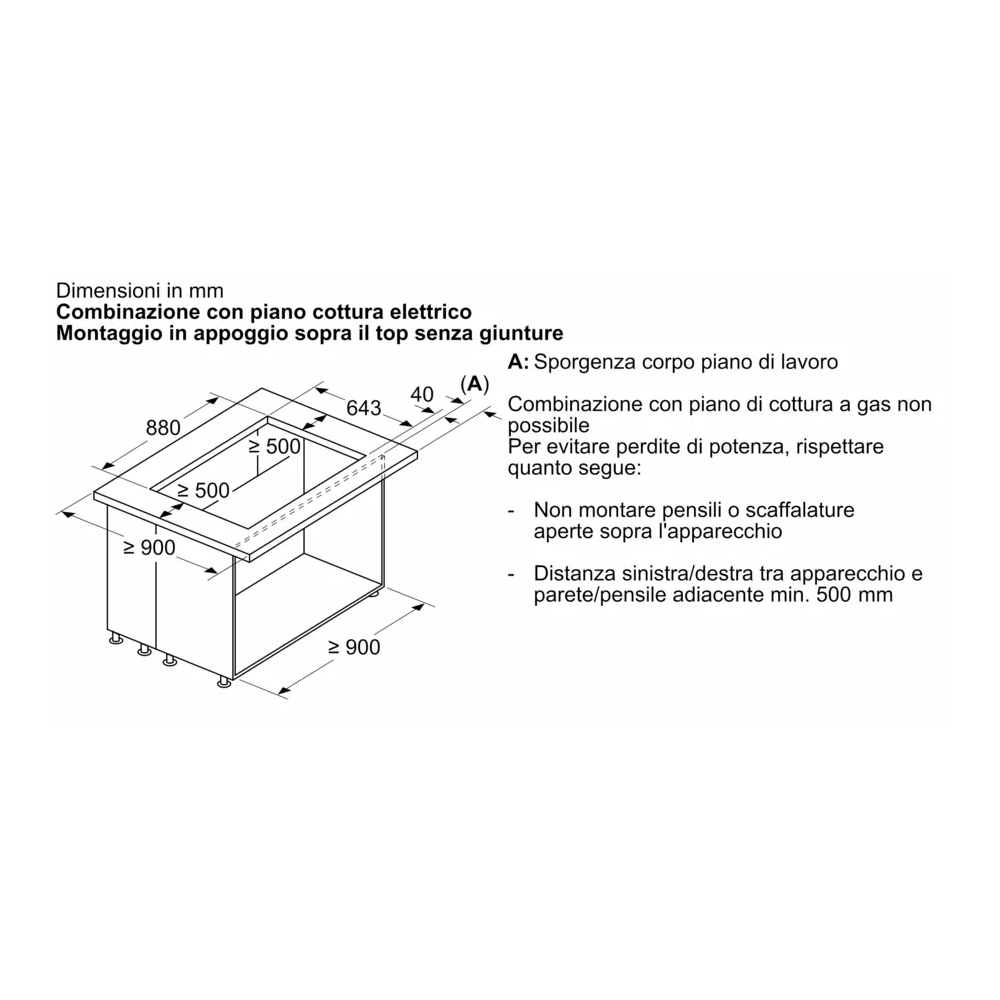

Installation details
● Height of hood from worktop 250 mm
Dimensions (HxWxD): 709 x 892 x 140 mm

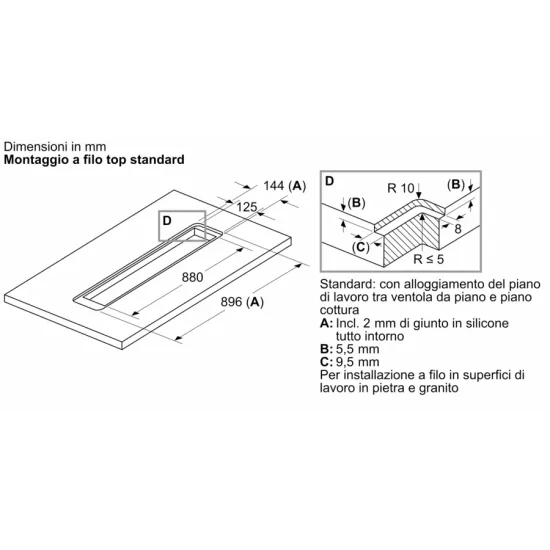

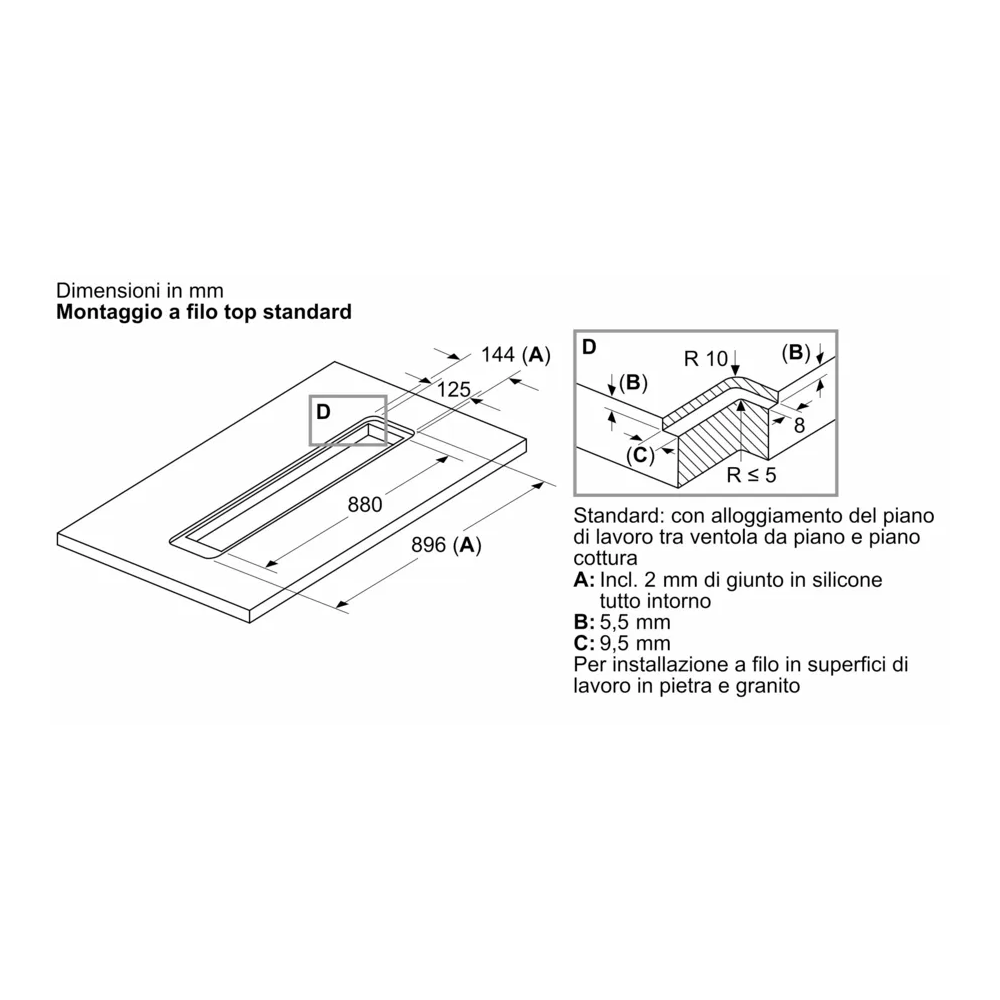

● Built-in dimensions (HxWxD): 703 x 854 x 123 mm
● Air outlet diameter: 150 mm
● Electrical connection cable 1.3 m
Electrical consumption: 300 W
*In accordance with Delegated Regulation ( EU ) No. 65/2014
