Vario Refrigerator 400 Series Stainless steel interior and solid
RC 492/RC 472/RC 462
- Stainless steel interior and solid
anthracite-coloured aluminium elements.
- Lighting points with warm
warm, anti-glare LED light.
- Doors equipped with Open Assist in two
modes:
1. Push-to-Open function for
integrate the fridge into compositions
without a handle
2. Pull-to-Open function for easy
opening with a handle.
- Cushioned door closing thanks
the SoftClosing system.
- The drawers in the RC and RF are
positioned at the same height. In
case of side-by-side installation
the glass shelves and supports in the
counter doors can be
aligned on the same level.
- Stainless steel plate interior.
- Rail system for shelves and grids
flexible and unobtrusive.
- Solid anthracite-coloured aluminium supports
anthracite-coloured aluminium supports in the counter door.
- One 0 °C drawer with control
temperature control from -1 °C to +3 °C and
one Fresh Cooling drawer with
manual humidity control.
- TFT touch display.
- Total capacity 579/467/357 litres.
Operation
TFT display.
Display with plain text.
Technical features
Dynamic cooling.
Automatic defrosting.
Activated charcoal air filter.
Star-K certified rest mode.
When rest mode is active
the appliance can only be opened
by the handle.
Acoustic and visual signal in case of
of faults.
Home Connect
Integrated digital services (Home Connect)
with the wireless home network via WiFi.
The operation of Home
Connect Wireless via WiFi depends
on the availability of the Home Connect service
Connect service in each country.
For more information visit
www.home-connect.com.
Refrigerator compartment
Rapid cooling.
Temperature adjustable from +2 °C to
+8°C.
3 unbreakable white glass shelves,
adjustable in height.
1 fully removable drawer
with transparent front.
1 integrated frosted glass shelf.
4 LED light points with white light,
warm and anti-glare.
Balcony positioning in the
extremely flexible counter door.
3 height-adjustable balconies, of which
one very wide.
Capacity 494/398/305 litres.
Fresh Cooling Zone 0 °C
1 drawer 0 °C fully
removable with transparent front,
illuminated.
Temperature control via display
TFT: temperature can be adjusted from
-1 °C to +3 °C.
Ideal for meat and fish.
Capacity 85/69/52 litres.
Fresh Cooling Zone
1 Fresh Cooling drawer
fully removable drawer with transparent
transparent, illuminated front.
Manually adjustable humidity level.
Ideal for fruit and vegetables.
Consumption values
Energy efficiency class E
(On a scale of energy efficiency classes
energy efficiency classes A to G).
Energy consumption 182/166/150
kWh/year.
Noise level 40 dB (A) re 1 pW.

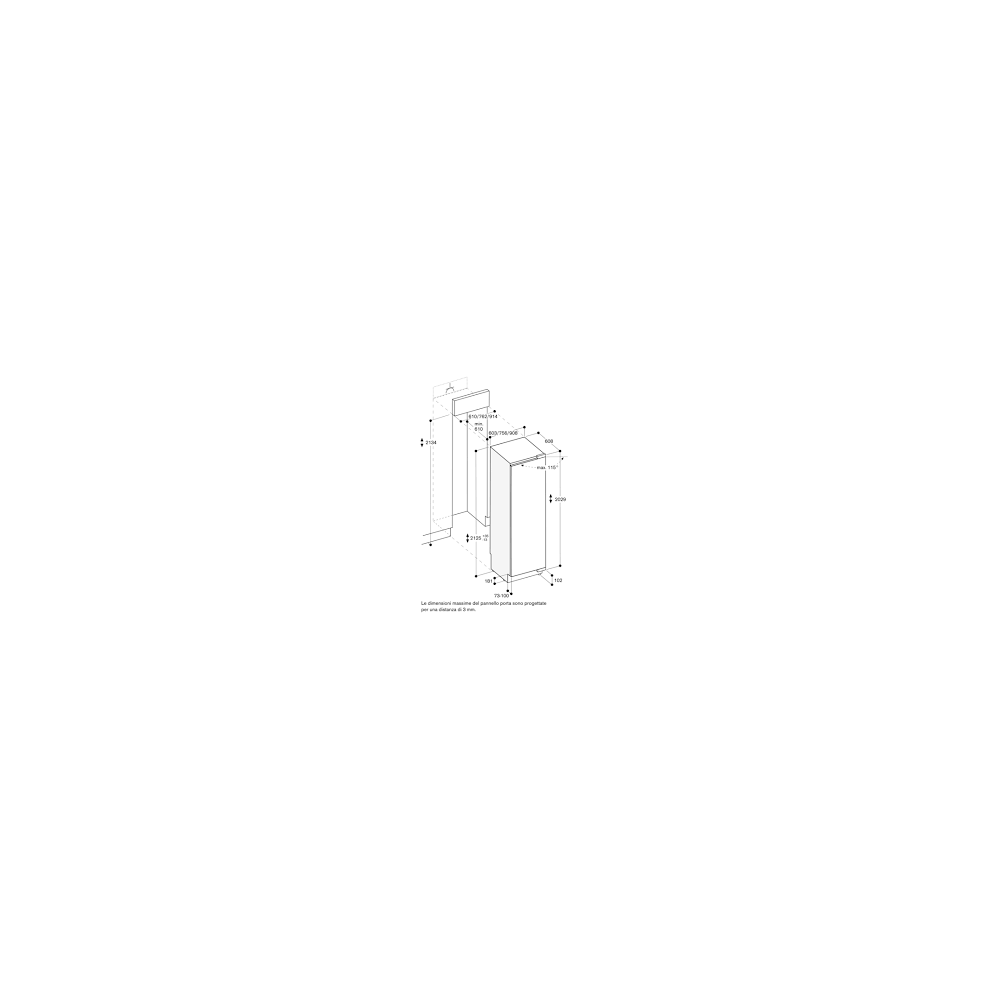

Mounting precautions
Flat hinges.
Right-hand hinge, reversible.
Door opening angle of 115°,
90° locking possibility
(dedicated accessory supplied).
Max. door panel weight: 43/24/41 kg.
Connection values
Total power consumption 0.300 kW.
Connection cable length 3.0 m,
with Schuko plug.
