SKSCR3011P Single Door Refrigerator - Extra Capacity in Little Space (756x21mm)

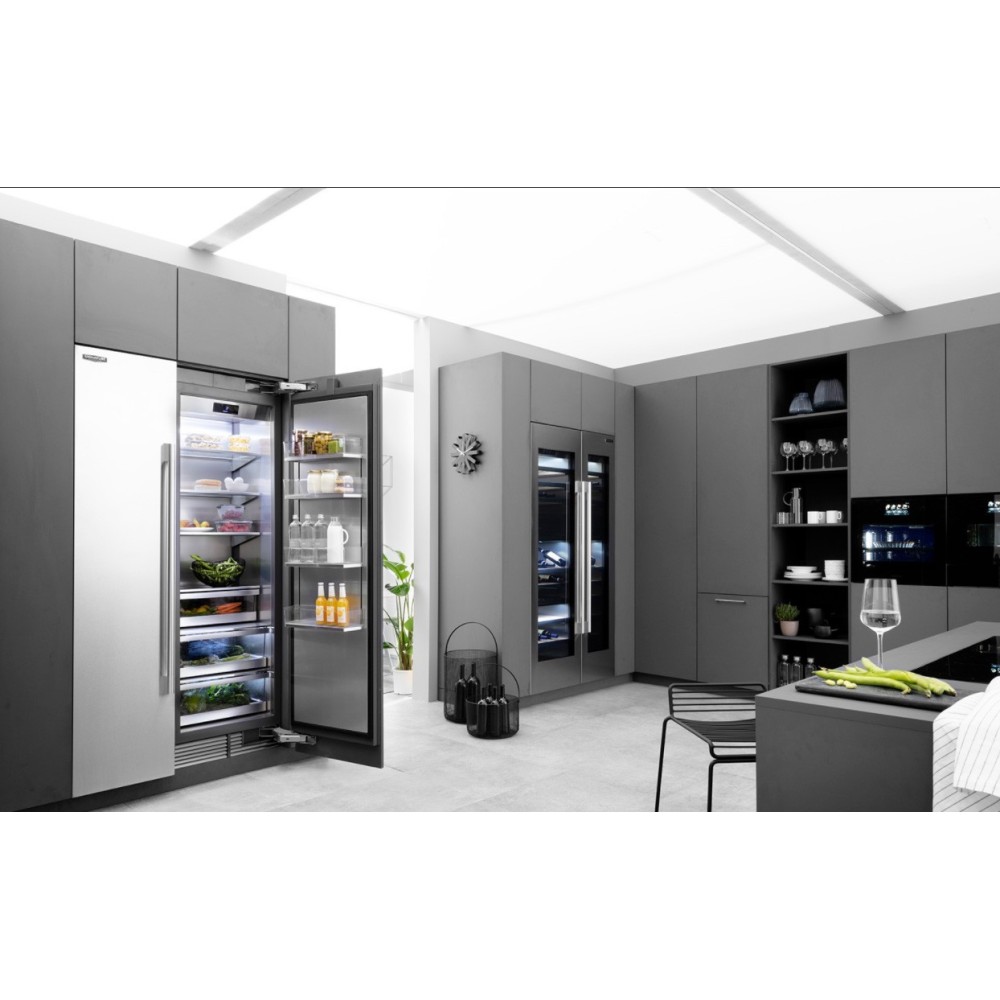

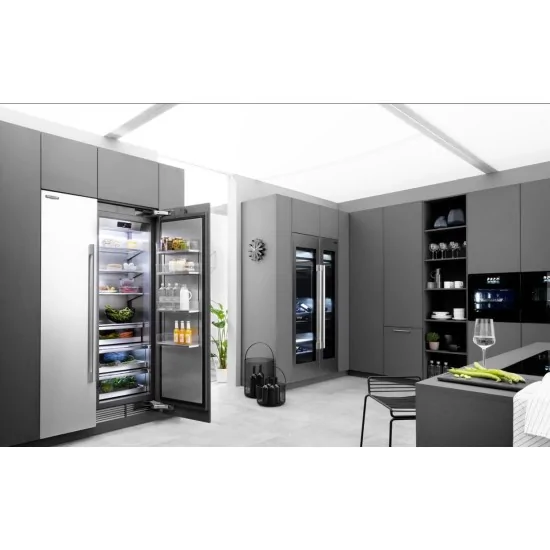

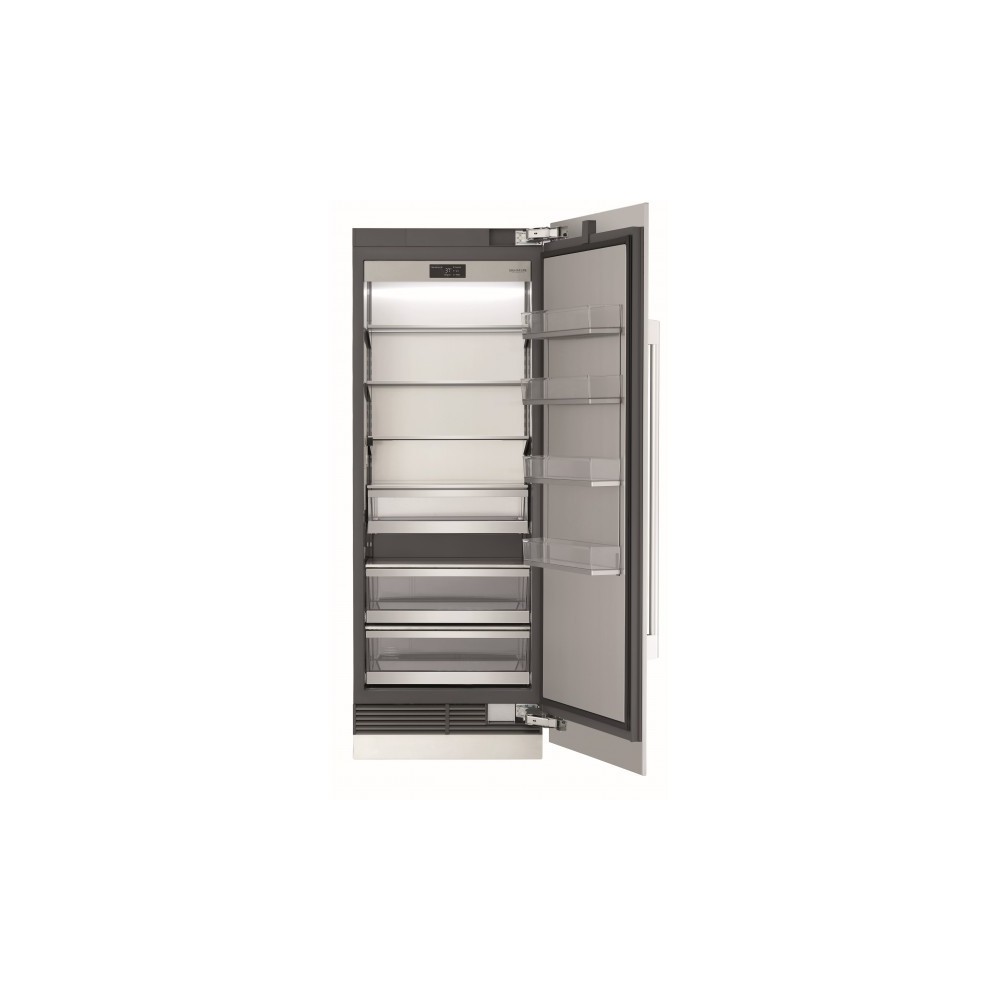

LG Signature SKSCR3011P is a 30" recessed refrigerator. It has an elegant and minimalist design, with a stainless steel door that can be customized with a front panel coordinated with kitchen furniture.

The SKSCR3011P has a total net capacity of 502 liters, divided into three adjustable shelves and three drawers. The refrigerator is also equipped with an integrated water distributor, which requires a connection to the water network.

The SKSCR3011P is a very quiet refrigerator, with a maximum noise level of 39 dbA. It is also very energy efficient, with an energy efficiency class E.

Some of the main features of the SKSCR3011P Signature LG include:

Elegant and minimalist design

Customizable Stainless Steel Door

Total net capacity of 502 liters

Integrated water dispenser

Silent and energy efficient

True-View internal lighting

Linear Inverter compressor

Wi-Fi connection for SmartThinQ control

The SKSCR3011P LG Signature is a high-end refrigerator, with an adequate price. However, it is a well-made and functional device, which is sure to last for many years.

SPECIFICATIONS

Recessed refrigerator 30"

Type of door Pannellabile

Hinges Flats

Metall internal finishing

Energy efficiency class E

Total net capacity 502 l

Maximum sound level < 39 dbA Max

Qualifying ENERGY STAR

Total annual energy consumption (kW/h) 121

Climate class SN-T

General characteristics

No

Linear inverter compressor

SmartThinQ enabled Wi-Fi with Ios/Android application

Automatic adaptive defrosting

Demo Mode, Power On / Off, Temp Control, Water Filter Reset, Smart Diagnosis,

WI-FI

Quick cooling

Integrated Water Dispenser

Water network connection

Water filter (6 months)

Storage shelves 3 adjustable shelf

True-View lighting

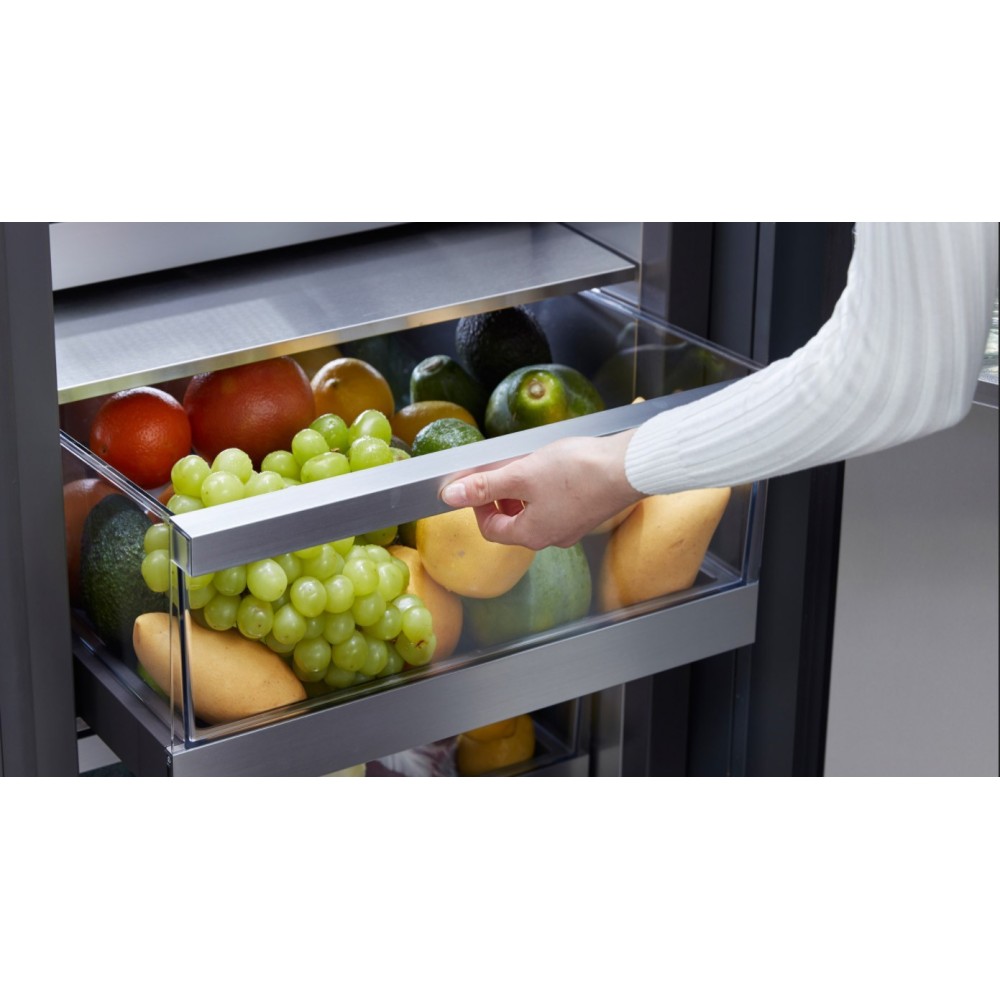

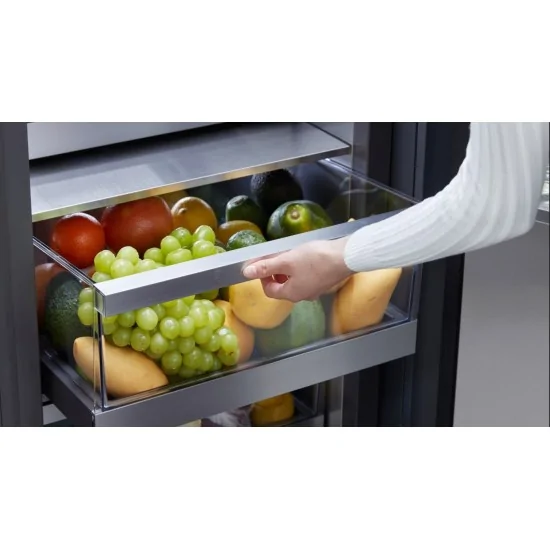

Drawer design 3 with telescopic guides and soft closing

Aluminium door levers with removable 4 shelves inserts

Digital controls with white LED display

Water Filter Indicator

Operating temperatures 0°C to 6°C

Installation:

Reversible door

Four-point front adjustable with 4 wheels

Mounting method for superior furniture without visible screws

Front access

Anti-rebalt bracket included

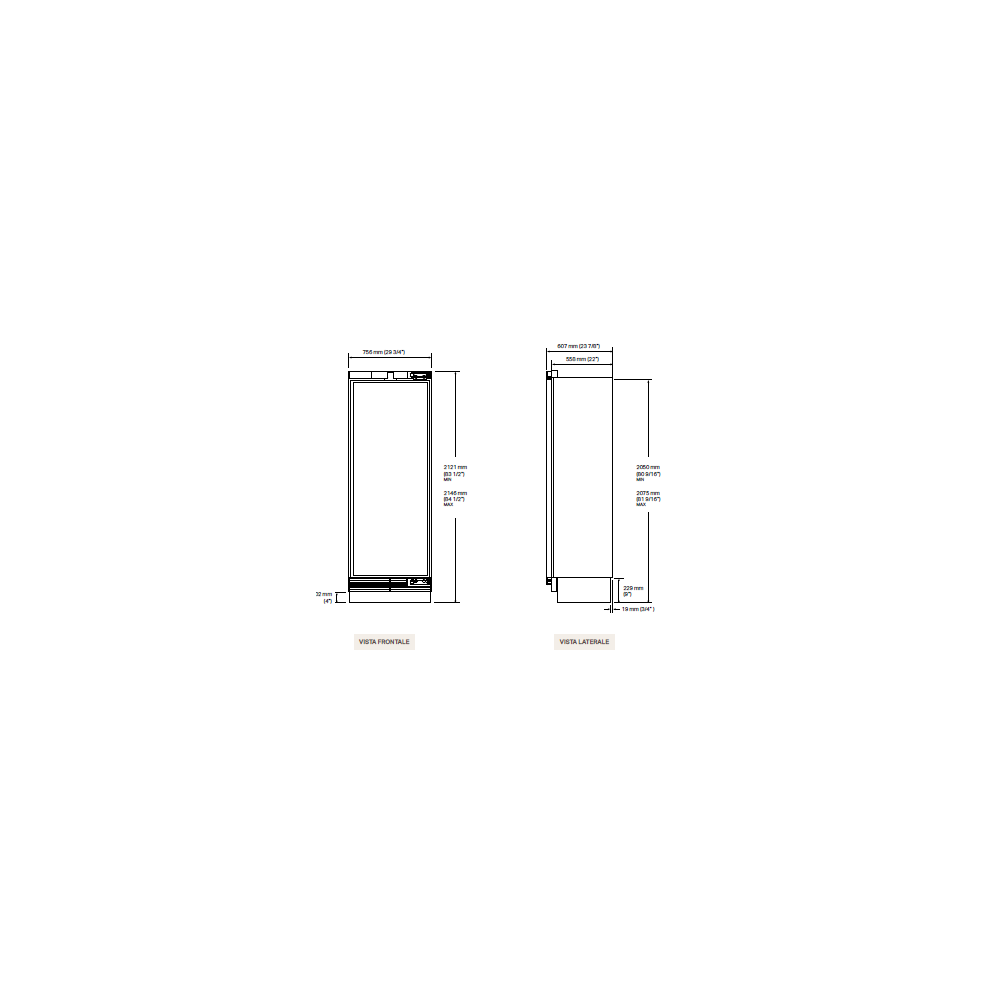

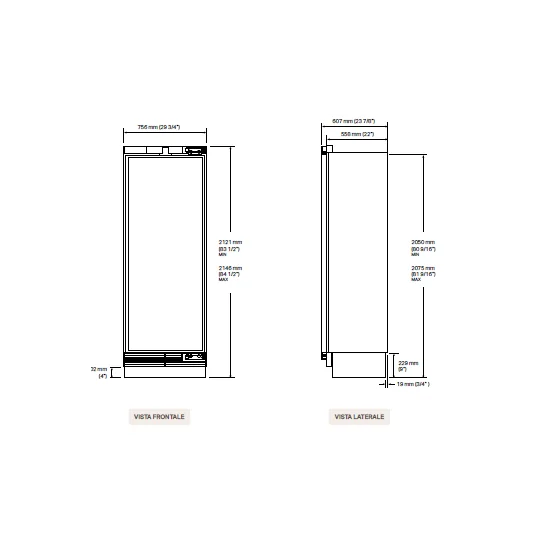

Technical specifications:

Power supply 230 V, 50 Hz

Power cord length 2200 mm (86.6')

Total width 756 mm (29.7'')

Total height 2,121 mm / 2.146 mm (83.5'' / 84.4''')

Total depth 607 mm (23.8'')

Net weight 175 kg

Shipping weight 201 kg

Accessories:

Kit with stainless steel panel / handle / socket SKSPK305CS

SKSFK800CS frame fixing kit

Medium brushed aluminium handle - 805 mm SKSHK310HS

Long brushed aluminium handle - 1218 mm SKSHK480HS

Replacement water filter LT1000P-

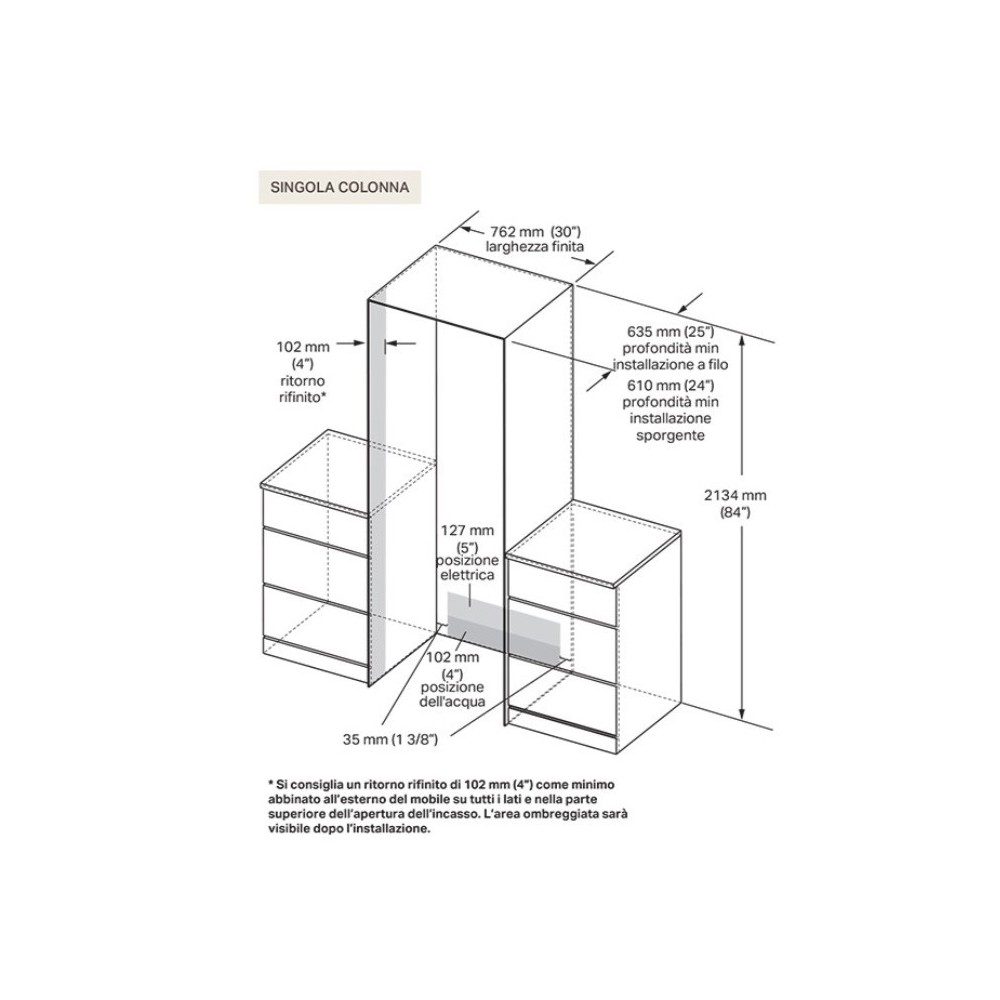

Electricity

A 230V, 50Hz, 15 or 20° power supply is required. We recommend

to predict a three-pole socket embedded in the wall

and correctly grounded, equipped with individual circuit.

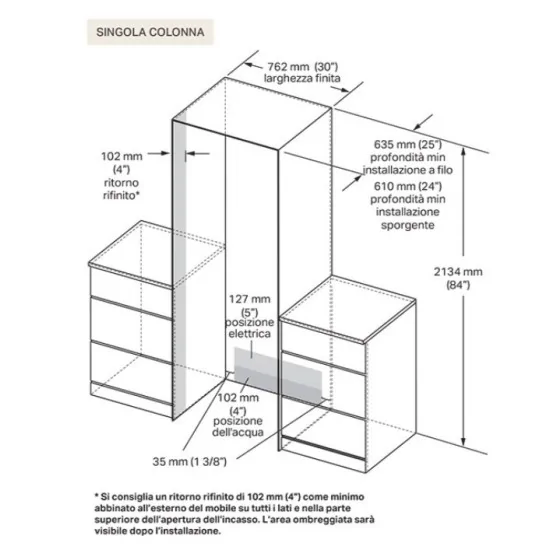

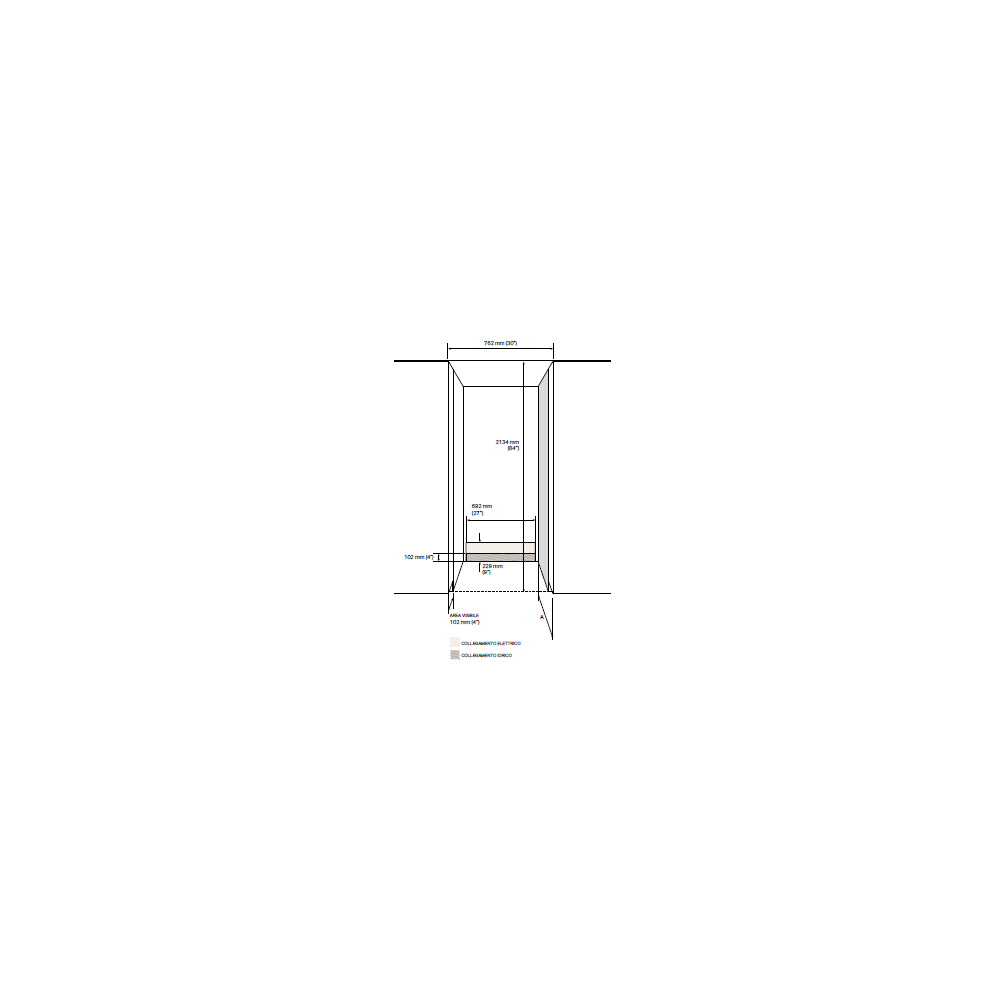

Water connection

A connection to the water network is required with pressure

between 1,37 and 8,27 bar (20 and 120 psi).

It is recommended to include a specific tap for closing

of the circuit, not to be expected directly behind the product,

for easier accessibility and piping (Max Ø 9.5 mm)

with a length suitable to reach the front of the

refrigerator about 355 mm, compared to the front of the kitchen doors.

A maximum space of 40 mm from the bottom is available

for water connection.

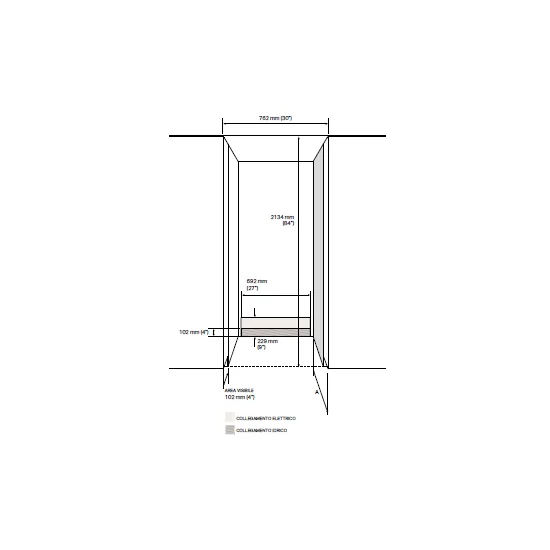

Visible area

The area indicated (102 mm) is visible once open

refrigerator doors, predict to finish this area

on both sides.

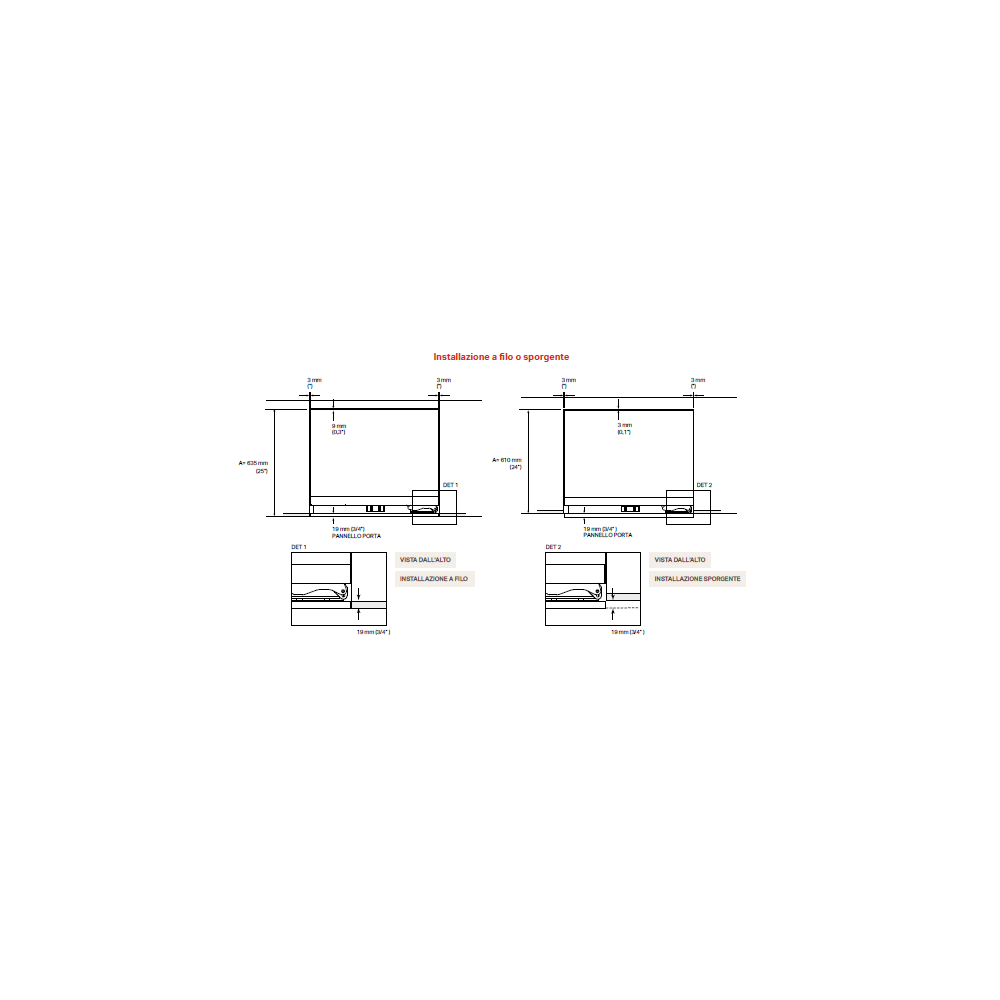

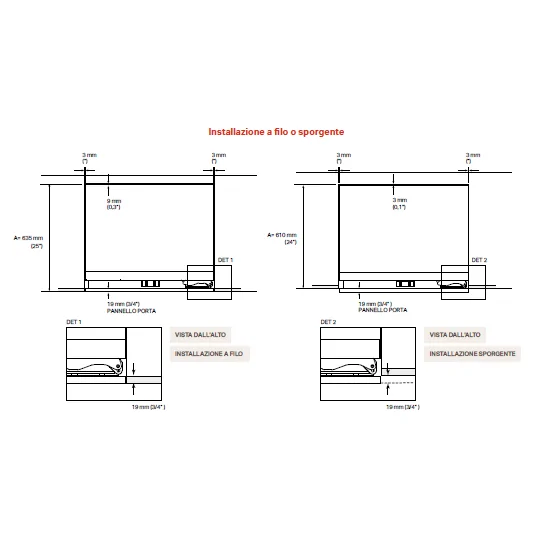

In case of a non-wire installation, use is recommended

sKSFK800CS accessory, which consists of panelling

side covering the visible part of the side

of the device.

Pannellation options

SKSPK305CS: Stainless steel panel kit

The appliance can be paneled with optional door kit

stainless steel Signature Kitchen Suite. The kit includes a panel

for the door, a hoof and a Long handle.

The kit is reversible and can be used for both

the installations, with opening of the door to the right and to the left.

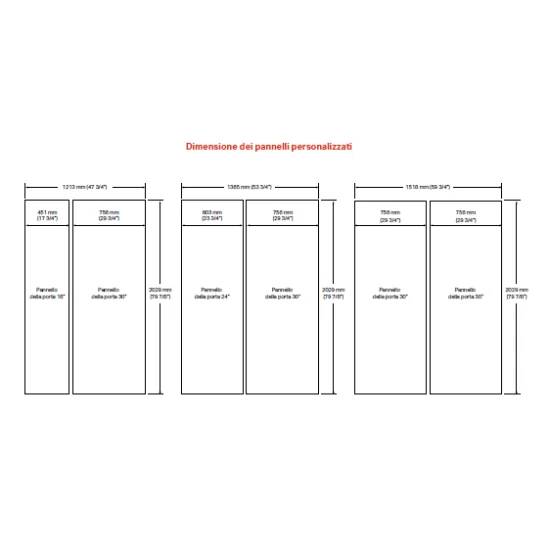

Custom Paneling

The device is designed to be customized with

custom panelling, in line with the aesthetics of the kitchen furniture.

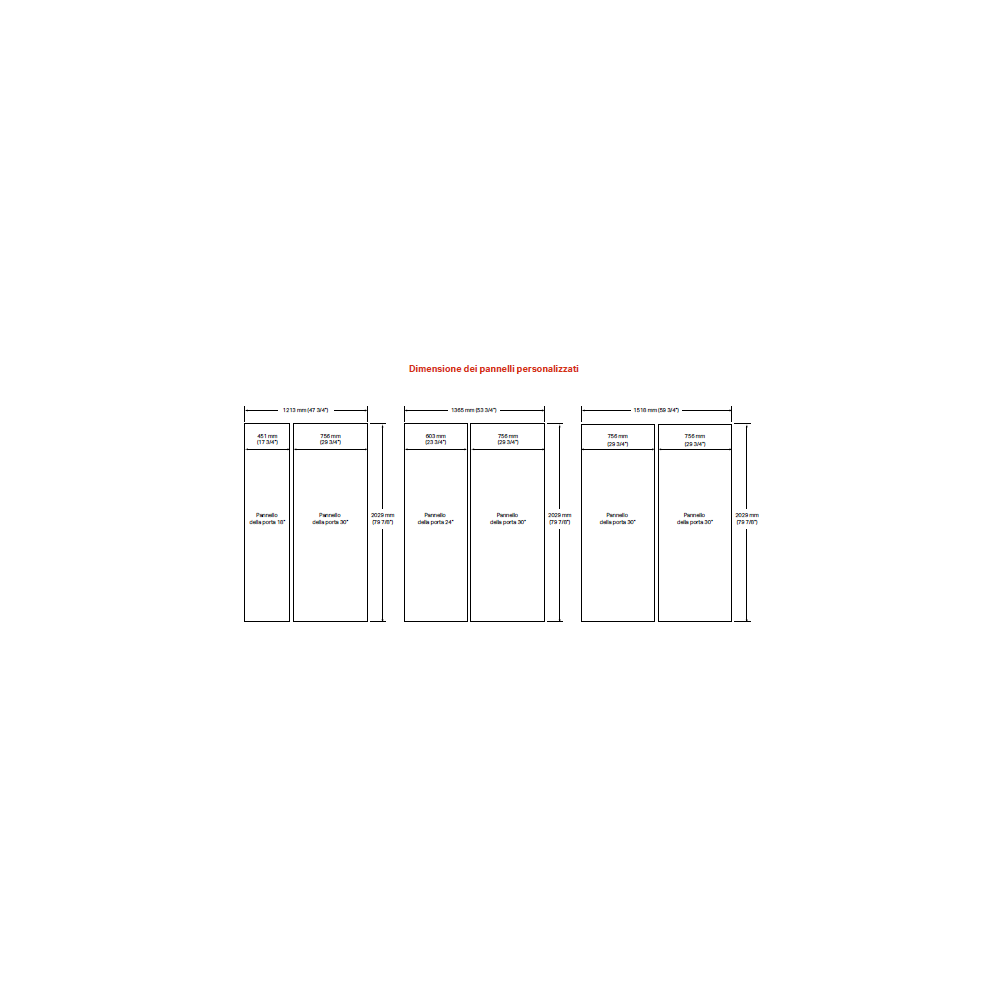

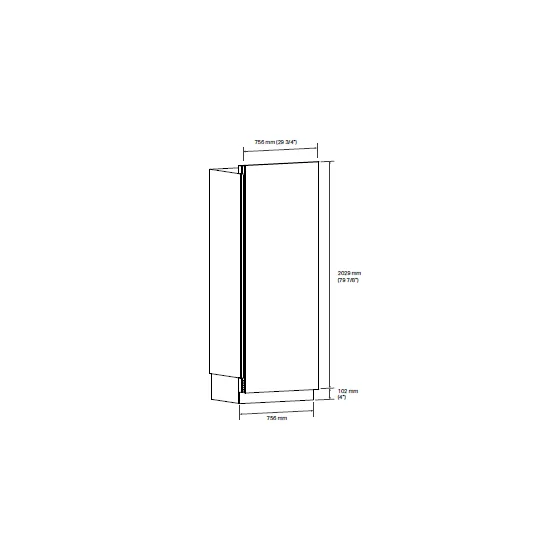

For the size of custom panels refer to

diagram and indications below:

Door panel: 2029 mm x 756 mm

Maximum panel weight: 29 kg

Hole: 102 mm x 756 mm

You can buy separately as a sun accessory

handles Signature Kitchen Suite, brushed aluminium,

in medium or long version.

SKSHK310HS: Medium custom panels handles

805 mm (31 11/16”) Medium handle – Brushed aluminium

SKSHK480HS: Long custom panels handles

1219 mm (48”) Long handle – Brushed aluminium

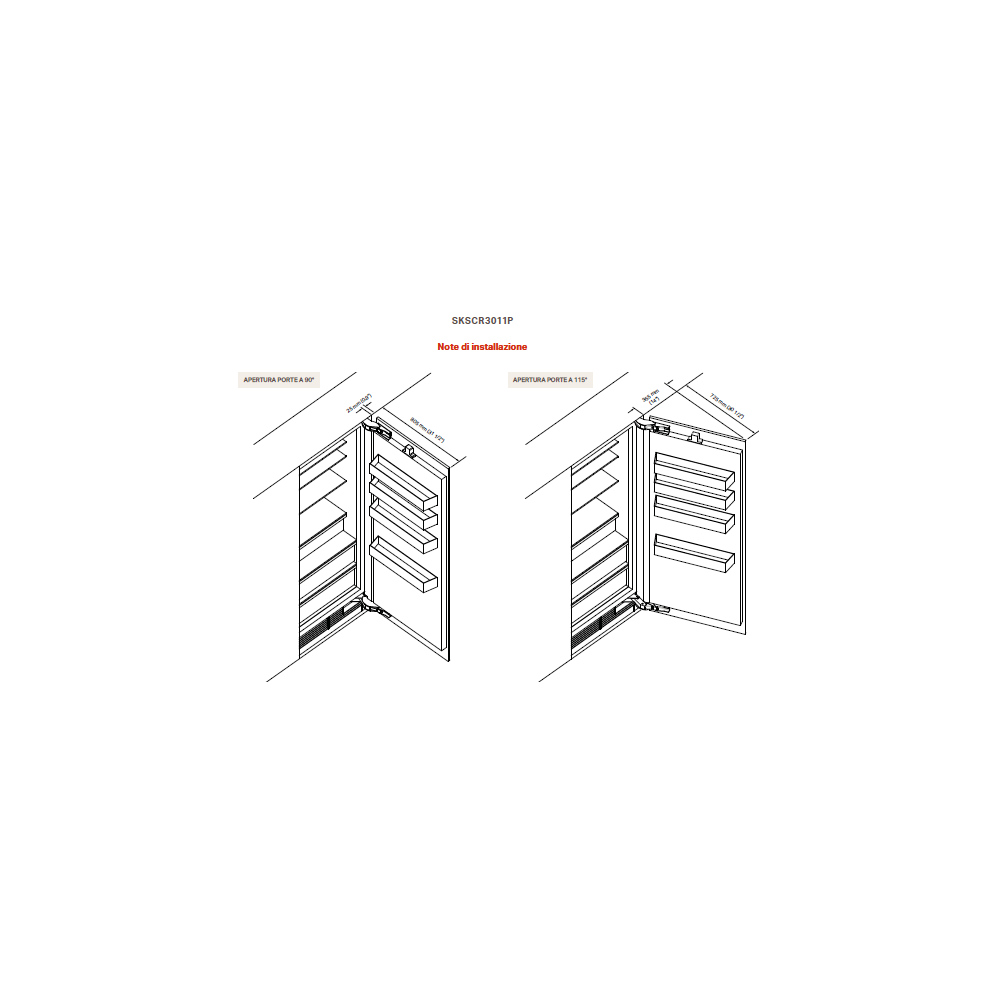

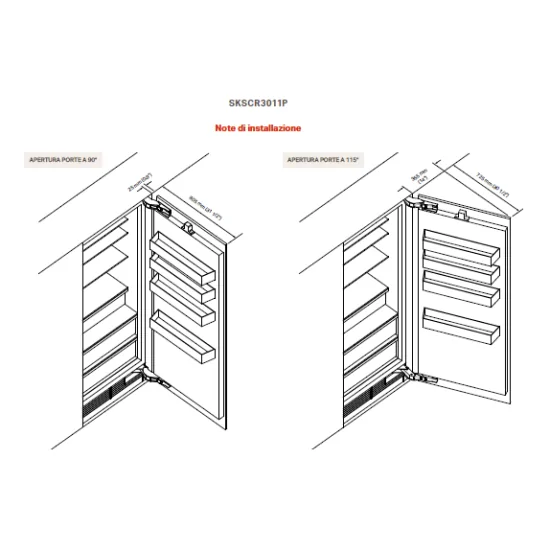

Door design with wire installation

The installation must include disconnects from the walls

or adjacent furniture. The opening of the factory doors

is 115° and can be subsequently adjusted to 90°

if the gaps for opening at 115° are not enough.

WARNING

The dimensions highlighted for the decommissioning in the schemes,

They do not understand the depth of the handles, which must be

added to such dimensions in case of custom protruding handle.

In case of use of Signature Kitchen Suite

with brushed aluminum handles, uncompromising

side change as indicated:

Door at 90°

Side distance from 25 mm to 95 mm

Door at 115°

Side 355 mm to 425 mm

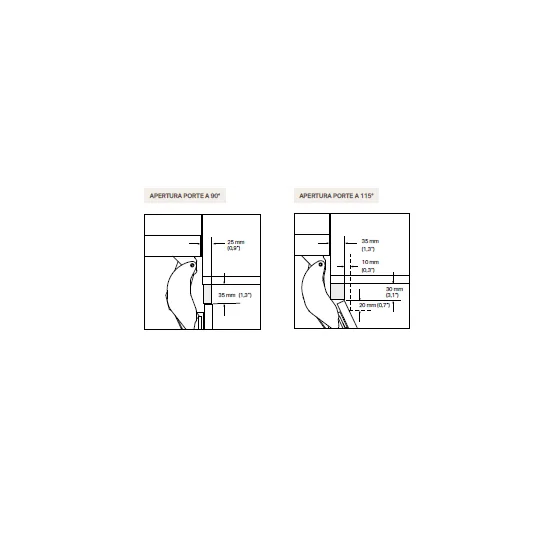

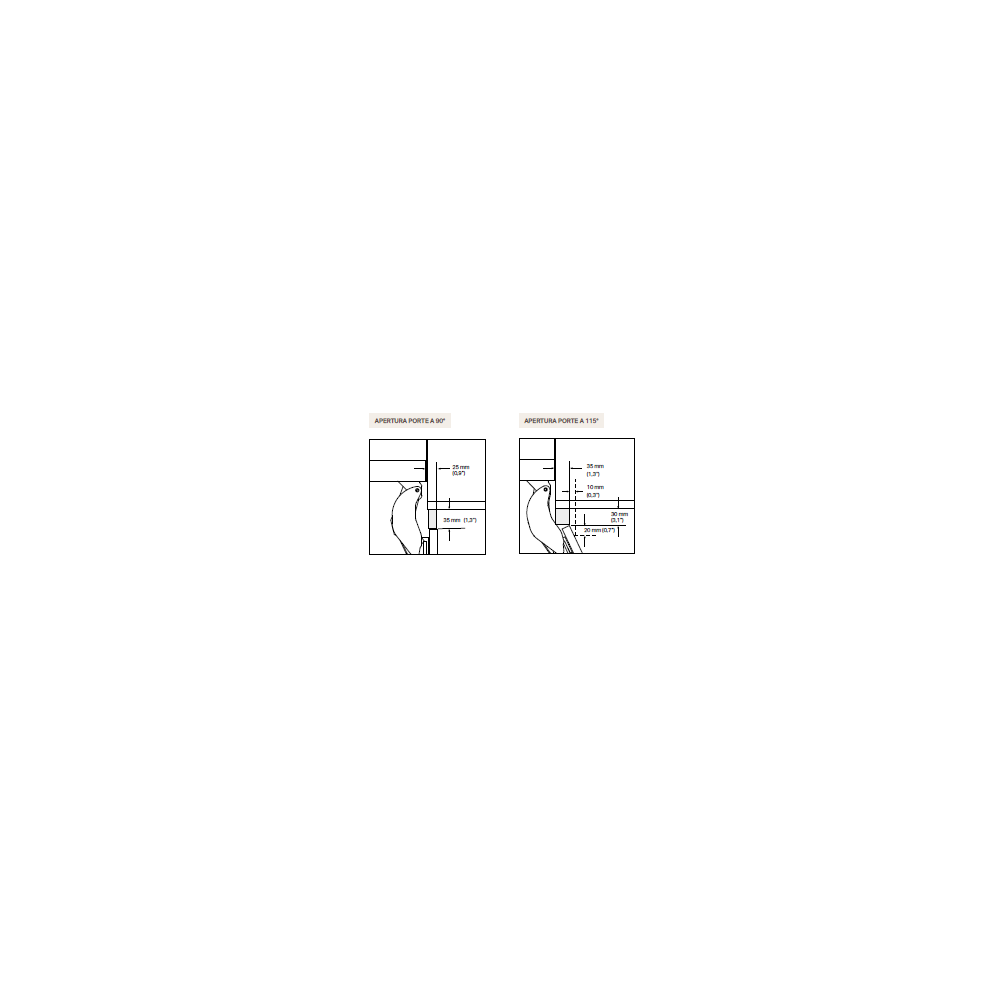

Useful spaces for positioning

handle on adjacent furniture

In case of installation with door opening at 90°

for possible positioning of a handle

protruding on the side flanked to the fridge, for the first 25

mm you can apply a handle with height

maximum of 35 mm compared to external wire

of the panel.

In case of installation with door opening at 115°

for possible positioning of a handle

protruding on the side flanked to the fridge, for the first 35

mm you can apply a handle with height

maximum of 30 mm compared to the outer wire of the

panel.

Each additional 10 mm increase in distance

from the mobile wire, you can apply a handle

with an increase in length of 20 mm.
