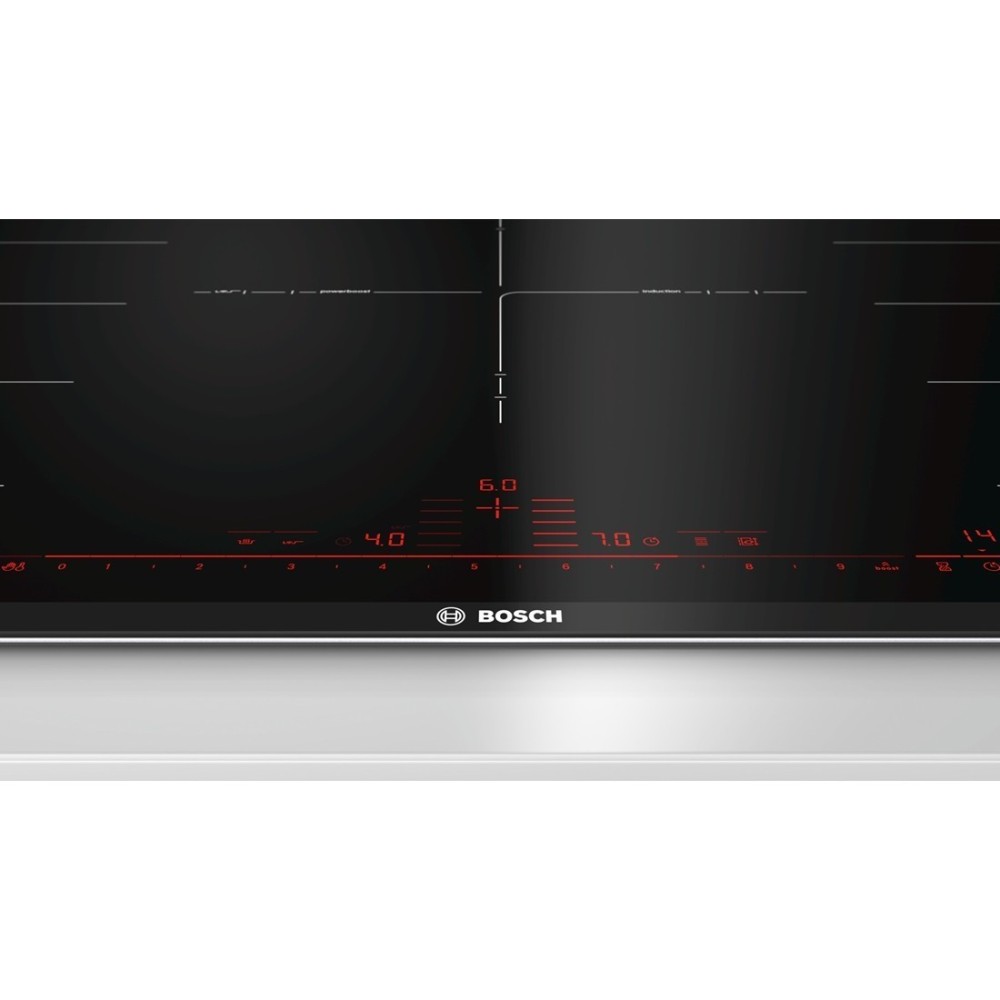

Digital residual heat indicatorDirectSelect Premium: direct and simple selection of the desired cooking area
PerfectFry: a perfect cooking thanks to the 5-level sensor
FlexInduction zone: Great flexibility by combining the cooking areas in a large single area that can contain large pans and rosteria.
Triple ring: expandable area suitable for every need

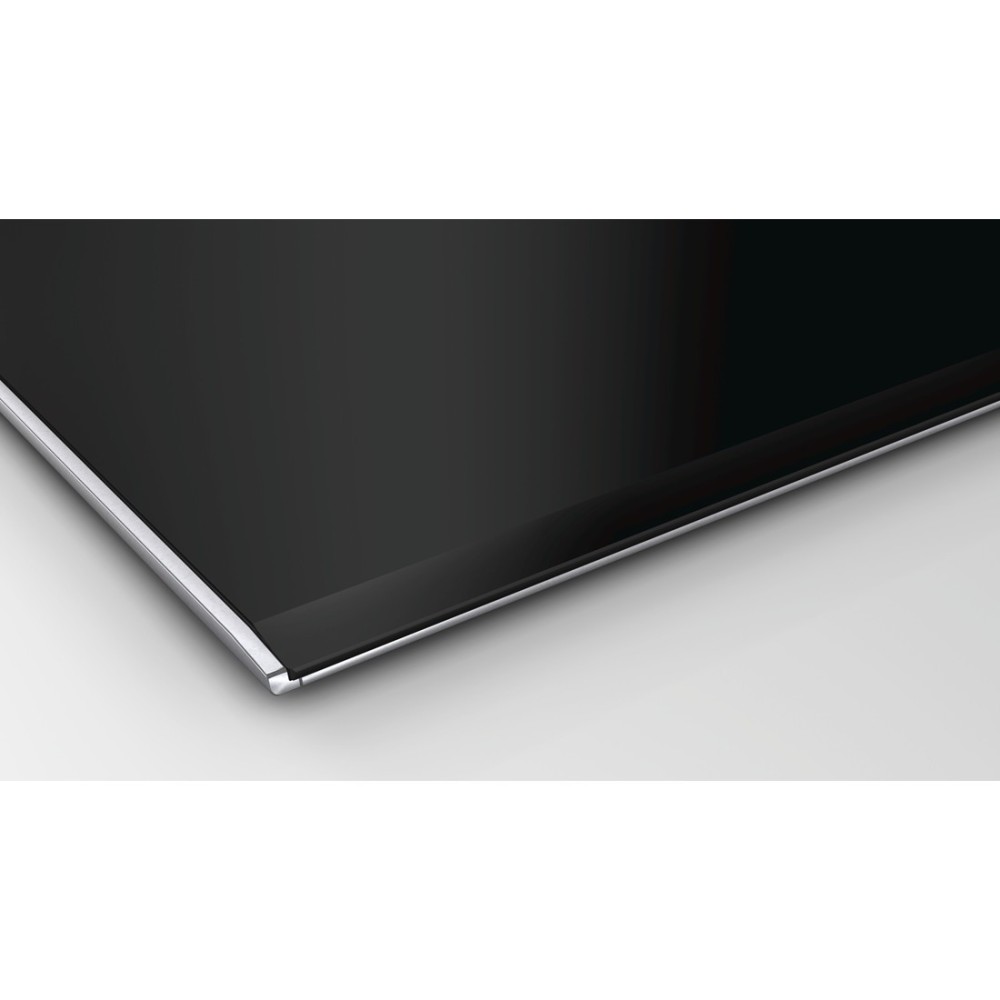

Comfort profile: Elegant design with metal side profiles.
Timer timers to switch off the cooking zones independently at the end of the set time
Induction: fast and precise cooking, easy to clean by limiting energy consumption.
PowerBoost: Up to 50% more power for maximum performance Technical data
Product line Cooking
Brand Bosch

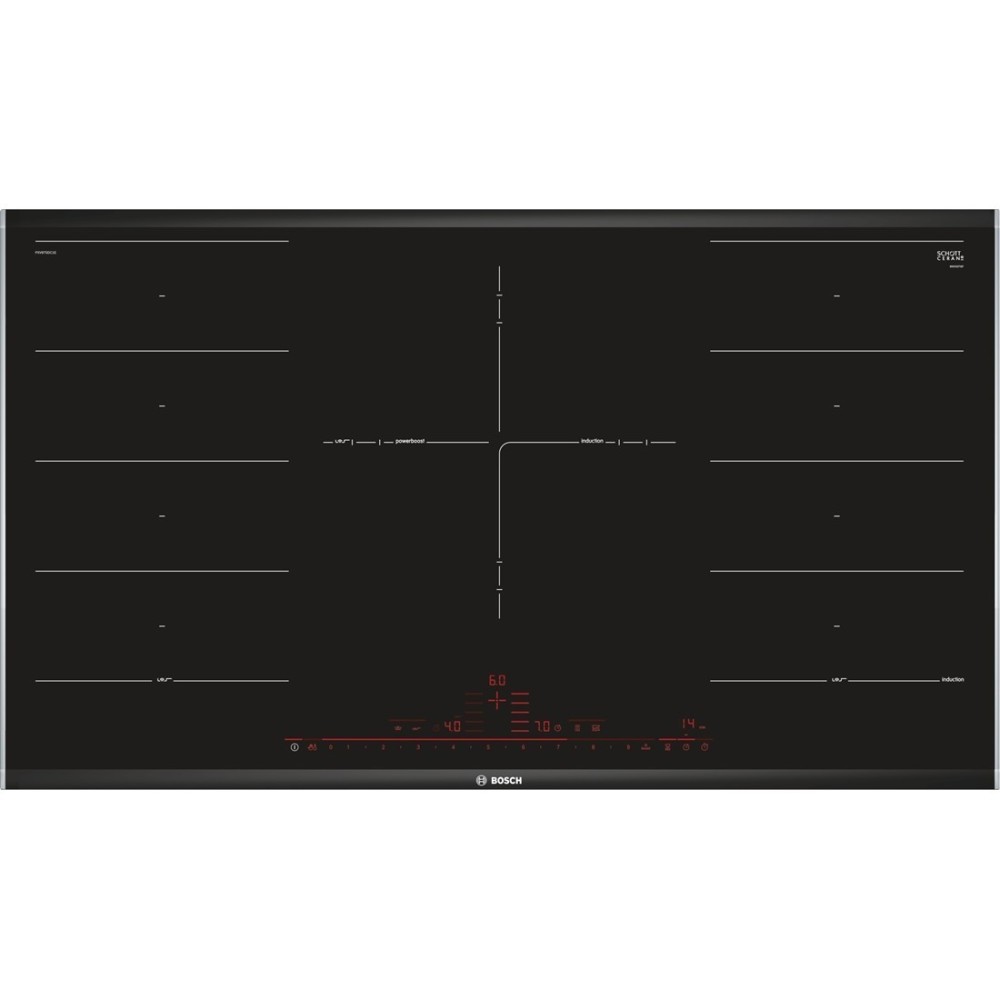

Name/family product glass ceramic cooking area
Product name / commercial code PXV975DC1E
Finished product code PXV975DC1E
EAN Code 4242002849300
Constructive type of product
Electronic control type
Type of controls and forward indicators, Direct Select 2.0
Power supply
Energy consumption of hob 173,3 Wh/kg
Energy efficiency of hob %
Total number of positions available simultaneously 5
Number of gas burners
Number of electric cooking areas 5
Number of electric plates 0
Number of radiant cooking areas 0
Number of halogen cooking areas 0
Number of induction cooking areas 5
Number of heating zones 0
Location of the dashboard
Possibility of external control
Type of gas
Alternative gas type
Main surface material Vetroceramica
Color black
Aluminum surface color, Black
Frame type
Color of aluminium frame
Other colours available
Electrical connection data (W) 11100 W
Nominal gas connection data (W) W
Current (A) A
Voltage (V) 220-240 V
Frequency (Hz) 60; 50 Hz
Certificates of approval AENOR, CE
Electric power cord length (cm) 110 cm
Type of plug without plug
Gas connection
Product height (mm) 51 mm
Product width (mm) 916 mm
Product depth (mm) 527 mm
Product height packed (mm) 126 mm
Packed product width (mm) 603 mm
Product depth packed (mm) 1074 mm
Minimum niche height (mm) 51 mm
Maximum niche height (mm) 51 mm
Minimum niche width (mm) 880 mm
Maximum niche width (mm) 880 mm
Niche depth (mm) 490 mm
Net weight (kg) 22.0 kg
Gross weight (kg) 24,0 kg
Automatic program yes
Location 1st left front cooking area
Type of heating element
Size of the cooking area mm
Power cooking area kW
Energy consumption cooking area Wh/kg
Energy efficiency cooking area %
Location 2° cooking zone cent. left
induction
Size 2 cooking area 400 x 230 mm
2nd cooking area 3.3 kW
Energy consumption 2nd cooking area 175,0 Wh/kg
Energy efficiency 2nd cooking area %
Location 3rd left rear cooking area
Type 3rd cooking area
Dimensions 3rd cooking area mm
Power 3rd firing zone kW
Energy consumption 3rd cooking area Wh/kg
Energy efficiency 3rd cooking area %
Location 4th central rear cooking area
Type 4th cooking area
Size 4th cooking area mm
Power 4th cooking area kW
Energy consumption 4th cooking area Wh/kg
Energy efficiency 4th cooking area %
Location 5° cooking area Post cooking area. right
Type 5th cooking area
Size 5° cooking area mm
Power 5° kW cooking zone
Energy consumption 5th cooking area Wh/kg
Energy efficiency 5th cooking area %
Location 6th cooking area 100. right
Type 6th cooking area induction
Size 6th cooking area 400 x 230 mm
6th firing zone 3.3 kW
Energy consumption 6th cooking area 175,0 Wh/kg
Energy efficiency 6th cooking area %
Position of the 7th heating element Cooking area right
Type of 7th heating element
Dimension of 7th heating element (mm) mm
Power of 7th heating element (kW) kW
Energy consumption 7th cooking zone Wh/kg
Energy efficiency 7th cooking area %
Position of the 8th central front heating element
Type of 8th heating element
Dimension of 8th heating element (mm) mm
Power of 8th heating element (kW) kW
Energy consumption 8° cooking area Wh/kg
Energy efficiency 8° cooking area %
Position of the 9th heating element
Type of 9th heating element induction
Dimension of 9th heating element (mm) 210; 320; 260 mm
Power of 9th heating element (kW) 2.2; 2.6; 3.3 kW
Energy consumption 9° cooking area 170,0 Wh/kg
Energy efficiency 9° cooking area %
Energy consumption of left cooking area 175,0 Wh/kg
Energy consumption of central cooking area Wh/kg
Energy consumption of right cooking area 175,0 Wh/kg
Power indication no
Plate ignition indicator
Continuous energy regulation type
Adjustment type None
Type of lid (if present)
Type of grid
Type of gas safety device no
Residual Heat Indicator
Main switch on/off yes
Key Lock safety device, time limitation, Power management function, pot detector, child safety
Timer Yes
Dishwasher washable cast iron grills no
Accessories included
Optional accessories HEZ390011, HEZ390012, HEZ390042, HEZ390090, HEZ390210, HEZ390511, HEZ390512, HEZ390522
Product image description MCSA01010045_632433_PXV975DC1E_def.jpg
Highlights 17 power levels, DirectSelect Premium , FlexInduction , FryingSensor Plus , Keep warm function , PerfectFry , PowerBoost
Series | 8
Home Connect
Home Connect no
Other data
Installation type Recessed
Product matching versions in other countries
Type of commands
Cut depth 51.0 mm

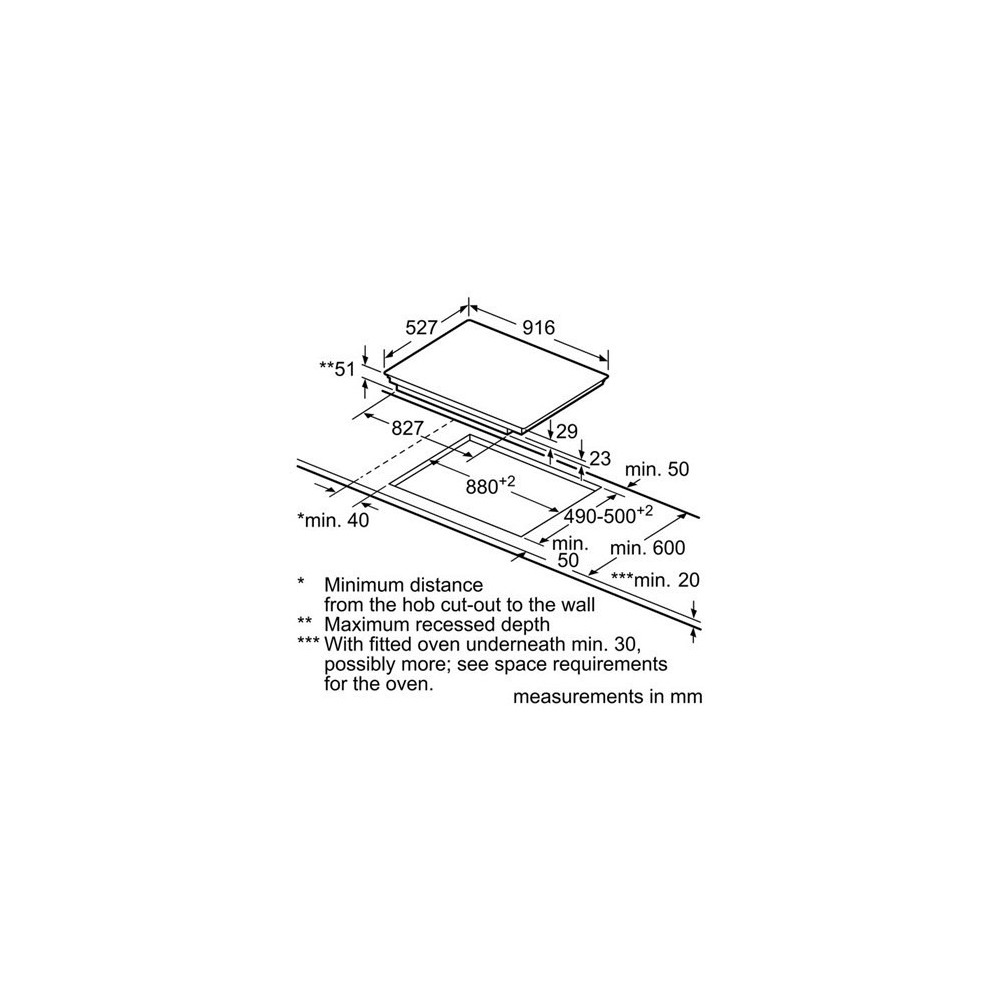

Installation compartment dimensions (AxLxP) (mm) 51 x 880-880 x 490-500 mm
Product size (mm) 51 x 916 x 527 mm
Packaging volume (dm3) 81.570
Width 90
Design
Test programme Technical assistance
Special function
Induction cooking areas yes
Color of controls
Alternative gas type
Turbo function for each All cooking area
Languages manual Danish, Finnish, French, Italian, Norwegian, Dutch, Portuguese, Spanish, Swedish, German
Type of left cooking area
Type of front cooking area left Vector zone
Type of rear cooking area left Vector zone
Type of front/central cooking area
Type of central rear cooking zone three circuit zone
Type of left cental cooking area
Type of right cental cooking area
Type of right cooking area
Type of front right cooking area
Type of rear cooking area right Vector zone
Product variants
EAN Code!2E20AC-iejdaa!
Connection cable type, 3-phase, monophase, neutral conductor
3-phase electric connection type, single phase, Neutral conductor
Cooking sensors
Sensor control for oval zone, rear cooking area centr.
Number of cooking powers 17 internships 1,1.,2..9
Cooking Floor Decoration Without Decoration
Yes
Warming function yes
Additional description
Size of the left cooking area 920 cm2
Size of the right cooking area 920 cm2
Accessories for mounting
Accessories needed for installation
Statistical Office 85166050
Country of origin ES
Country of origin 2
Product code
Manufacturer BSH FMH, Montañana
Productdivision PCG
#translation missing # N
Standard number of pallet units 10
Lengt pallet 120 cm
Width pallet 80 cm
Height pallet cm
Layers for pallets
Units for layers
Mastercases per layer 1
Width master houses cm
Length master case
Height master case 12,60 cm
Power consumption mode off 0.2 W
Power consumption standby/display mode on W
Power consumption standby mode/display off 0.2 W
Power consumption standby/network: For disabling the WiFi module, please consult the product user manual. W
en: Time auto-off min
Duration auto-standby/display on min
Duration auto-standby/display off min
Duration auto-standby/net min
