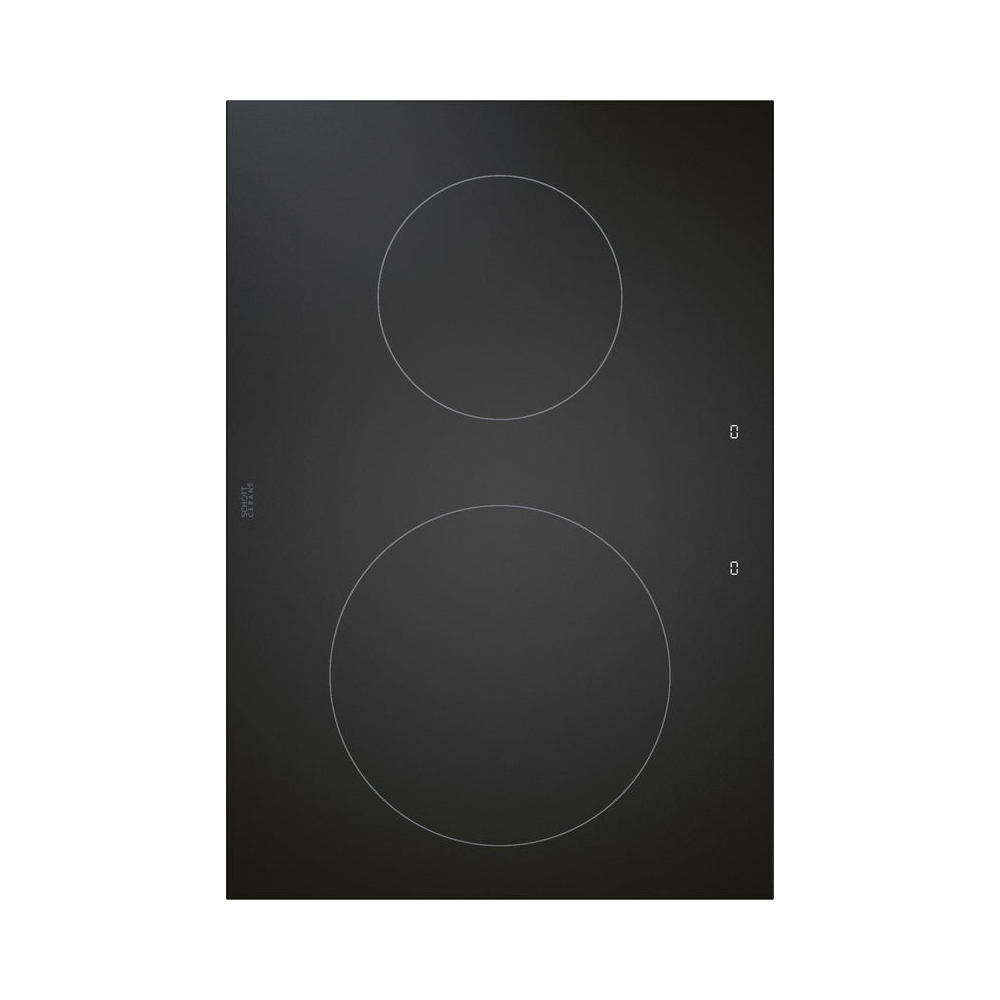

Product Description BORA Professional 3.0 PKI3AB induction hob
Temperature maintenance function
Power level
Residual heat indicator
Break function
Timer function
Configuration menu
Possible mounting with rotation of 180°
Cooking area indicator on the control knob
Demo mode
Pot recognition
Automatic cooking start
Digital power level indicator, on control knob and on stove top
Children's protection
Automatic safety lock
Digital power level indicator on the stove. Power level indicator installed on the right or left of the cooking plan (you can mount the 180° rotated cooking top)
Technical data
Power voltage
220 – 240 V
Frequency
50 Hz
Power absorbed max.
3,68 kW
Max connection power.
3,68 kW
Fusible min.
1 x 16 A
Power levels
1-9, P
Weight (incl. accessories/ packing)
8.0 kg
Surface material
I 'M NOT SURE
Cable for network connection
1.5 m

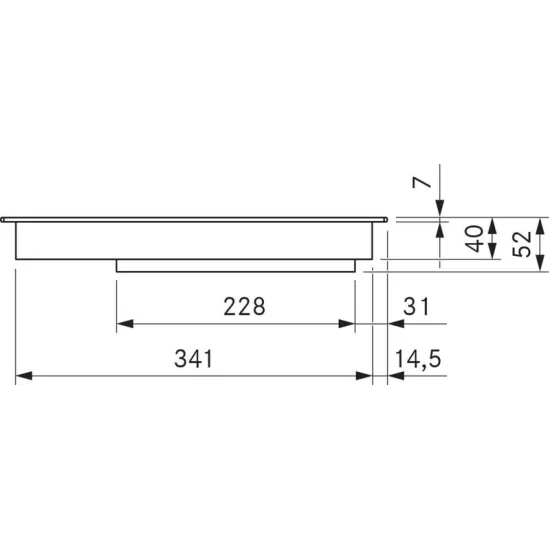

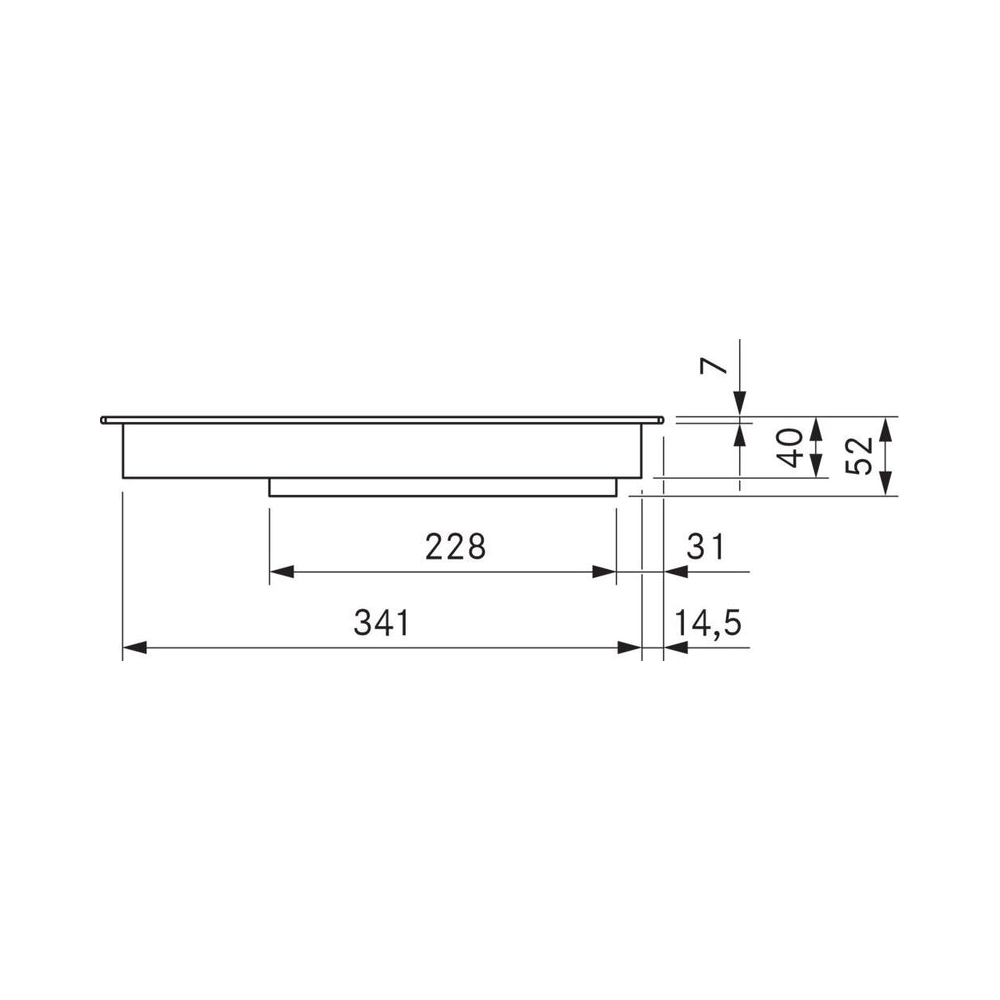

Dimensions (width x depth x height)
370 x 540 x 52 mm
Front cooking area
Ø 230 mm
Front cooking area power
2300 W
Front cooking area power level
3680 W
Rear cooking area
Ø 165 mm
Power rear cooking area
1400 W
Rear cooking area power level
2200 W
Supply kit
PKI3AB induction hob
2 x All Black adjustment knob
Mounting tongues
Set of height compensation panels
Instructions for use and assembly
2 x connection line to the control knob
Suction system connection line
Network connection cable (L, N, PE) without plug
Directions for planning
Please note that induction cooking dishes must be used compatible with induction
Under the induction hob, ensure proper ventilation
Indication for installation planning in combinations 2/1(2 induction hob, 1 intake system):
On your choice, installation of the cooking plates with indicator of the power level in the center ( adjacent to the suction system on both sides) or facing the outside.
