Technical data
Main features

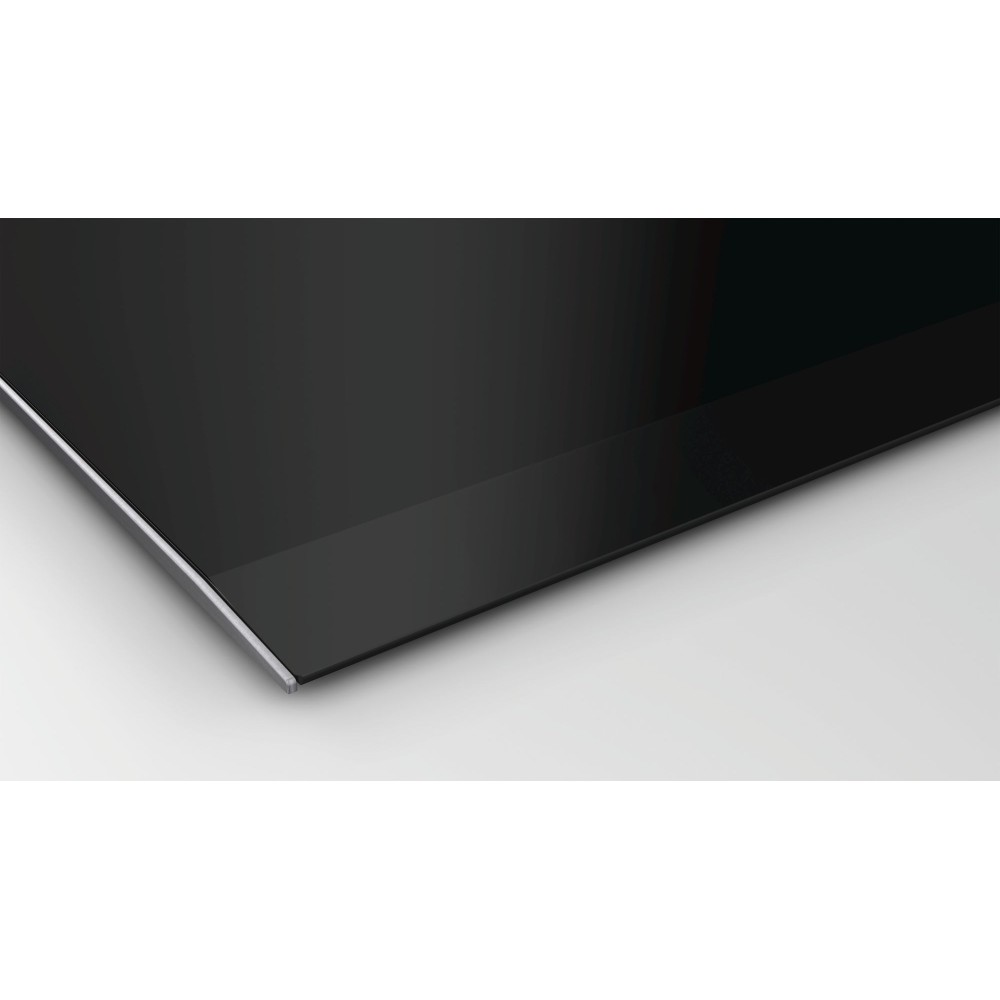

TopClass finish: bevelled front with stainless steel side profiles

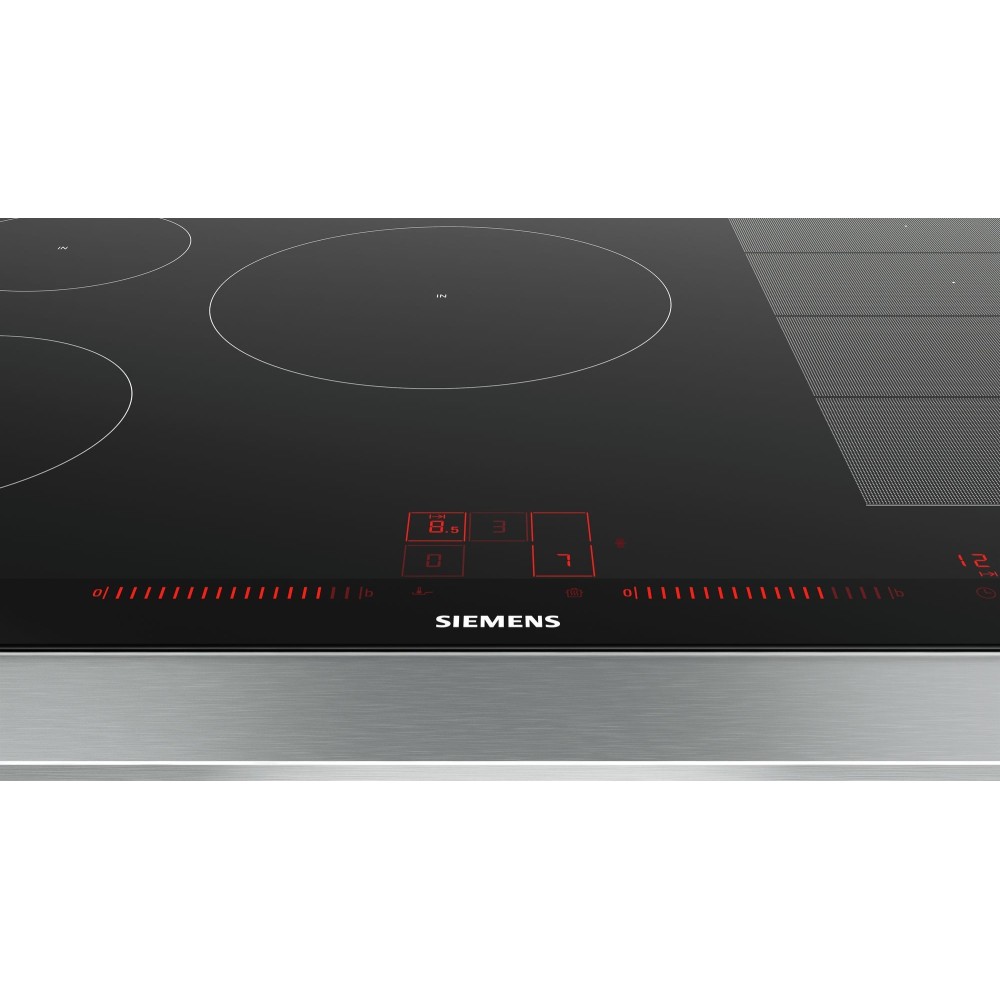

Dual LightSlider: allows you to easily select and combine different cooking zones
Control System
5 induction cooking zones with electronic pot detector
Flex Zone
powerMove Plus
End of cooking timer for each zone
reStart function: restore cooking settings in case of accidental switch-off
QuickStart function: enables quick selection of cooking power
Energy consumption display: Display of energy consumption for each cooking cycle
Other features
Induction cooking zones: - Zone of 180 mm diameter, 1.8 kW (max. power levels 3.1 kW); - 1 zone of 145 mm diameter, 1.4 kW (max. power levels 2.2 kW); - 1 zone of 240 mm diameter, 2.2 kW (max. power levels 3.7 kW); - 1 zone of 400 mm x 210 mm, 3.3 kW (max. power levels 3.7 kW) or 2 zones of 200 mm diameter, 2.2 kW (max. power levels 3.7 kW)
Electronic regulation at 17 levels
Energy label
Pots presence detection Safety auto switch off Child safety Temporary lock function for cleaning PowerManagement function to limit power consumption from 1kW
Residual heat indicators
Main switch
Quick:
PowerBoost function for each cooking zone
panTurbo: "turbo" function for fast heating of pans
Dimensions
Product dimensions: (Width x Depth) 812 mm x 520 mm

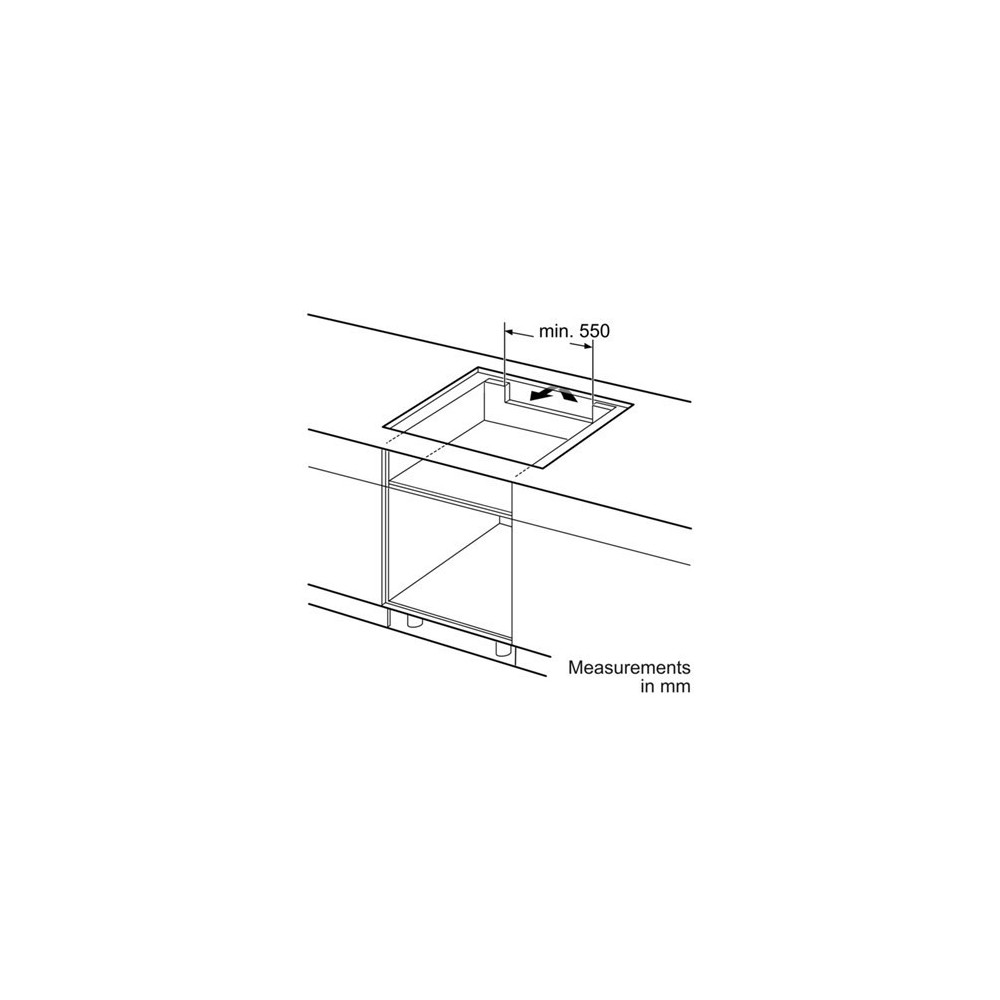

Installation dimensions: (Height x Width x Depth) 51 mm x 750 mm x 490 mm
Min. thickness of kitchen top 30 mm
Cable included
110 cm cable
Max. power consumption: 7.4 kW
Overview technical information
General
Power supply
Type of controls and indicators forward, dual lightSlider, illuminated
Key Lock safety device, time limitation, Power management function, pot detector, child safety
Highlights 17 power levels, flexInduction, Food Warmer function, powerBoost
Energy consumption of hob 177,5 Wh/kg
Power consumption standby/display off mode 0.5 W
Duration auto-standby/display off mode 20.0 min
Connectivity
Home Connect
Production
Surface color black
Type of construction of the product Built in
Number of electric plates 0
Number of cooking zones 4
Frame type Front facets, side profiles
Number of gas burners 0
Number of halogen cooking zones 0
Type of installation Compact
Total number of positions that can be used simultaneously 5
Number of radiant cooking zones 0
Number of warming zones 0
Size and weight
Product dimensions (mm) 51 x 812 x 520 mm
Net weight (kg) 16.476 kg
Cooking zone 1
Cooking zone dimensions 180 mm
Location 1st cooking zone front left
Cooking zone power 1.8 kW
Type of induction heating element
Cooking zone energy consumption 175,0 Wh/kg
Cooking zone 2
Location 2nd cooking zone Cooking zone left cent.
Cooking zone 3
Dimensions 3rd cooking zone 145 mm
Location 3rd cooking zone rear left
Power 3rd cooking zone 1.4 kW
Type 3° induction cooking zone
Energy consumption 3rd cooking zone 175.0 Wh/kg
Cooking zone 4
Location 4th central rear cooking zone
Cooking zone 5
Location 5° cooking zone Rear right cooking zone
Cooking zone 6
Dimensions 6th cooking zone 400 x 210 mm
Location 6th cooking zone Cooking zone cent. right
Power 6th cooking zone 3.3 kW
Type 6° induction cooking zone
Energy consumption 6th cooking zone 185.0 Wh/kg
Cooking zone 7
Position of the 7th heating element Front right cooking zone
Cooking zone 8
Position of the 8th front central heating element
Cooking zone 9
Dimension of 9th heating element (mm) 240 mm
Position of the 9th heating element Front/centre cooking zone
Power of 9th heating element (kW) 2.2 kW
Type of 9th heating element induction
Energy consumption 9th cooking zone 175,0 Wh/kg
Security
Power indication
Residual heat indicator Separate
Key Lock safety device, time limitation, Power management function, pot detector, child safety
Main switch on/off
Link
Power cord length (cm) 110 cm
Power supply
Frequency (Hz) 60; 50 Hz
Accessories
General
Power supply
Type of controls and indicators forward, dual lightSlider, illuminated
Key Lock safety device, time limitation, Power management function, pot detector, child safety
Highlights 17 power levels, flexInduction, Food Warmer function, powerBoost
Energy consumption of hob 177,5 Wh/kg
Power consumption standby/display off mode 0.5 W
Duration auto-standby/display off mode 20.0 min
