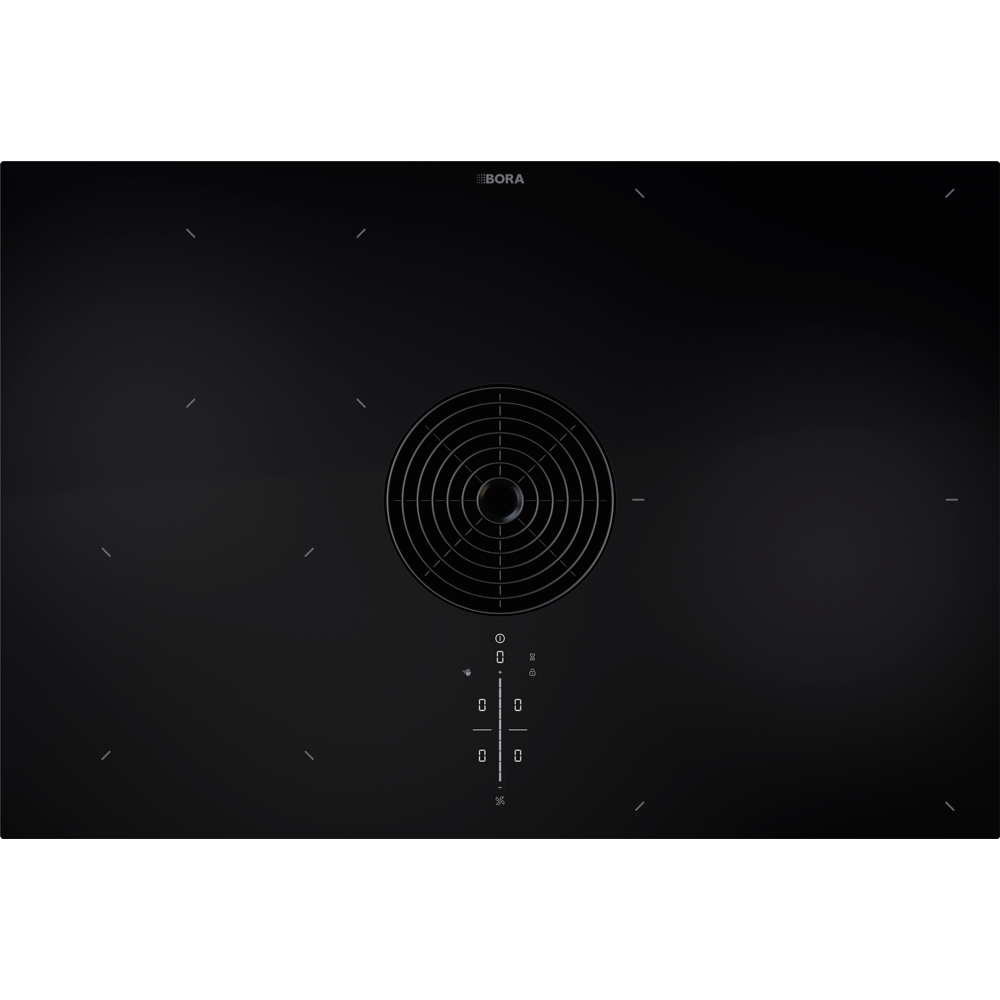

PURMU M Pure induction/induction hob “FULL” with integrated cooking plan vacuum cleaner - Filtrante

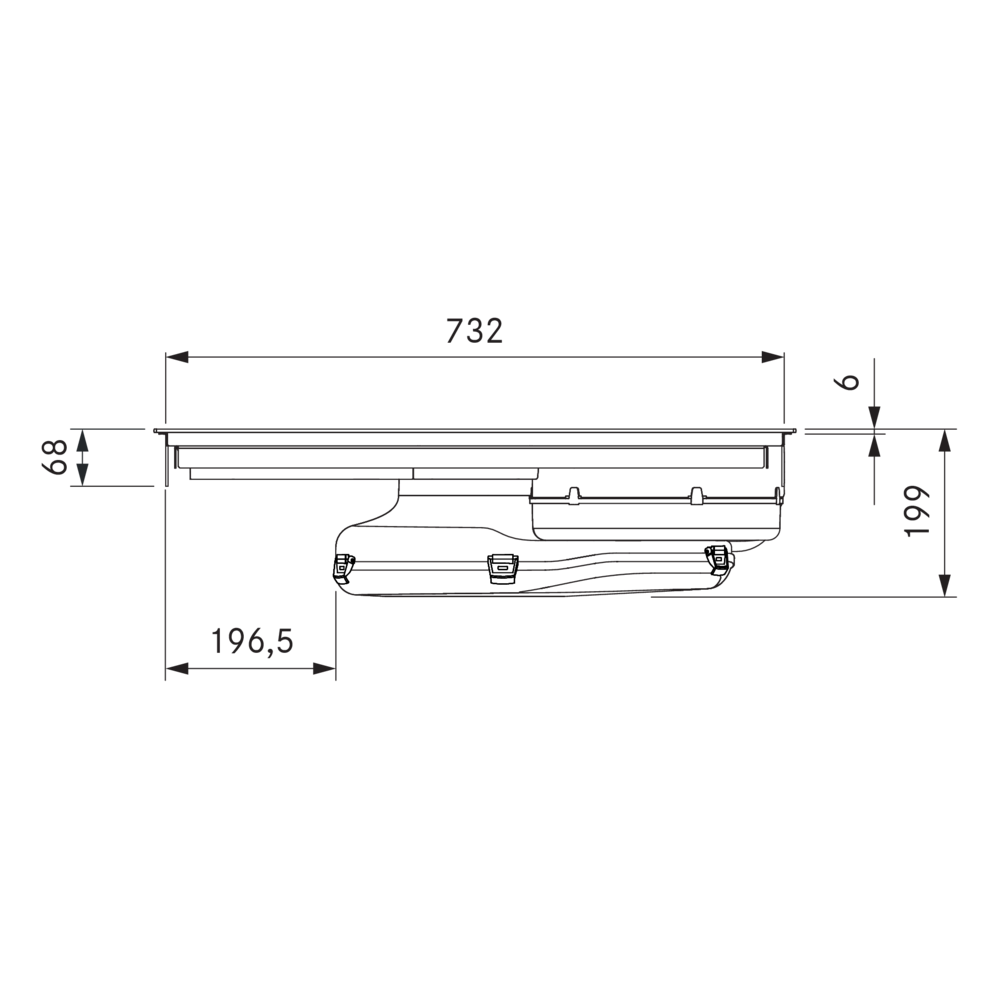

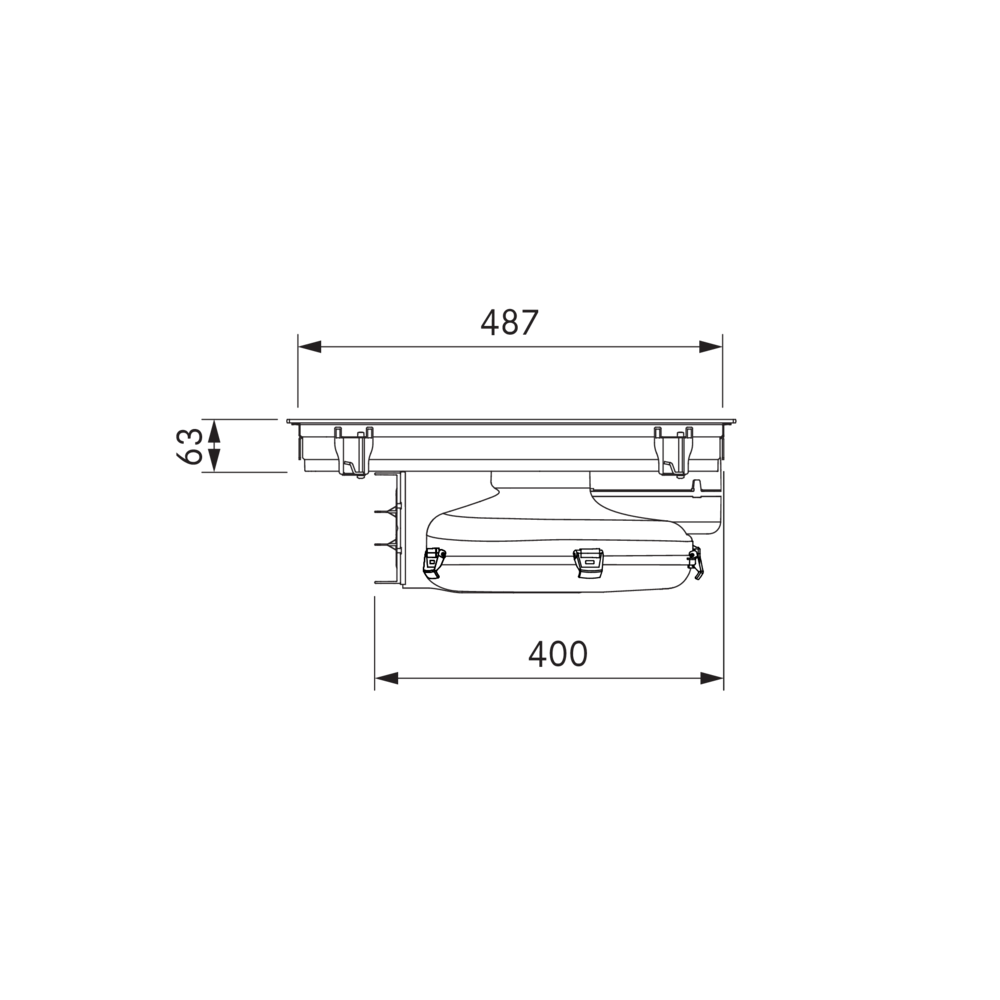

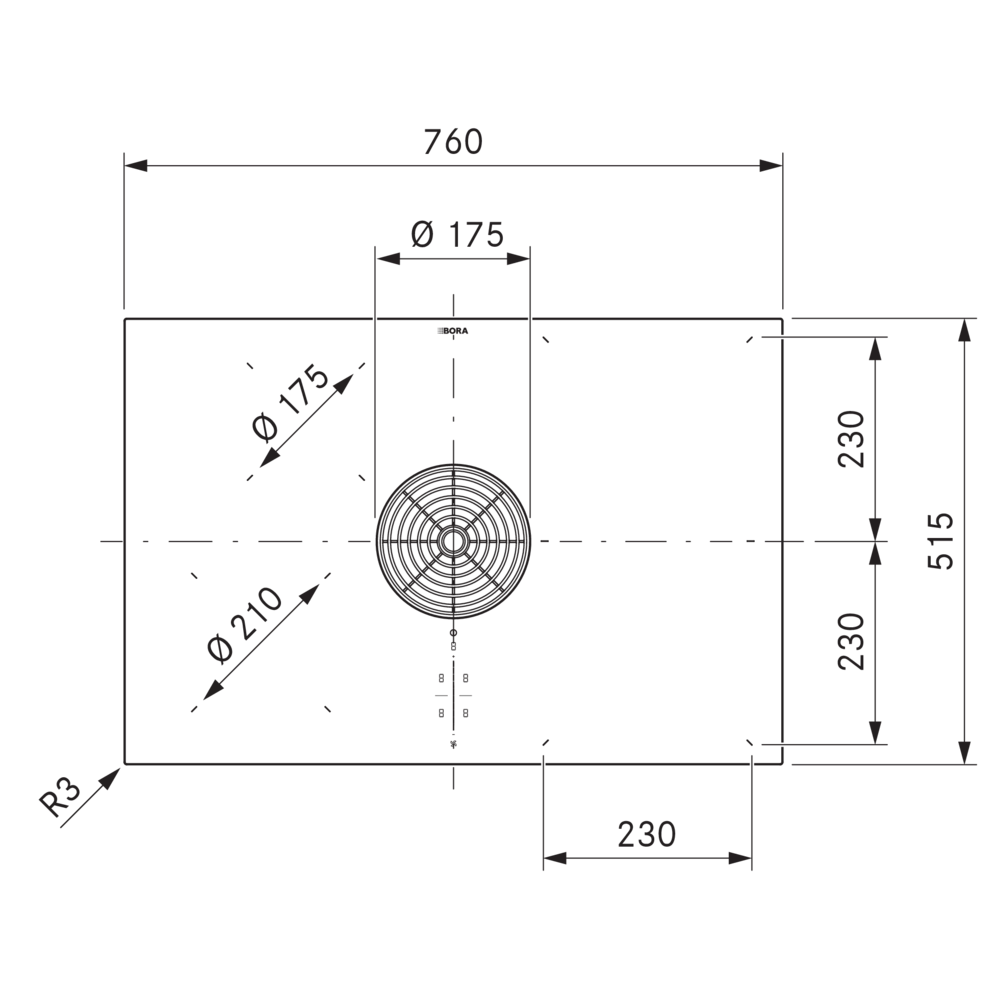

technical data Poly-phase connection voltage 380 - 415 V 2N / 3N Single-phase connection voltage 220-240 V Frequency 50/60 Hz Maximum power consumption 7600 W (4400 W / 3600 W) Fuse / three-phase mains connection 3 x 16 A Fuse / 2-phase mains connection 2 x 16 A Fuse / single-phase connection 1 x 32 A (1 x 20 A / 1 x 16 A) Dimensions (width x depth x height) 760 x 515 x 199 mm Weight (incl. accessories / packaging) 23.6 kg Surface material Glass ceramic Hob extractor power levels 1 - 9, P Hob power level 1 - 9, P Dimensions of the front left cooking zone Ø 210 mm Dimensions of the rear left cooking zone Ø 175 mm Dimensions of the front right cooking zone 230 x 230 mm Dimensions of the rear right cooking zone 230 x 230 mm Power of the front left cooking zone 2300 W Power of the rear left cooking zone 1400 W Power of the front right cooking zone 2100 W Power of the rear right cooking zone 2100 W Power level of the front left cooking zone 3000 W Power level power level rear left cooking zone 2100 W Power level power level front right cooking zone 3000 W Power level power level rear right cooking zone 3000 W Filter medium Activated carbon with ion exchanger Filter material Filter panel with fine mesh filter Max.filter 150 h (1 year) Product Description • Intuitive sControl operation • eSwap - Easy filter replacement • Efficient odor removal • Minimum noise level.• Easy cleaning • Ultra large “FULL” induction cooking zones • automatic bridge function • Integrated fat collection tray • Maximum storage space • Automatic extractor control Materials supplied • “FULL” induction/induction hob with extractor per hob integrated cooking - PURMU filter • Black inlet nozzle • stainless steel grease filter • activated carbon filter • instructions for use and assembly • drilling template • Mounting clamps • Sealing tape • Set of air compensation plates height • Mains connection of the housing cover • Mounting accessories for mains connection Accessories • Black air nozzle PUED • Greige inlet nozzle PUEDG • Red air nozzle PUEDR • Jade green air nozzle PUEDJ • Orange air vent PUEDO • Blue air vent PUEDB • Stainless steel grease filter PUEF • Activated carbon filter PUAKF • Sealing tape UDB25 • Hob frame BKR760 • Air purification box with telescopic extension PULBTA • Grill pan from induction “FULL” KWGPFI Product and design warnings • Mains connection cable to be provided on site • Front mains connection socket • For connection to the rear wall of the body the air purification box is equipped with an extension telescopic (extension up to 80 mm) • In the case of cabinets with a very deep hob, the telescopic extension of the air purification box can be extended by 105 mm with the additional PULBTA telescopic extension (available as an accessory) • Provide sufficient ventilation under the hob • Type of assembly: flush with the worktop or on top • The drawers or intermediate shelves of the built-in cabinet must be removable to allow maintenance and cleaning work • Please note that with induction hobs induction-compatible cookware must be used • The hob extractor system can be combined with all BORA sockets
