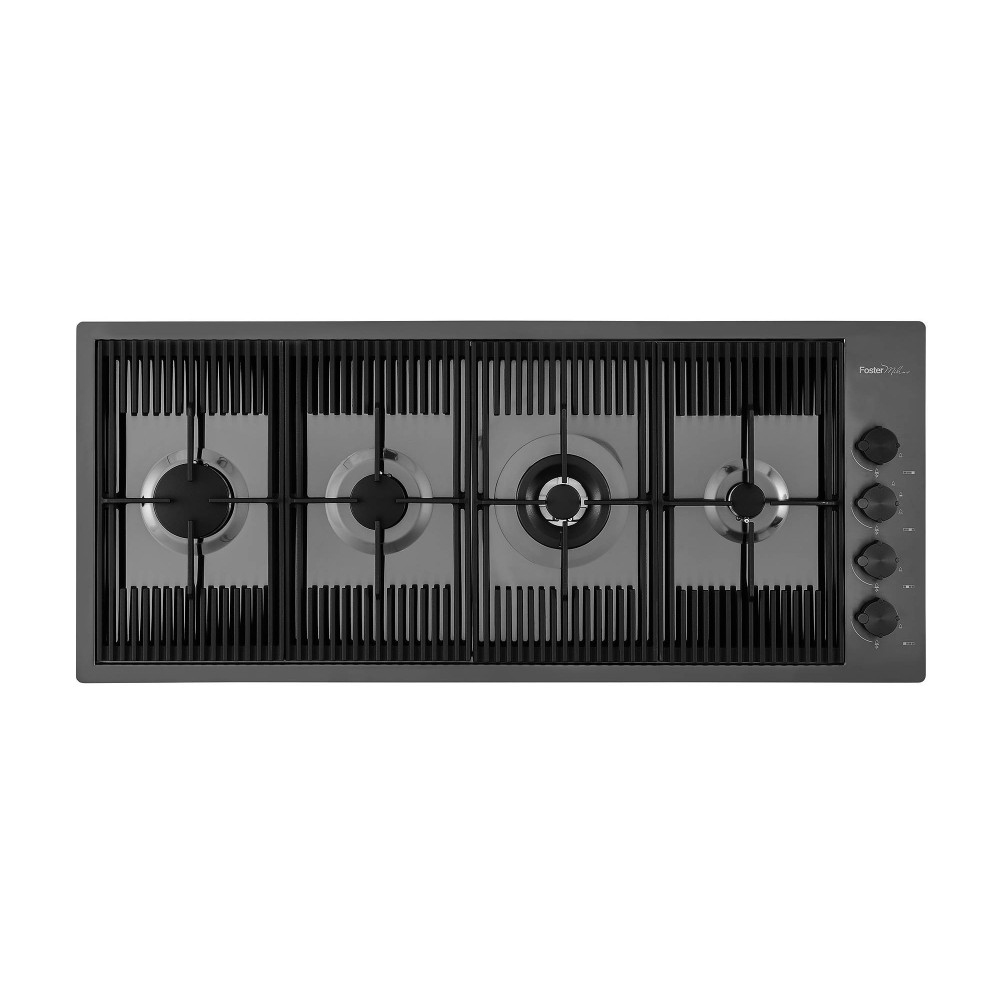

Cooking plan Milanello Gun
Metal
Gas cooking plants
Code: 7681 006
FEATURES
GUN METAL Gun Metal finish is obtained by treating steel with a physical process called PVD (Phisical
Vacuum Deposition) that deposits particles of noble metals on the surface. The result is a
unique and refined aesthetic effect, and an improvement of mechanical properties of steel
which is more resistant to impacts and scratches.
ACCENSION
SOTTOMANOPLE
Maximum freedom of movement with the electric ignition underhand, common feature
to all models, which allows the activation of the flame with one hand.
AEO burners provide yields of 25% greater than standard solutions. The burner
Dual to 2 independent crowns, controlled by a single knob, dispensed from 1 to 5KW, a
power can only be found in professional models.
SPECIAL MARKET Many floors Foster are equipped with special burners, with two or three fire crowns that increase
of much the power supplied and the heated surface directly. In the models DUAL also the
two fire crowns are independent, making these burners perfect both for cooking
intensive and delicate.
SECURITY All floors Foster are equipped with safety valves that, in case of accidental shutdown
of the flame, interrupt the gas supply in very fast times.
GRIGLI IN GHISA The cast iron is the perfect material for the grill of a stove for the many properties that it
distinguish: high thermal capacity that improves cooking yields; weight and
stability that improve safety; robustness that keeps the appearance unchanged over time
original; ease of cleaning.
ULTRAPY Ultra-flat models are the classic example of an encounter between aesthetics and functionality. Elegant
grills, which form a single wide surface, on which to move the pots in full
security.
DETAILS
Installation board Sopratop | Filotop
Coloring Gun Metal
PVD finishing
Material AISI 304 stainless steel
Texture Brushing online
Power supply 220 - 240 V; 50/60 Hz

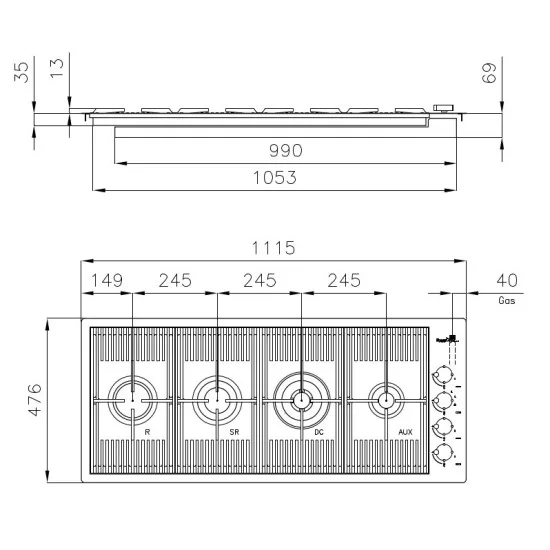

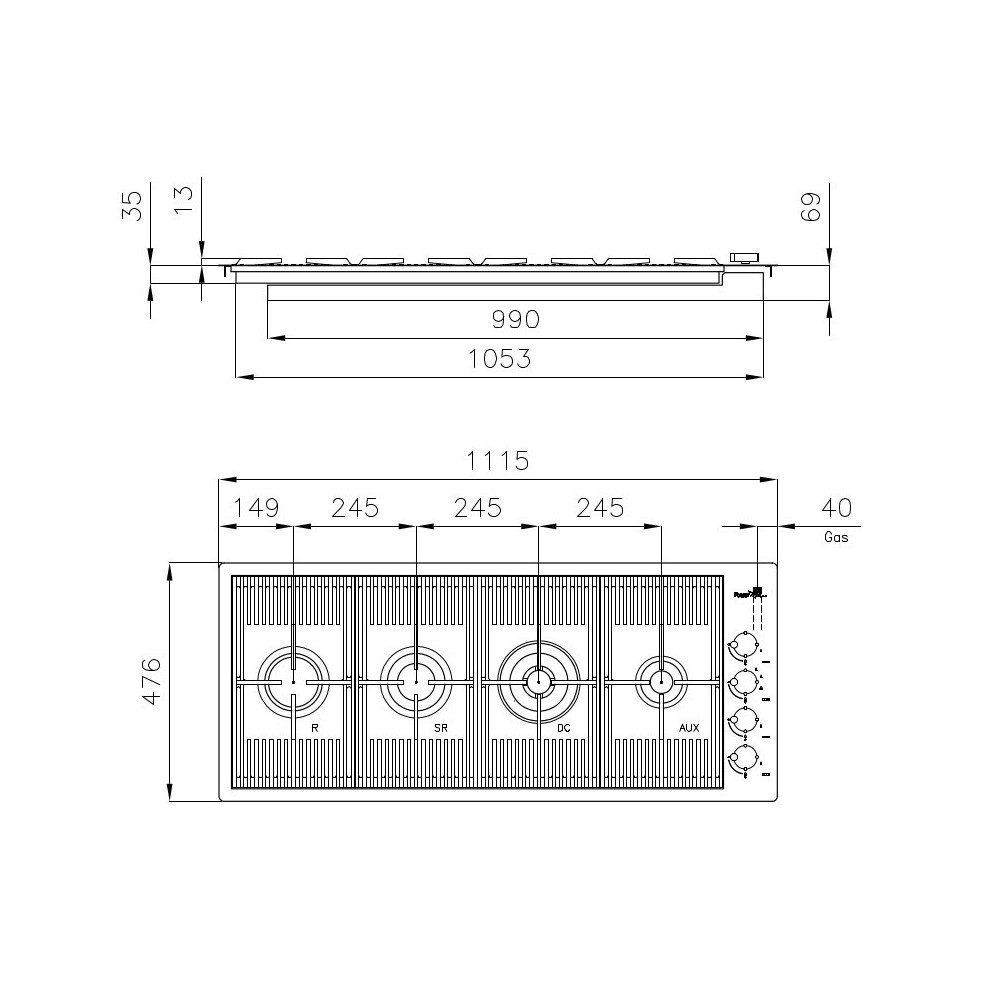

Dimensions 1115x476 mm
Base dimensions 112cm
Heating element 4 fires
Recessed hole See technical sheet
Grills Grills in cast iron and enamelled warp
Total power 10.750 W
Auxiliary 1,000 W
Semirapid 1.750 W
Quick 3,000 W
Double 5,000 W
Safety Safety Valve with rapid intervention thermocouple
Type of ignition Electrical ignition
Tested gas type for installation with methane gas, GPL nozzle set included.
Type Gas Cooking Plan
