No Frost-flat hinge
Built-in combined refrigerator, class D, inverter compressor, No Frost freezer, refrigerator with EcoAirFlow, VitaFresh XXL & Vitafresh 0°, LED electronic control, flat hinges, Soft closing, h 177.2 cm, total volume 260 l (184 l + 76 l ) Spacious combined refrigerator with
VitaFresh XXL <0°>, No Frost technology
and constant temperature levels to
keep food fresh for longer.

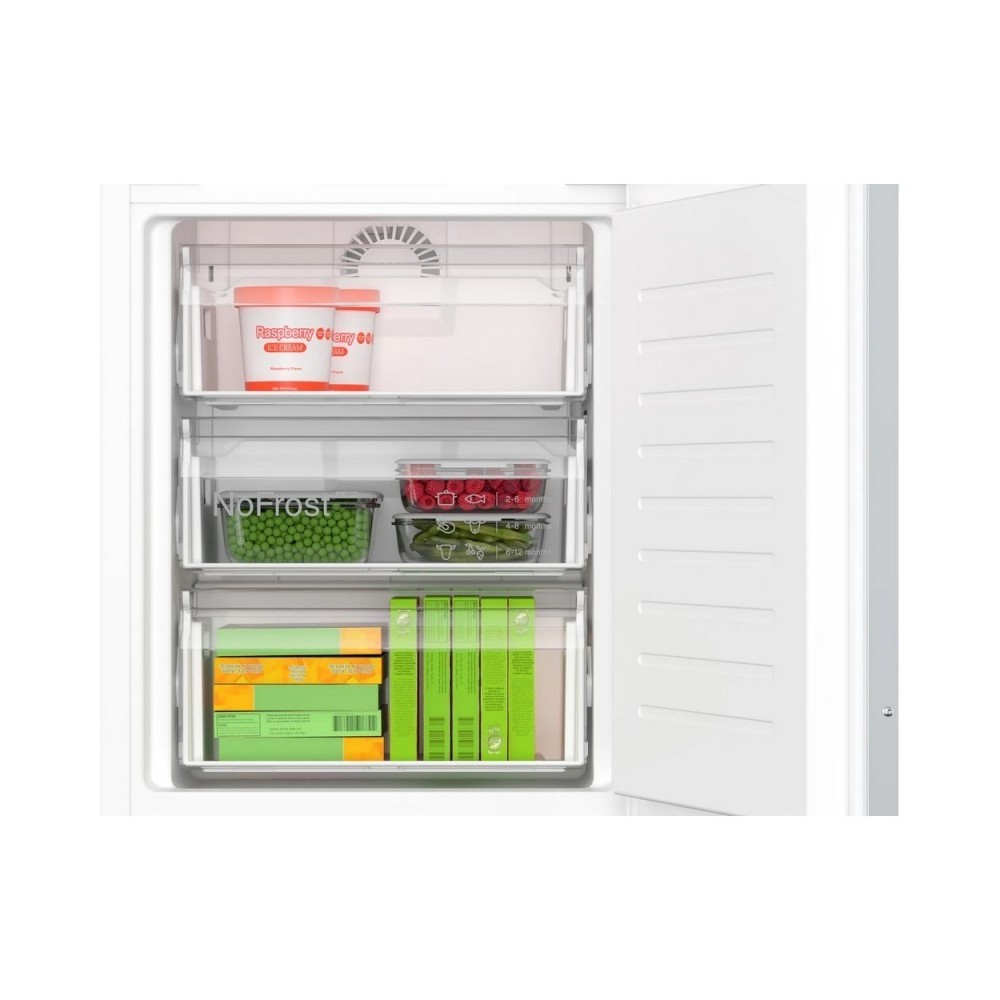

longer. Your frozen food always without
ice and perfectly in view thanks
lighting in the freezer.

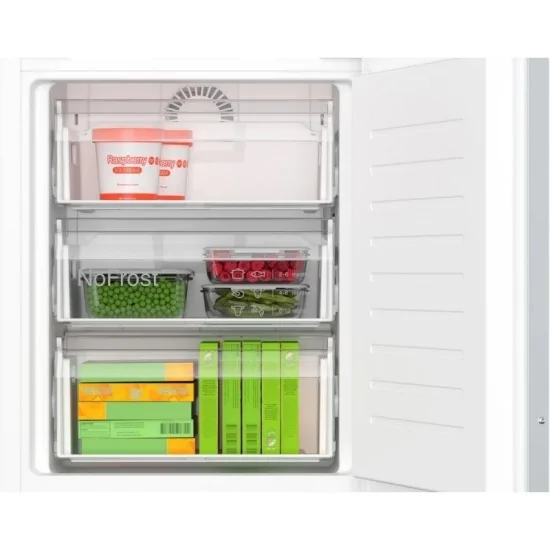

● No Frost: never defrost again

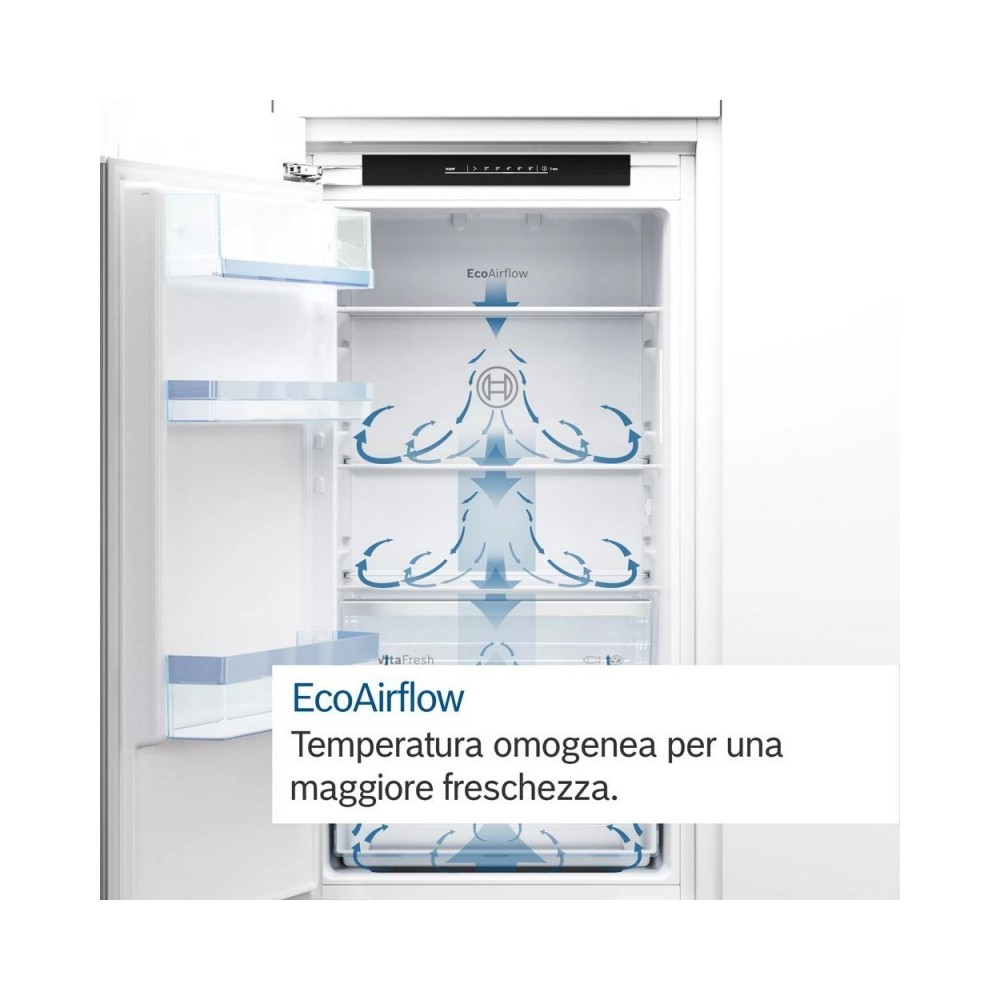

● Eco Airflow: ensures optimal air circulation and
an even temperature in the refrigerator compartment.

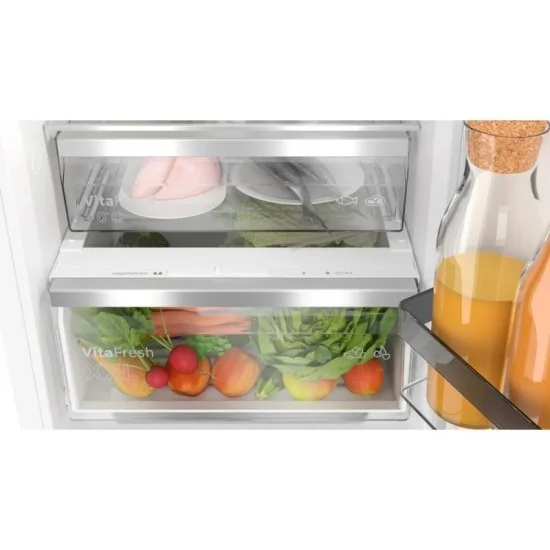

● VitaFresh XXL <0°C>: keeps food fresh for longer in the
extra-large climate-controlled drawers.
● Intelligent Inverter Technology: thermal sensors constantly monitor
temperature inside and outside the refrigerator and the
and the inverter compressor proactively adjusts its performance.
its performance.
● FreshSense sensors constantly monitor and control
the temperature conditions of the refrigerator and the environment,
maintaining a constant temperature in both cavities.
Technical data
Energy efficiency class: D
Average energy consumption in kilowatt hours per year
(kWh/a): 186 kWh/annum
Sum of volume of frozen compartments: 76 l
Sum of volume of refrigeration compartments: 184 l
Airborne noise emissions: 35 dB(A) re 1 pW
Airborne noise emission class: B
Product type: Built-in
Framed door: yes, as accessory

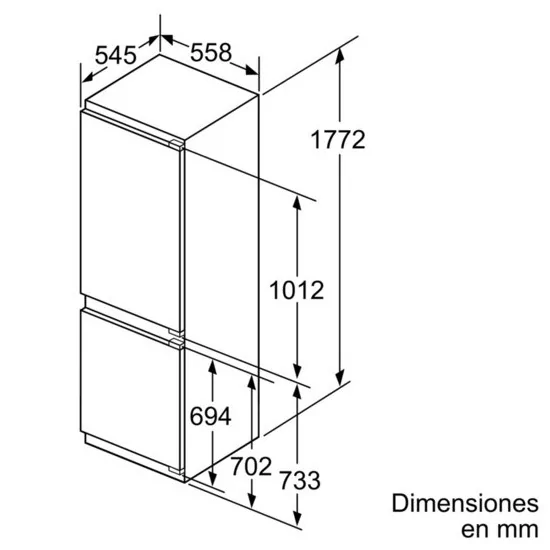

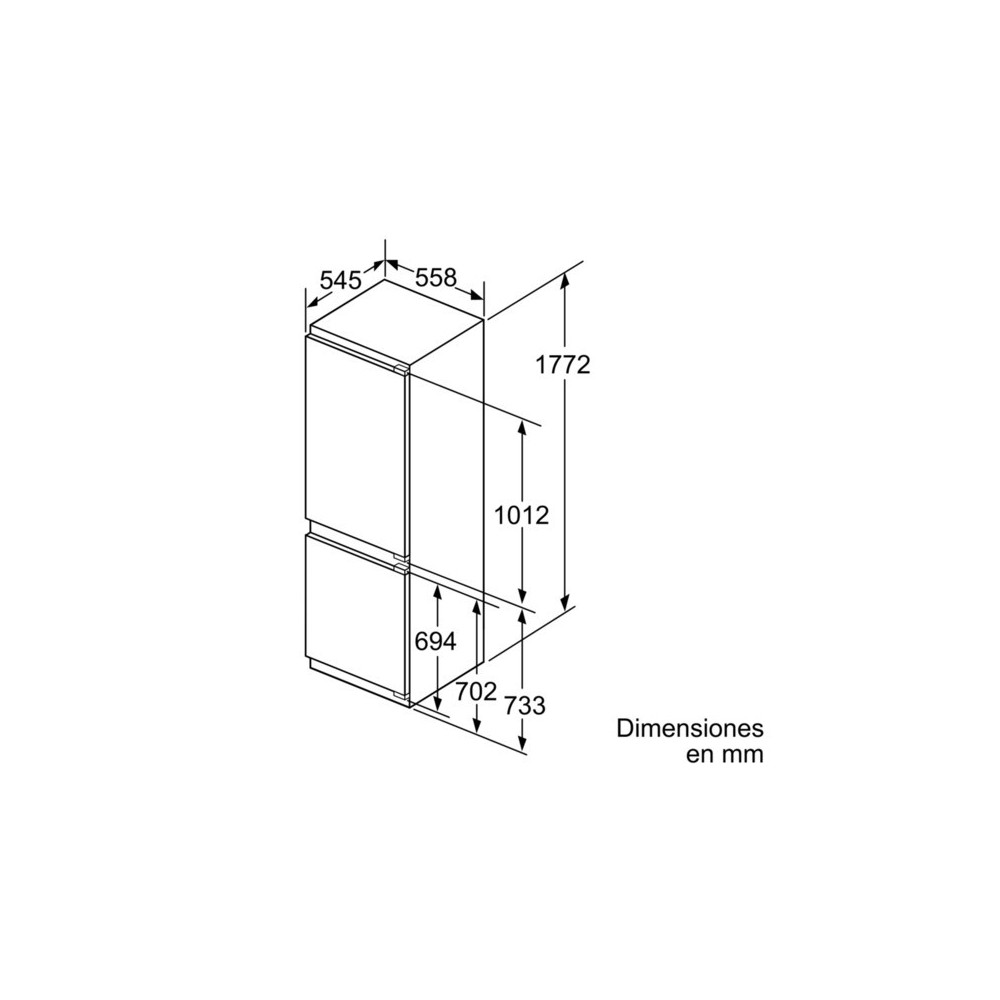

Height: 1772 mm
Product width: 558 mm
Product depth: 548 mm

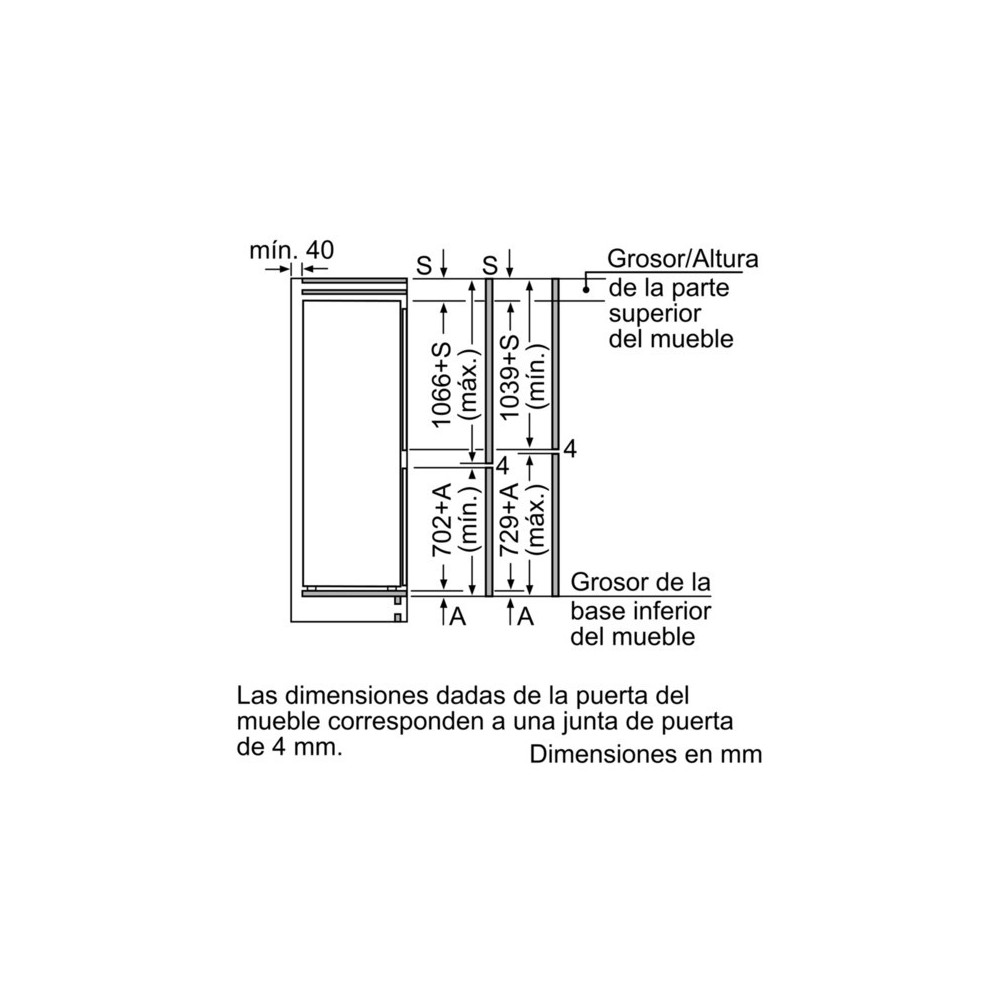

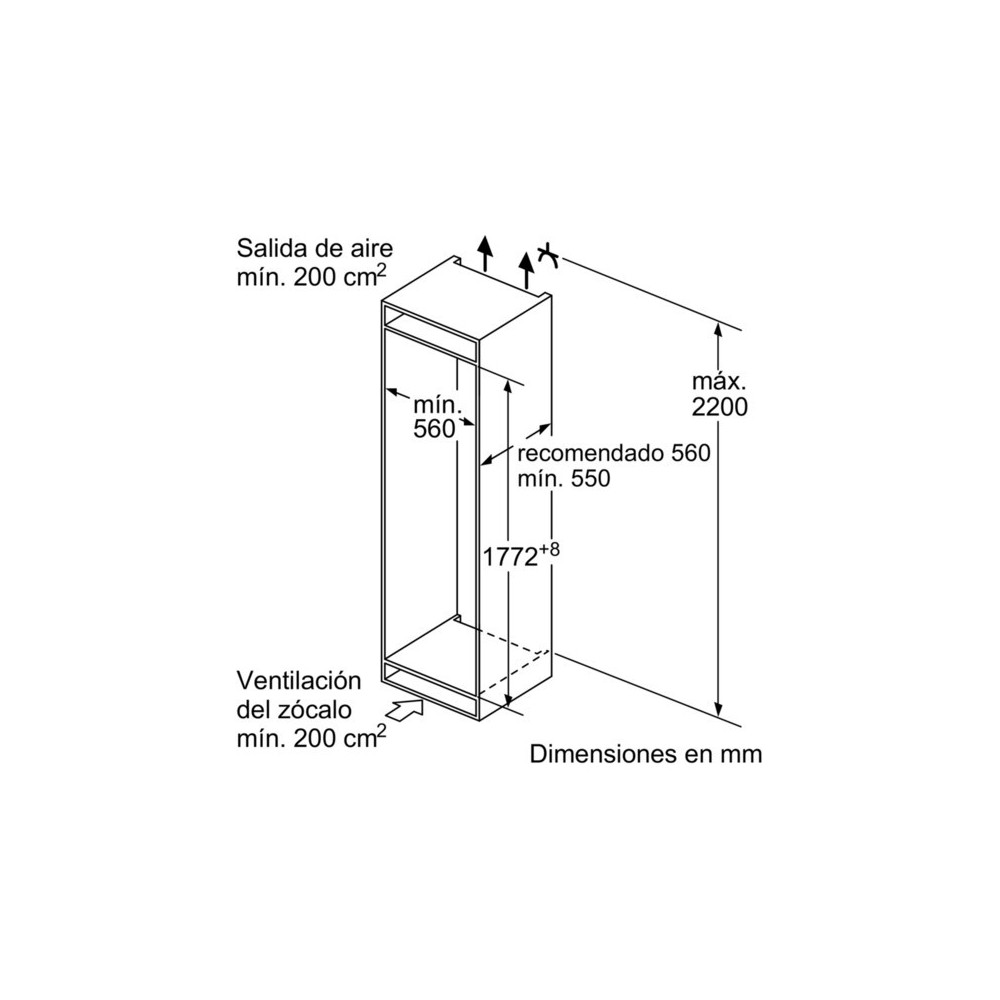

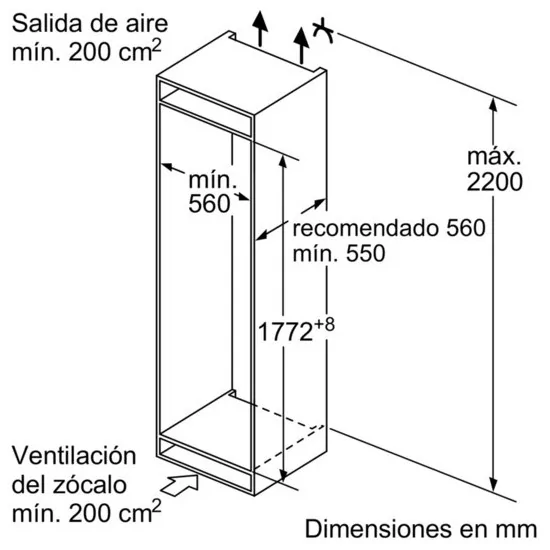

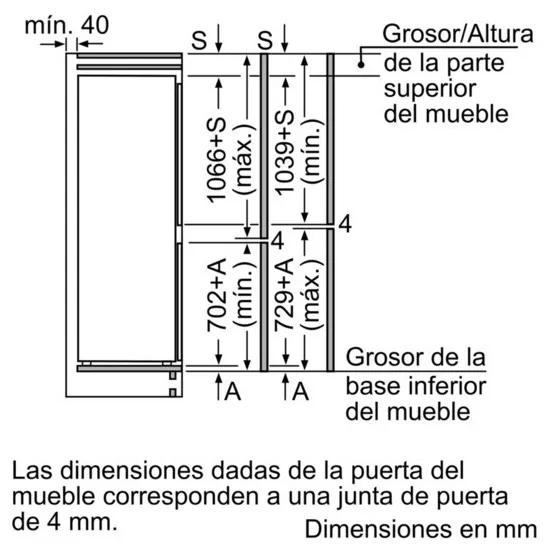

Dimensions of installation compartment (HxWxD): 1775.0 x 560 x
550 mm
Net weight: 58.3 kg
Current: 10 A
Door hinge: Reversible to the right
Frequency: 50 Hz
Length of power supply cable: 230 cm
Number of compressors: 1
Number of independent cooling systems: 2
Internal cooling compartment fan: no
Reversible door(s): yes
Number of adjustable shelves in the refrigerator: 2

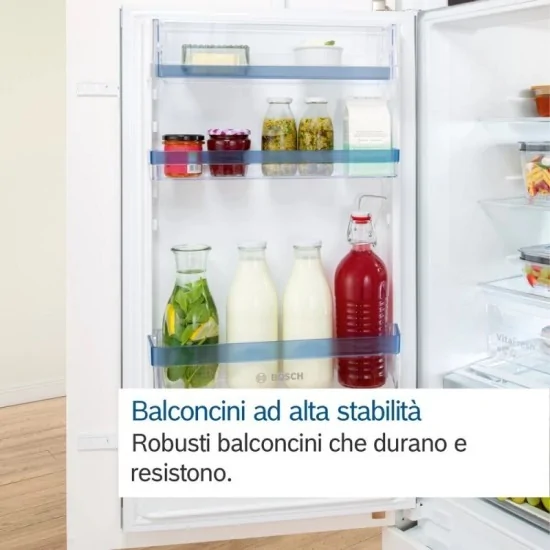

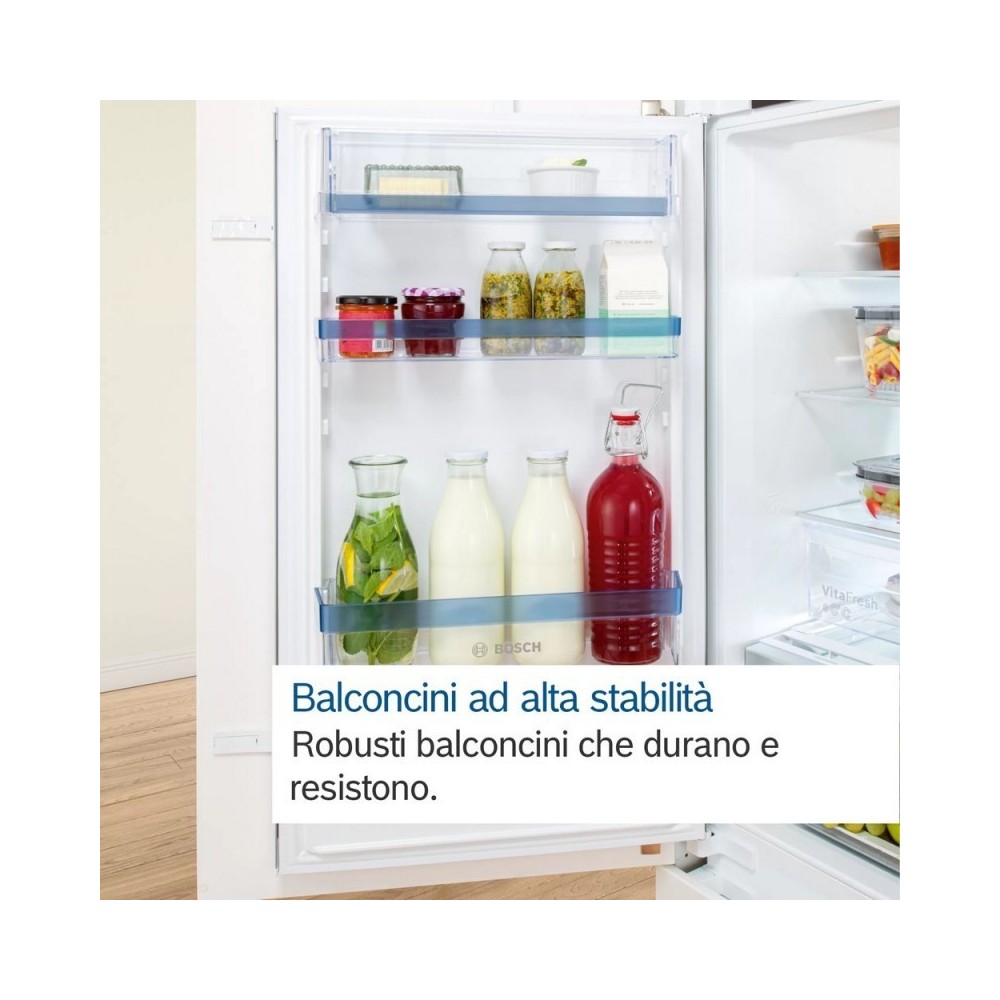

Bottle shelves: yes
No Frost system: Freezer
Type of installation: Fully concealed
Hinge type: Flat hinge
Integrated accessories
3 x Egg cups
1 x Ice cube tray
Series 6, Built-in combined fridge-freezer
built-in, 177.2 x 55.8 cm, flat soft-hinge
closing
KIN86ADD0
Spacious combined refrigerator with
VitaFresh XXL <0°>, No
Frost and constant temperature levels
to keep food fresh for longer.
longer. Your frozen food always without
ice and perfectly in view thanks
lighting in the freezer.
- Built-in combined refrigerator
Key features

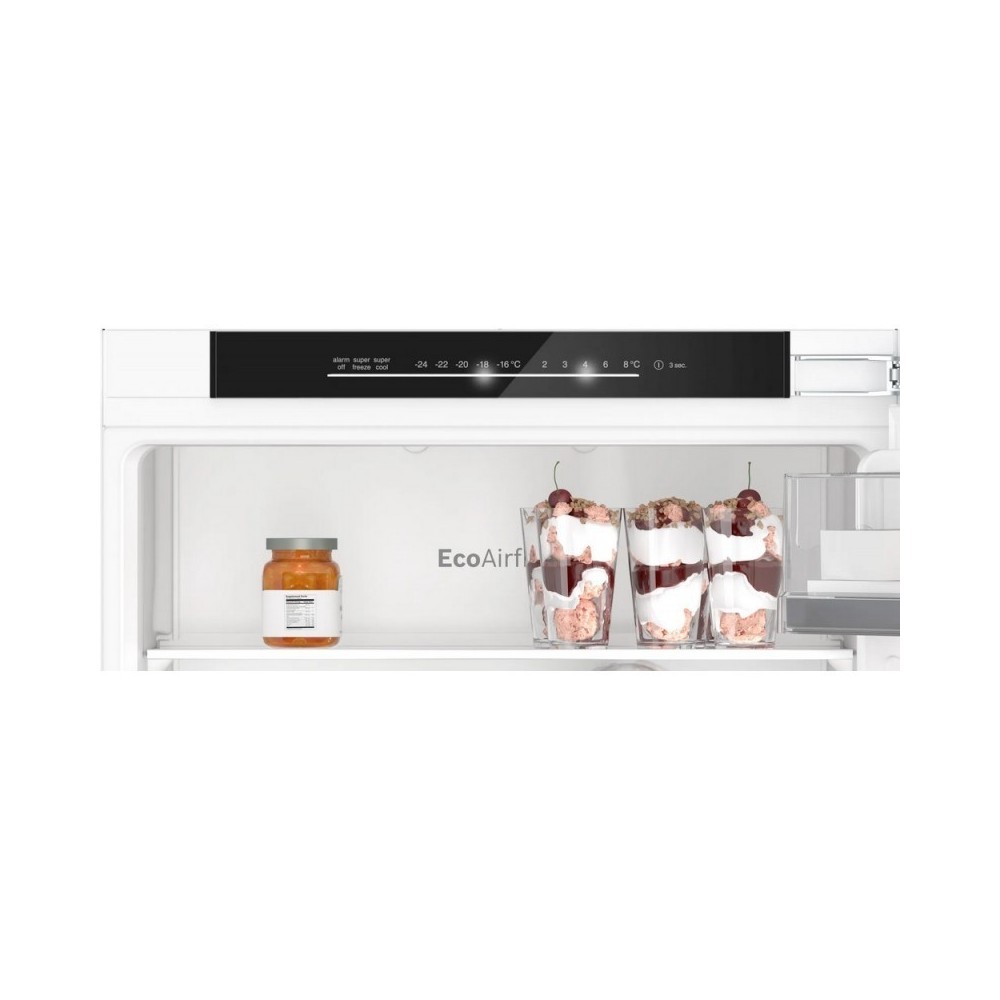

- Electronic LED controls for separate regulation of the
temperature of the two compartments
- Optical signal for open door, acoustic signal door
open
- 2 separate cooling circuits
- Dimensions in cm (hxlxp) 177.2 cm x 55.8 cm x 54.8 cm
- Niche dimensions in cm (hxlxp): 177.5 cm x 56.0 cm x 55.0
cm
- Door with flat hinge
- Right-hand hinges, reversible
- Total net volume: 260 l
REFRIGERATOR COMPARTMENT

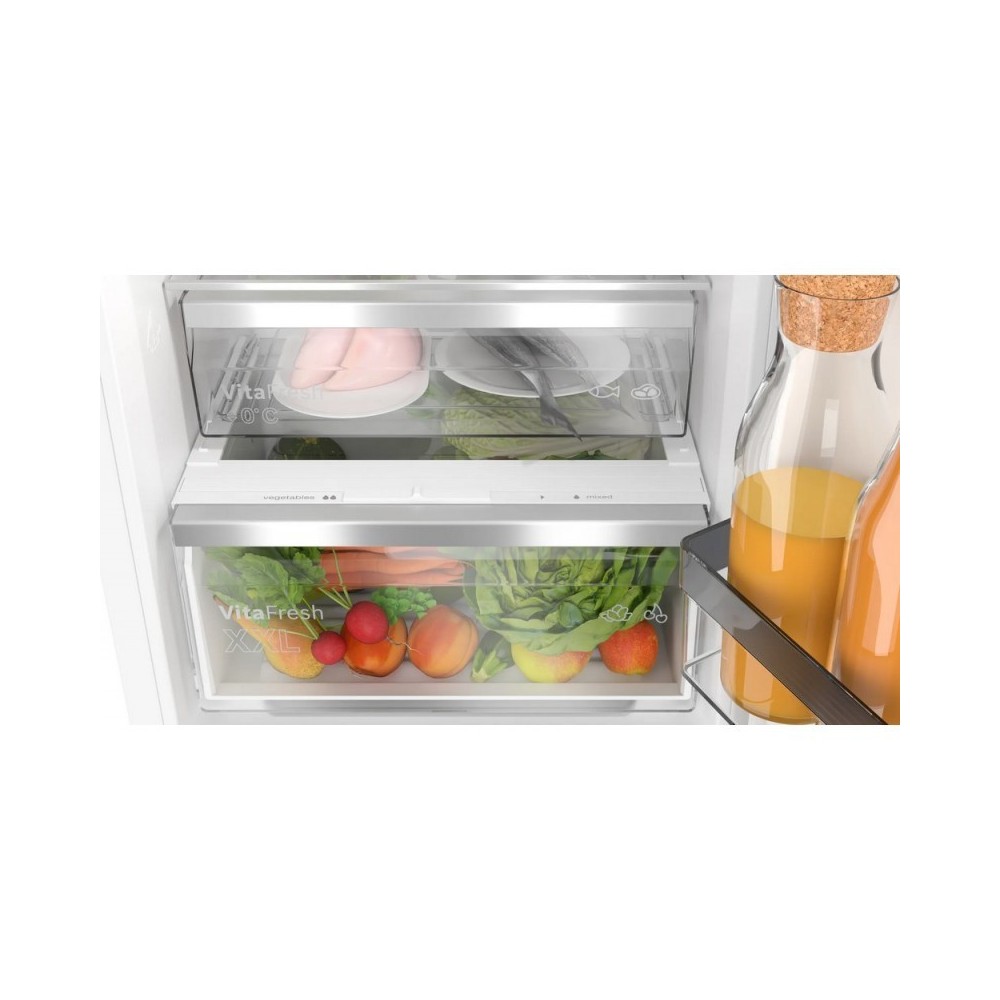

- 1 VitaFresh drawer with humidity control - keeps fruit and
vegetables fresh for longer
- 3 unbreakable glass shelves, 2 of which are height adjustable
