400 Series automatic espresso machine
60 x 45 cm, Stainless steel door behind glass
CM450112
– Door without handle with automatic opening
– 12 different types of drinks
– 8 personalized drinks
– 2 cups together
– Water, coffee bean and milk levels
– Door without handle / with automatic opening Innovative system for instant heating which guarantees immediate preparation and at a constant temperature
Cutting-edge technology for a perfect aroma
Cleaning and descaling program
automatic after each single preparation
TFT touch display
Appliance holder surface with display
controls without front band
One-Touch Controls
"Memory" function
Atmosphere light: 7-level adjustment
Electronic control of milk, water and coffee quantities to ensure perfect results
Programs
Ristretto / 2 x Ristretto.
Espresso / 2 x Espresso. Espresso Macchiato /
2 x Espresso Macchiato. Coffee / 2 x Coffee.
American / 2 x American. Coffee Latte / 2 x
Coffee with milk. Latte Macchiato / 2 x Milk
Stained. Cappuccino / 2 x Cappuccino. Milk
/ 2 x Milk Foam / 2 x Foam. Warm milk /
2 x Hot milk Hot water/ 2 x Hot water.
Operation
Automatic door opening
TFT touch display with knobs for easy and intuitive use
"Memory" function: they can be
personalized and stored up to 8 types of drinks
4 size settings to adapt the drink to the size of the cup
8 types of coffee intensity from extra light to extra strong coffee: 3 levels.
10 hot water temperature levels. 4 coffee/milk levels
Adjustable grinding level
Height-adjustable coffee dispenser, from 7 to 15 cm
Easy access to the water tank, container
milk and coffee container
The coffee grinder with ceramic discs allows
not to do any maintenance
Separate coffee container for storing a second type of coffee
Operating pressure 19 bar
Double grinding and preparation cycle for
an extra intense aroma for 1 drink
Double grinding and preparation cycle for 2 drinks
Dispenser with integrated milk container
0.5 liter insulated steel milk container.
Integrated LED lighting
Removable 500 g coffee bean container
with lid to protect the aroma of the coffee
Automatic detection of the quantity of ground coffee
Removable 2.4 l water tank. Electronic filter saturation indication
Automatic saturation adjustment
drip tray and coffee grounds container.
Integrated digital services (Home Connect) with the
home network via LAN cable (recommended) or via WiFi
How Home Connect mode works
depends on the availability of the Home service
Connect in every country. For further
Child safety.
Cleaning
Fully automatic program
washing during switching on and off
of the appliance
Automatic cleaning of the milk system by steam after each use. Automatic cleaning and descaling programme.
Emptying program to prepare the appliance for transport or before a holiday period
Grinding system emptying function
to remove coffee residues when changing the type of coffee
Removable preparation unit
Dishwasher-safe coffee container and liquid collection tray. Dishwasher-safe foam dispenser.

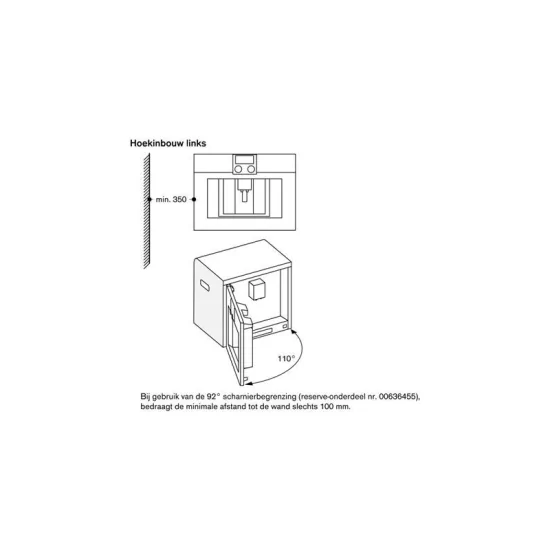

Assembly precautions Ideal installation height 95 - 145 cm (upper niche bottom profile)
The appliance protrudes 47 mm from the front of the
furniture niche. If installed in a corner, additional space is required. In the case of a door opening angle of approximately 110°, the
Mounting distance from the wall must be at least 350 mm
In the case of a door opening angle of approximately 155°, the
distance from the wall for mounting must be at least 650 mm. In the case of a door opening angle of approximately 92°, the
distance from the wall must be at least 100
mm (spare part No. 00636455)
Possibility of mounting above WS from 14 cm in
a standard 59 cm niche
The LAN port is located on the rear right side, bottom
Special accessories (can be ordered as spare parts):
No. 17000706 Water Filter Tablets
descalers Cleaning tablets No. 00636455
Door hinge adapter (opening angle
door 92°) No. 11015223 Coffee container with lid
Connection values Total absorption 1.60 kW.
Connection cable length 1.7 m with Schuko plug.
Provide a LAN cable Check the manual to turn off the WiFi module Intuitive display with texts.
