Impeccable cooking experience with the iQ700 CB774G1B1 compact oven from the renowned Siemens brand. With 11 functions, elegant design and perfect dimensions for 60 x 45 cm.
Compact built-in oven Black
cookControl Plus - Preinstalled settings for results
excellent.
activeClean® - the oven's automatic cleaning system.
humidClean Plus - For quick cleaning, dirt is
softened by steaming the mixture of water and detergent, so it
this way it can be removed more easily.
2D Hot Air - an even distribution of heat on one level
for excellent results.
Home Connect with Remote Control - Unlock the full potential
of your smart oven.
Technical Data.
Color/material of front panel : Black
Product construction type : Built-in
Cleaning System : Pyrolysis+Hydrolysis
Dimensions of installation compartment (HxWxD) : 450-455 x 560-568 x
550 mm
Dimensions (HxWxD) : 455 x 594 x 548 mm
Dimensions of packed product (HxWxD) : 530 x 685 x 660 mm
Dashboard material : glass
Door material : glass
Net weight : 31.0 kg
Usable volume : 47 l
Cooking method : Gentle hot air, braising, Surface grill
large, Small surface grill, ventilated grill, keep in
warm, Preheating, air recirculation, bottom heating,
Gentle static heating, top and bottom heating
Temperature control : electronic
Number of interior lights : 1
Length of power supply cord : 150 cm
EAN code : 4242003901007
Number of compartments - (2010/30/EC) : 1
Energy efficiency class (2010/30/EC) : A+
Energy consumption per cycle conventional (2010/30/EC) : 0.73 kWh/
cycle
Energy consumption per cycle forced air convection (2010/30/EC) :
0.61 kWh/cycle
Energy efficiency index (2010/30/EC) : 81.3 %.
Electrical connection rating data : 2900 W
Current : 13 A
Voltage : 220-240 V
Frequency : 50; 60 Hz
Plug type : Schuko
Accessories included : 1 x Combination grill, 1 x Universal drip pan
enameled
Optional accessories
HZ915003 Glass baking dish with lid 5.4 l.
HZ66X600 Oven compensation strip
HZ636000 Glass baking tray 455x364x30 mm (WxDxH)
HZ634000 Combination grill 455x375x31 mm (WxDxH)
HZ632070 Baking pan
HZ631070 Enameled baking pan x microwave and pyrolysis
HZ617000 Pizza pan 35 cm
HZ538000 Telescopic clip rails 1 level
HZ532010 Non-stick baking pan 455x400x38mm (WxDxH)
HZ531010 Nonstick baking pan 455x375x30mm (WxDxH)
HZ327000 Refractory stone baking bread and pizza
Features
● CB774G1B1
● 11 cooking programs: Top and bottom heating,
Ventilated grill, Large surface grill, Large surface grill
small, Bottom heating, Low temperature cooking,
Preheat, Keep warm, Gentle hot air,
Gentle top and bottom heating, Recirculating air.
● Compact multi 60cm oven
Key Features.
● Cavity volume: 47 l
●
● Temperature control from 30 °C to 300 °C
●
● Energy efficiency class (acc. EU No. 65/2014): A+(on a
scale of energy efficiency classes from A++ to D)
● Energy consumption per cycle during operation
conventional:0.73 kWh
● Energy consumption per cycle during operation
ventilated:0.61 kWh
● Number of cavities:1 Power supply type:electric Volume of the
cavity:47 l
●
● humidClean
● pyrolytic self-cleaning
Other features.
● CoolGlass door: door temperature max. 30 °C.
● Rapid reheating
● Electronic clock with start and end of cooking programming
● Halogen interior lighting, Switchable lighting
●
● Folding door, Door with soft-close system
softClose, softMove: the oven door opens and closes
gently and quietly thanks to the
intelligent softMove cushioning.
● Oven cavity: enameled anthracite color
Grills/Rails
● Oven with large cavity and tray support, resistant to the process of
pyrolysis process
Accessories
● Accessories: 1 combination grill, 1 universal enameled drip pan
deep
Energy label
● Maximum electrical consumption: 2.9 kW
● HomeConnect ready
Cleaning
Control system.
● Automatic cooking system: cookControl Plus, recipes and tips
● Tangential cooling fan

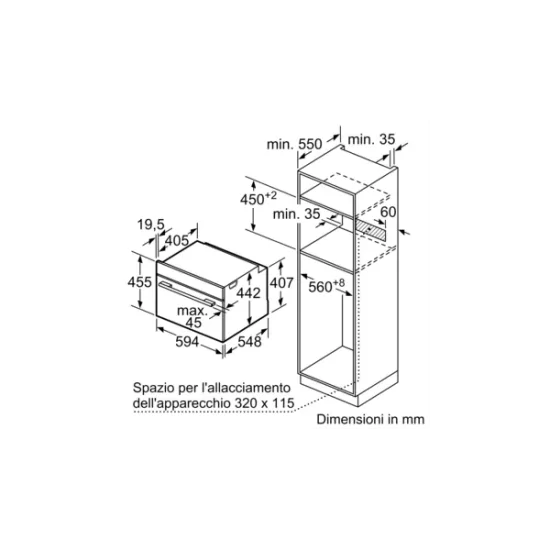

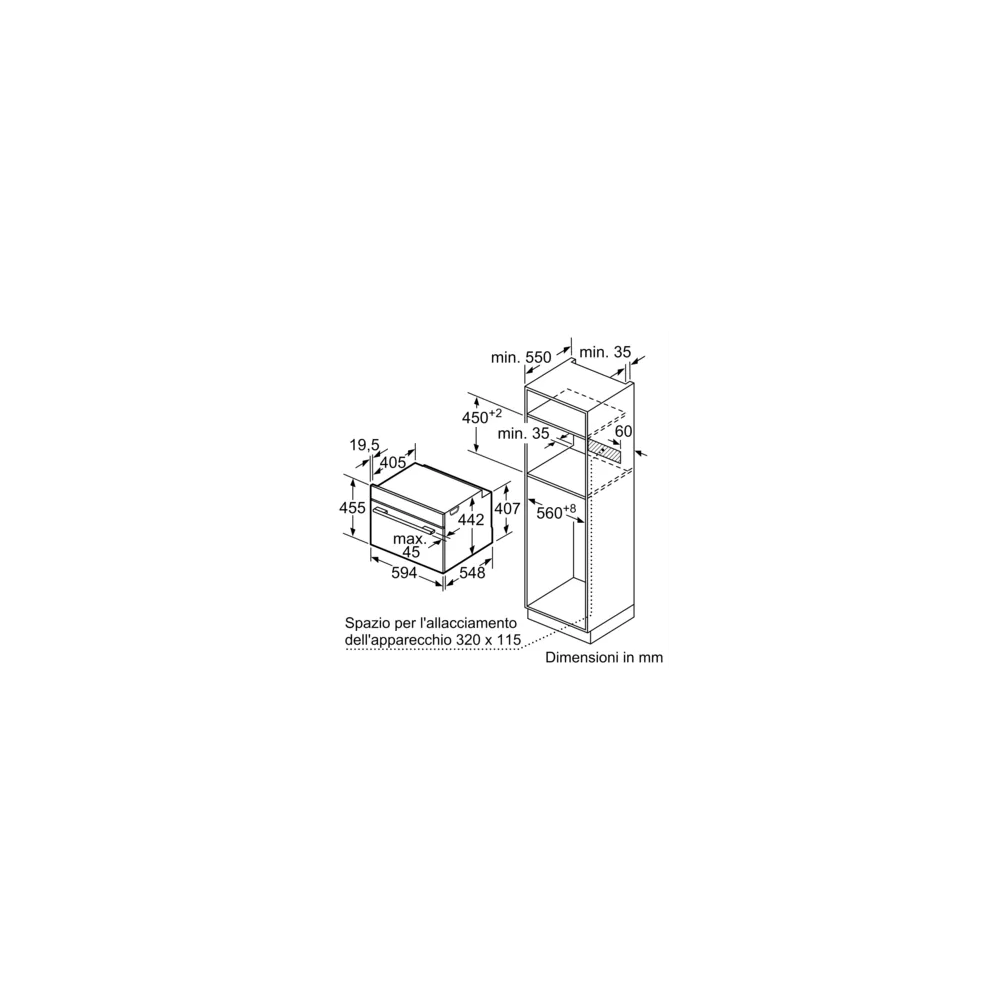

● Please refer to the installation dimensions shown in the
technical drawing
Technical information
● Power cord length: 150 cm
●
● Unit dimensions (HxWxD): 455 mm x 594 mm x 548 mm
●
● Niche dimensions (HxWxD): 560 mm - 568 mm x 450 mm - 455
mm x 550 mm
●
Dimensions
● touchControl
● Suggested temperature
● Actual Temperature Reach
● Voltage: 220 - 240 V
● Number of levels: 3 piece
